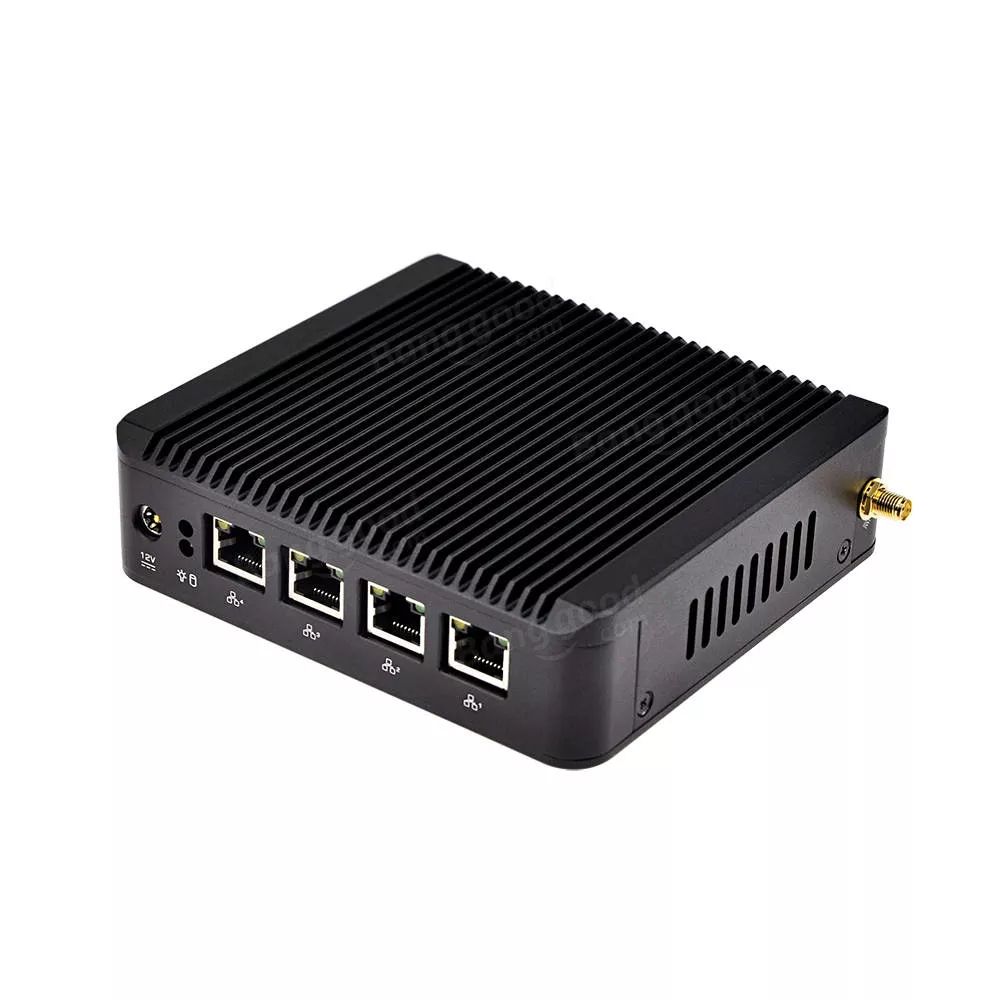

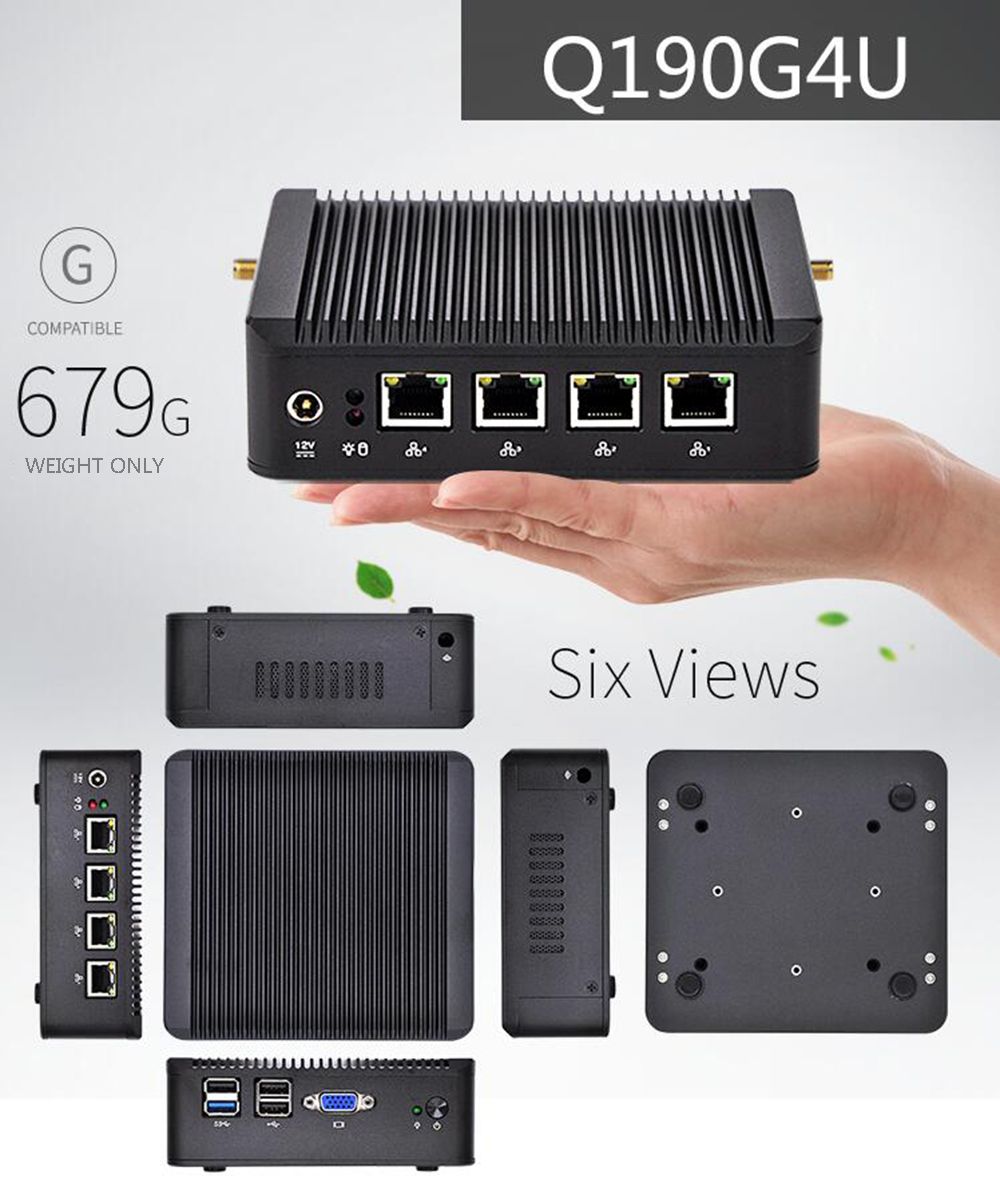

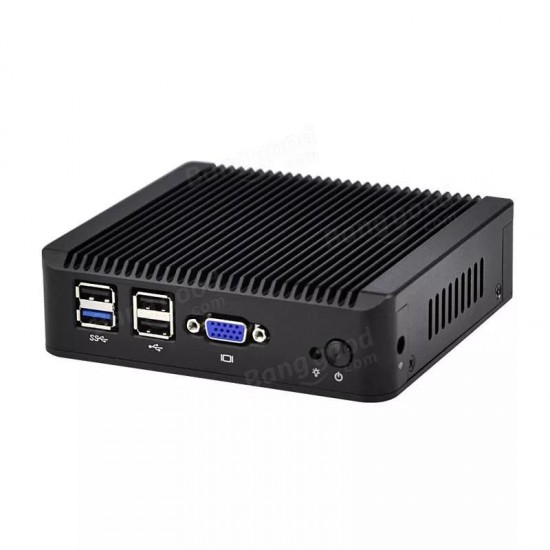

Mini PC Q190G4 Intel Trail J1900 Quad Core 4GB RAM 128GB ROM With 4 LAN Port Pfsense as Router Firewall
- Stock: In Stock
- Model: EB0030113
- SKU: EB0030113
Memory: Support DDR3L 1333/1600 MHz, 1.35V ;1 x DDR3 DIMM Memory Slot ; Max. Support up to 8GB Memory
| General | |
| Brand | Renhotec |
| Type | Q190G4 |
| Color | Black |
| Type | Mini PC |
| RAM | 4GB DDR3 |
| ROM | 128GB |
| CPU | Intel Bay Trail j1900 |
| Core | Qual Core,2 GHz, up to 2.42 GHz |
| Media Supported | |
| Decoder Format | H.263,H.264,H.265,HD MPEG4 |
| Video format | All |
| Audio format | All |
| Photo Format | All |
| Support 5.1 Surround Sound Output | Yes |
| Product Details | |
| 5G WiFi | No |
| bluetooth | Support USB Signal wirelss Module only |
| Power Supply | Charge Adapter |
| Operating | Support Windows 7 Windows 8 Windows 10 Linux/Pfsense etc |
| Language | Multi-language |
| HDMI Function | HDCP |
| Power Consumption | 15W |

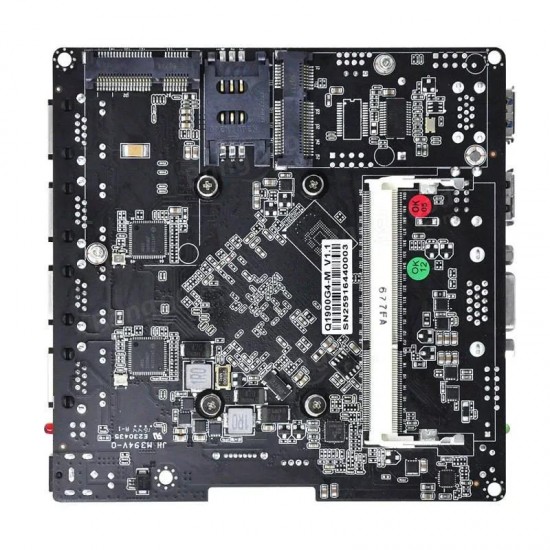

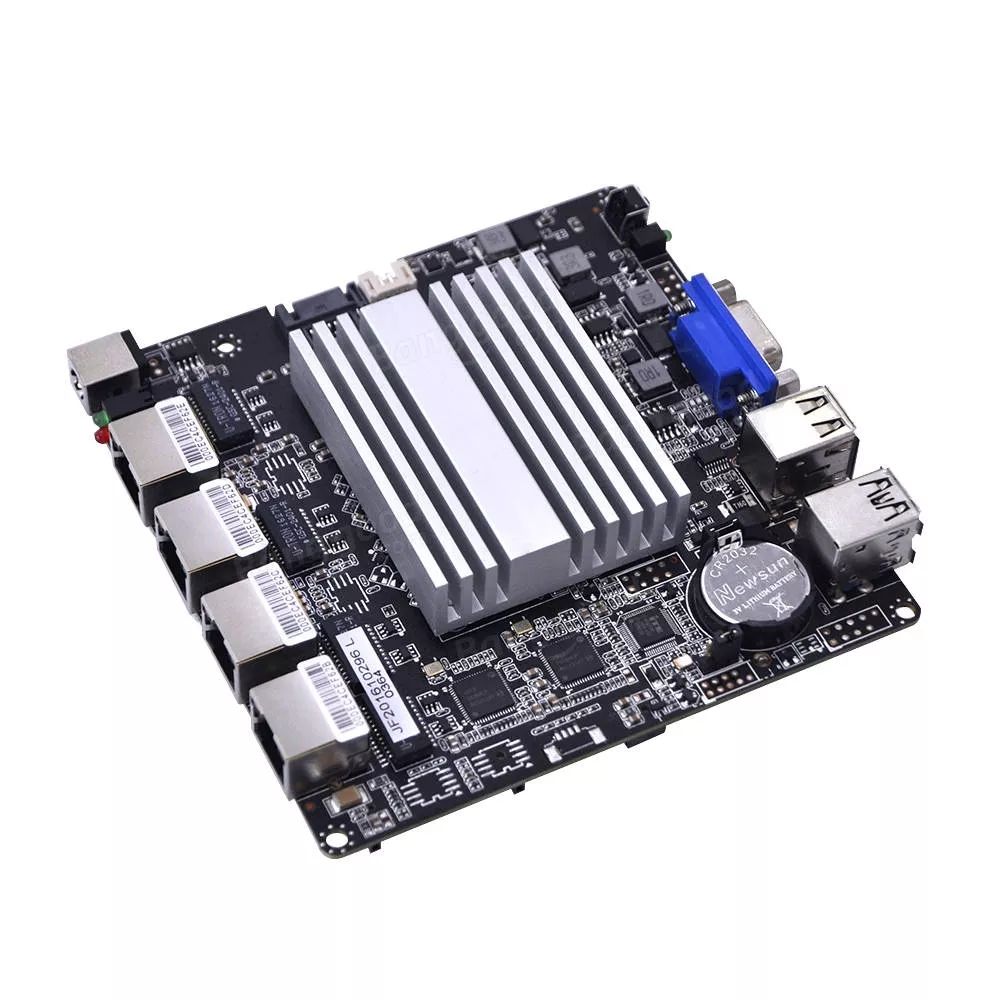

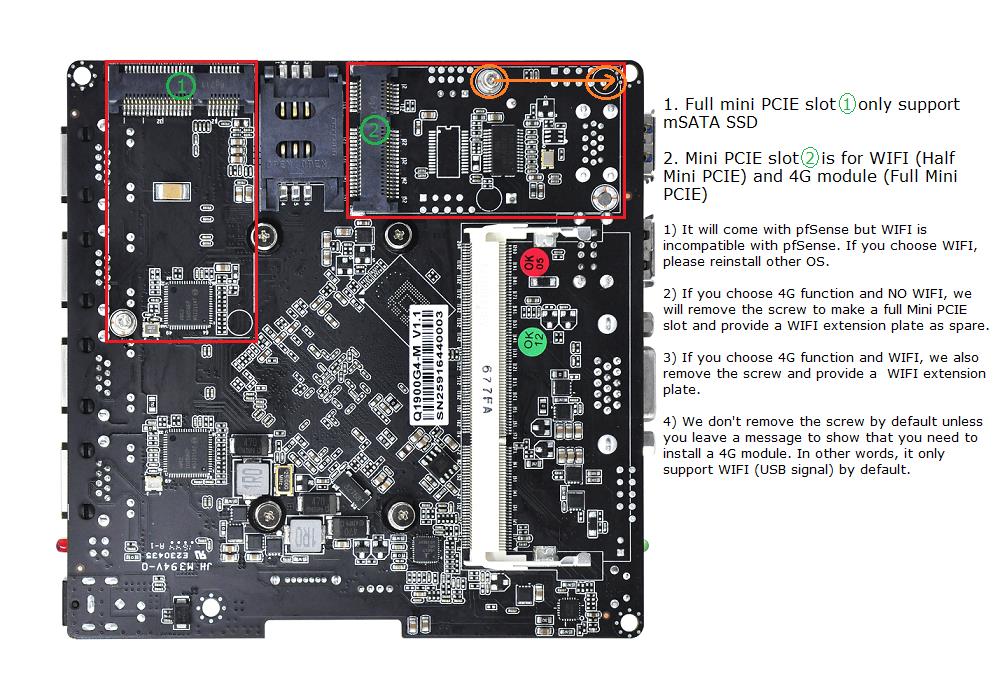

| Internal Connectors | 1 x Minipcie port (for mSATA SSD) 1 x Minipcie port (for WIFI/BLUETOOT Module,support USB Signal wirelss Module only) 1 x DDR3L SO-DIMM Memory Slot 1 x SATA Port 1 x SATA power connector 1 x Automatically boot jumper 1 x RS232 header (optional) 1 x SIM Card slot (optional) |

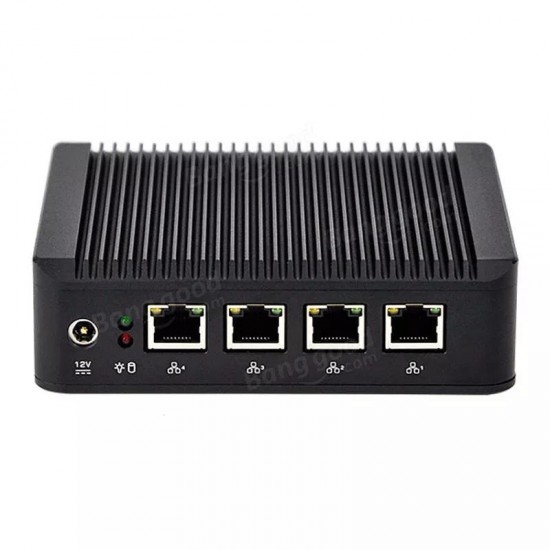

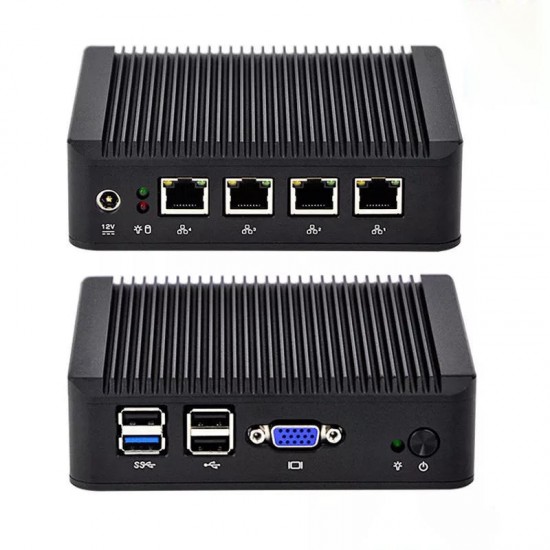

| Back-Panel Connectors | 1 × DV 12V input Power LED,HDD LED 4 x RJ-45 Ports WIFI and Bluetooth (support USB Signal wirelss Module only) |
| Power Requirement | |
| Power Type | External Power Adapter Mode |
| Power Input Vol | 100-240V / 50-60Hz |
| Dimension and Weight | |
| Product weight | 0.8000 kg |
| Package weight | 1.5500 kg |

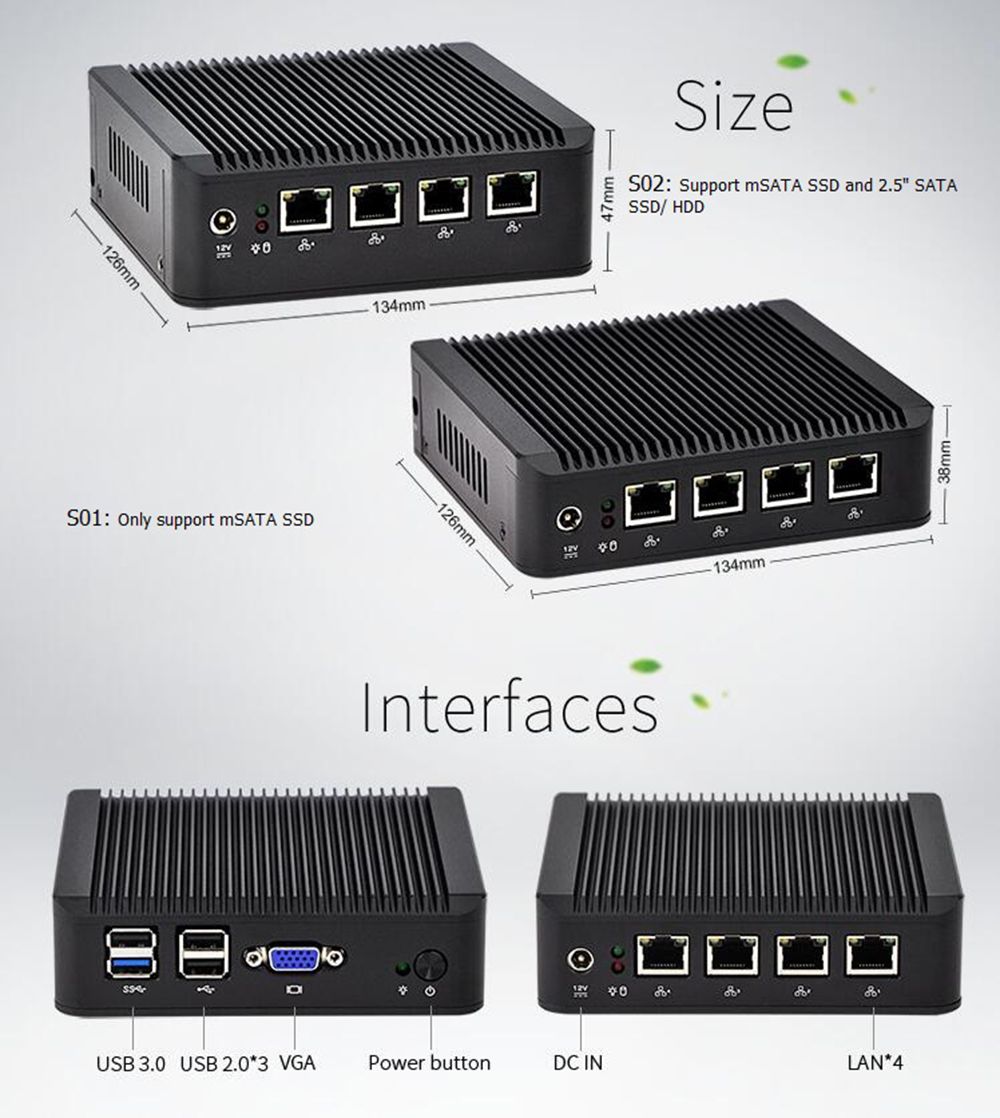

| Product size (L x W x H) | 12.50 x 12.50 x 4.50 cm |
| Package size (L x W x H) | 20.80 x 18.60 x 7.50 cm |
| Package Contents | |

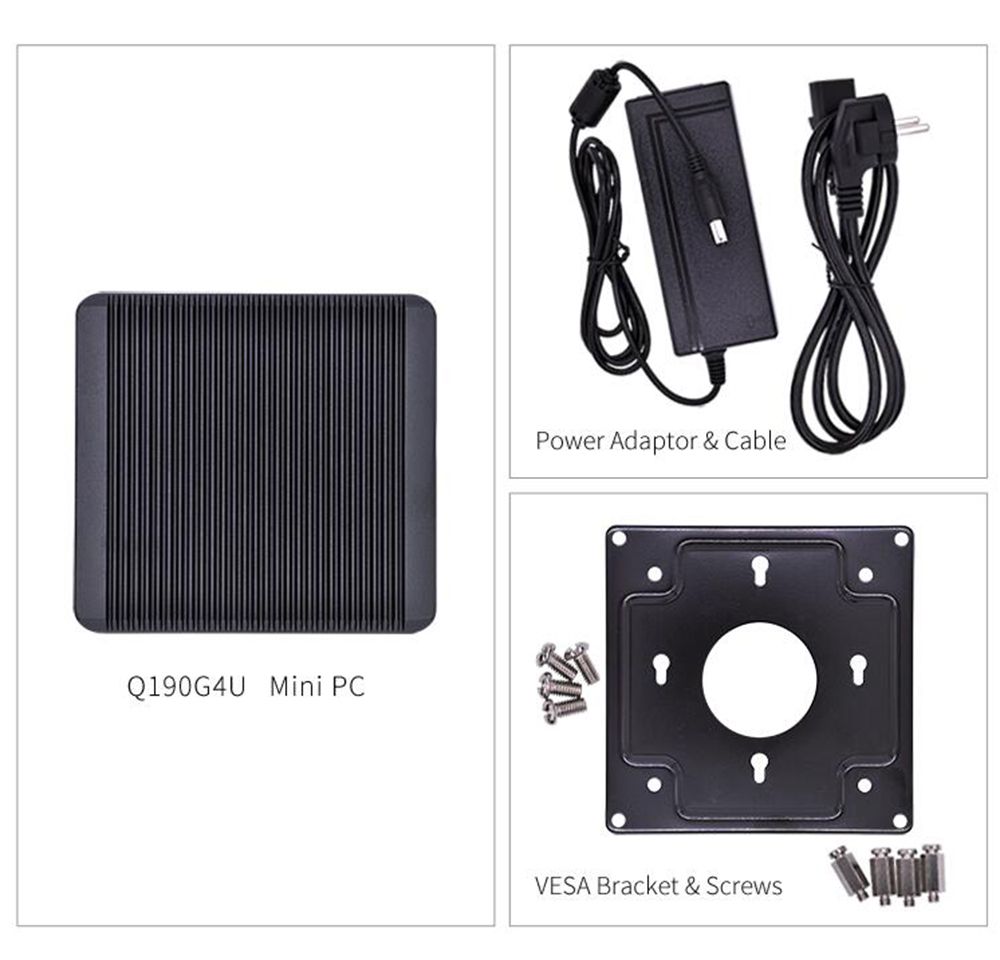

| Package Contents | 1 x Mini PC, 1 x Power Adapter, 1 x User Manual |
