Mini MP3 Player Module MP3 Voice Audio Decoder Board For Supporting TF Card U-Disk IO/Serial Port/AD
- Stock: In Stock
- Model: EB0041395
- SKU: EB0041395
- Brand:Renhotec
- Voltage: DC5V,DC3.3V
Precise details:
Description:DC: 3.3-5v
2 colors, Red and black, we will shipped randomly.
DFPlayer Mini is a compact and inexpensive MP3 module can be directly connected to the speaker. Module with battery power, speaker, the keypad can be used alone, or through the serial port control, as the UNO or any microcontroller with a serial port module. The module itself perfectly integrated hardware decode MP3, WAV, WMA. While the software supports TF card driver to support FAT16, FAT32 file system. Can be done through simple serial commands specified music player, as well as how to play music and other functions, without the cumbersome underlying operating, easy to use, stable and reliable.
Technical Specifications:
Application:

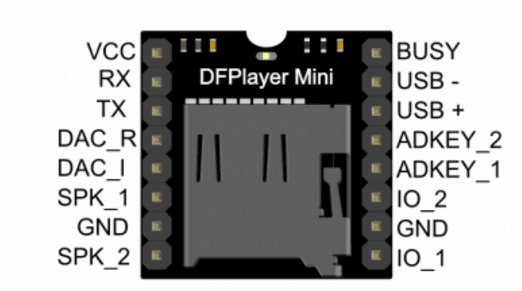

PINOUT:
| Pin number | Pin name | Function | Remark |
| 1 | VCC | Module power input | 3. 3V—5V, 5V is recommended, do not exceed 5. 2V |
| 2 | RX | UART serial data input | |
| 3 | TX | UART serial data output | |
| 4 | DAC_R | Audio output right channel | Drive headphones, amplifier |
| 5 | DAC_L | Audio output left channel | Drive headphones, amplifier |
| 6 | SPK2 | Connect small speaker | Drive less than 3W speakers |
| 7 | GND | Ground | Power ground |
| 8 | SPK1 | Connect small speaker | Drive less than 3W speakers |
| 9 | IO1 | Trigger port | Default previous song (long press volume down) |
| 10 | GND | Ground | Power ground |
| 11 | IO2 | Trigger port | Default next song (long press volume plus) |
| 12 | ADKEY1 | AD port 1 | The first song when triggered (long press cycle first song) |
| 13 | ADKEY2 | AD port 2 | Fifth track when triggered (long press cycle fifth track) |
| 14 | USB+ | USB+ DP | Connect U disk or USB port of computer |
| 15 | USB- | USB- DM | Connect U disk or USB port of computer |
| 16 | Busy | Playback status | With audio, output low. No audio, output high |
1 x DFPlayer Mini MP3 Player Module
DC: 3.3-5v
2 colors, Red and black, we will shipped randomly.
DFPlayer Mini is a compact and inexpensive MP3 module can be directly connected to the speaker. Module with battery power, speaker, the keypad can be used alone, or through the serial port control, as the UNO or any microcontroller with a serial port module. The module itself perfectly integrated hardware decode MP3, WAV, WMA. While the software supports TF card driver to support FAT16, FAT32 file system. Can be done through simple serial commands specified music player, as well as how to play music and other functions, without the cumbersome underlying operating, easy to use, stable and reliable.
Technical Specifications:
Application:
PINOUT:
| Pin number | Pin name | Function | Remark |
| 1 | VCC | Module power input | 3. 3V—5V, 5V is recommended, do not exceed 5. 2V |
| 2 | RX | UART serial data input | |
| 3 | TX | UART serial data output | |
| 4 | DAC_R | Audio output right channel | Drive headphones, amplifier |
| 5 | DAC_L | Audio output left channel | Drive headphones, amplifier |
| 6 | SPK2 | Connect small speaker | Drive less than 3W speakers |
| 7 | GND | Ground | Power ground |
| 8 | SPK1 | Connect small speaker | Drive less than 3W speakers |
| 9 | IO1 | Trigger port | Default previous song (long press volume down) |
| 10 | GND | Ground | Power ground |
| 11 | IO2 | Trigger port | Default next song (long press volume plus) |
| 12 | ADKEY1 | AD port 1 | The first song when triggered (long press cycle first song) |
| 13 | ADKEY2 | AD port 2 | Fifth track when triggered (long press cycle fifth track) |
| 14 | USB+ | USB+ DP | Connect U disk or USB port of computer |
| 15 | USB- | USB- DM | Connect U disk or USB port of computer |
| 16 | Busy | Playback status | With audio, output low. No audio, output high |
1 x DFPlayer Mini MP3 Player Module
