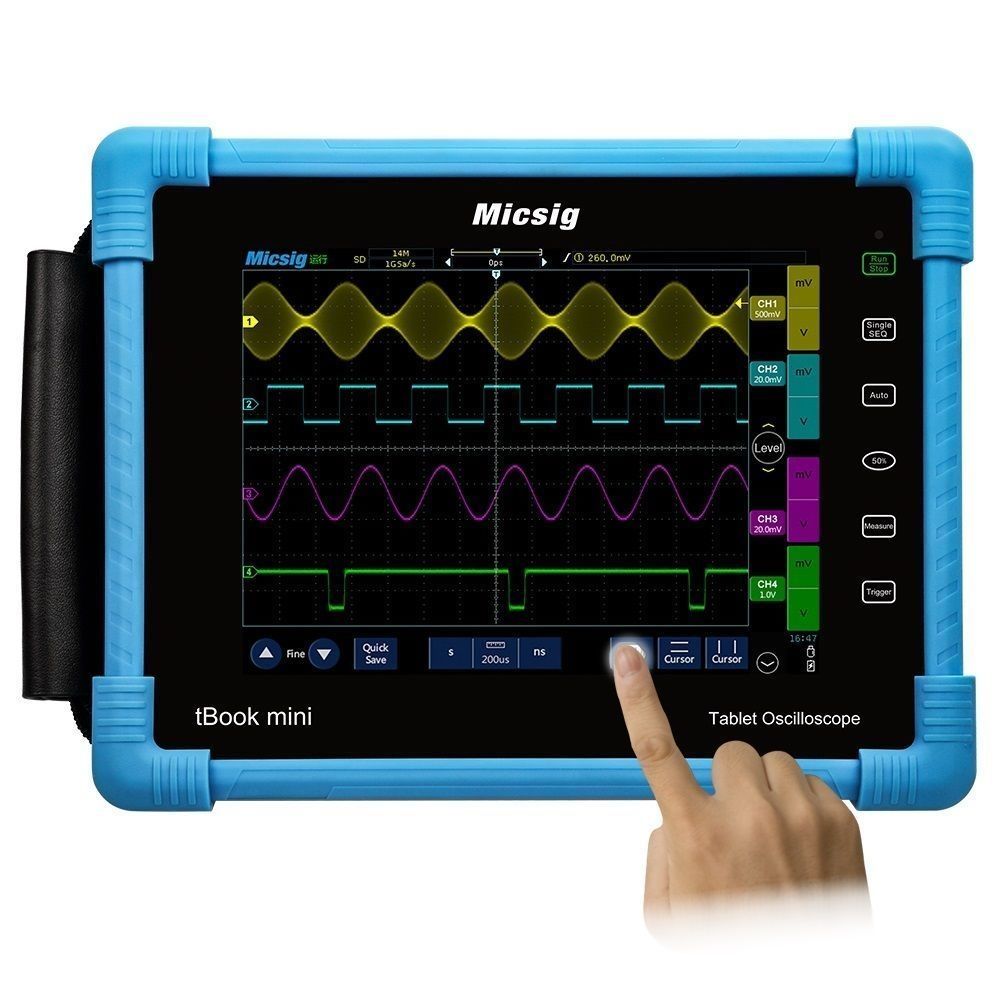

TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery

TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
TO1104 100MHz Digital Tablet Oscilloscope 8inch TFT LCD Touch Screen 4CH 28Mpts 1GSa/s Oscilloscope Automotive Diagnostic with Battery
$522.96
Ex Tax: $522.96
  • Stock: In Stock
  • Model: EB004590
  • SKU: EB004590

Features:


100MHz  bandwidth, 4 analog channels
1 GSa/s real-time sample rate
28Mpts memory depth

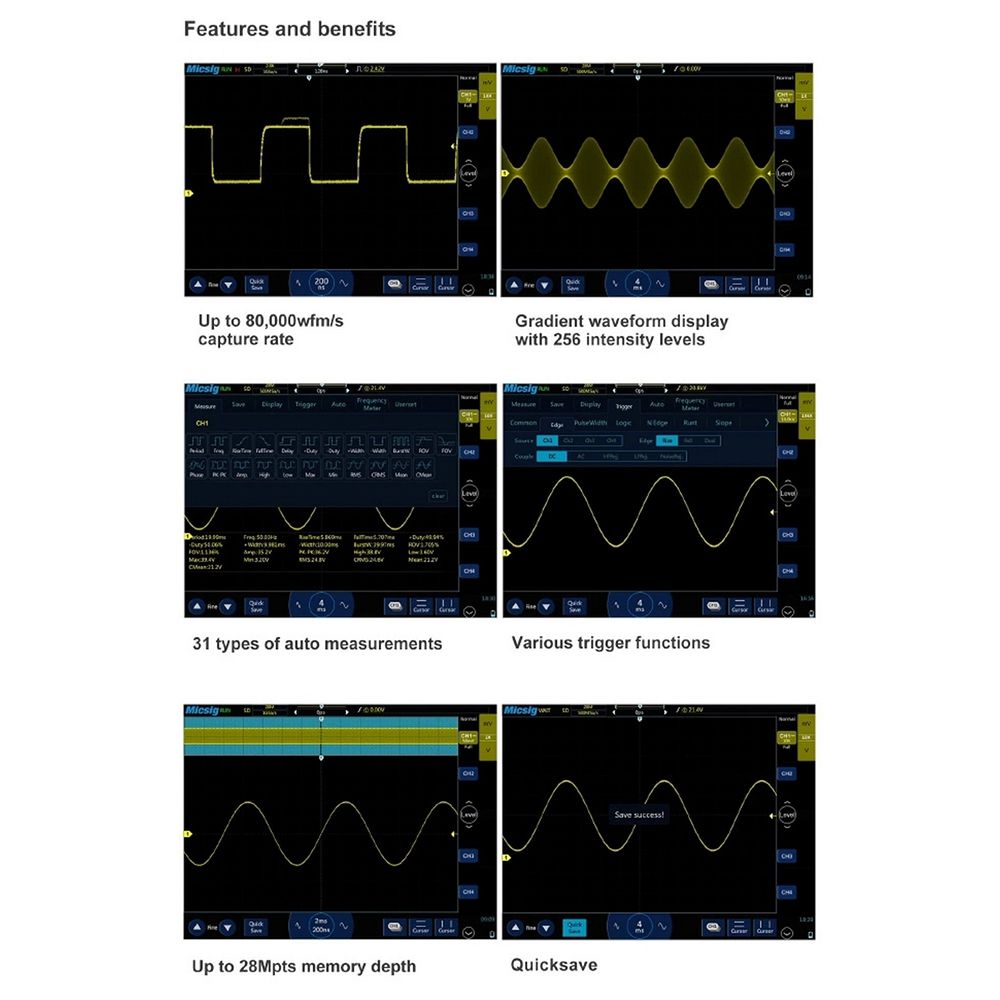

Up to 80,000wfm/s waveform capture rate
Up to 5 hours optional Li-ion battery (Options)

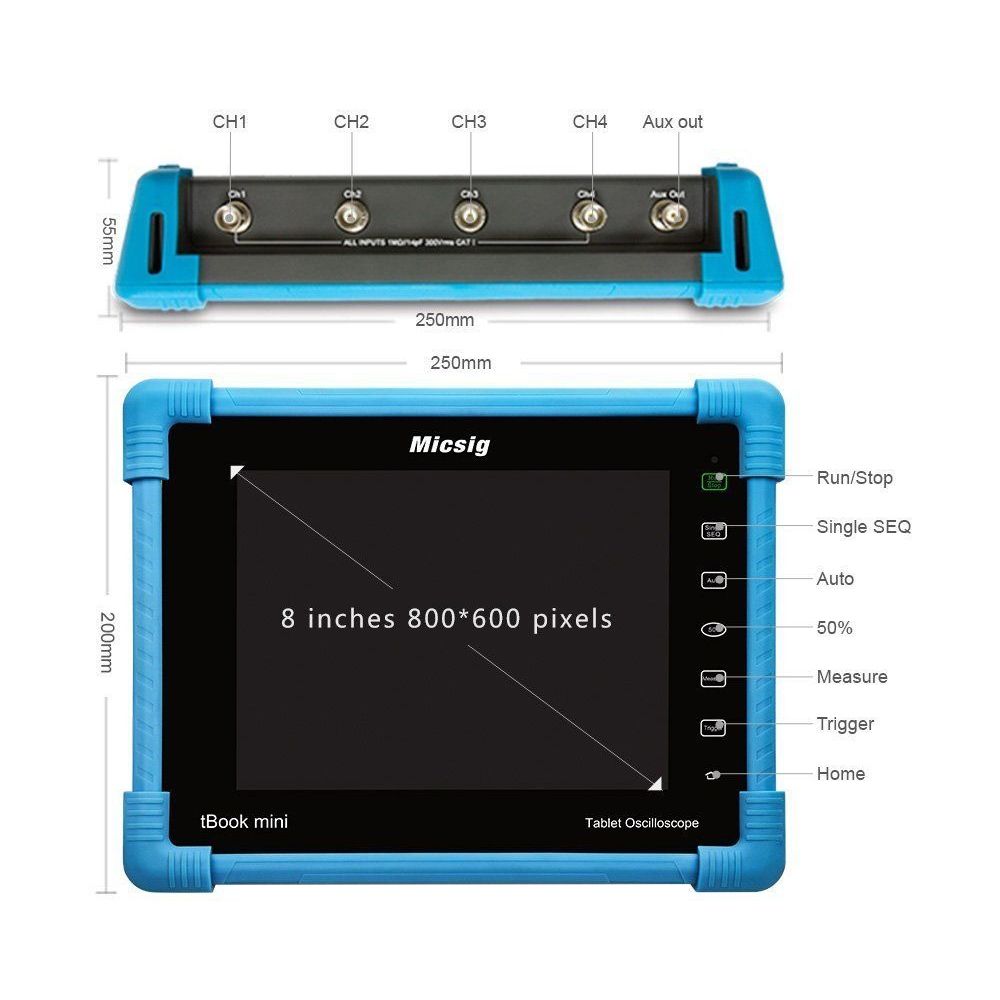

8”TFT LCD & 800*600 pixels high resolution Multi-touch capacity screen Support serial bus trigger and decoding UART, I2C, SPI, CAN and LIN(Options)
Gradient waveform display with 256 intensity levels

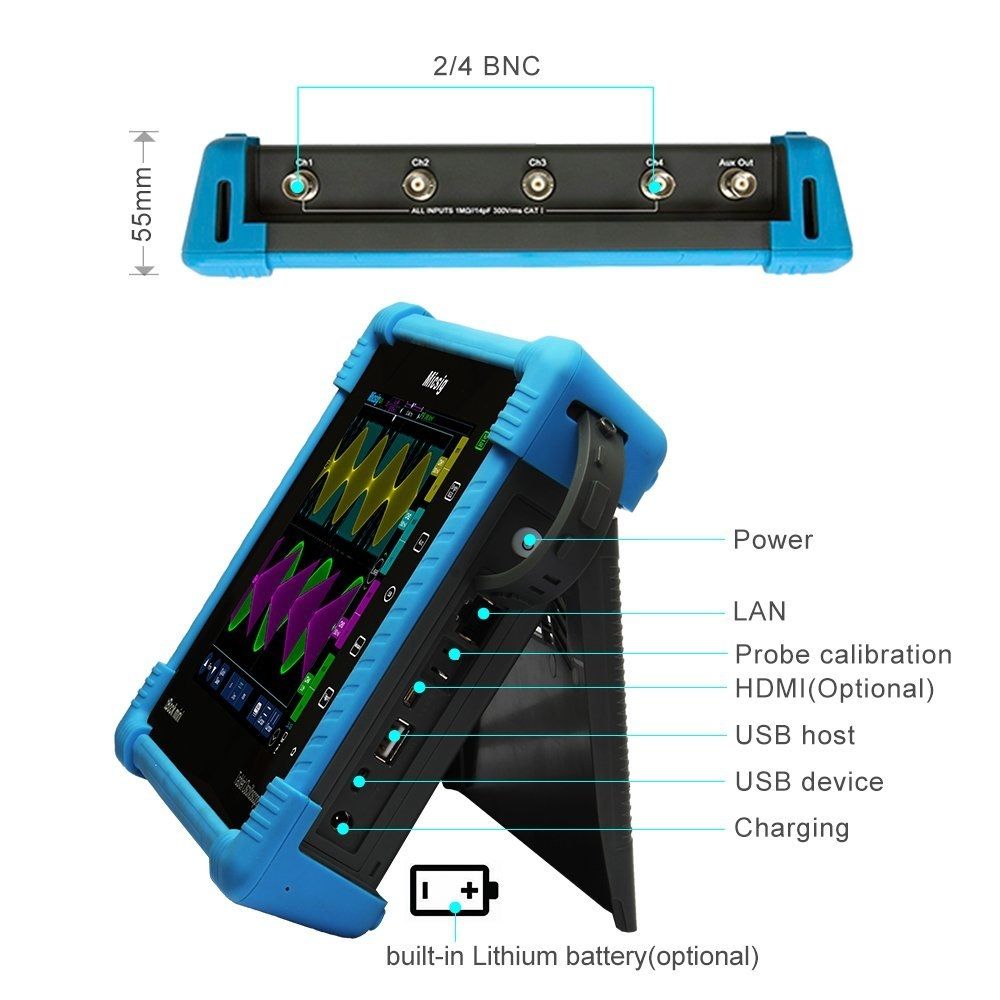

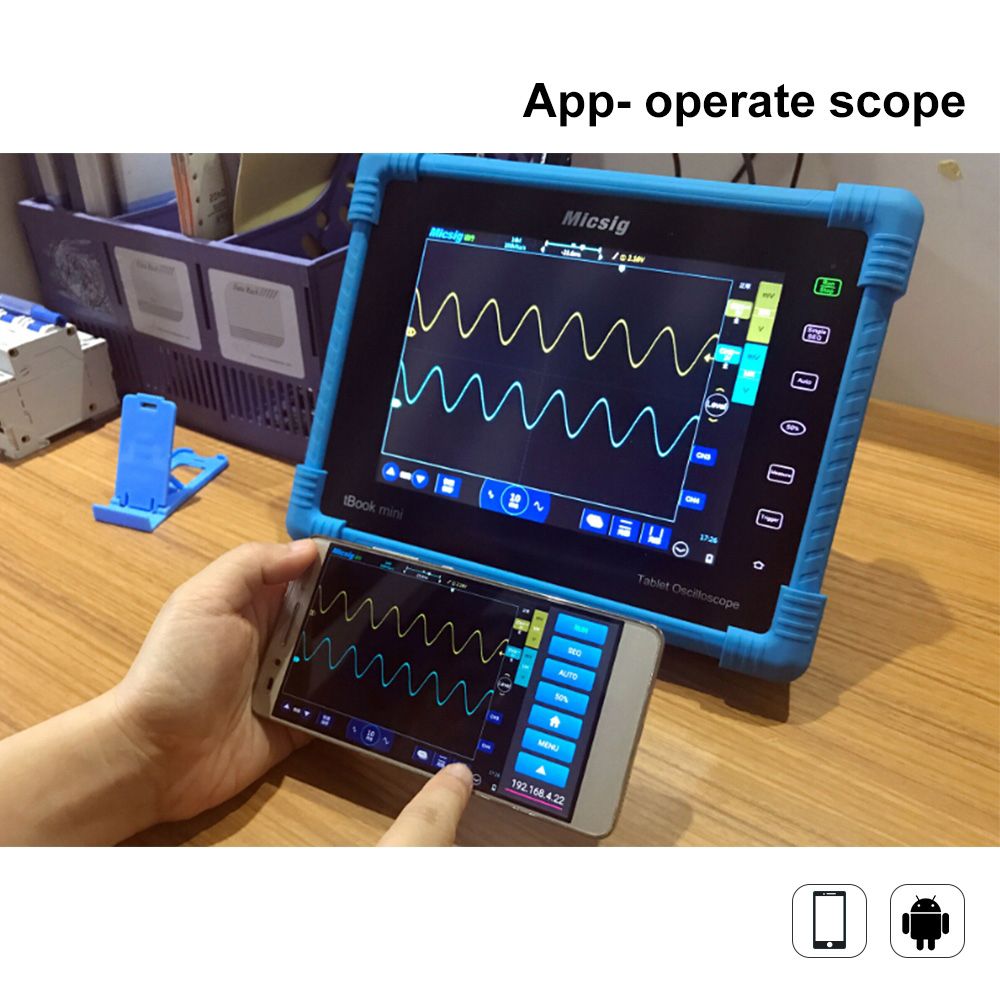

7 types of trigger function: Edge, Pulse, Logic, Time Out, Runt, Slope, N Edge, and Video Built-in 8G storage capacity, waveforms and screenshots can be viewed and edited in scope Various I/O port, LAN, Wi-Fi, USB2.0, USB Device, HDMI, Trigger out Support Android and iOS Application and PC software ware remote control

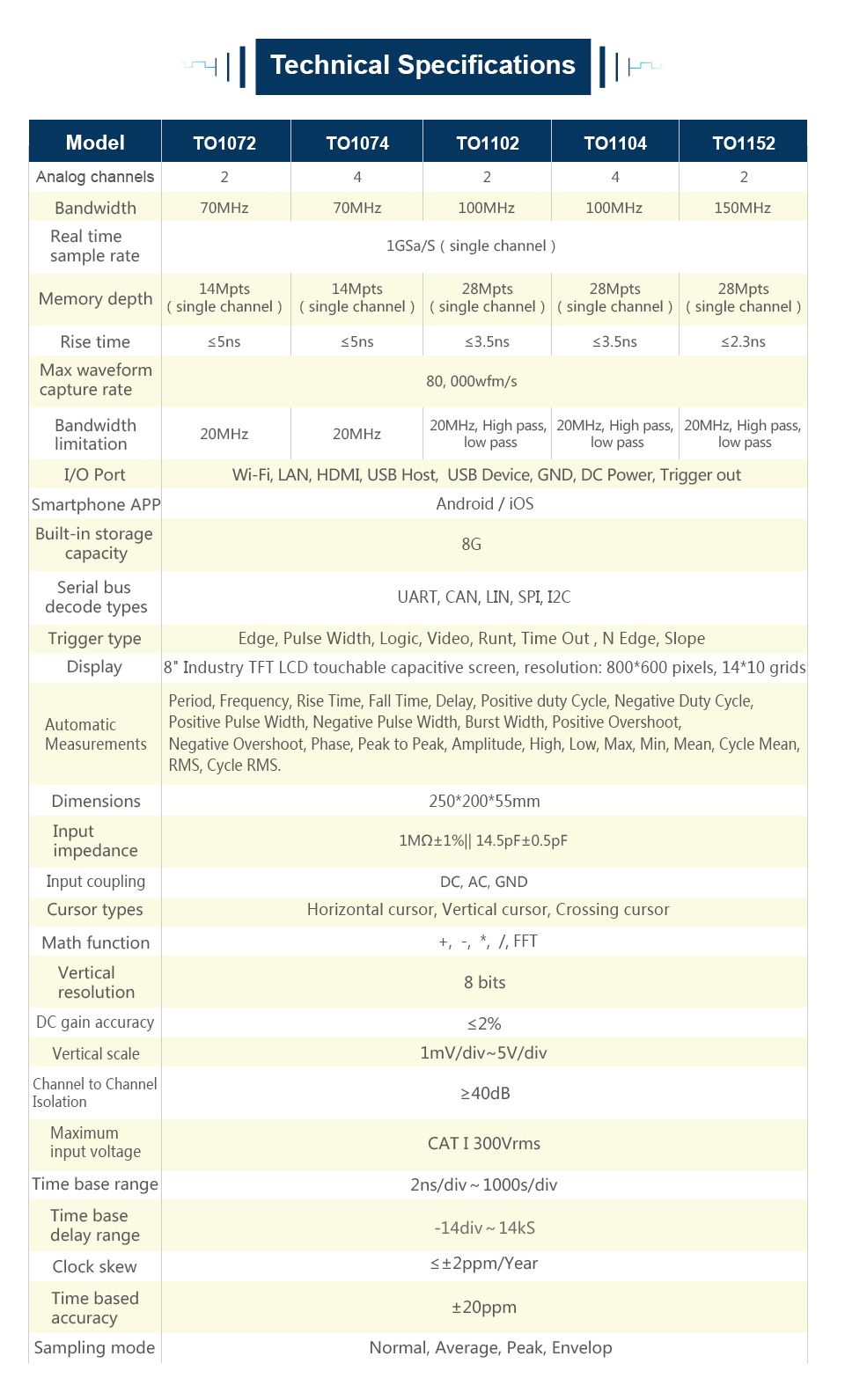

Specification:
 Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222
>>Please Click Here to Download the English User Manual<<

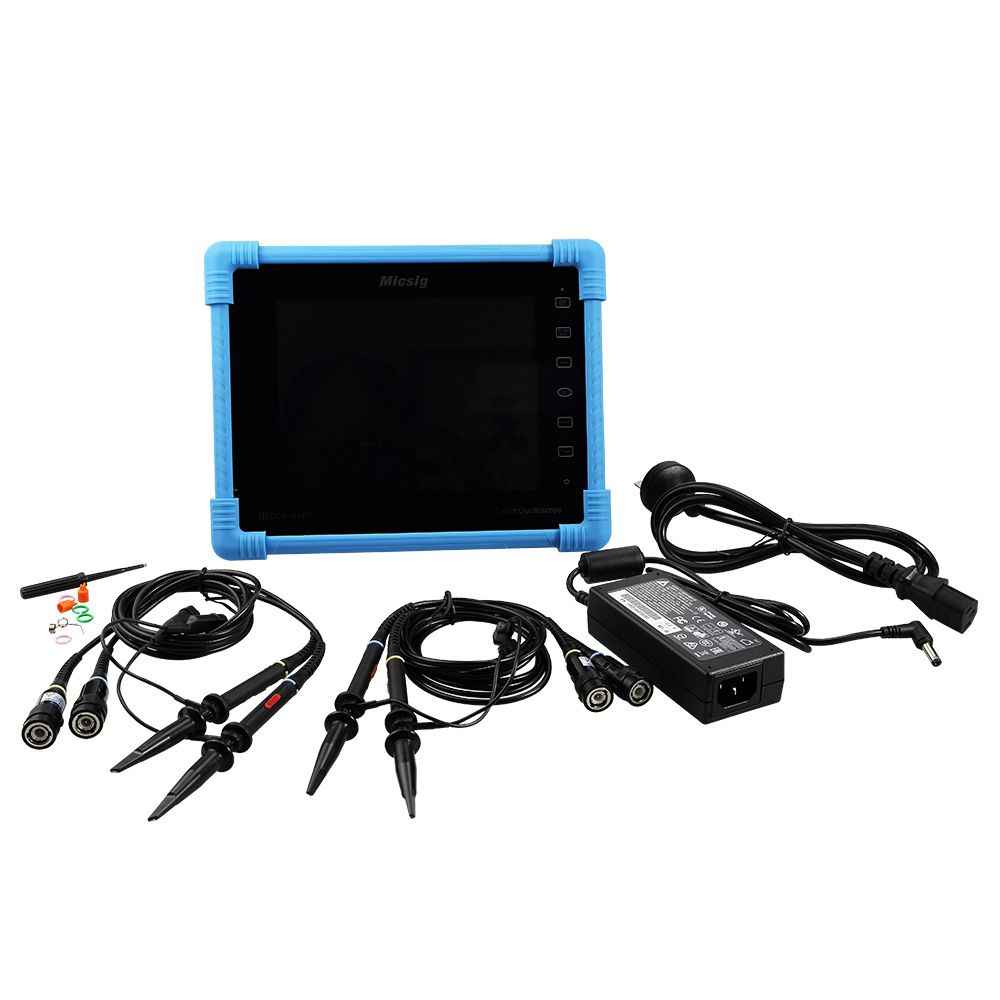

Package includes:

1* TO1104 Digital Oscilloscope
1* Probe
1* Power Adapter
1* User Manual

Details pictures:



Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222


Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222


Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222


Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222


Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222


Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222


Micsig-TO1104--100MHz-Digital-Tablet-Oscilloscope-8inch-TFT-LCD-Touch-Screen-4CH-28Mpts-1GSas-Oscill-1618222
