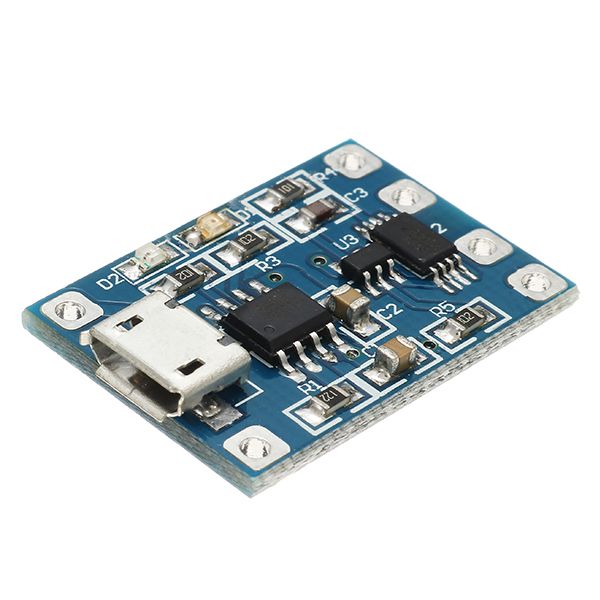

Micro USB TP4056 Charge And Discharge Protection Module Over Current Over Voltage Protection 18650
- Stock: In Stock
- Model: EB0044105
- SKU: EB0044105

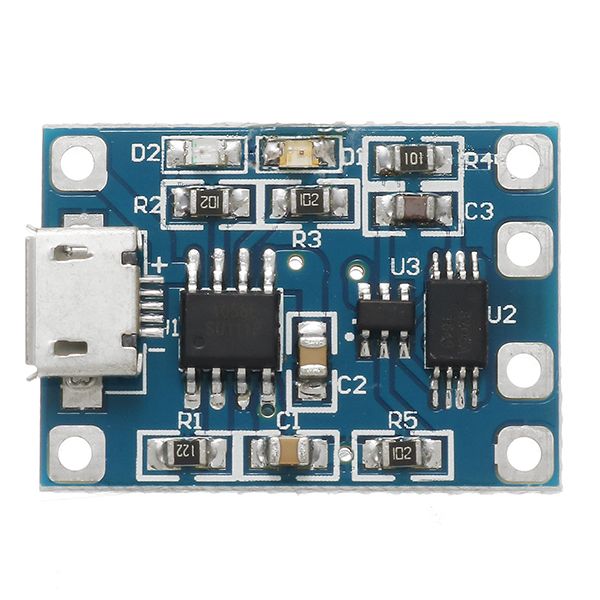

On-board TP4056 lithium battery charging management chip

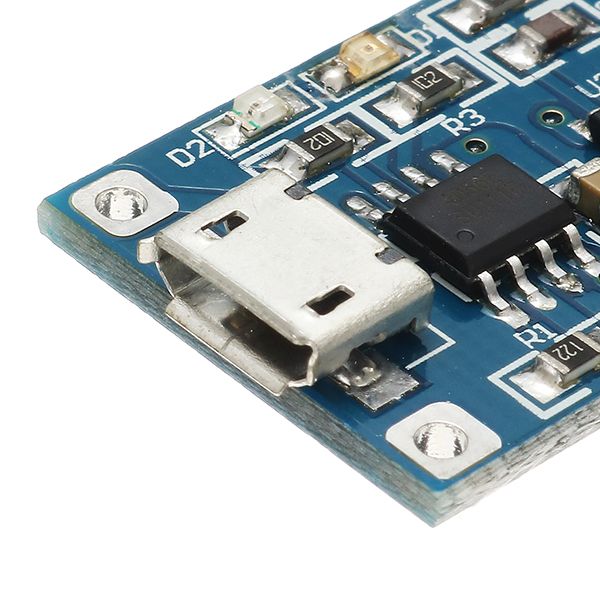

On-board micro USB head, can be directly connected with most of the smart phone charger as the input side to the lithium battery charging

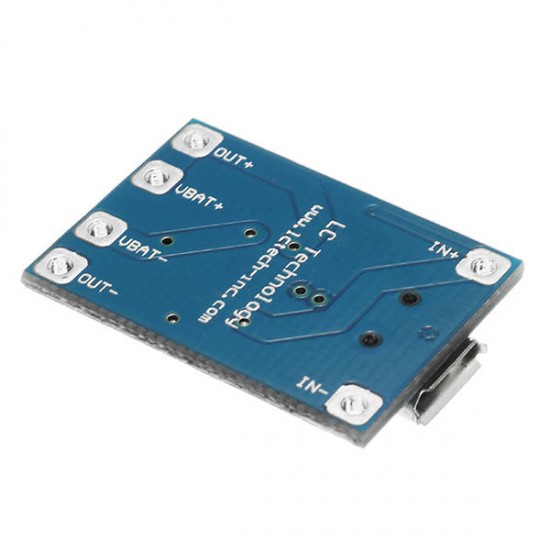

Reserved IN+ and IN- input port, convenient user DIY
On-board charging status indicator
Support charge discharge over current protection
Chip with constant current and constant pressure, full automatic stop
Supports simultaneous charging and discharging
Parameter:
Input voltage: DC5V
Charge cutoff voltage: DC4.2V±1%
Charge maximum output current: 1.2A
Charging mode: linear charge
Working environment temperature: -20-85 degrees Celsius
Package included:
1 x Micro USB TP4056 Charge And Discharge Protection Module
,
,
,
,
,
,
