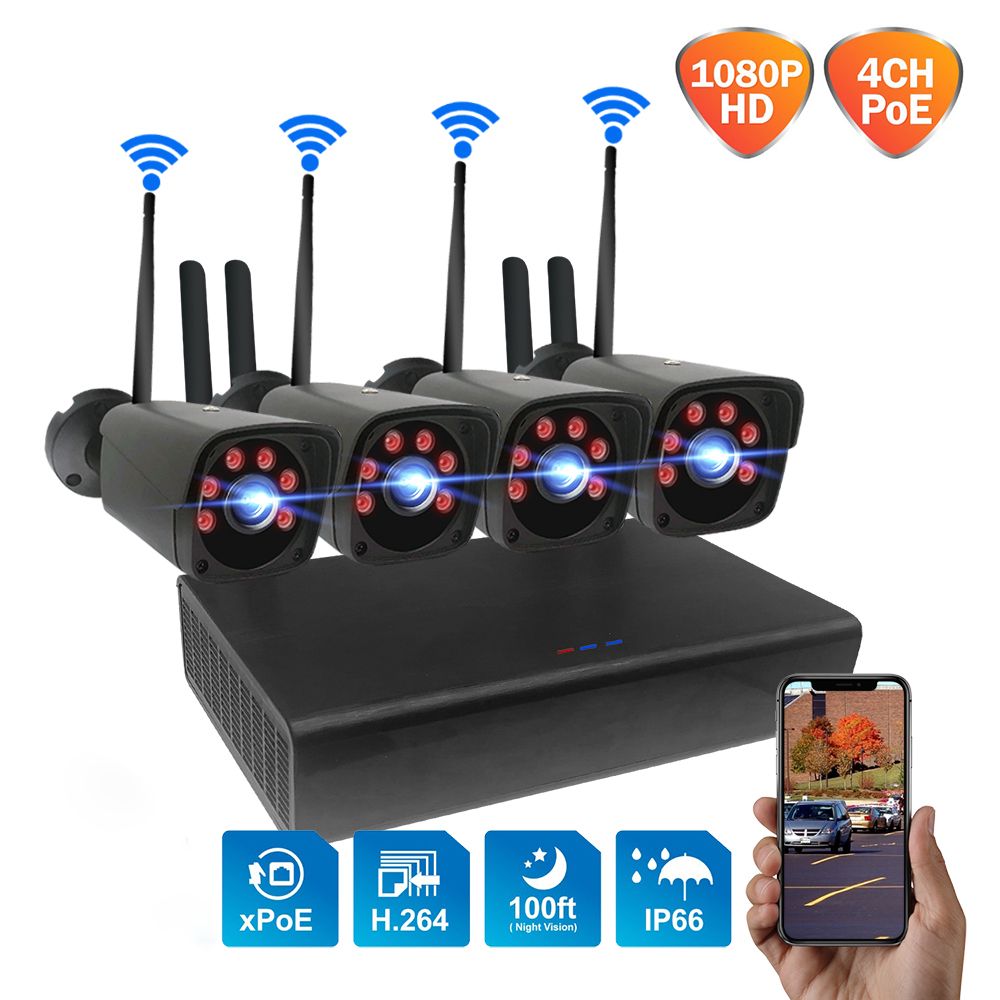

4CH 2.0MP 1080P Wireless Black Surveillance Camera System Kits outdoor/Indoor WeatherproofP2P CCTV Monitoring Kit
- Stock: In Stock
- Model: EB0024586
- SKU: EB0024586
>>>Click Here to Get White Camera System Kits<<<
>>>Manual: Click here to open<<<
Features:

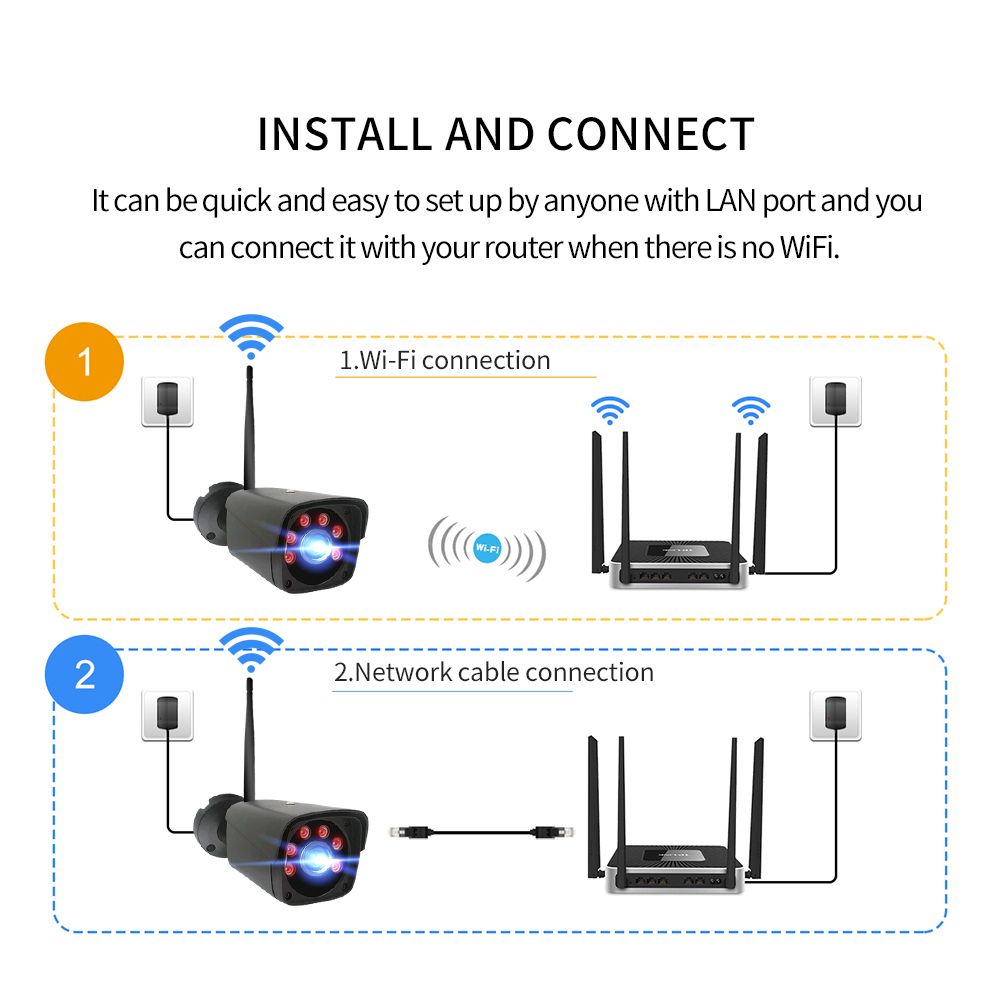

- Automatic Wireless Connection, plug, and play
- 1080P H.265+ wireless network recorder and 4 1080P wireless cameras
- In open space without interference transmission distance up to 800 meters
- Insert professional surveillance Wireless board, with stronger anti-interfere ability
- One-push to configure
- Support alarm push motions detections and alarm output(voice/email/ FTP etc.)
- Support Android/Apple cell phone or pad by LAN & WAN visit and control
- P2P IP PRO, fluent and fast remote access
- Suit to homes, offices, small businesses & retail stores
- Easy to Install, User-Friendly Operation
Specification:
IP Camera Specification：
Model | IPG-80X20PSD |
Image sensor | 1/2.9" 2.0M Pixel CMOS |
Lens | 4 mm, horizontal field of view: 75° |
Lens Mount | M12 |
Min. Illumination | Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) |
S / N ratio | ≥39dB |
Shutter speed | 1/5 - 1/20,000s， |
Day & Night | Day / Night / External control（IR Cut Filter） |
AGC | Auto / Manual |
White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
Wide dynamic range | Digital Wide dynamic range |
Digital noise Reduction | 2DNR,3DNR |
Video Compression | H.265 Main Profile/H.264 Main Profile/M-JPEG |
Audio Compression | G711，PCM |
Max.Image Resolution | 1920x1080@20fps |
Image Resolution | Mainstream （1920x1080、1280×960、1280×720、720×576、640×480） |
| sub-stream （640×480、352×288、320×240、176×144） |
Bitrate | CBR/VBR, bitrate：32Kbps~10Mbps variable |
Motion detect | Support |
Privacy Zone Masking | 4 privacy masks programmable |
P2P | Android、IOS |
Protocols | TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P |
Onvif | Non- Support |
Wireless | Frequency:2.4G |
Transmission distance | More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation |
Power | 12VDC@0.12A |

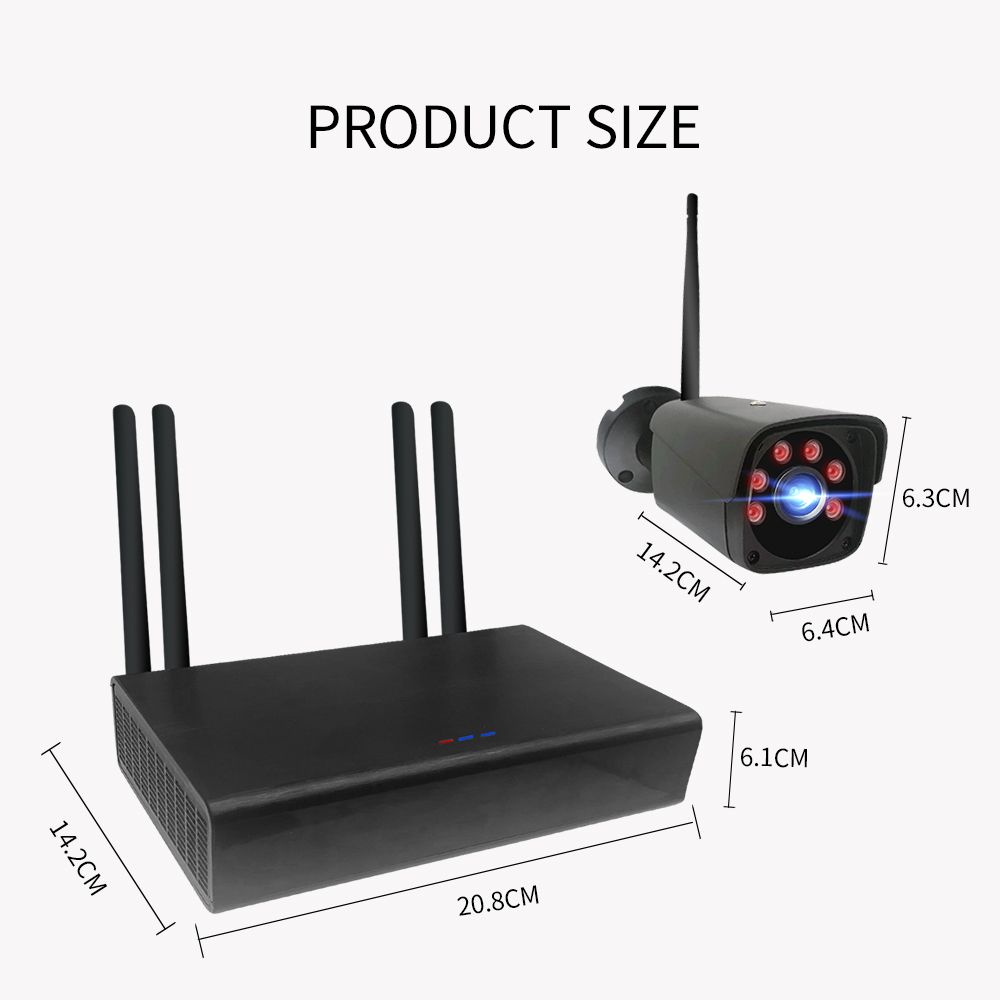

Dimensions | 38x38x5mm |
Working Temperature | -30°C ~60°C, Humidity≤90%RH(Unsupported-condensing) |

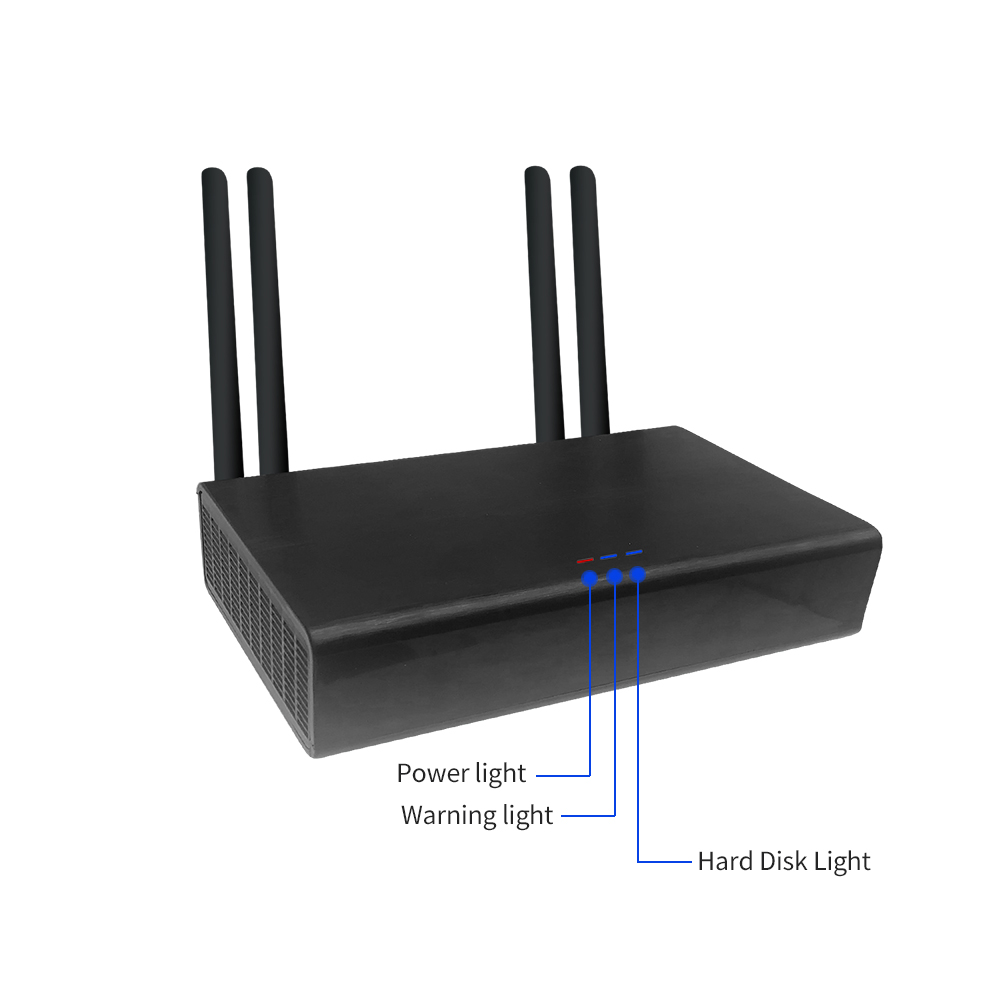

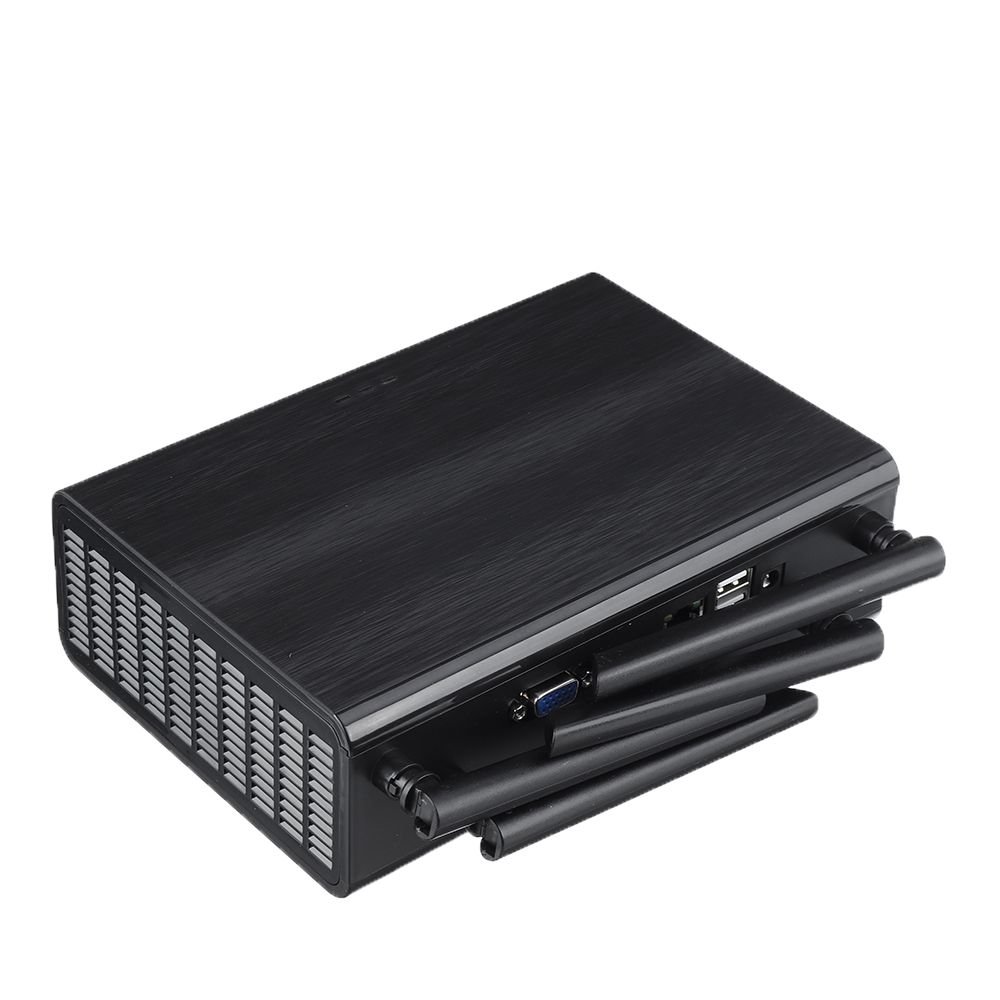

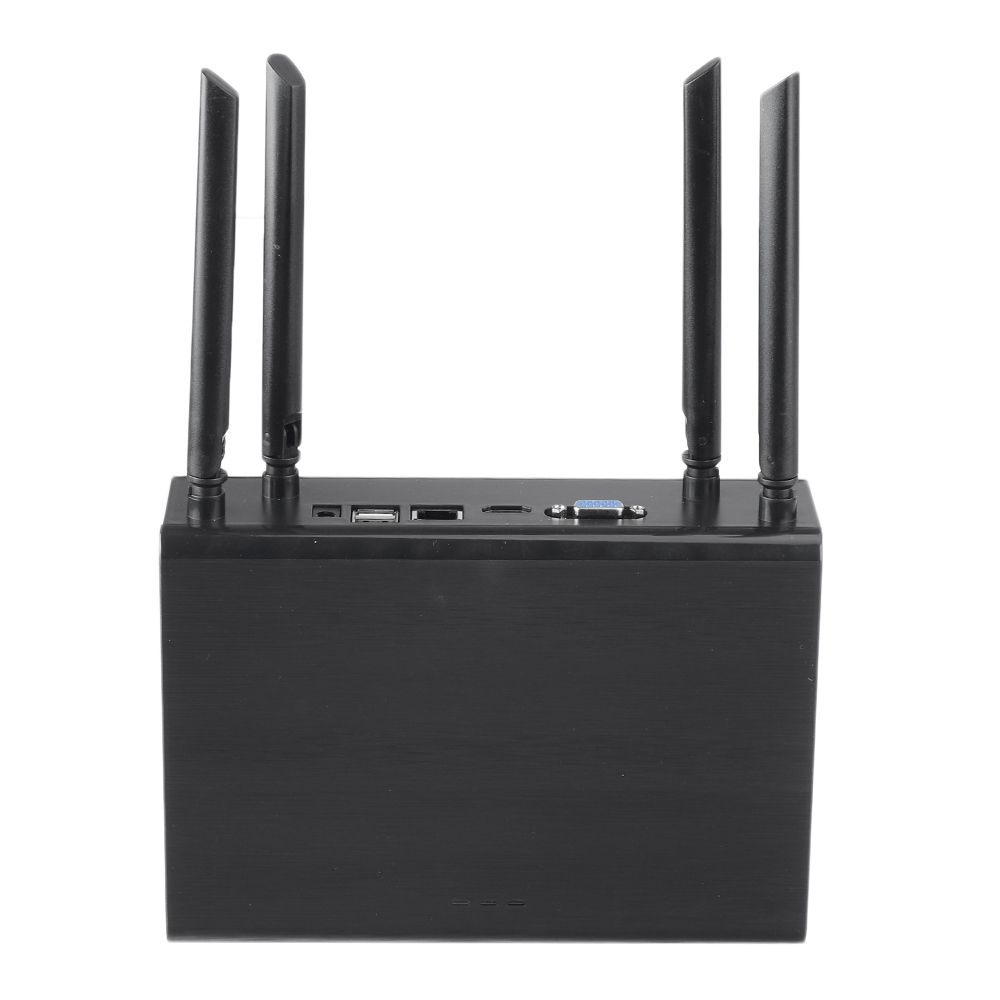

NVR Specification:
| Model | NBD8004RA |
System | Main processor | Hi3536D |
| Operating System | Embedded Linux |
Video | Video compression | H.265 High Profile/ H.264 Main Profile |
| Video output | 720P60,XGA,1080P60 |
| Video input(IP) | 4*1080P/4*960P/4*720P |
Audio | Audio compression | G.711 |
| intercom | None |
Record & playback | Recording mode | Manual/Alarm/Video Detection/Continuous |
| Local Playback | 4*1080P |
Storage & Backup | Record Storage | network |
| Backup mode | Network backup, USB hard disk |
Network Control | Protocol | TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P |
Wireless | Frequency | 2.4G |
| Antenna Structure | 2 × 2MIMO |
| Distance | More than 800 meters with no obstacle，more than 30 meters if penetrate the wall， the actual transmission distance according to the situation |

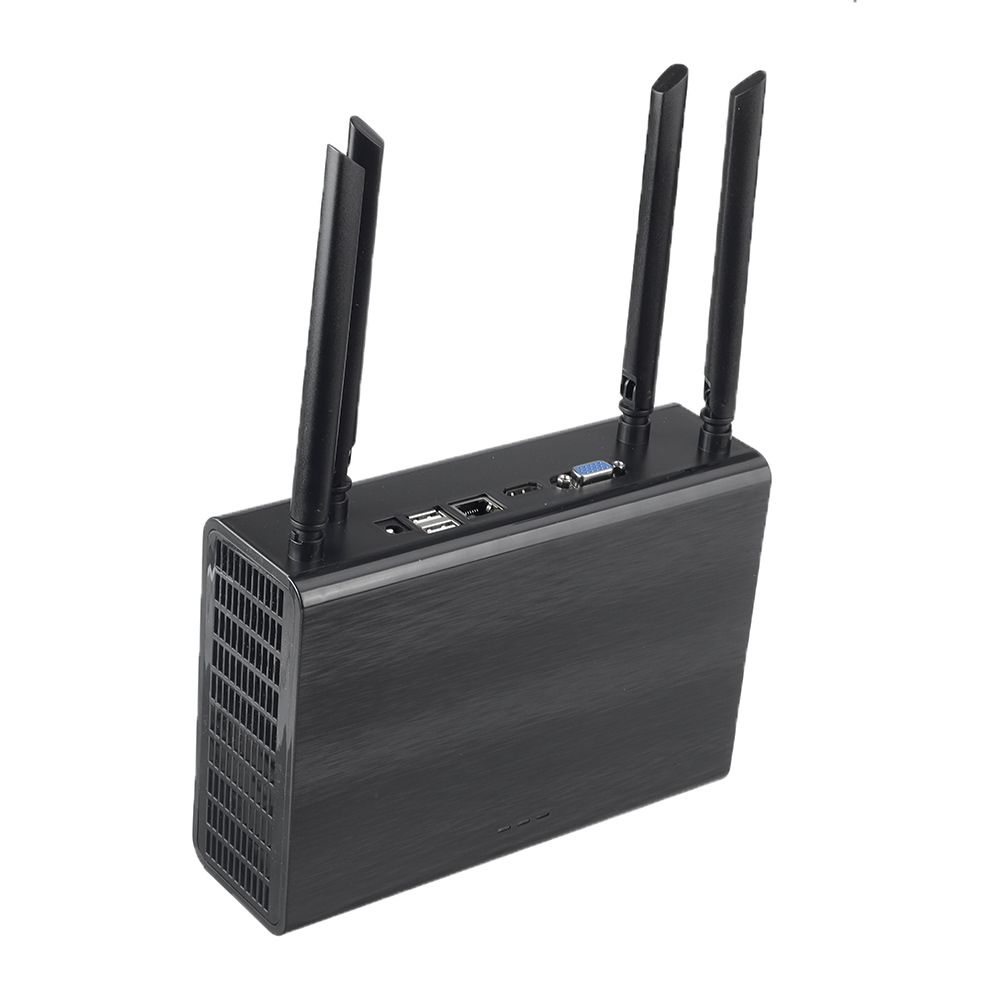

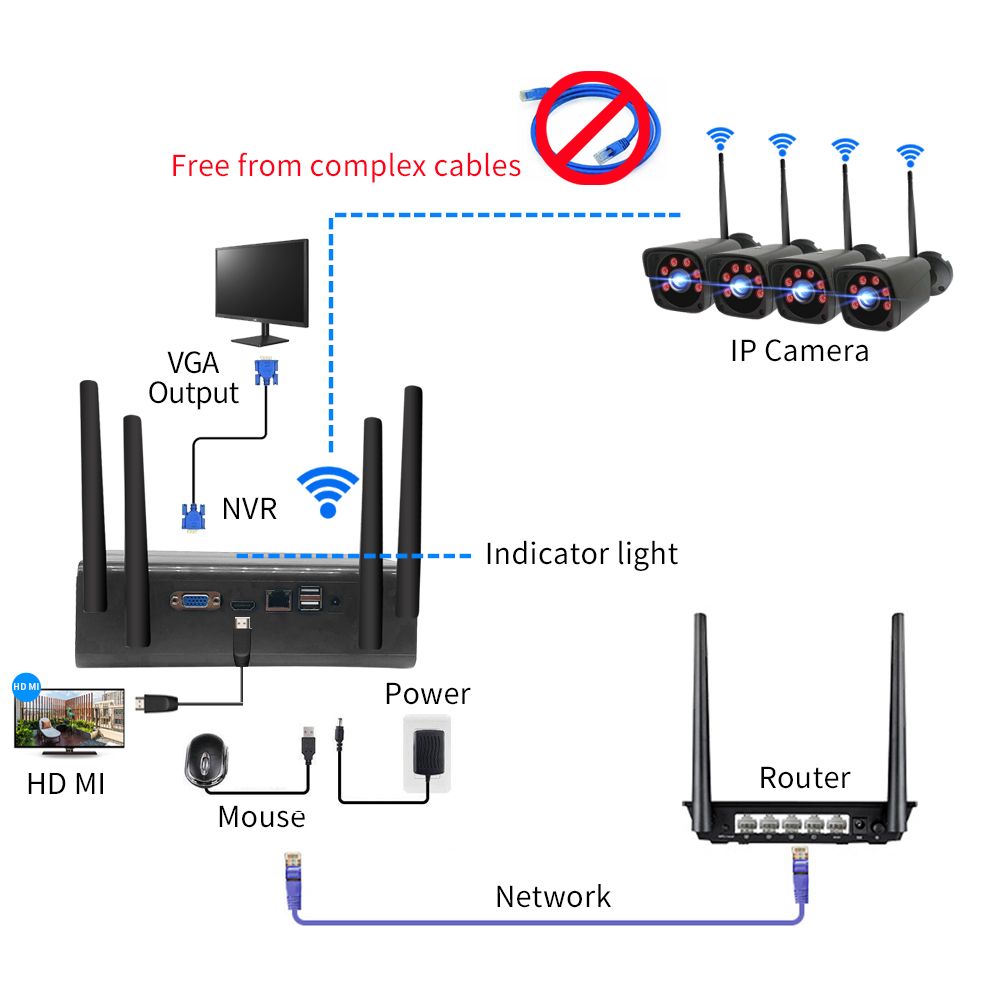

Interface | Video output | 1ch HDMI, 1ch VGA output |
| Audio I/O | None |
| Alarm I/O | None |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port |
| USB | 2*USB 2.0 port |

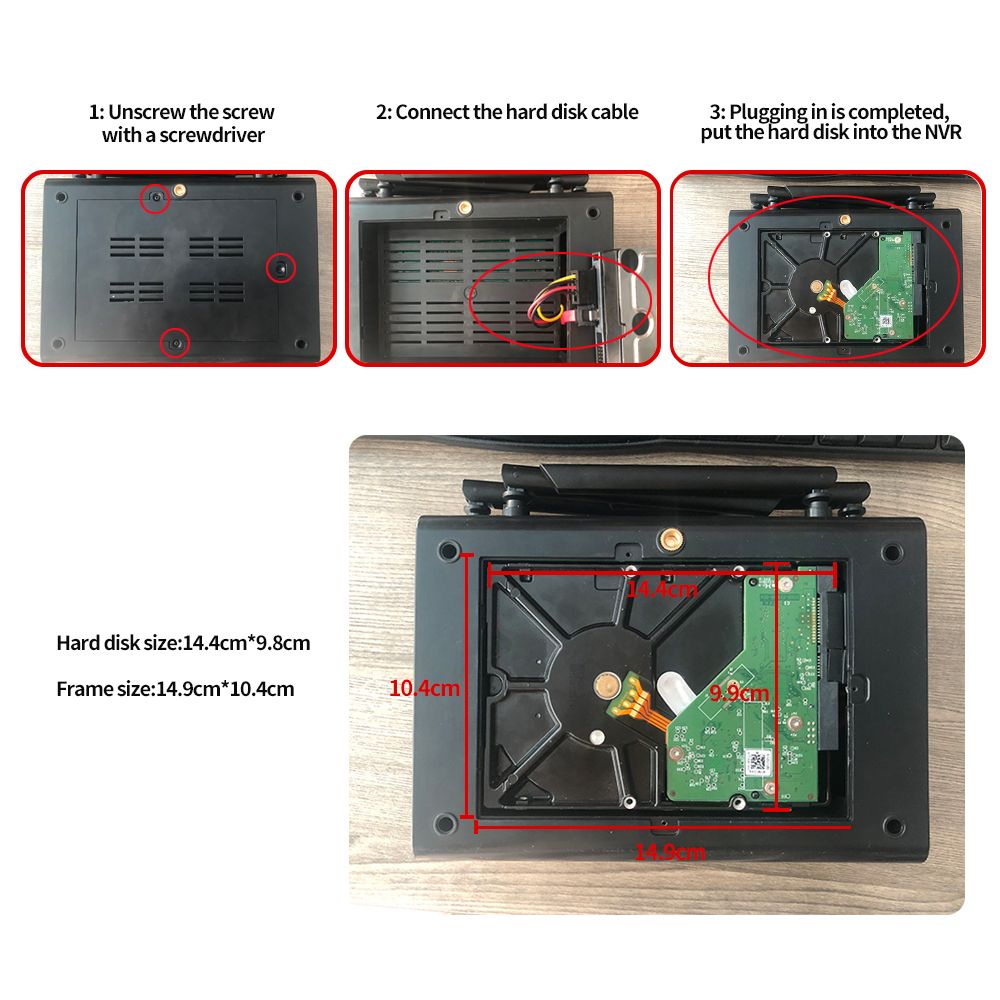

| Hard disk | 1 SATA(Up to 4TB) |

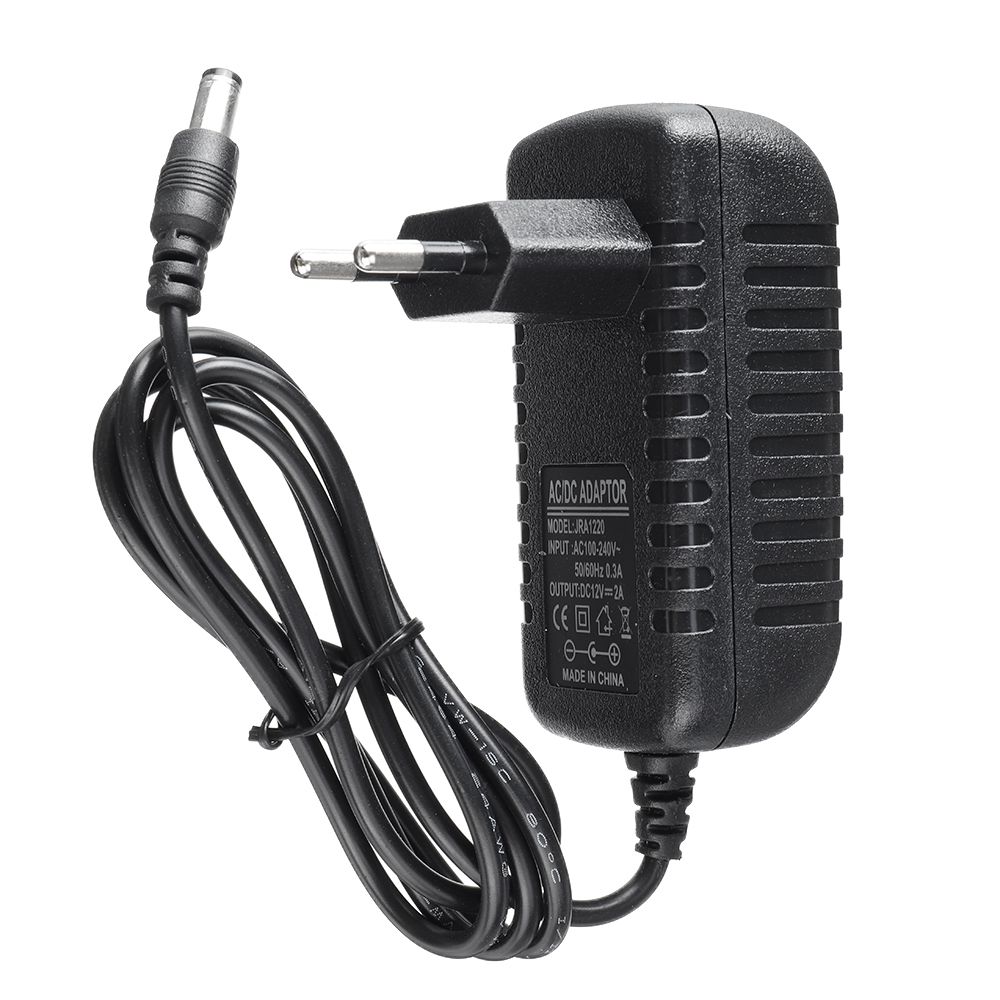

Other | Power supply | DC +12V /3A |
| Power Consumption | 5W（Without HDD） |
| Work environment | Temperature:-10℃－＋55℃, Humidity:10%-90%RH |

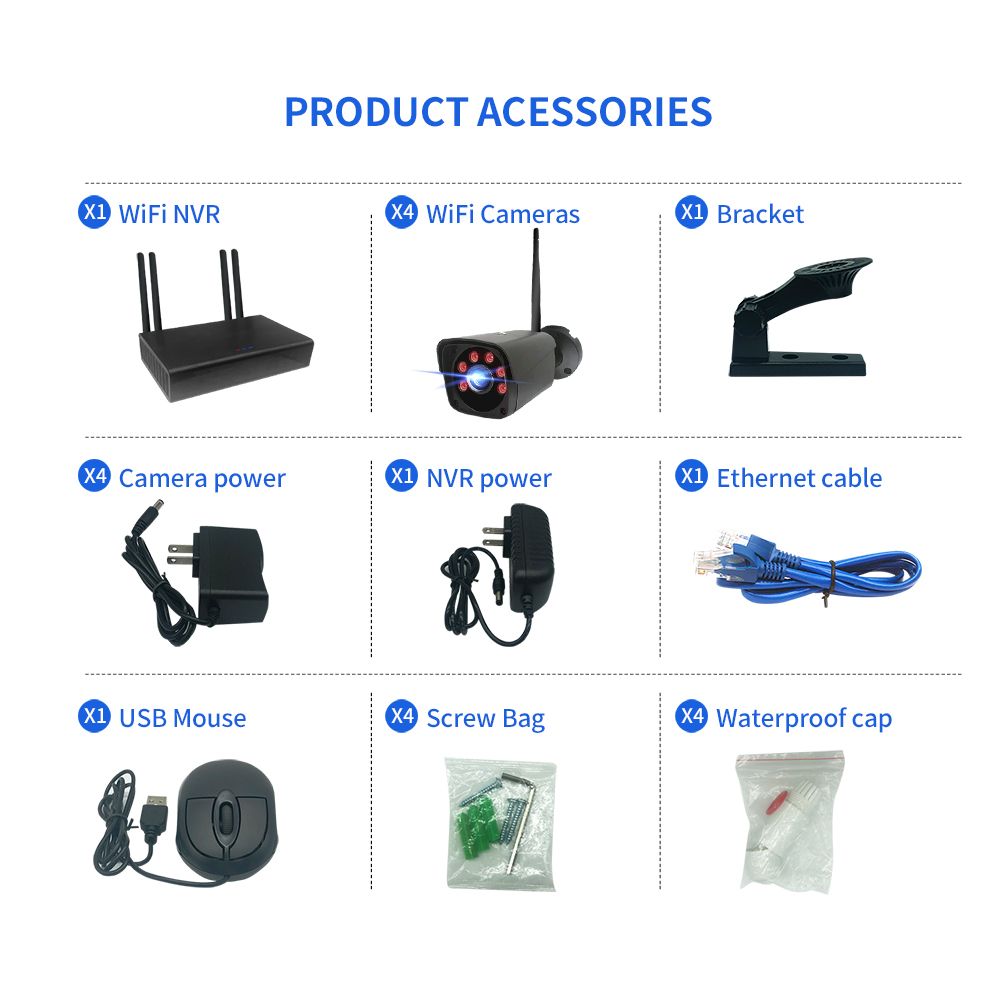

Package Included:
1 x WIFI NVR（Hard drive is not included ）
4 x WIFI Cameras

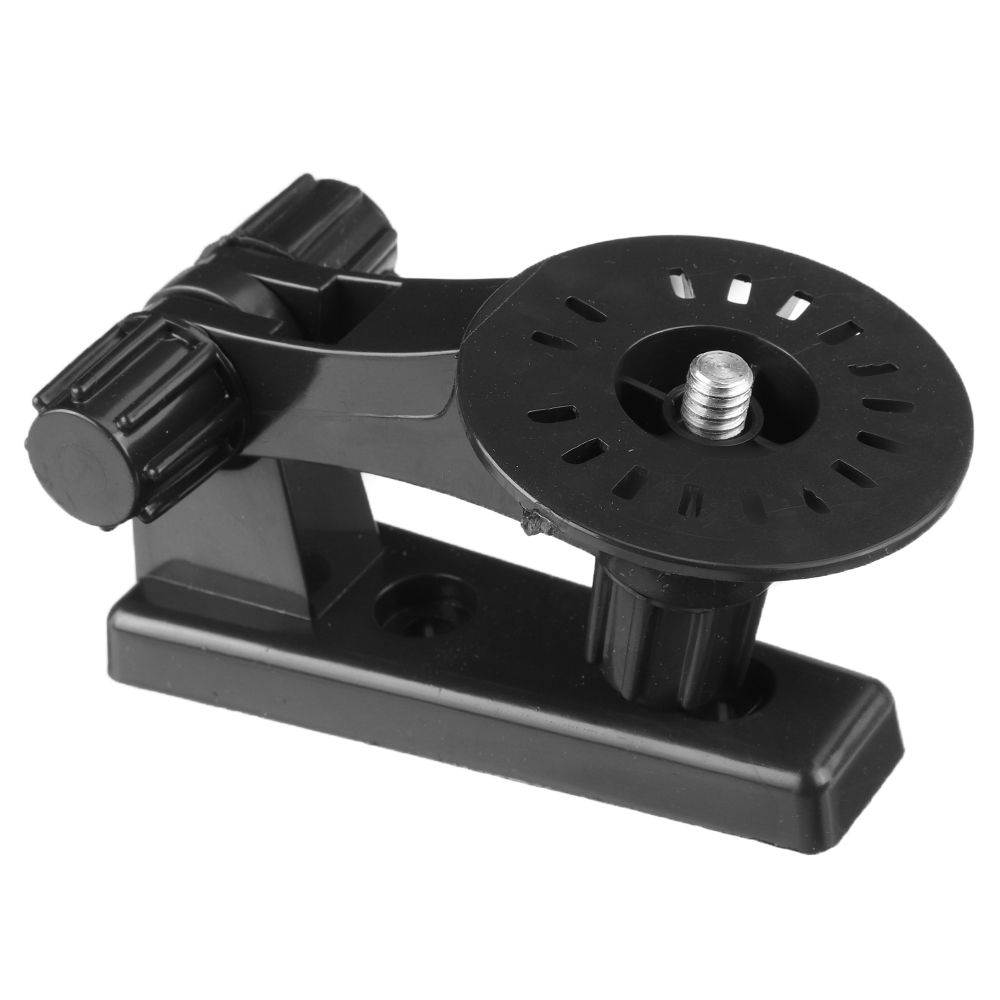

1 x Bracket
4 x Screw Bag
