0-360° Digital Inclinometer Mini Bevel Box Angle Gauge Protractor Level Tool with Magnetic Base

Based on 1 reviews. - Write a review

$32.58

Ex Tax: $32.58

Stock: In Stock
Model: EB003699
Dimensions: 57.00mm x 57.00mm x 30.00mm
SKU: EB003699

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description :

0-360° Digital Inclinometer Mini Bevel Box Angle Gauge Protractor Level Tool with Magnetic Base

Features:

1. This inclinometer has reversible reading capabilities (digital screen rotation).

2. When the inclinometer is upside down for example, the screen automatically adjusts so the digitals appear the right way round meaning you don't need to twist and turn your head to read the numbers.

3. Enclosure made from aluminium alloy (light weight and durable).

4. Tilt % functionality.

5. Hold functionality.

6. Zero angle at any position.

7. Relative / absolute measurement interchange at any position.

8. Angle and slope readout conversion.

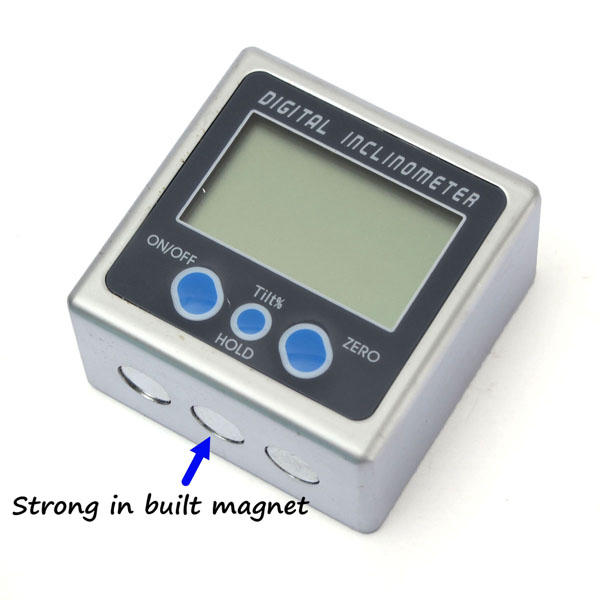

9.Built in magnets for measuring angled surfaces.

10. Portable size, convenient to co-work with other measuring tools.

11. Absolute zero measurement based on the level surface.

12.Quick display of the measured value on big LCD screen.

13. With on-off power switch & Auto power-off for option.

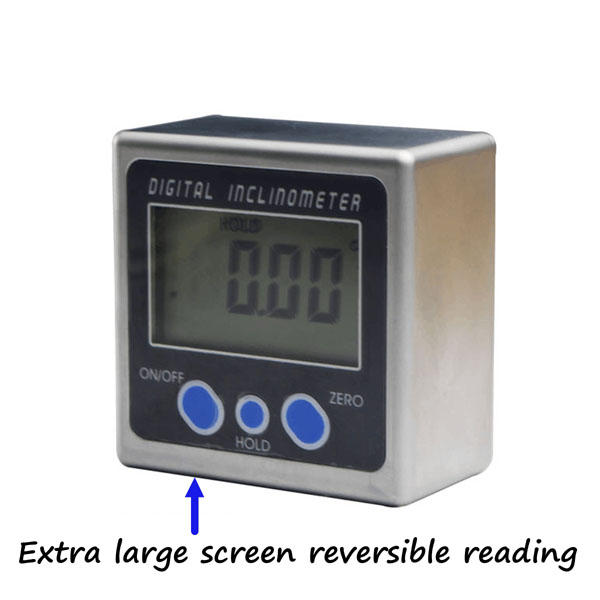

14.Reversible reading allowing to read display to right side up.

Specification :

Measuring range : 4 x 90°

Resolution : 0.05°

Accuracy : ± 0.2°

Repeatability : 0.1°

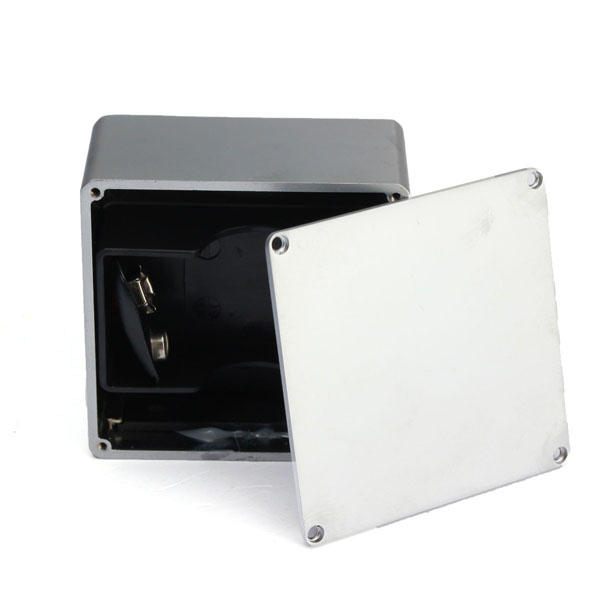

Battery : 2 x AAA battery(Not Included)
Shell material : Stainless Steel

Working temperature : 0°C - 40°C

Dimension : 57 x 57 x 30mm / 2.2" x 2.2" x 1.2"(approx)

Operating Instructions:

1. Press the “ON/OFF” button, it turns on, and the LCD displays absolute horizontal angle. Press “ON/OFF” button again, it turn off.

2. Measurement initially displays 0.0°on the LCD at the beginning, when it displays“”on the left side “”on the right side, it means the left side is higher and right side lower; when it displays“” on the left side “”on the right side, it means the left side is lower and right side higher.

3. Put the instrument on the horizontal stand, and press the “ZERO” button, the value returns to zero, and the read-out is the angle value measured angle value relatively to the horizontal stand.

4. Press the “HOLD” button, the value on the screen will be locked.

5. The magnets at the bottom allow the instrument to be attached onto iron material measurement object. Press the “ZERO” button; reset the value to proceed relative measurement.

Application:

More widely application is in wood processing industry (especially in furniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning, and large vehicle arm rotation angle etc.

Package Included :

1 x 0-360° Digital Inclinometer

1 x Screwdriver

1 x Introduction

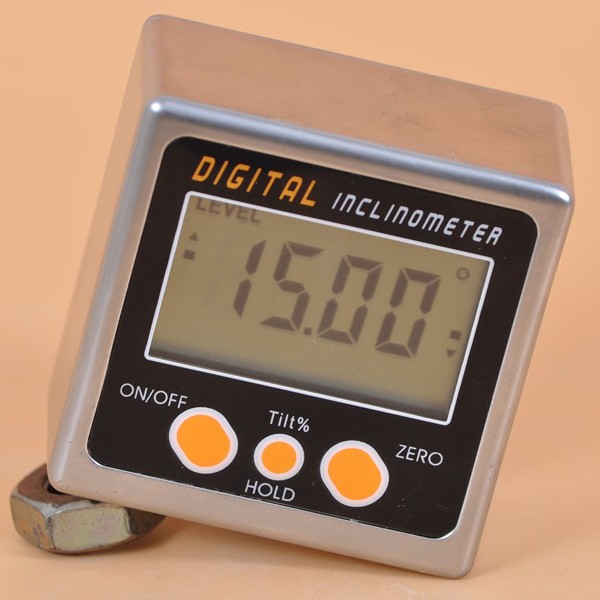

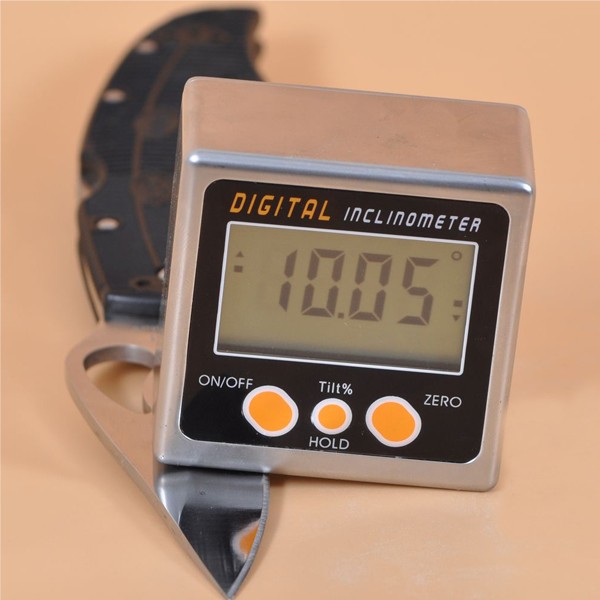

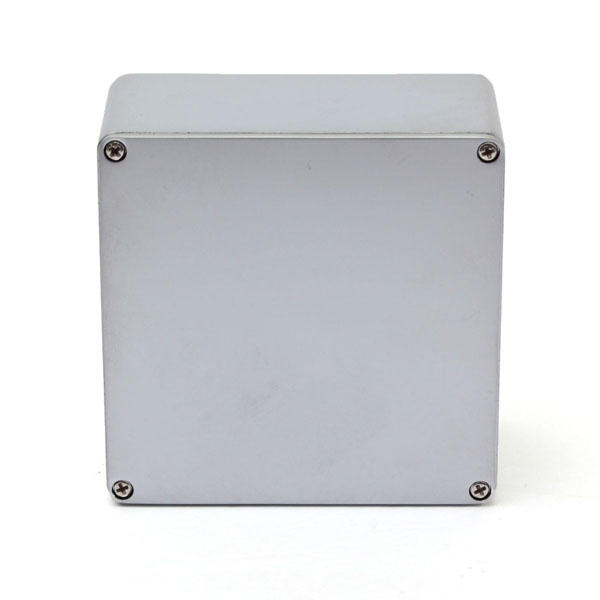

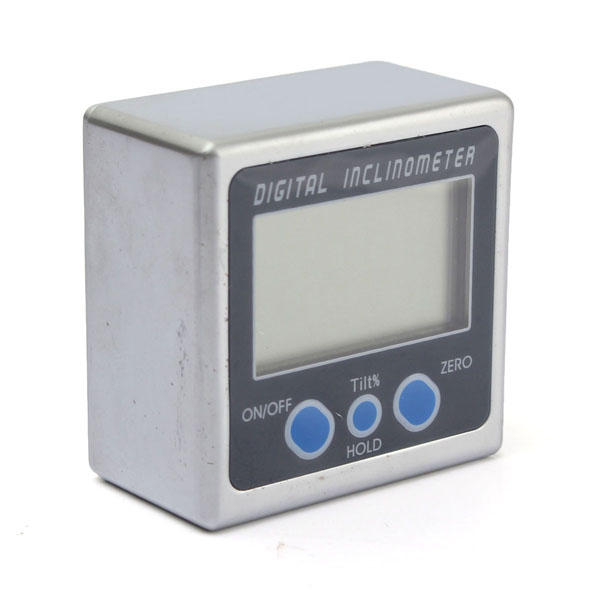

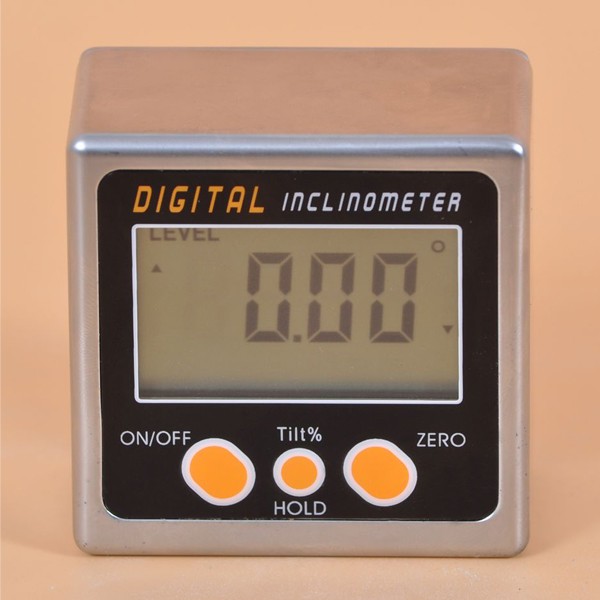

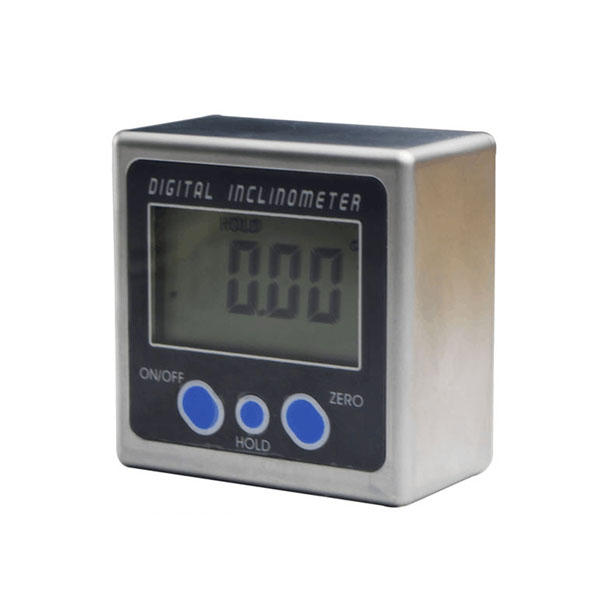

Details pictures :

0-360deg-Digital-Inclinometer-Mini-Bevel-Box-Angle-Gauge-Protractor-Level-Tool-with-Magnetic-Base-994644
