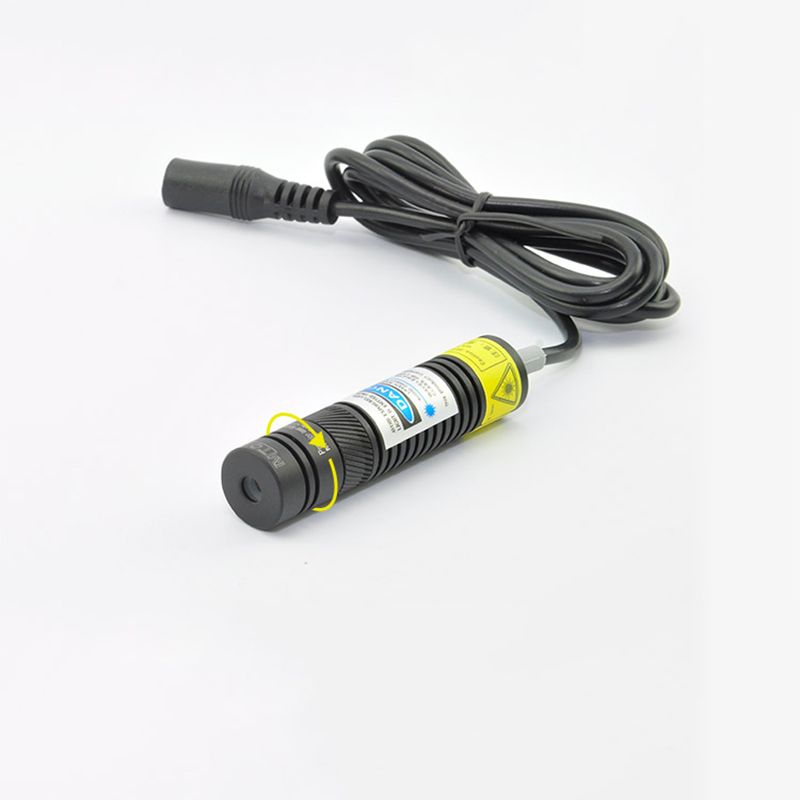

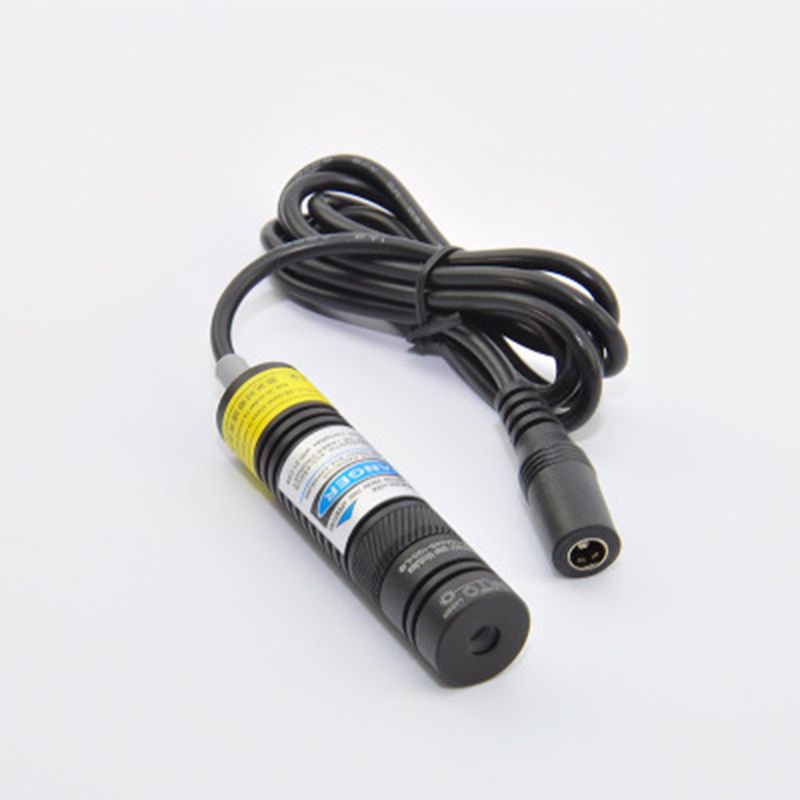

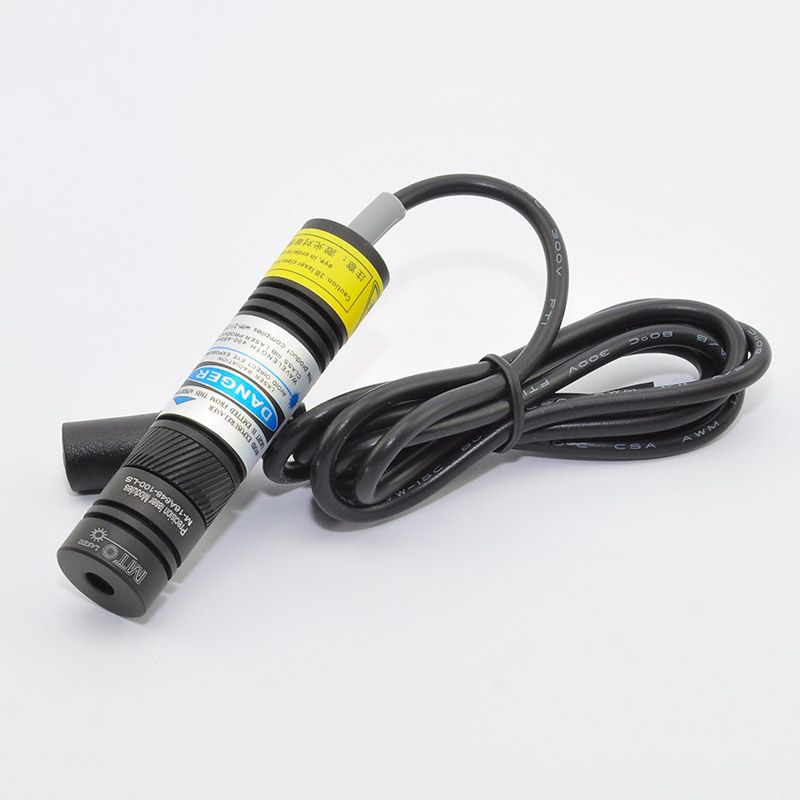

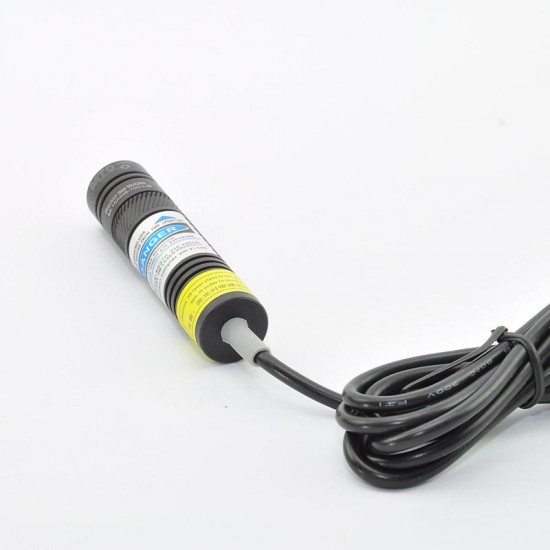

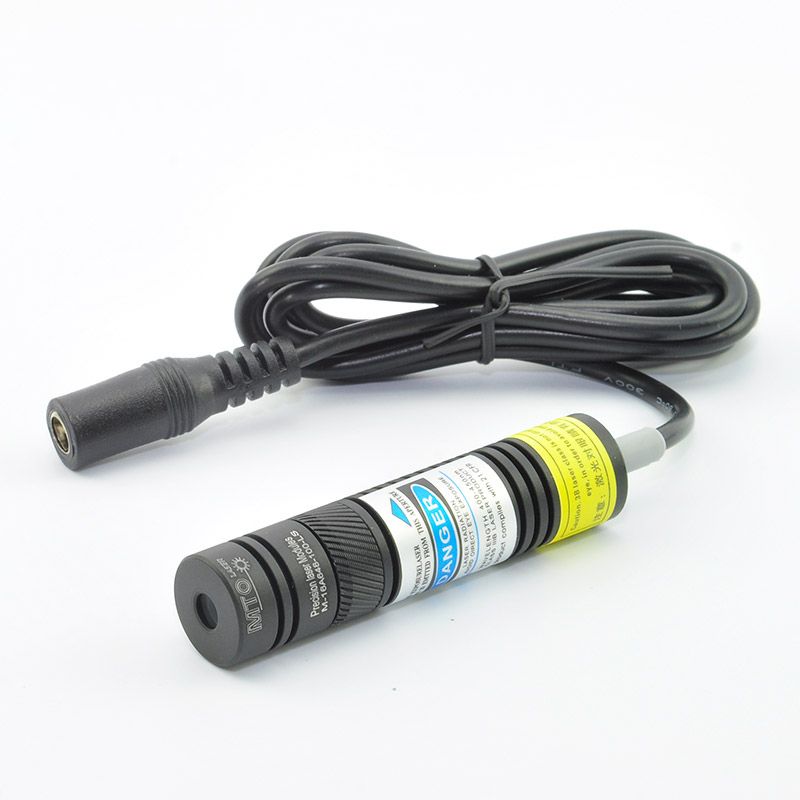

120mW 405nm Blue-violet Cross Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
- Stock: In Stock
- Model: EB0017460
- SKU: EB0017460
This variable focus 120mW 405nm Blue-violet cross laser module employs qualified 405nm blue-violet laser diode, generates the stable and reliable blue-violet laser cross applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
Specification:
| Brand | Renhotec |
| Laser Power | 120mW |
| Wavelength | 405nm |
| Beam Shape | Cross |
| Variable Focus | YES |
| Output Light | Visible Light |
| Working Voltage | DC 5V |
| Working Current | 130mA |
| Optics | Focus Lens + Cross Lens |
| Shell Material | Aviation Aluminum |
| Operation Temperature | ±50℃ |
| Service Life | 8000h |

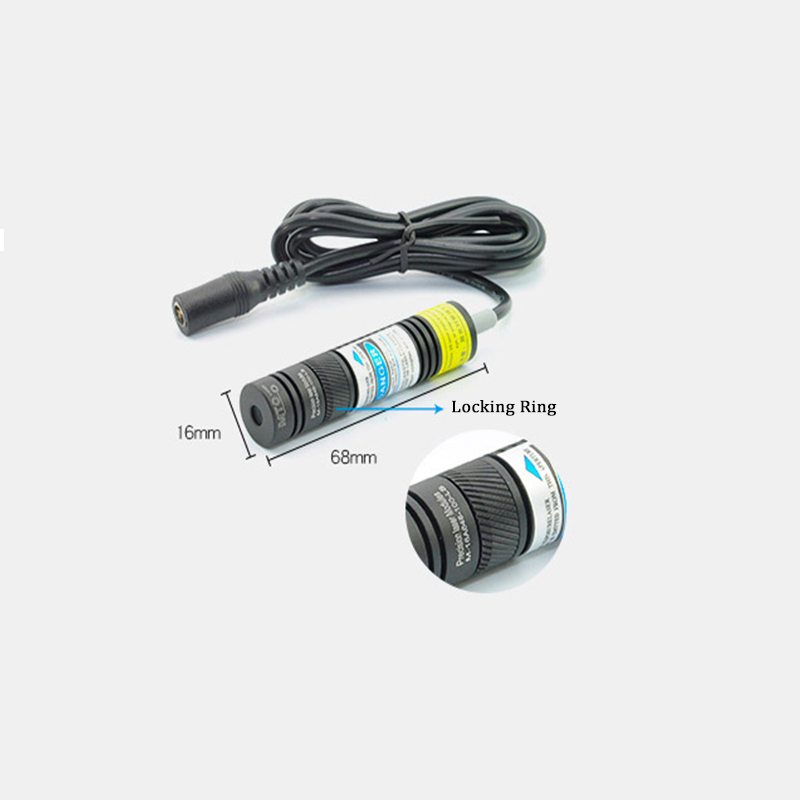

| Dimension (D*L) | 16mm x 68mm (With Locking Ring) |
| Optimum Working Distance | The brightness of 405nm blue-violet lights is weak and not suitable for long-distance use. |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V 0.3A 50-60Hz |
Features:
1. 120mW stable output power, variable focus, 405nm blue-violet cross laser module.
2. Good heat dissipation ensures its long service life.

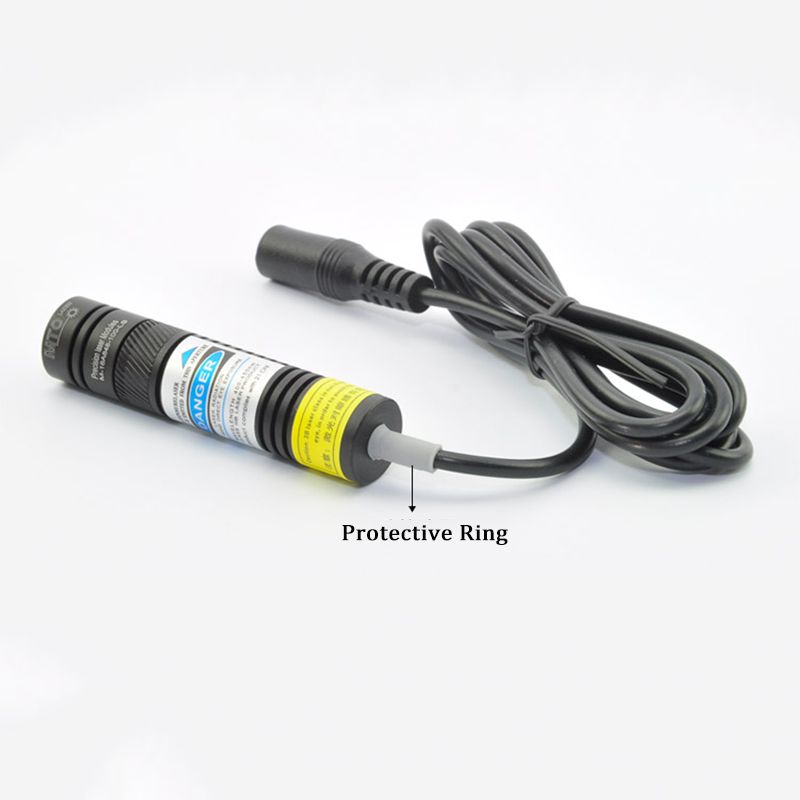

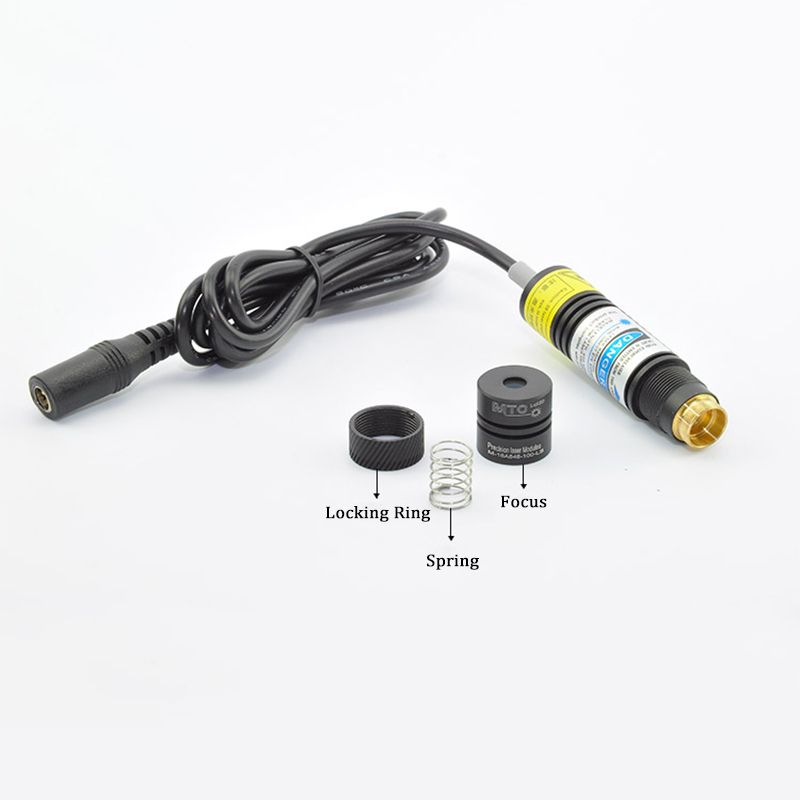

3. Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.

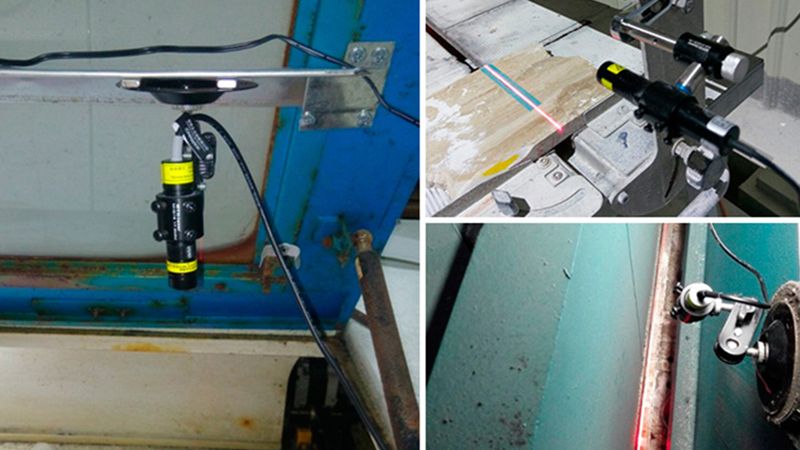

5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, and other industrial, medical and laboratory equipment.
6. The specification of international standard master interface DC is 5.5*2.1mm
Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.

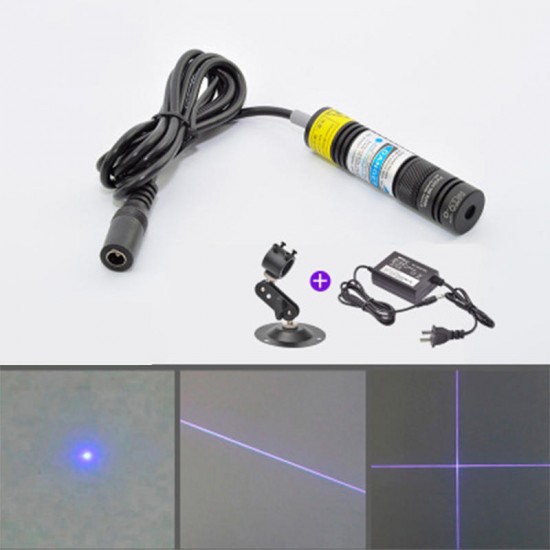

Package Included:
1 x Blue-Violet Cross Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
