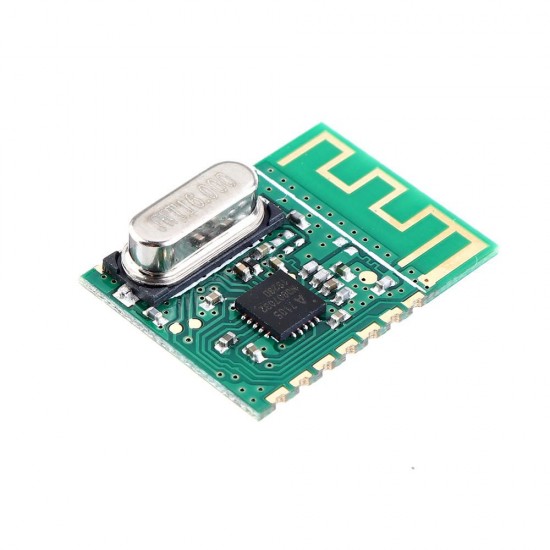

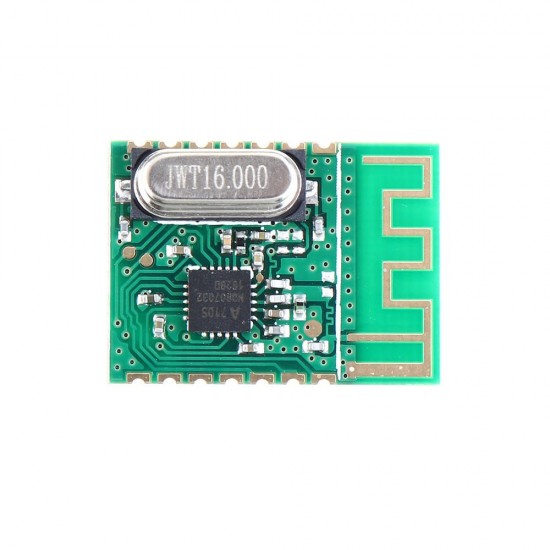

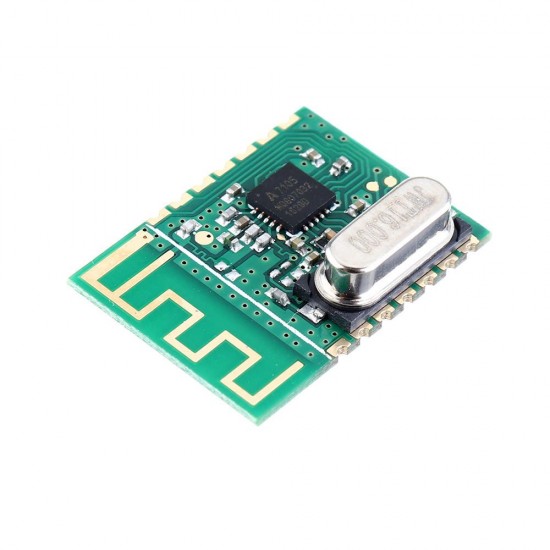

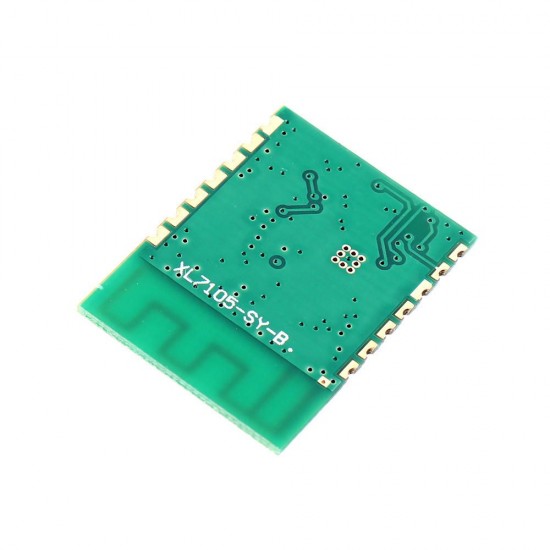

MD7105-SY 2.4G Wireless Module A7105 Transceiver NRF24L01 Board

Based on 0 reviews. - Write a review

$8.99

Ex Tax: $8.99

Stock: In Stock
Model: EB0045457
SKU: EB0045457

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Characteristic:

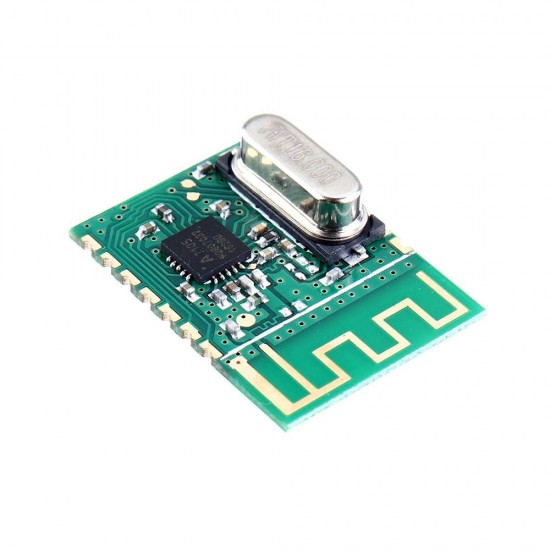

The XL7105-D01 is a high-performance 2.4G wireless transceiver module based on Taiwan AMIC's A7105 2.4G wireless transceiver IC. It uses GFSK modulation and works in the international ISM band of 2400-2483M. The high modulation rate of Zui is up to 500KBPS. Based on the SPI interface, the hardware SPI port of the MCU can be used to connect or use the I/O port of the MCU to simulate. The internal FIFO can interface with various high and low speed microprocessors, which is convenient for using low-cost MCU.

Parameter:

• Operating frequency can work at any frequency in the ISM 2.4GHz band, 500KHz stepping

• Onboard PCB antenna

• FSK/GSK modulation

• With 16-bit CRC checksum and FEC error correction.

• Built-in code

• Transceiver separate 64-byte FIFOs

• High sensitivity -98dBm@250kBPs

• Low power sleep current 1uA

• Best transmission distance: open field 250BPS rate, send and receive 10 bytes of data test distance up to about 70 meters

Electrical characteristics:

Item	Parameters	Min	Typ	Max	Unit	Condition
1	Power Supply
1.1	Supply voltage	1.9		3.6	V
2	Current Consumption
2.1	sleep mode		1		uA
2.2	Standby mode		1.8		mA
2.3	Rx states		16		mA
2.4	Tx states		19		mA	@0dBm
2.5	PLL mode		9		mA
3	Transmitter Part
3.1	Tx data rate	25	250	500	Kbps
3.2	Frequency	2400		2483.5	MHz
3.3	Output power	-10	0	1	dBm
3.4	Spurious emissions 25MHz ~ 1GMz 47 ~ 74, 87.5 ~ 118, 174 ~230, 470 ~ 862MHz 1800 ~ 1900MHz At 2nd-RF and 3rd-RF Otherwise above 1GHz		-36 -54 -47 -41 -30		dBm dBm dBm dBm dBm
4	Receiver Part
4.1	Receiver sensitivity		-92		dBm	@500Kbps
4.2	Saturation		-23		dBm
4.3	Adjacent channel rejection		21		dB	Desired channel 3dB above the sensitivity limit. 1MHz channel specing
4.4	Alternate channel rejection		30		dB	Desired channel 3dB above the sensitivity limit. 1MHz channel specing

Parameters	Min	Max	Unit
Supply Voltage	1.9	3.6	V
Temperature ambient	-20	60	℃

MD7105-SY-24G-Wireless-Module-A7105-Transceiver-NRF24L01-Board-1535074

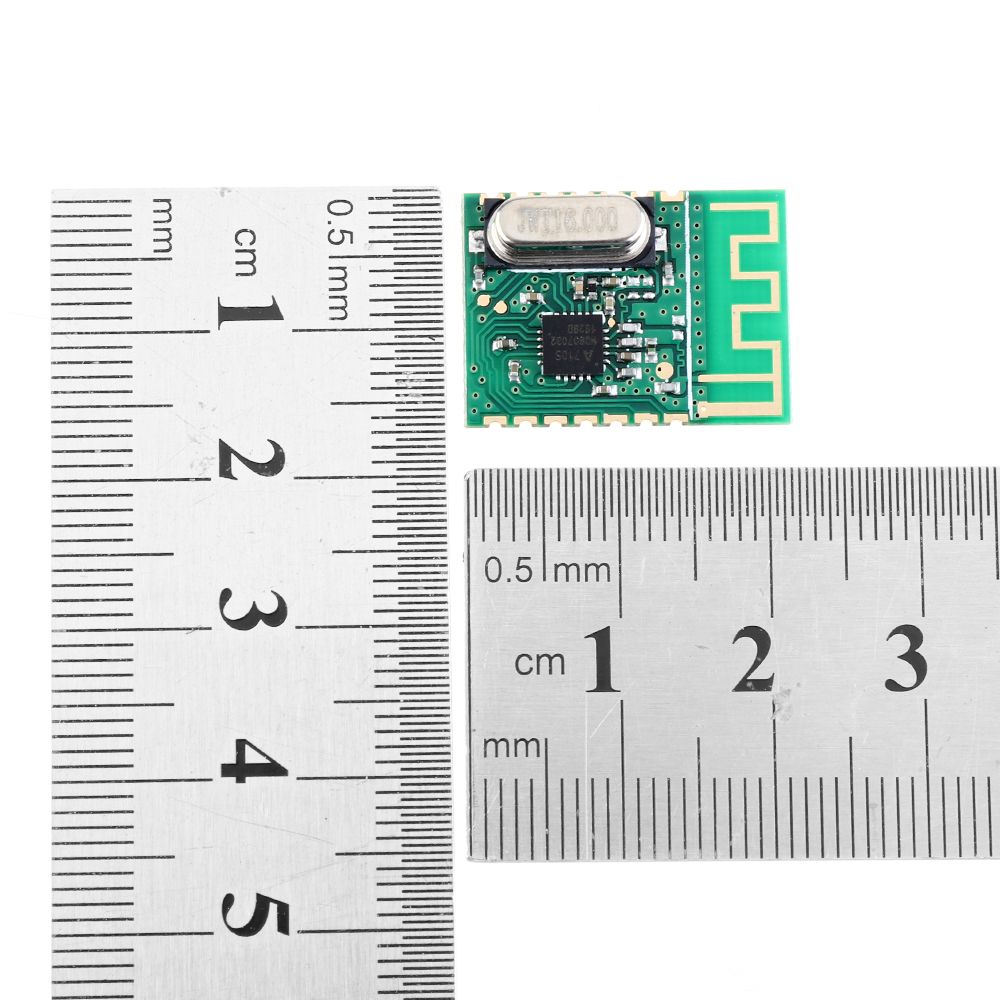

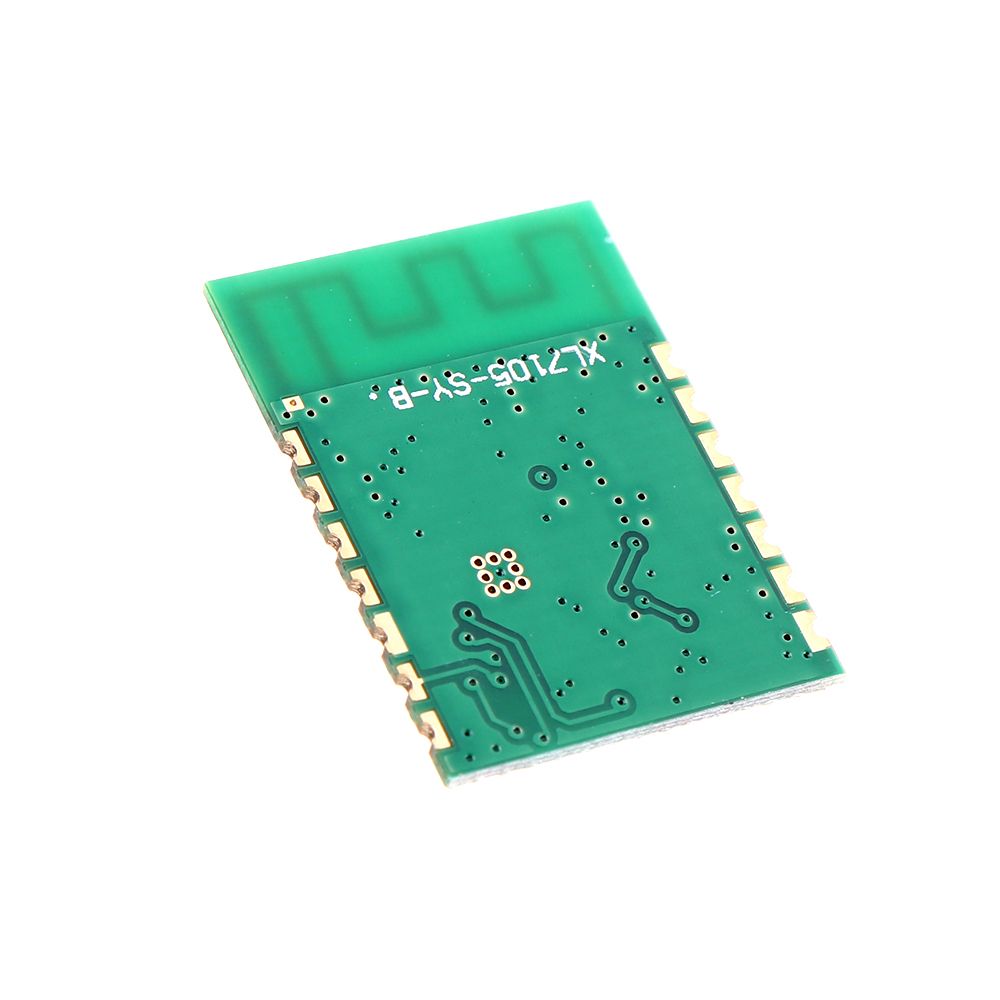

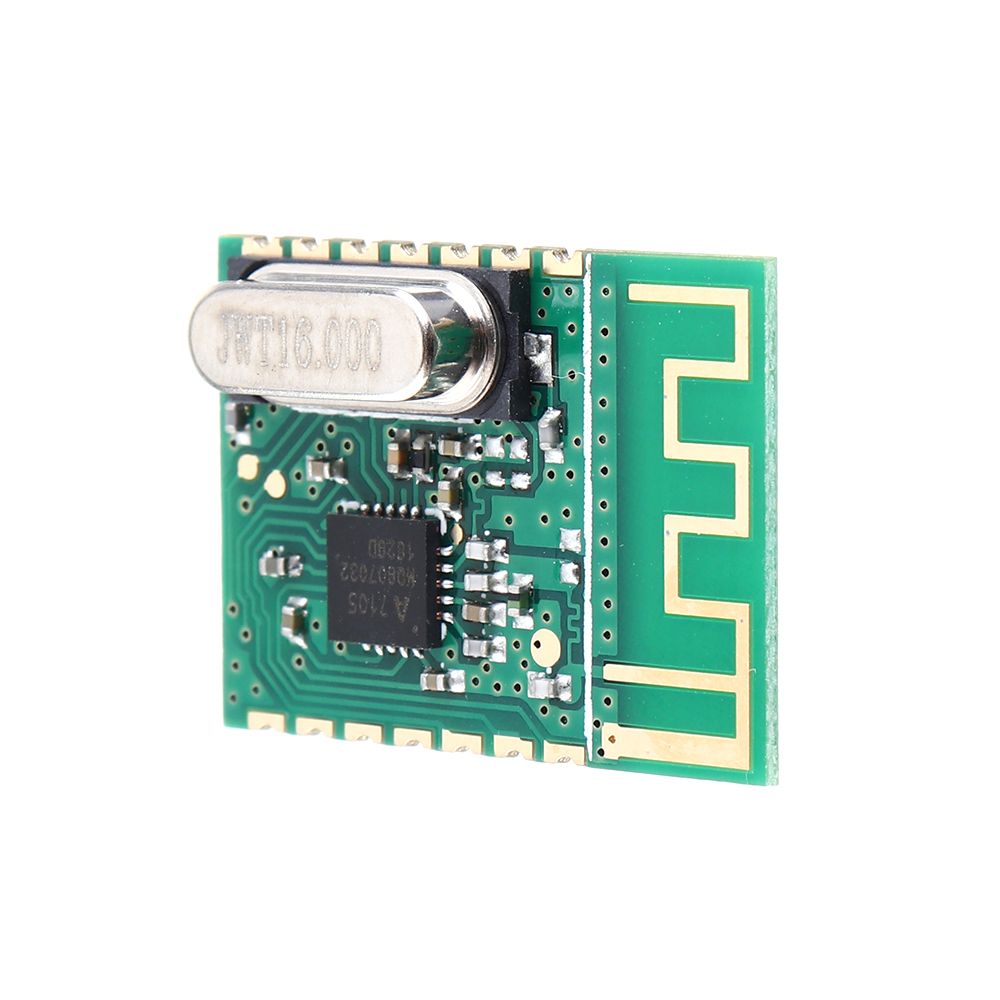

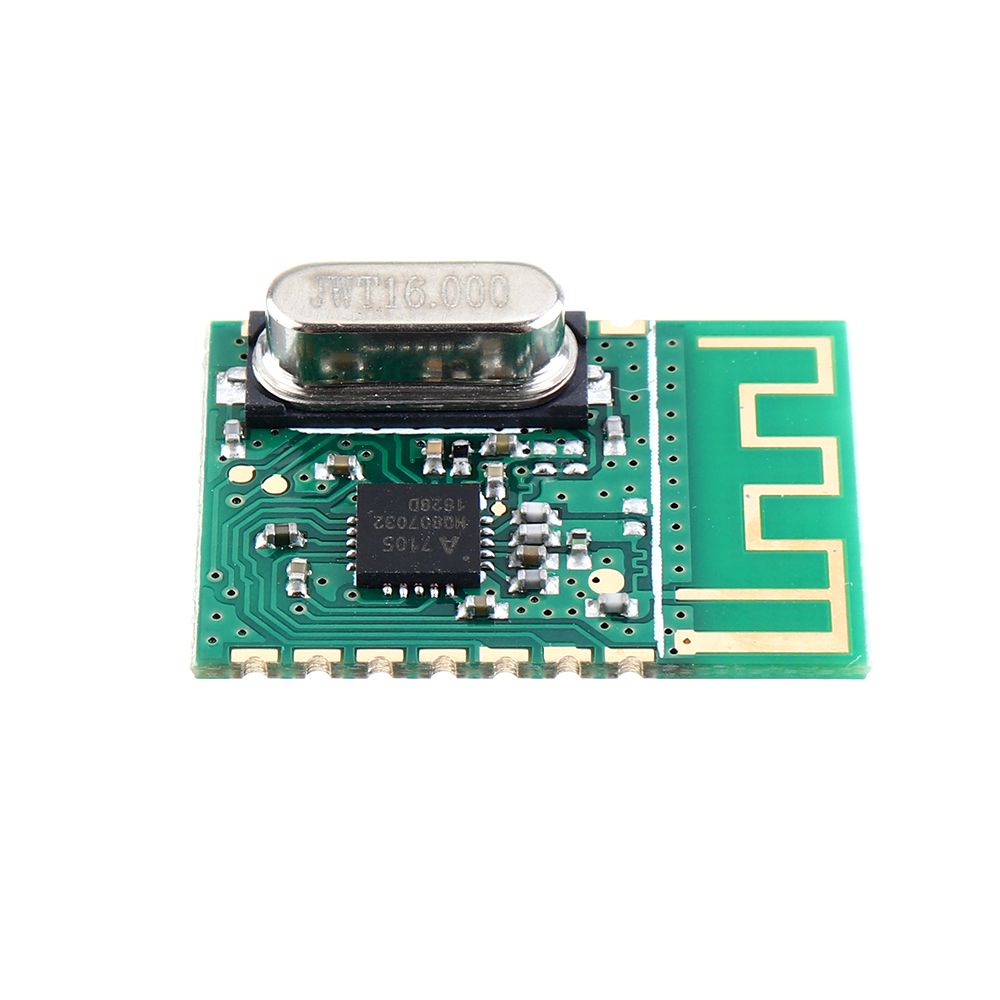

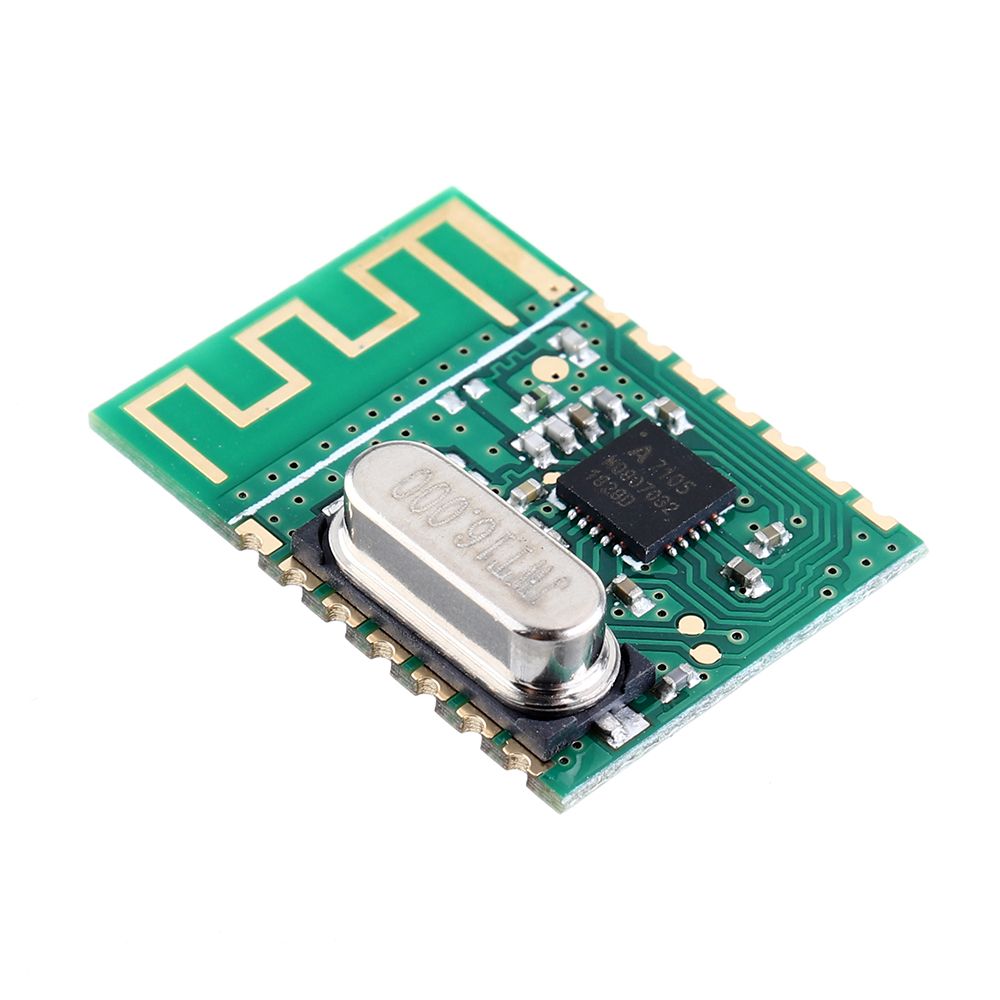

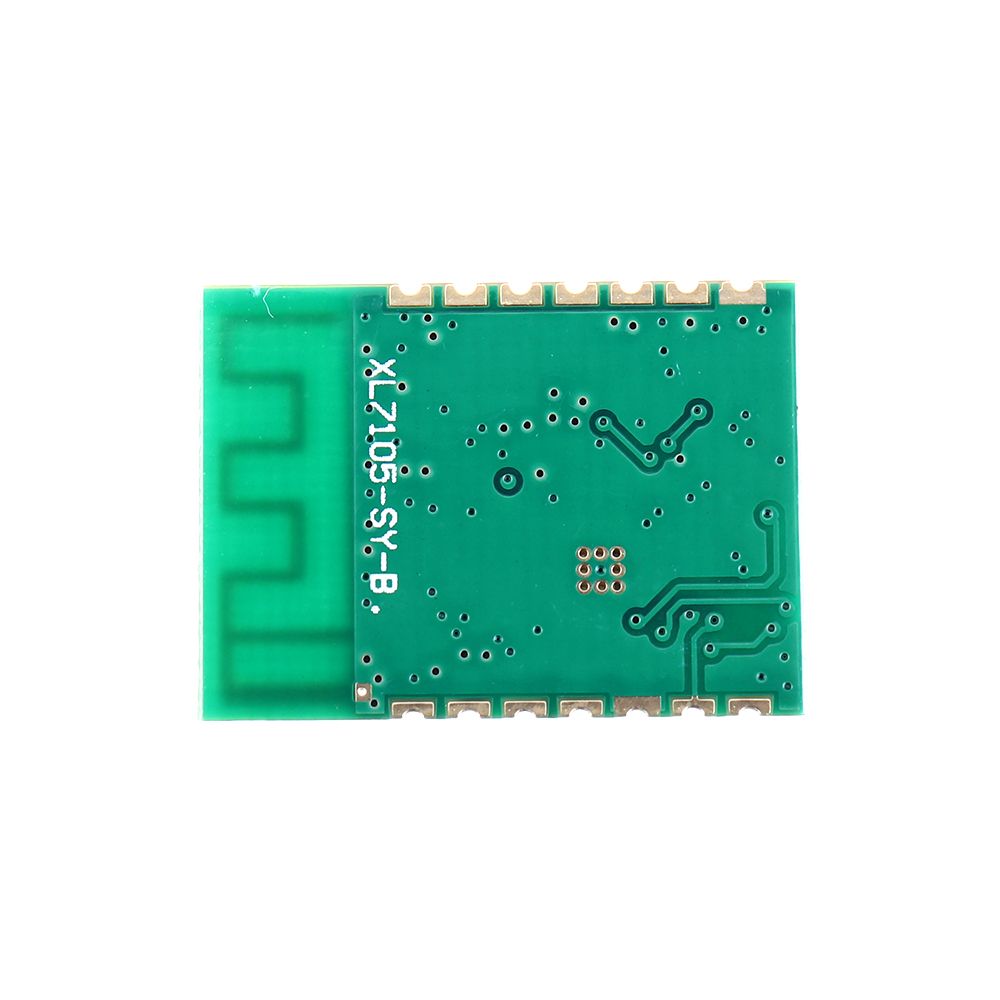

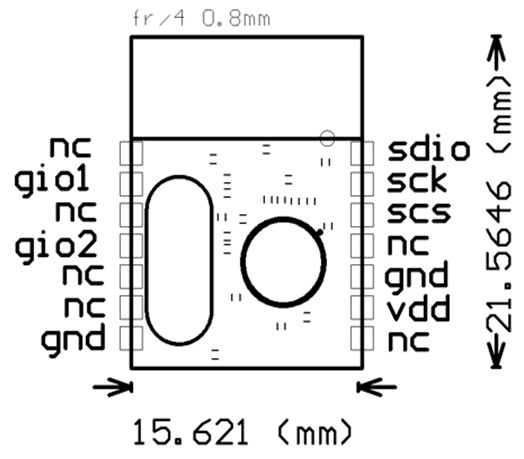

PIN	PIN NAME	PIN FUNCTIONS
1,3,5,6,8,11	NC
2	GIO1	Multi-function pin 1
4	GIO2	Multi-function pin 2
7,10	GND	Power ground
9	VDD	Input power (3.0-3.3V)
12	SCS	SPI enable
13	SCK	SPI clock
14	SDIO	SPI data

The VCC pin voltage is between 1.9V and 3.6V. If it exceeds 3.6V, the module will be burned. The recommended voltage is around 3.3V. In addition to the power supply VCC and ground, the other pins can be directly connected to the normal 5V MCU IO port without level shifting. Of course, it is more suitable for the 3V microcontroller.

Precautions:

When connecting with the P0 port of the 51 series MCU, it is necessary to add a 10K pull-up resistor, which is not required to connect with the remaining ports. For other series of single-chip microcomputers, if it is 5V, please refer to the output current of the IO port of this series of microcontrollers. If it exceeds 10mA, it needs to be divided by series resistors, otherwise it will easily burn the module! If it is 3.3V, it can directly connect with the IO port of nRF24l01 module. Wire connection, such as AVR series MCU.

The wireless module is a static-sensitive device. Pay attention to the static electricity protection when using it. Especially in the dry winter, try not to remove the device on the touch module to avoid unnecessary damage.

Package includes:

1 x Wireless module
