MC4T-A1 Solar PV MC4 Branch Connectors Solar Panel T/Y Branch Cable Splitter Coupler MFF FMM

Based on 0 reviews. - Write a review

$8.74

Ex Tax: $8.74

Stock: In Stock
Model: EB000352
SKU: EB000352

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

MC4T-A1 Solar PV MC4 Branch Connectors Solar Energy Adapter Solar Panel MC4 T/Y Branch Cable Splitter Coupler Combiner MFF FMM

1. Widely used in the connection of mc4 solar connectors for solar system;

2. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;

3. To meet the using requirement under bad outdoor condition;

4. Adopt tight-hoop connection of cable;

5. Fastness of male and female points with stable auto-lock equipment which is easy to lock and open;

6. Easy and reliable connection of the solar cables to the pv system (solar panels, inverters).

Features:

·Simple on-site processing.

·Mating safety provided by keyed housings.

·Mutiple plugging and unplugging cycles.

·Accomodates PV cable with deferent insulation diamaters.

·High current carrying capacity.

·TUV approved.

Specification:

Product No.: MC4T-A1

Rated Voltage: TUV 1000V DC / UL 600V DC

Rating Current: 20A~30A

Suitable cable cross sections: 2.5mm2~ 6.0mm2 / 14AWG~ 10AWG

Pin dimension: 4.0mm

Proof voltage: DC 8KV(1Min)

Pollution degree: 2

Protection class: Class II

Contact Material: Copper, tin-plated

Contact Resistance: 5mW

Connector Material: PPO

Degree of Protection IP: IP67(IEC 60529)

Withdrawal Force: 3 50N

Insertion Force: 50N

Temperature Range: -40oc +85oc

Flame Class: UL94V - 0

Package included:

1 x MC4T-A1 Solar PV MC4 Branch Connectors

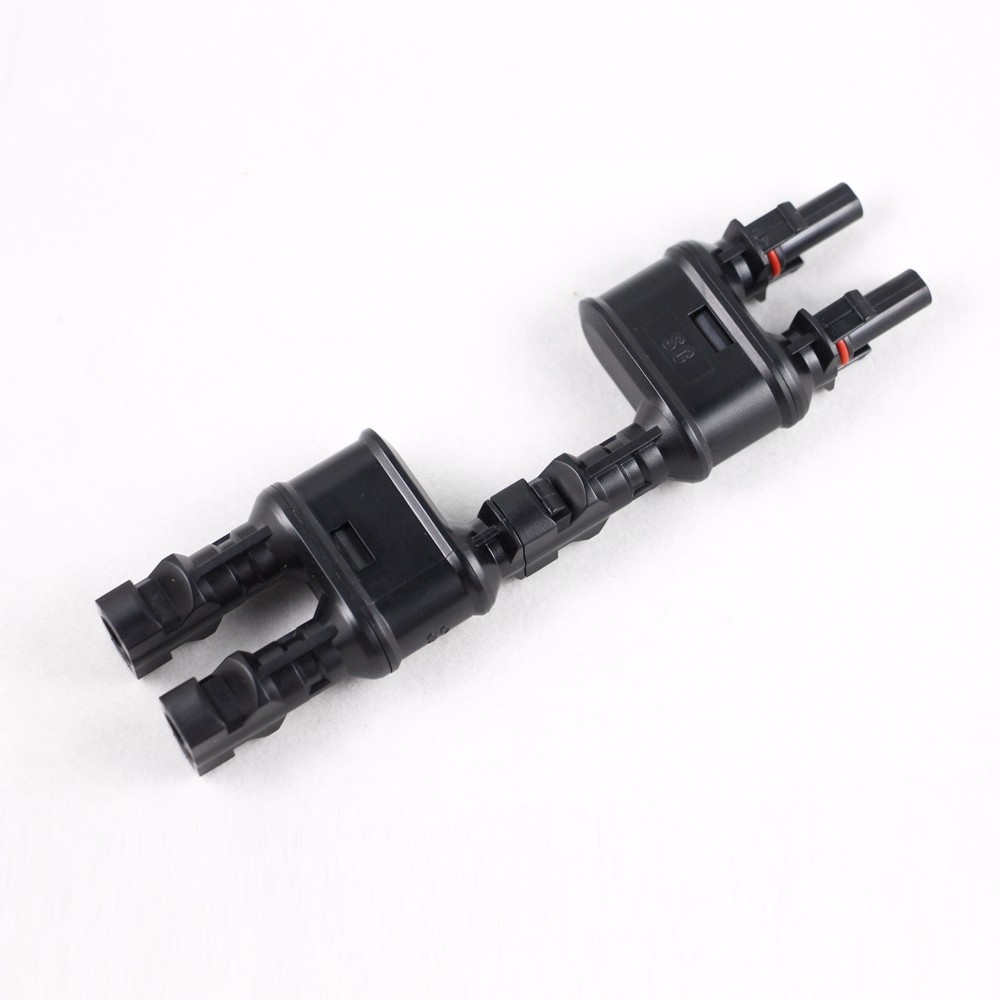

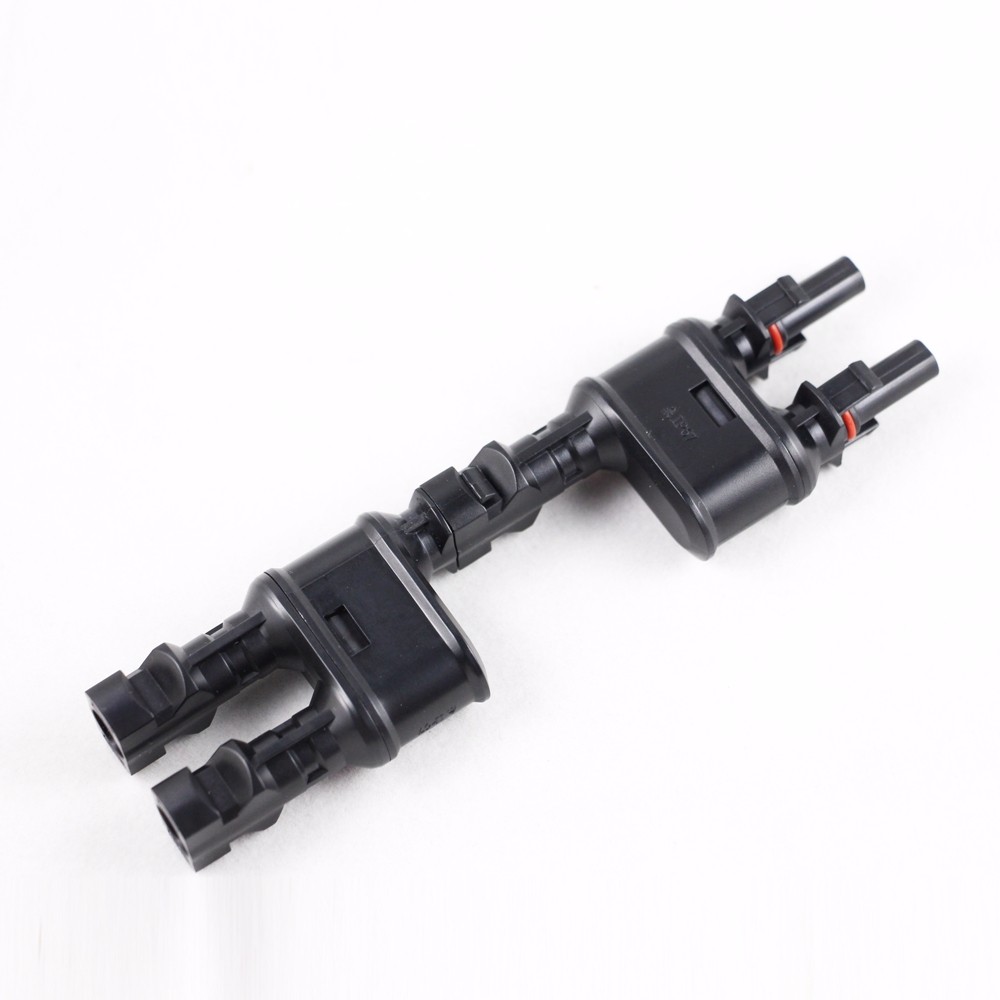

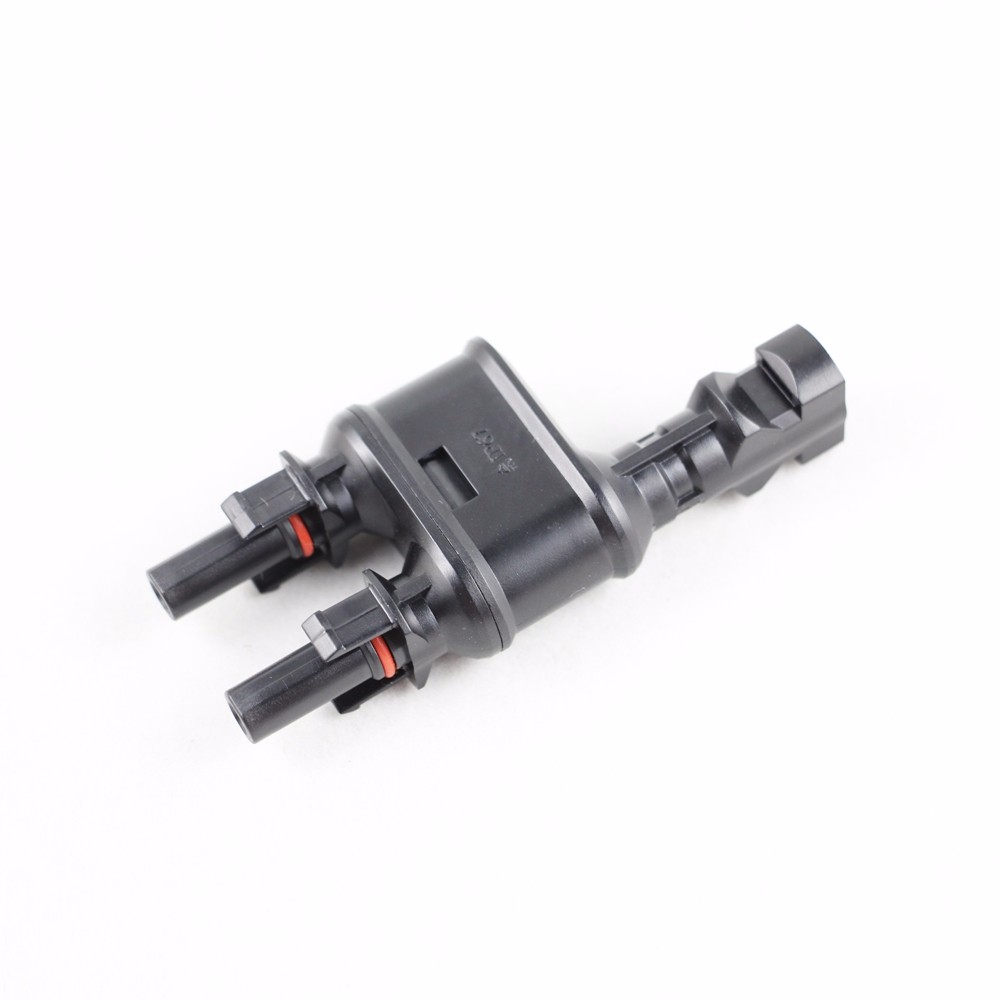

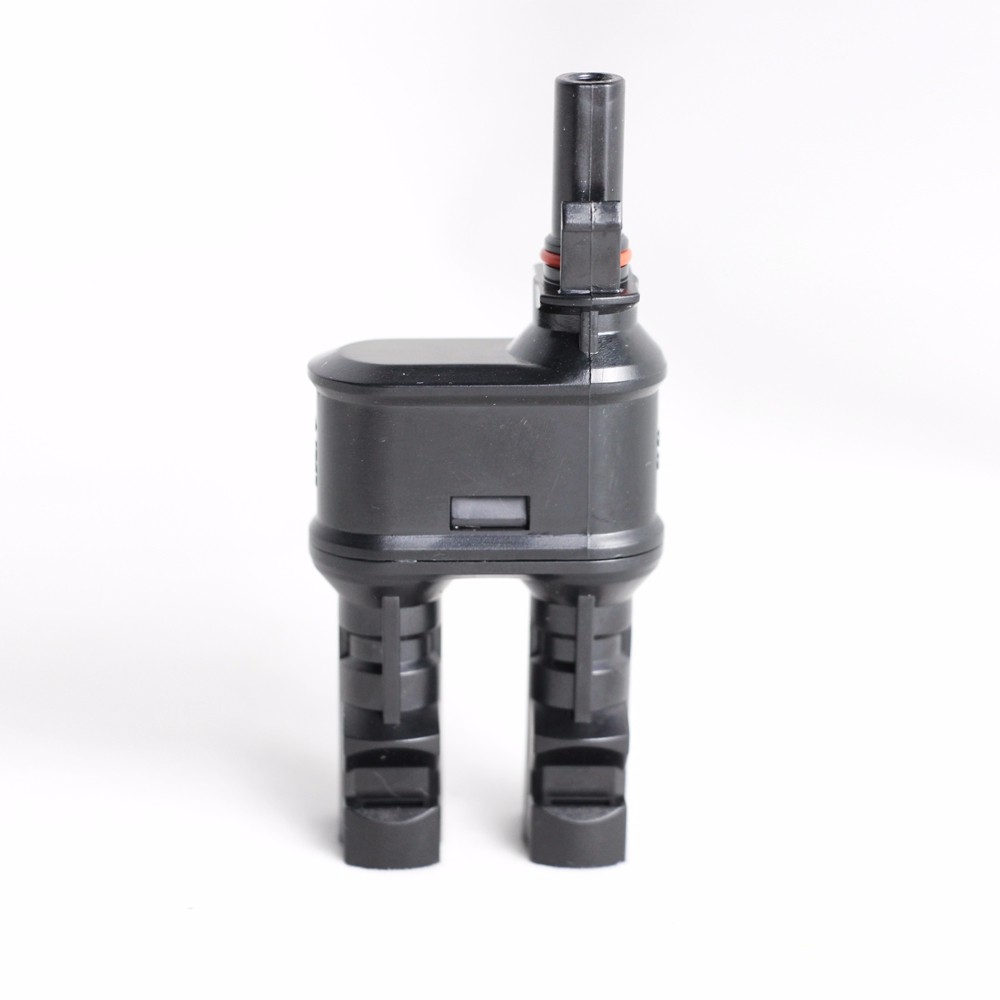

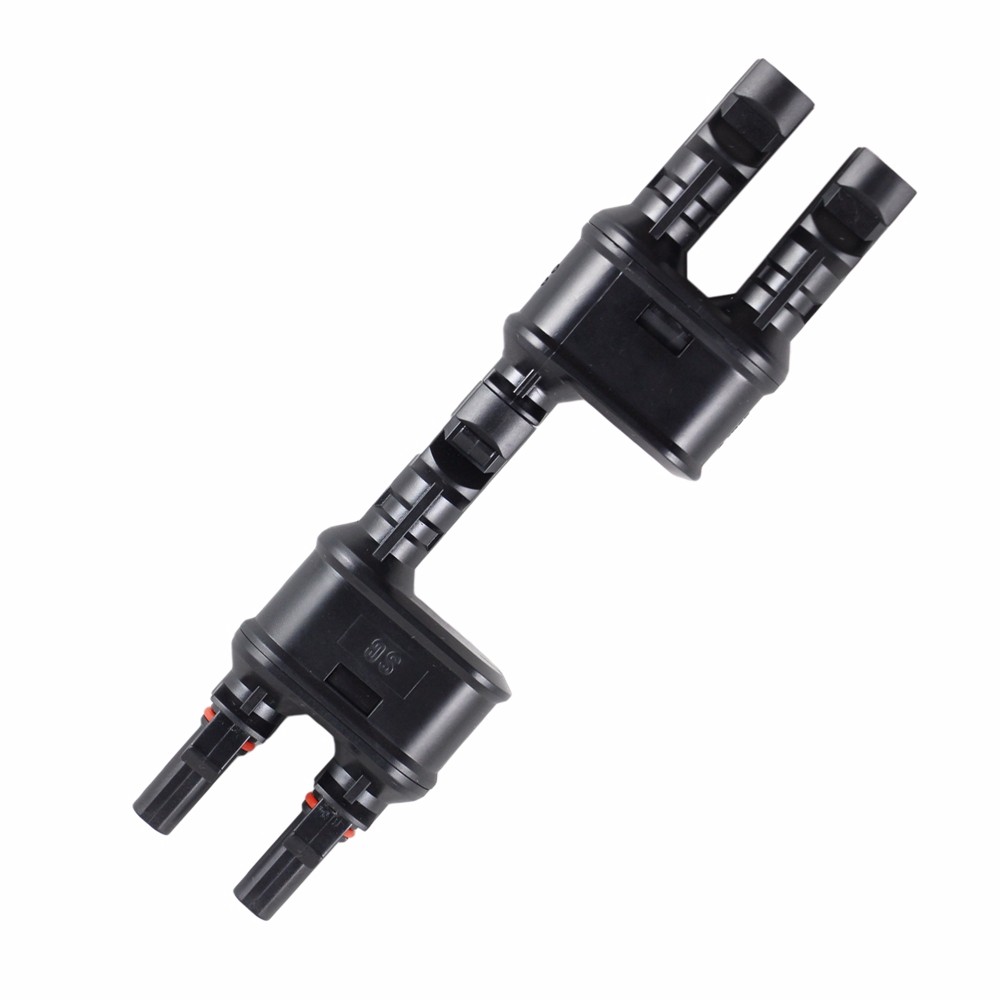

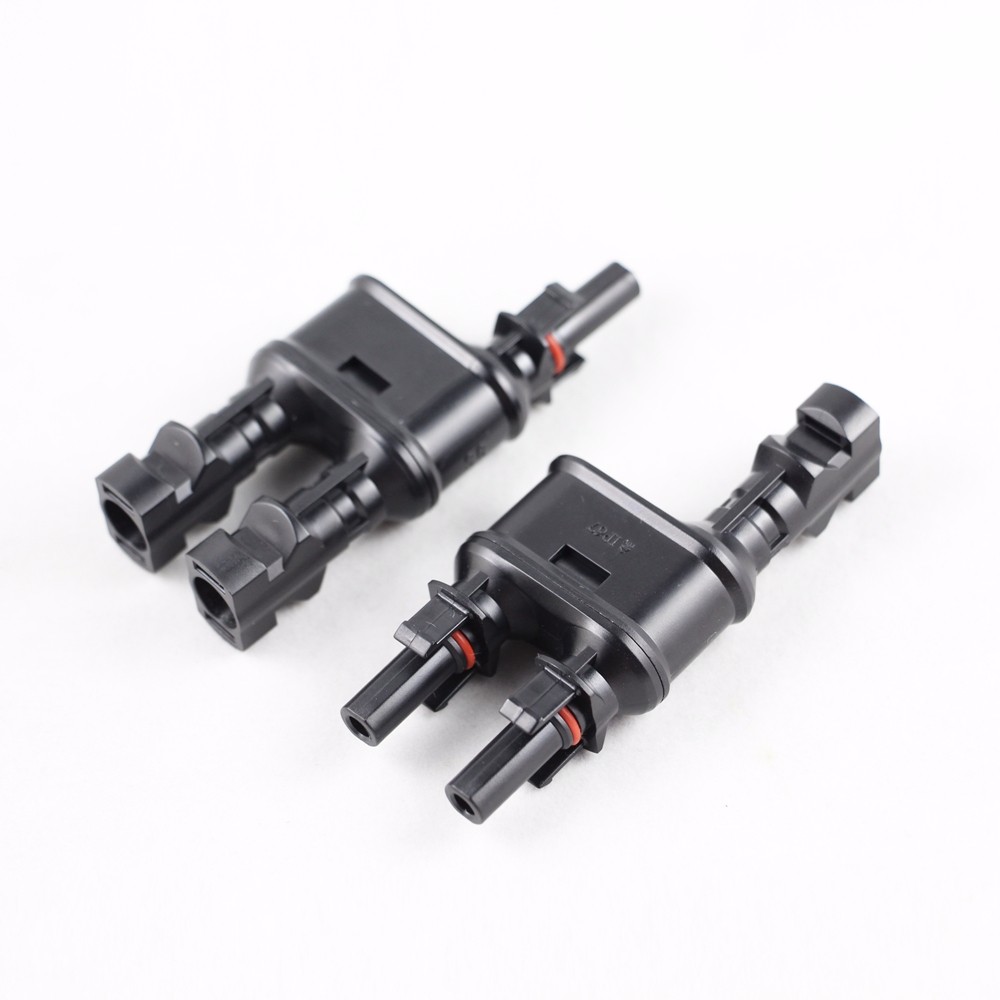

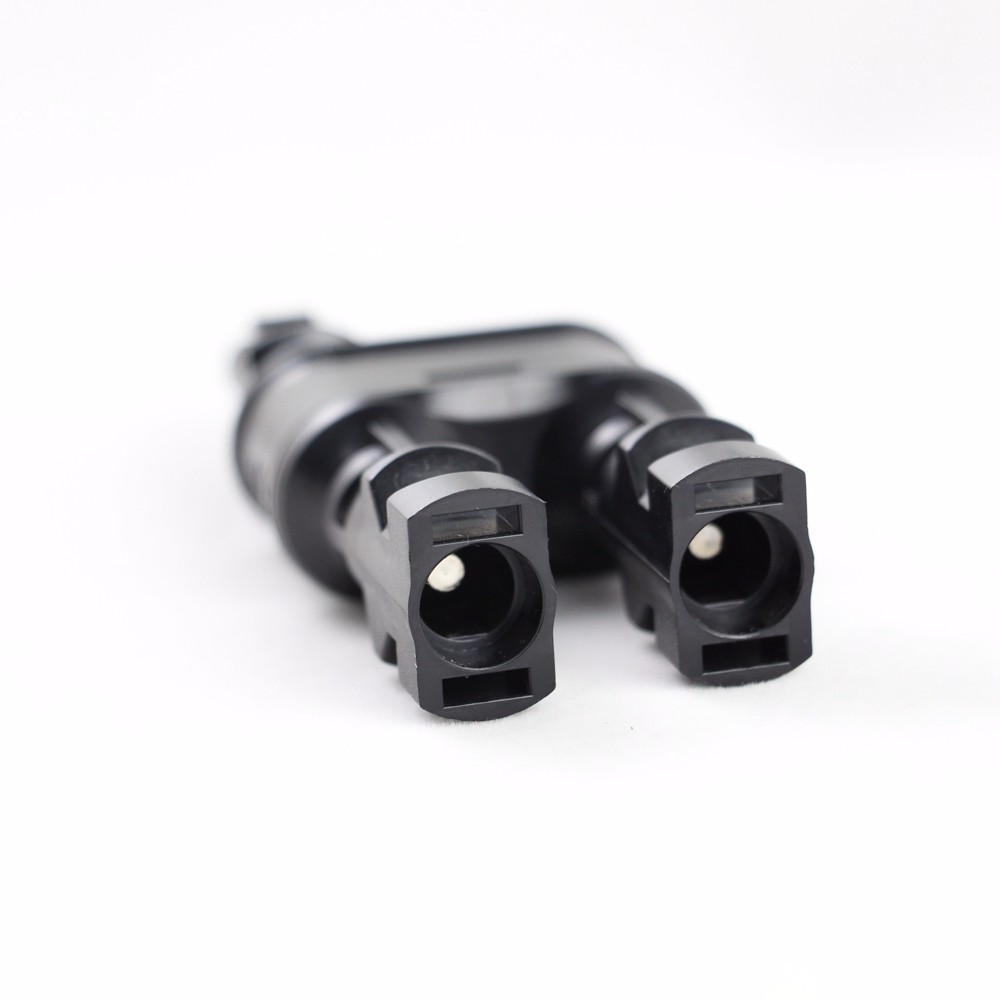

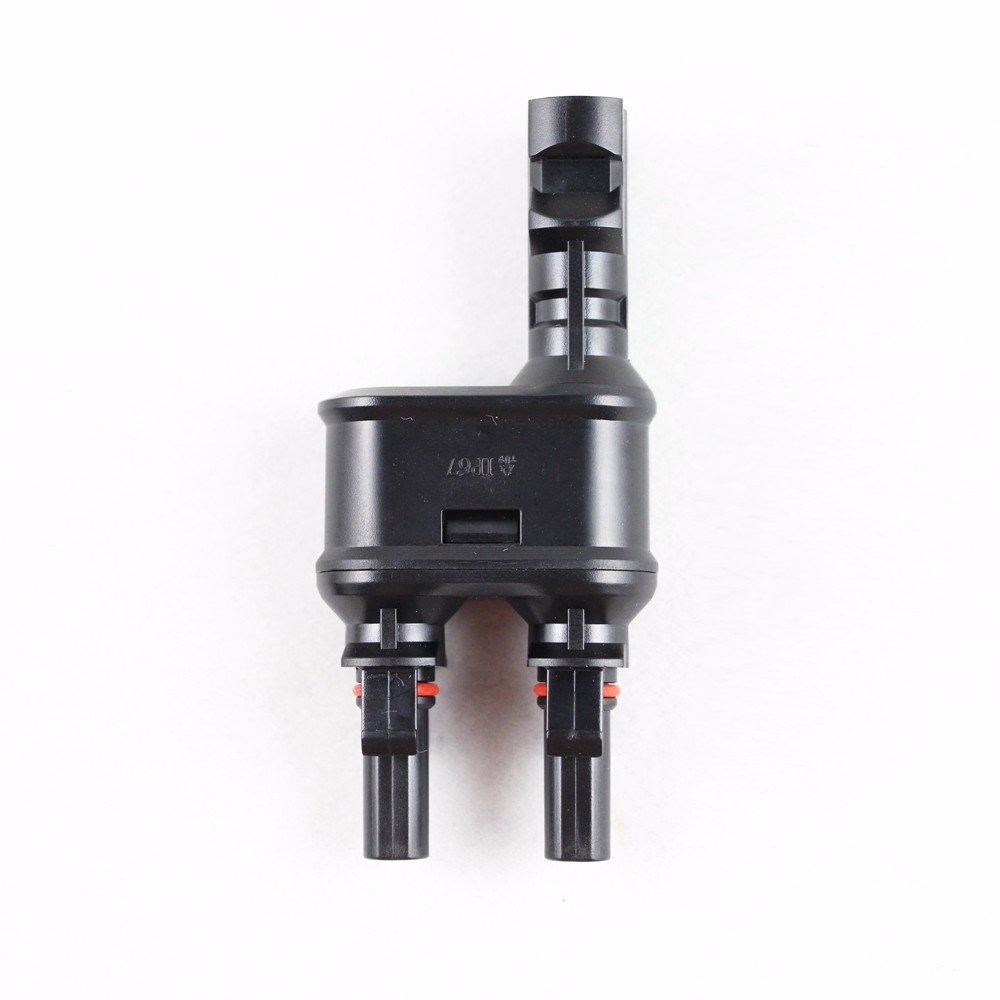

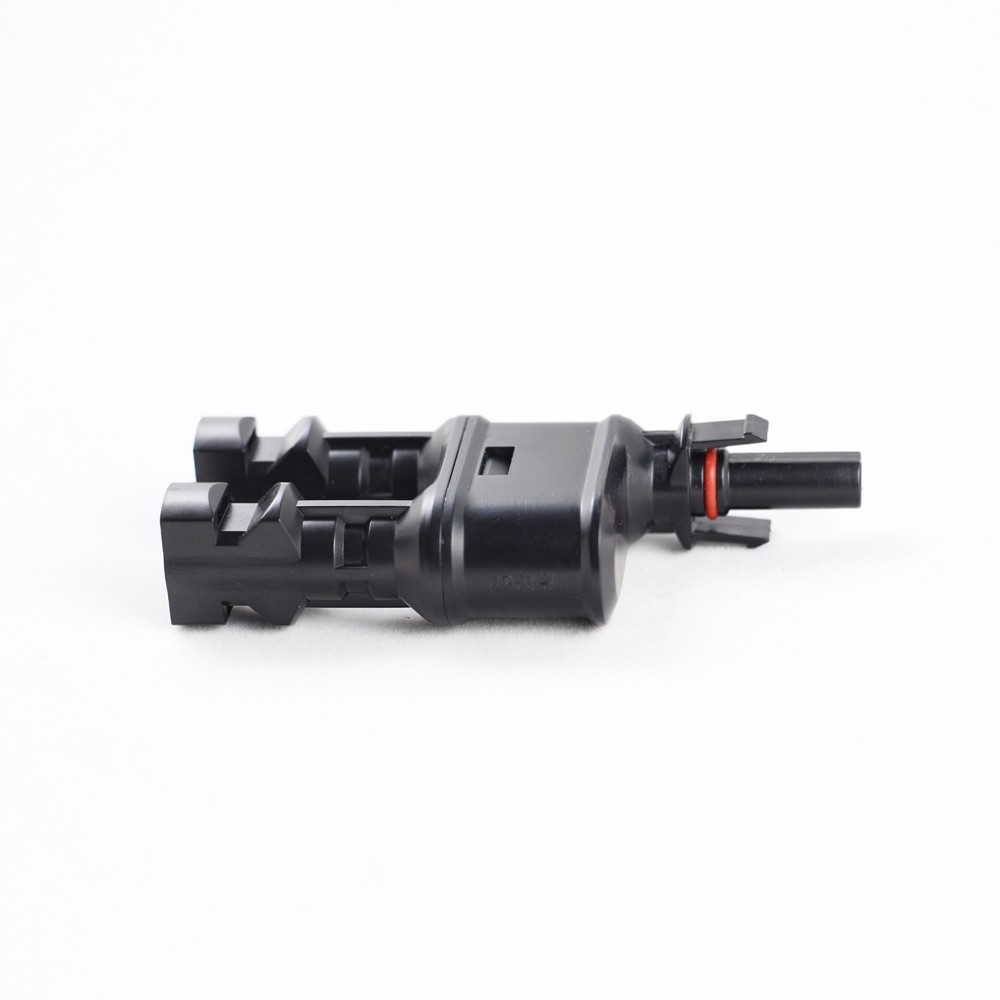

Details pictures:

MC4T-A1-Solar-PV-MC4-Branch-Connectors-Solar-Panel-TY-Branch-Cable-Splitter-Coupler-MFF-FMM-1053098
