M200T 2AO+1RS485+1Rj45 TCP Master Ethernet Remote IO Module IOT Solution Anti-reverse Data Acquisition 2 Analog Output for VFD Control
M200T 2AO+1RS485+1Rj45 TCP Master Ethernet Remote IO Module IOT Solution Anti-reverse Data Acquisition 2 Analog Output for VFD Control
$103.99
Ex Tax: $103.99
- Stock: In Stock
- Model: EB0041444
- SKU: EB0041444
- Voltage: 12V
Precise details>>
Precise details:
Note: Please refer to the title for the actual supported functions.
This M200T version: Support 2AO+1RS485+1Rj45 wet contact
Documents:
Manual: Click here to open
Tool: Click here to open
The difference between switch input dry contact and wet contact:
Dry contact:
External disconnection: the corresponding internal data is 0
External closure: the corresponding internal data is 1
Wet contact:
Logic 0: 0-3VDC
Logic 1: 10-30VDC
Introduction:

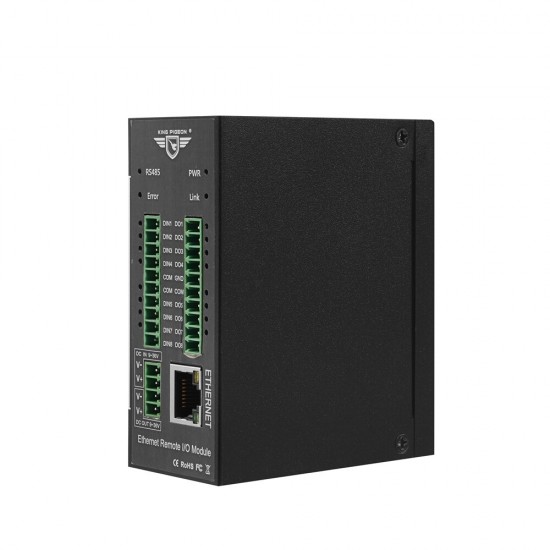

The M200T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.
The M200T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.
The M200T Ethernet Remote I/O module provides 2 analog outputs, 12-bit resolution, supports 0~10VDC signal output. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable
Feature:
1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;
2. Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection
3. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;
4. 2 analog output, 12-bit resolution, supports 0-10VDC;
5. High sampling frequency and special filtering strategy to ensure reliability;
6. 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;
7. Supports register mapping function and extend I/O inquiry strategy;
8. Provides 1 channel 24~36VDC power source output for external device, saving wiring cost;
9. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;
10. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
Package includes:
1 x M200T Ethernet Remote I/O module
| Model | Product ID | Descriptions | DC Output | DC Input | Typical Power Consumption |
| M100T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 2 DI, 2 AI, 2 DO | 1 DC | 9-36VDC | 160mA@12V |
| M110T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 4 DI, 4 DO | 1 DC | ||
| M120T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 4 DI, 4 AI, 2AO(0-10V), 4 DO | 1 DC | 24-36VDC | 90mA@24V |
| M130T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 4 DO | 1 DC | 150mA@12V | |
| M140T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 8 DO | 1 DC | 9-36VDC | |
| M150T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 4 AI, 4 DO | 1 DC | ||
| M160T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 8 AI, 8 DO | 1 DC | ||
| M200T | Contact Us | 1 RJ45,1 RS485, 2AO(0-10V) | 1 DC | 24-36VDC | 90mA@24V |
| M210T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 4 DI | 1 DC | 160mA@12V | |
| M220T | Contact Us | 1 RJ45,1 RS485, 4 DO | 1 DC | ||
| M230T | Contact Us | 1 RJ45,1 RS485, 4AI | 1 DC | ||
| M240T | PT100 Contact Us PT1000 Contact Us | 1 RJ45, 1 RS485, 4 RTD, 2/3 wire | 1 DC | 100mA@12V | |
| M310T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI | 1 DC | 9-36VDC | 150mA@12V |
| M320T | Contact Us | 1 RJ45,1 RS485, 8 DO | 1 DC | ||
| M330T | Contact Us | 1 RJ45,1 RS485, 8AI | 1 DC | ||
| M340T | PT100 Contact Us PT1000 Contact Us | 1 RJ45,1 RS485, 8 RTD, 2/3 wire | 1 DC | 100mA@12V | |
| M410T | wet Contact Us dry Contact Us | 1 RJ45J, 1 RS485, 16 DI | 1 DC | 160mA@12V | |
| M420T | Contact Us | 1 RJ45,1 RS485,16 DO | 1 DC | 110mA@12V |
Note: Please refer to the title for the actual supported functions.
This M200T version: Support 2AO+1RS485+1Rj45 wet contact
The difference between switch input dry contact and wet contact:
Dry contact:
External disconnection: the corresponding internal data is 0
External closure: the corresponding internal data is 1
Wet contact:
Logic 0: 0-3VDC
Logic 1: 10-30VDC
Introduction:
The M200T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.
The M200T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.
The M200T Ethernet Remote I/O module provides 2 analog outputs, 12-bit resolution, supports 0~10VDC signal output. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable
Feature:
1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;
2. Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection
3. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;
4. 2 analog output, 12-bit resolution, supports 0-10VDC;
5. High sampling frequency and special filtering strategy to ensure reliability;
6. 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;
7. Supports register mapping function and extend I/O inquiry strategy;
8. Provides 1 channel 24~36VDC power source output for external device, saving wiring cost;
9. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;
10. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
Package includes:
1 x M200T Ethernet Remote I/O module
| Model | Product ID | Descriptions | DC Output | DC Input | Typical Power Consumption |
| M100T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 2 DI, 2 AI, 2 DO | 1 DC | 9-36VDC | 160mA@12V |
| M110T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 4 DI, 4 DO | 1 DC | ||
| M120T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 4 DI, 4 AI, 2AO(0-10V), 4 DO | 1 DC | 24-36VDC | 90mA@24V |
| M130T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 4 DO | 1 DC | 150mA@12V | |
| M140T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 8 DO | 1 DC | 9-36VDC | |
| M150T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 4 AI, 4 DO | 1 DC | ||
| M160T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI, 8 AI, 8 DO | 1 DC | ||
| M200T | Contact Us | 1 RJ45,1 RS485, 2AO(0-10V) | 1 DC | 24-36VDC | 90mA@24V |
| M210T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 4 DI | 1 DC | 160mA@12V | |
| M220T | Contact Us | 1 RJ45,1 RS485, 4 DO | 1 DC | ||
| M230T | Contact Us | 1 RJ45,1 RS485, 4AI | 1 DC | ||
| M240T | PT100 Contact Us PT1000 Contact Us | 1 RJ45, 1 RS485, 4 RTD, 2/3 wire | 1 DC | 100mA@12V | |
| M310T | dry Contact Us wet Contact Us | 1 RJ45,1 RS485, 8 DI | 1 DC | 9-36VDC | 150mA@12V |
| M320T | Contact Us | 1 RJ45,1 RS485, 8 DO | 1 DC | ||
| M330T | Contact Us | 1 RJ45,1 RS485, 8AI | 1 DC | ||
| M340T | PT100 Contact Us PT1000 Contact Us | 1 RJ45,1 RS485, 8 RTD, 2/3 wire | 1 DC | 100mA@12V | |
| M410T | wet Contact Us dry Contact Us | 1 RJ45J, 1 RS485, 16 DI | 1 DC | 160mA@12V | |
| M420T | Contact Us | 1 RJ45,1 RS485,16 DO | 1 DC | 110mA@12V |
