M140T 8DI+8DO+1RS485+1Rj45 Modbus Switching Relay to Ethernet Acquisition Module Industrial Computer Room Equipment Data Acquisition to Ethernet

Based on 0 reviews. - Write a review

$126.99

Ex Tax: $126.99

Stock: In Stock
Model: EB0041439
SKU: EB0041439

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Note: Please refer to the title for the actual supported functions.

This M140T version: Support 8DI+8DO+1RS485+1Rj45 Modbus wet contact

Documents:

Manual: Click here to open

Tool: Click here to open

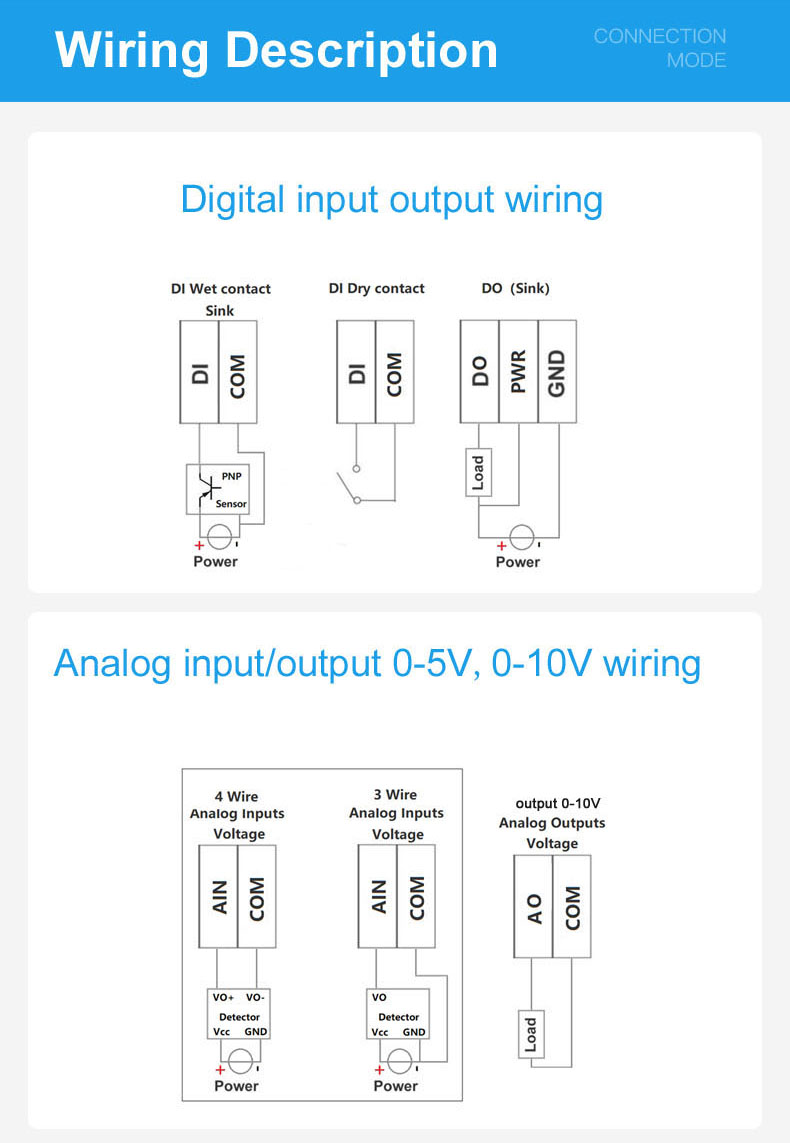

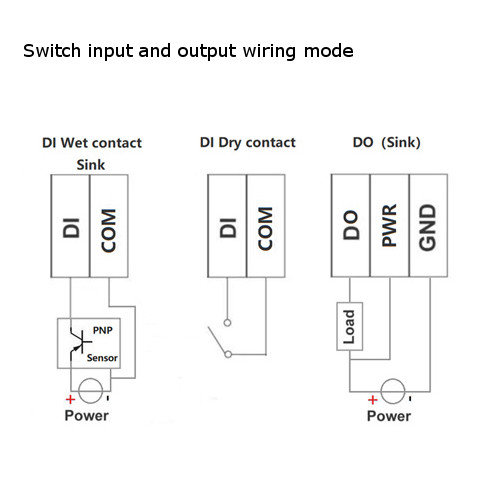

The difference between switch input dry contact and wet contact:

Dry contact:

External disconnection: the corresponding internal data is 0

External closure: the corresponding internal data is 1

Wet contact:

Logic 0: 0-3VDC

Logic 1: 10-30VDC

KING-PIGEONreg-M140T-8DI8DO1RS4851Rj45-Modbus-Switching-Relay-to-Ethernet-Acquisition-Module-Industr-1756408

Description:

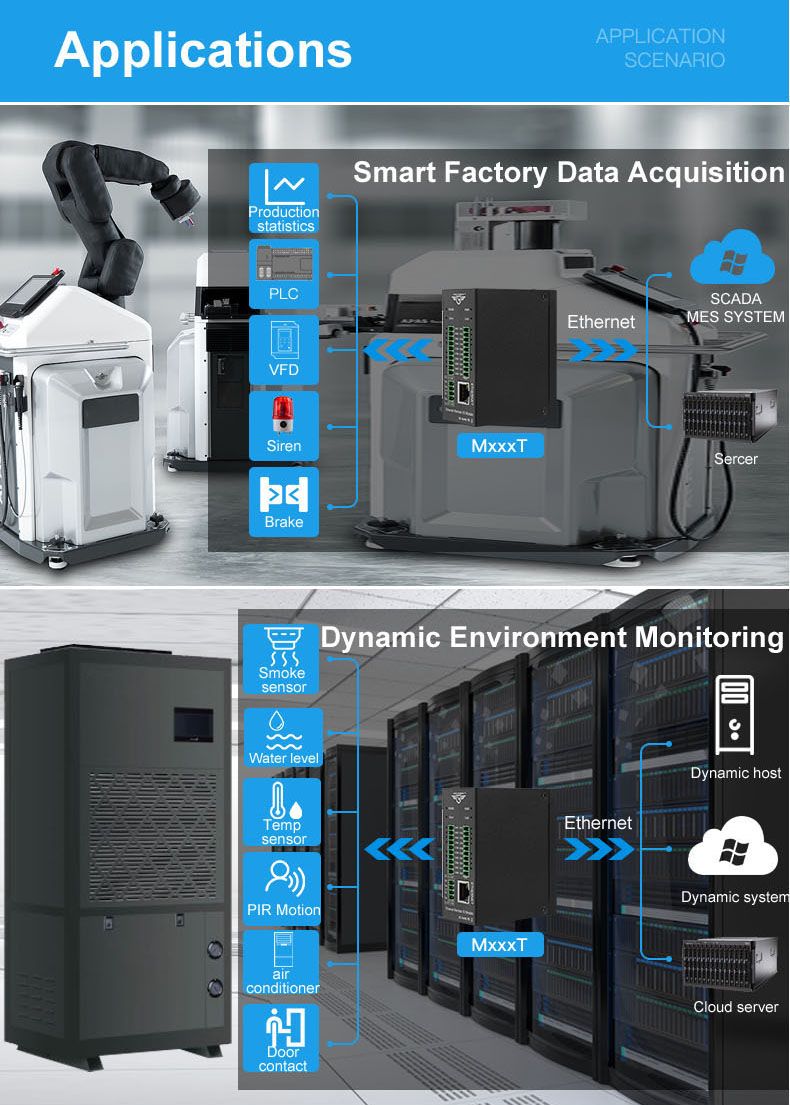

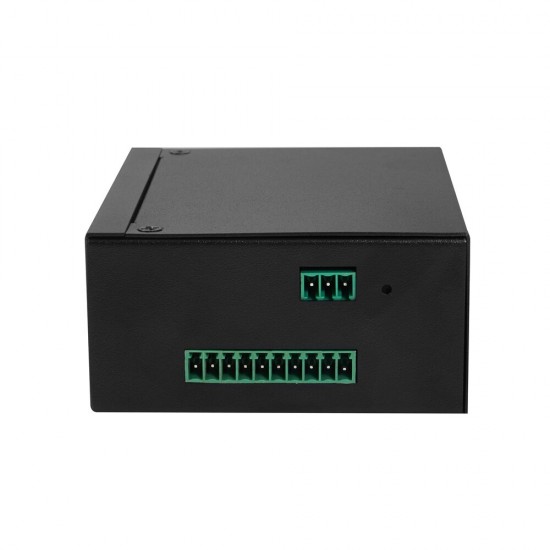

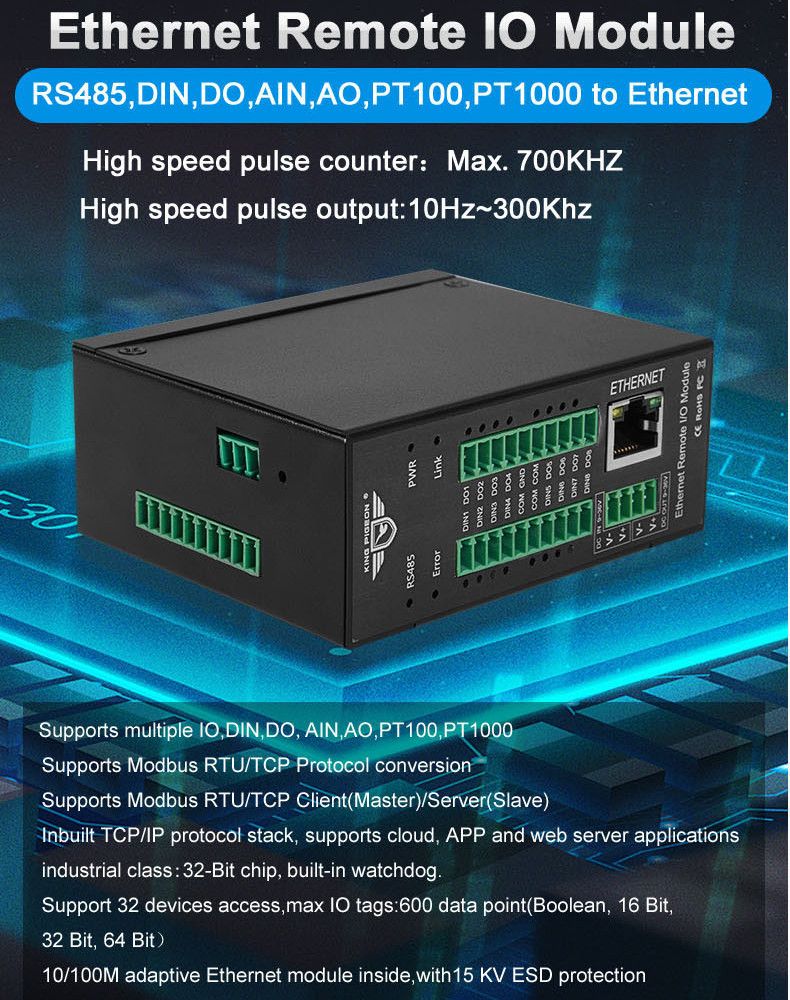

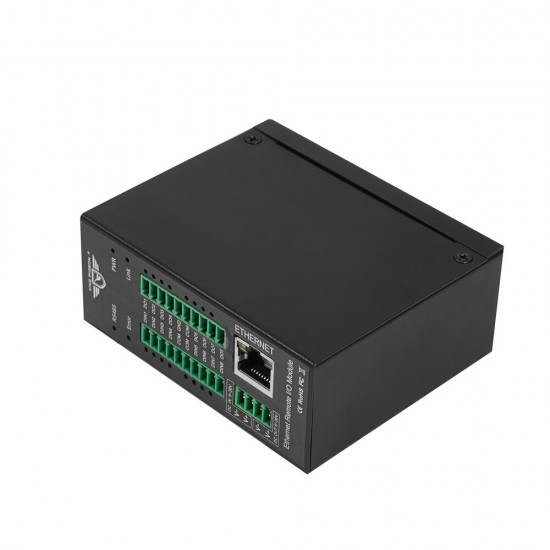

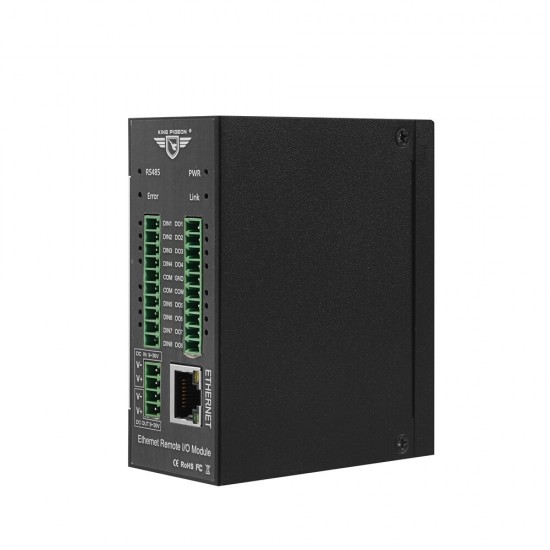

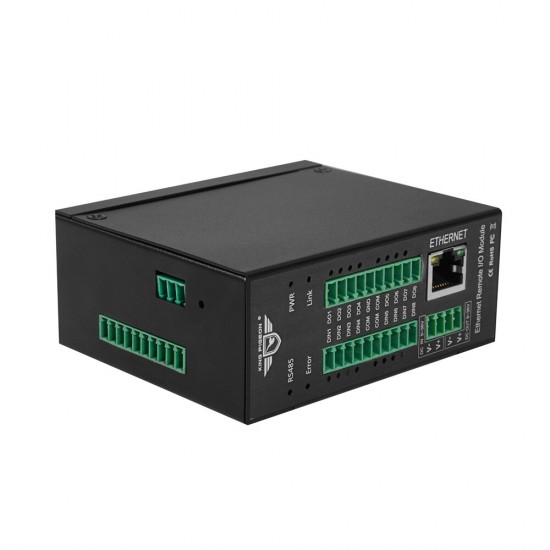

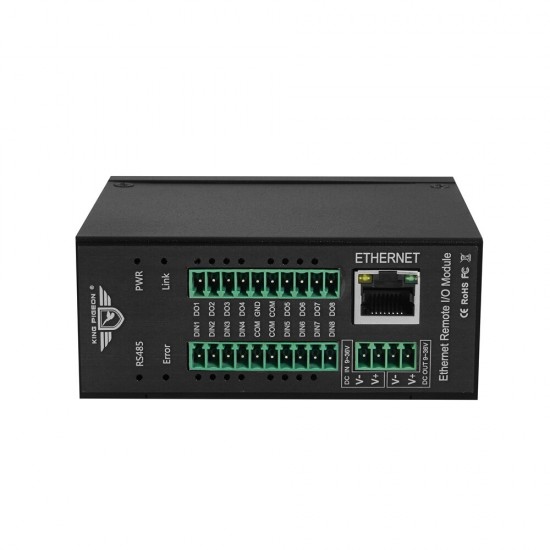

The M140T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

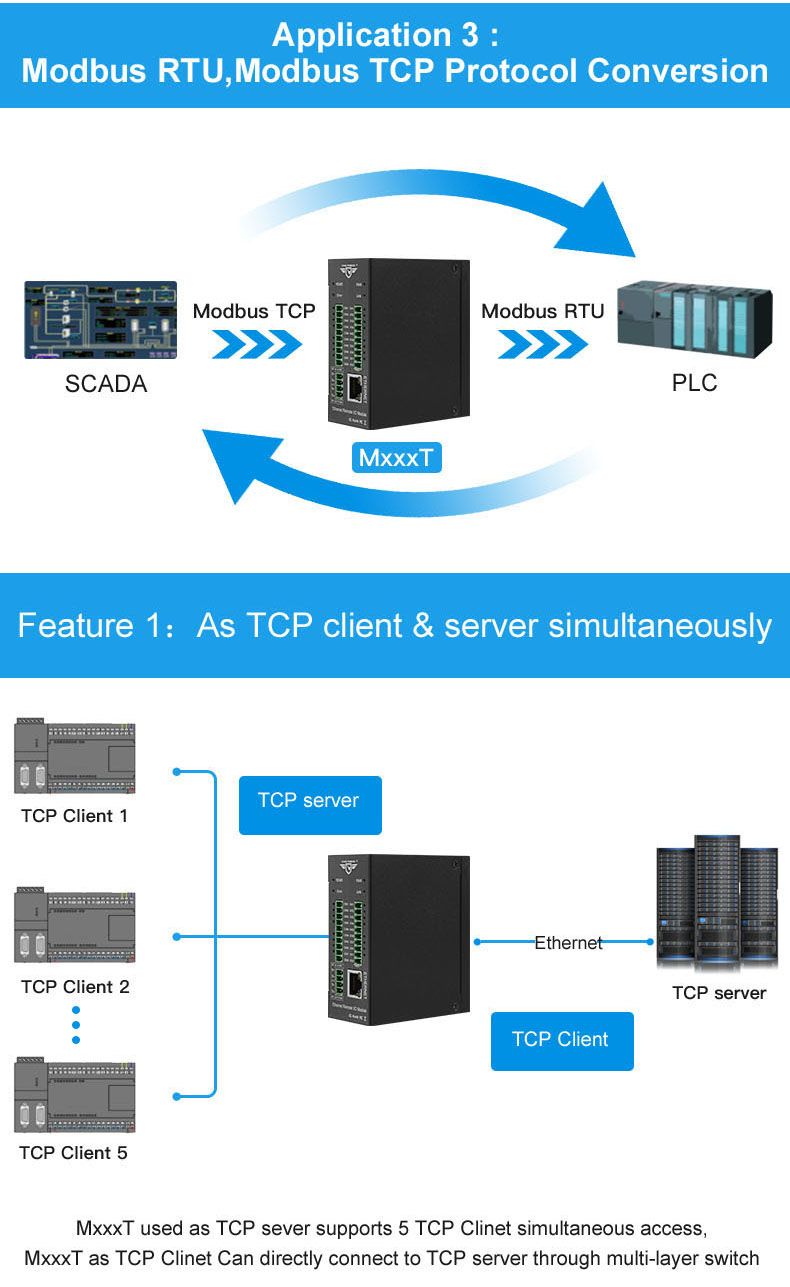

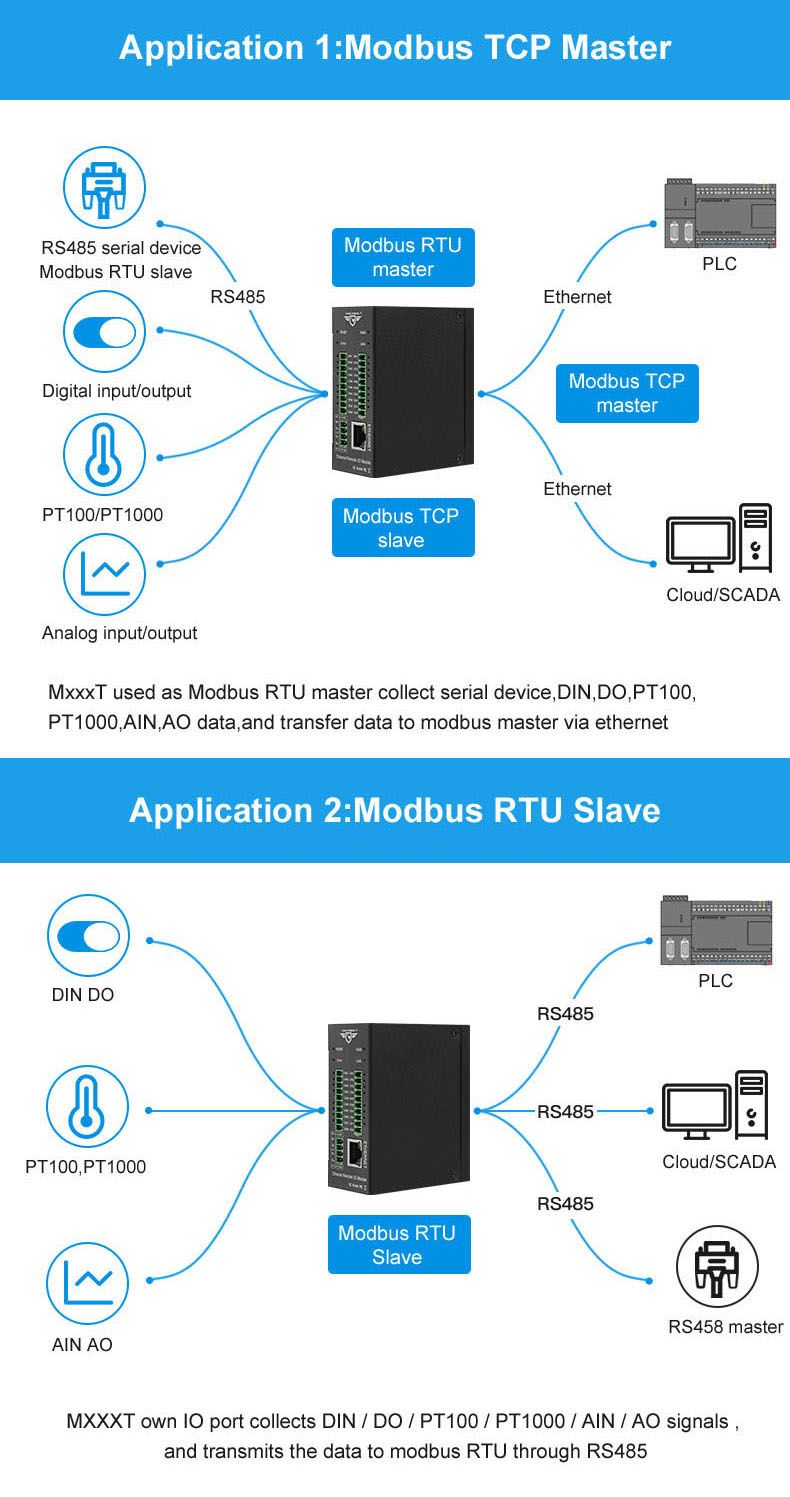

The M140T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

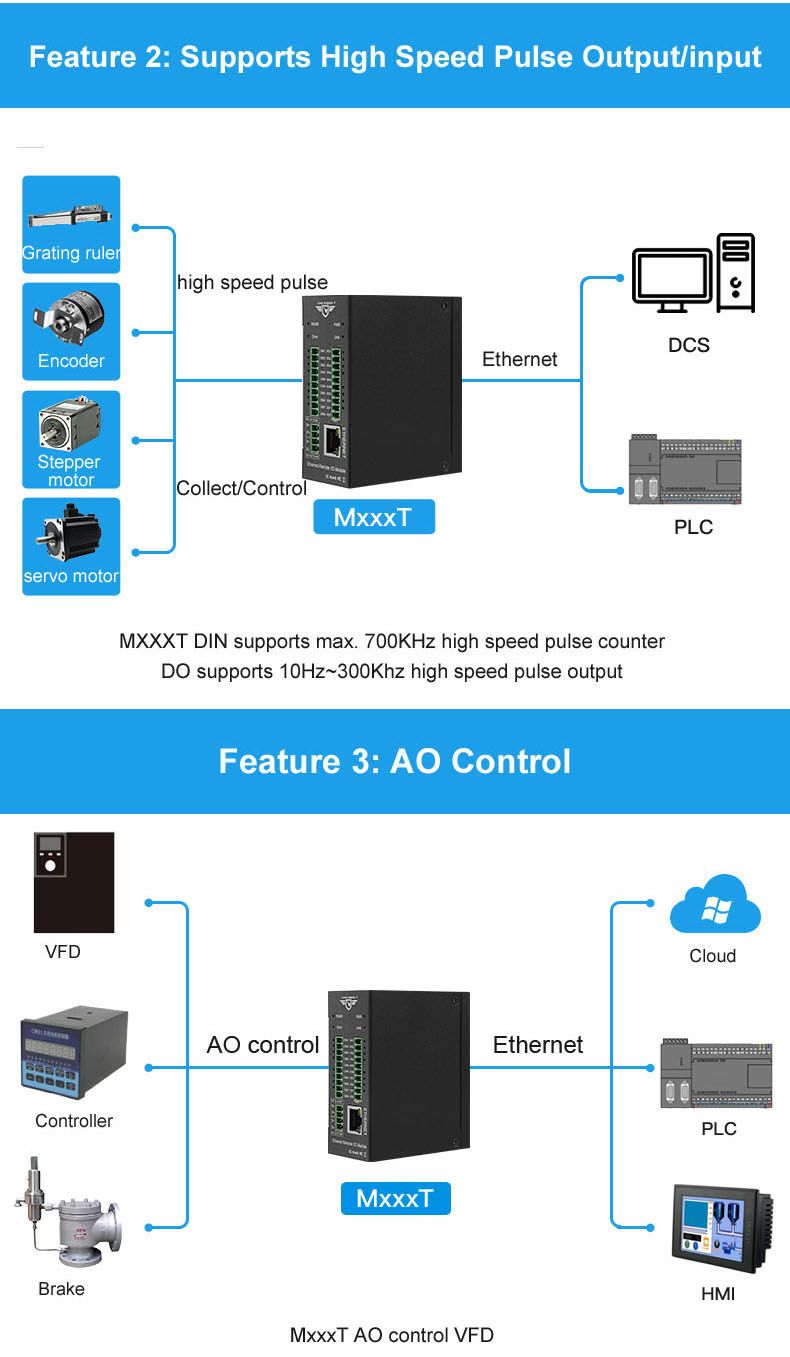

The M140TEthernet Remote I/O module provides 4/8 optical-isolated digital inputs, supports Max. 700Khz high speed pulse counter, 4/8 digital outputs, supports 10Hz~300Khz high speed pulse output or relay outputs. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.

Features:

1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2. Wide range power supply 12 ~ 36VDC with over voltage and phase-reversal protection;

3. Management and configuration via LAN connection configuration software for easy operation and maintenance;

4. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP,MQTT protocol;

5. 4/8 optical isolated digital input, supports Max. 700KHz high speed pulse counter;

6. 4/8 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

7. High sampling frequency and special filtering strategy to ensure reliability;

8. 1 RS485 Serial port, supports Modbus RTU Master or slave, can extend I/O modules;

9. Supports register mapping function and extend I/O inquiry strategy;

10. Provides 1 channel 12~36VDC power source output for external device, saving wiring cost;

11. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

12. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;

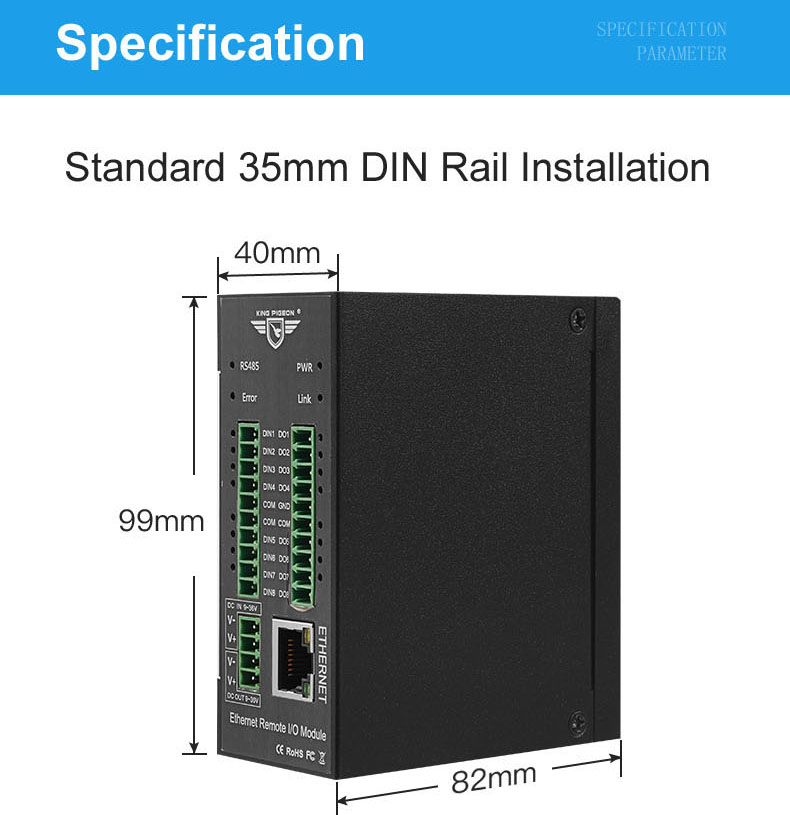

13. Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

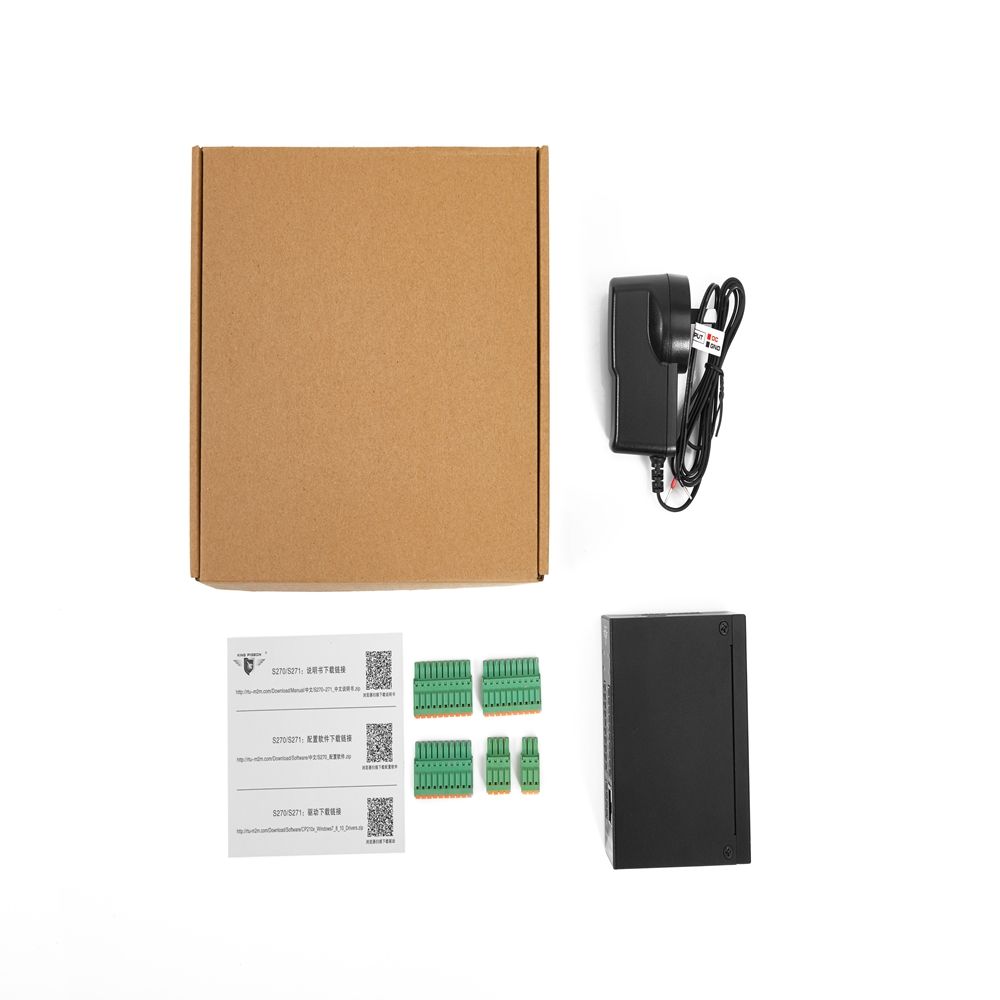

Package includes:

1 x M140T Ethernet Module

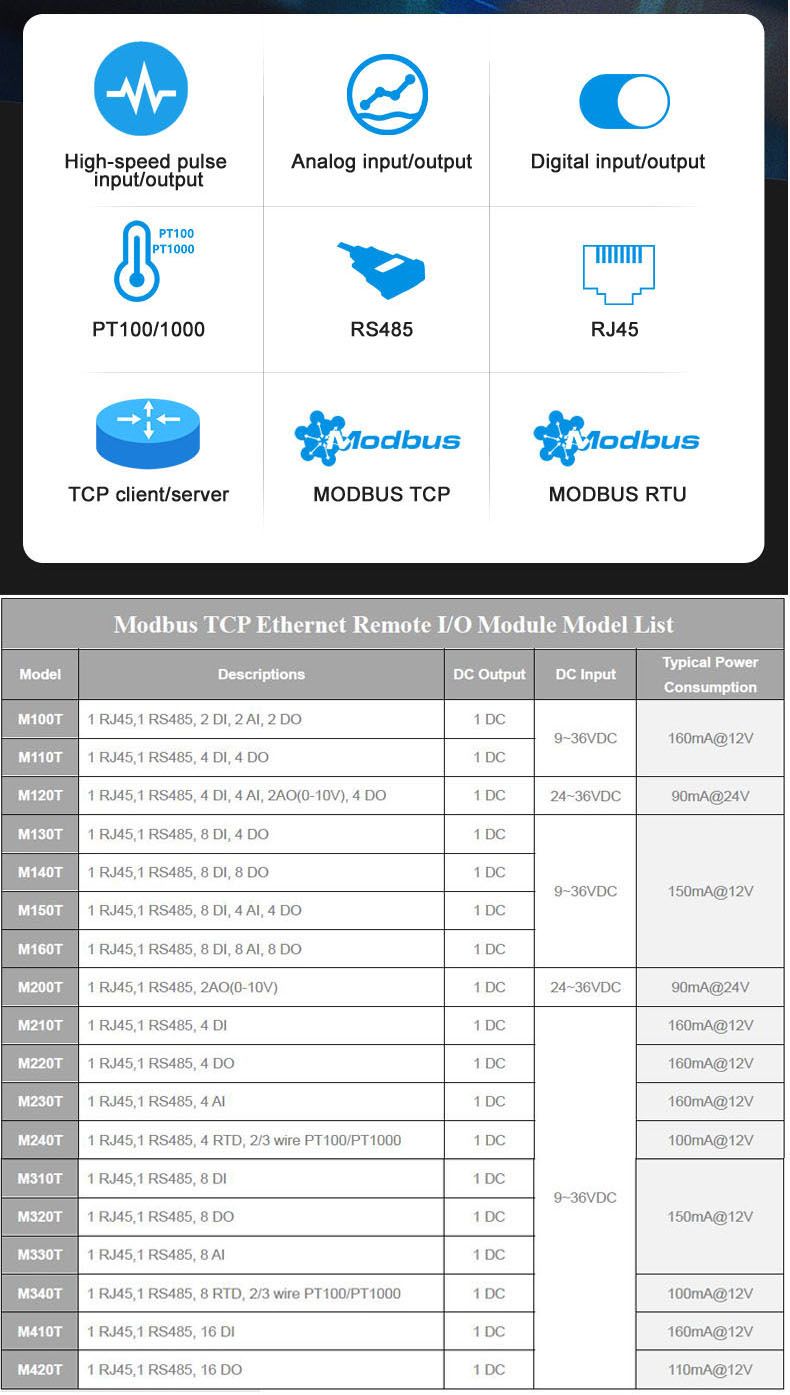

Model	Product ID	Descriptions	DC Output	DC Input	Typical Power Consumption
M100T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 2 DI, 2 AI, 2 DO	1 DC	9-36VDC	160mA@12V
M110T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 4 DI, 4 DO	1 DC	9-36VDC	160mA@12V
M120T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 4 DI, 4 AI, 2AO(0-10V), 4 DO	1 DC	24-36VDC	90mA@24V
M130T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 8 DI, 4 DO	1 DC		150mA@12V
M140T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 8 DI, 8 DO	1 DC	9-36VDC
M150T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 8 DI, 4 AI, 4 DO	1 DC	9-36VDC
M160T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 8 DI, 8 AI, 8 DO	1 DC
M200T	Contact Us	1 RJ45,1 RS485, 2AO(0-10V)	1 DC	24-36VDC	90mA@24V
M210T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 4 DI	1 DC		160mA@12V
M220T	Contact Us	1 RJ45,1 RS485, 4 DO	1 DC
M230T	Contact Us	1 RJ45,1 RS485, 4AI	1 DC
M240T	PT100 Contact Us PT1000 Contact Us	1 RJ45, 1 RS485, 4 RTD, 2/3 wire	1 DC		100mA@12V
M310T	dry Contact Us wet Contact Us	1 RJ45,1 RS485, 8 DI	1 DC	9-36VDC	150mA@12V
M320T	Contact Us	1 RJ45,1 RS485, 8 DO	1 DC	9-36VDC
M330T	Contact Us	1 RJ45,1 RS485, 8AI	1 DC
M340T	PT100 Contact Us PT1000 Contact Us	1 RJ45,1 RS485, 8 RTD, 2/3 wire	1 DC		100mA@12V
M410T	wet Contact Us dry Contact Us	1 RJ45J, 1 RS485, 16 DI	1 DC		160mA@12V
M420T	Contact Us	1 RJ45,1 RS485,16 DO	1 DC		110mA@12V
