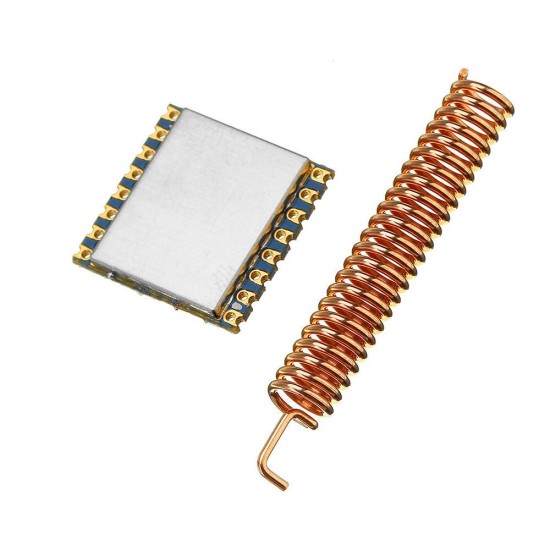

LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module

LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
LoRa1278 4Km 100mW 433MHz High Sensitivity Module Wireless Transceiver RF Module
$11.99
Ex Tax: $11.99
  • Stock: In Stock
  • Model: EB0042129
  • SKU: EB0042129
Specifications:

LoRa1278 adopts Semtech RF transceiver chip SX1278, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.

Parameter Min Typ  Max Unit Condition
Working condition
Working voltage range 1.8 3.3 3.7 V
Temperature voltage -40   85
Current consumption
RX current   10.8   mA High performance mode
TX current   100   mA @ 20dBm
Sleep current   <0.2   uA
parameter
Frequency range 403 433 463 MHZ @ 433MHZ
Modulation rate 1.2   300 Kbps FSK
0.018   37.5 Kbps LoraTM
Output power range -1   20 dBm
Receiving sensitivity   -123   dBm @ FSK data=1.2kbps,Fdev=10kHZ
  -139   dBm @ Lora BW=125KHz_SF = 12_CR=4/5

Features:

  • Frequency Range: 433MHz
  • Sensitivity up to -139 dBm
  • Maximum output power: 20dBm
  • 10.3mA @ receiver mode
  • Sleep current <200nA
  • Data transfer rate: @ FSK,1.2-300kbps
  • @ Lora TM,0.018-37.5kbps
  • Lora TM ,FSK,GFSK and OOK Modulation mode
  • 1.8-3.7 V Power supply
  • 127 dB Dynamic Range RSSI
  • Packet engine up to 256 bytes with CRC
  • Operating Temperature Range:-40 ~ + 85 °C
  • Built-in temperature sensor and low battery indicator
  • Excellent blocking immunity

Applications:

  • Remote control
  • Remote meter reading
  • Home security alarm and remote keyless entry
  • Industrial control
  • Home automation remote sensing
  • Individual data records
  • Toys control
  • Sensor network
  • Tire pressure monitoring
  • Health monitoring
  • Wireless PC peripherals
  • Tag reading and writing
  •
  • Package Included:

1 x  433MHz Wireless Transceiver RF Module



LoRa1278-4Km-100mW-433MHz-High-Sensitivity-Lora-Module-Wireless-Transceiver-RF-Module-1413122

LoRa1278-4Km-100mW-433MHz-High-Sensitivity-Lora-Module-Wireless-Transceiver-RF-Module-1413122

LoRa1278-4Km-100mW-433MHz-High-Sensitivity-Lora-Module-Wireless-Transceiver-RF-Module-1413122
