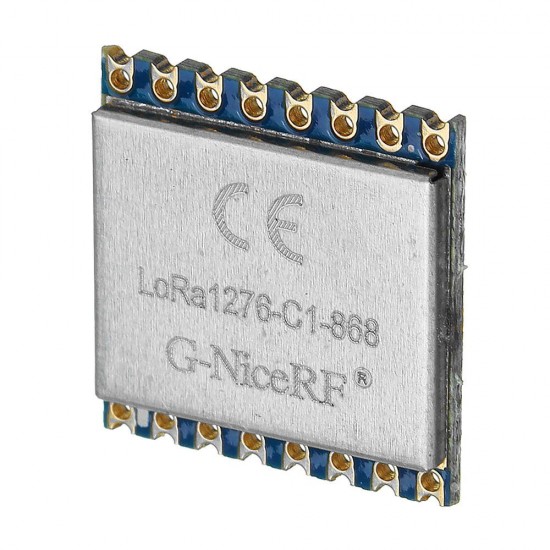

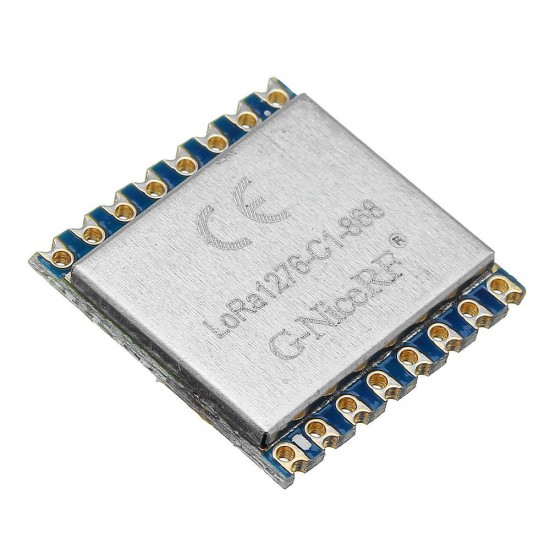

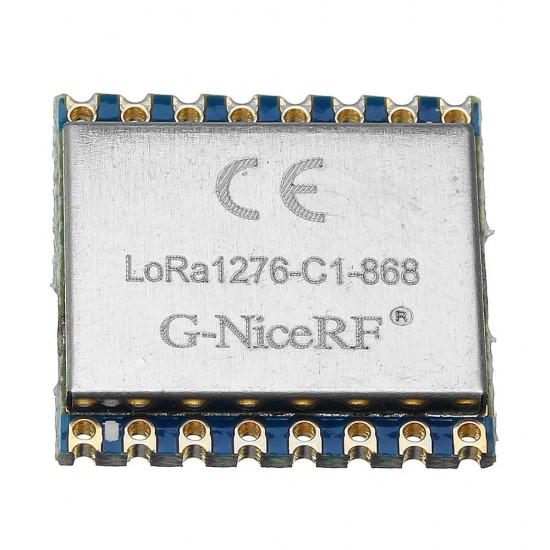

LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM

LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM
$10.62
Ex Tax: $10.62
  • Stock: In Stock
  • Model: EB0047474
  • SKU: EB0047474
>
 Overview:

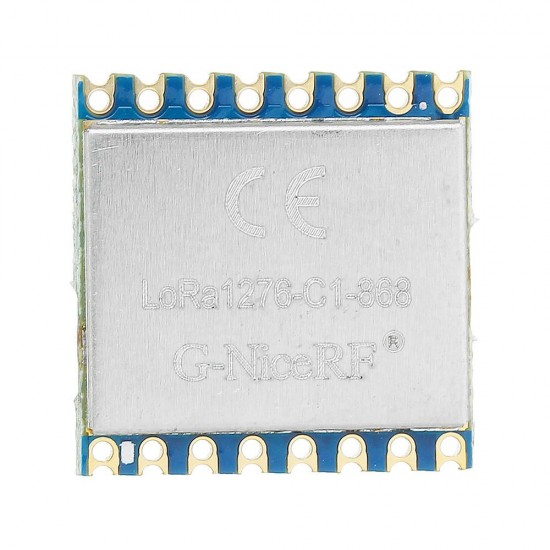

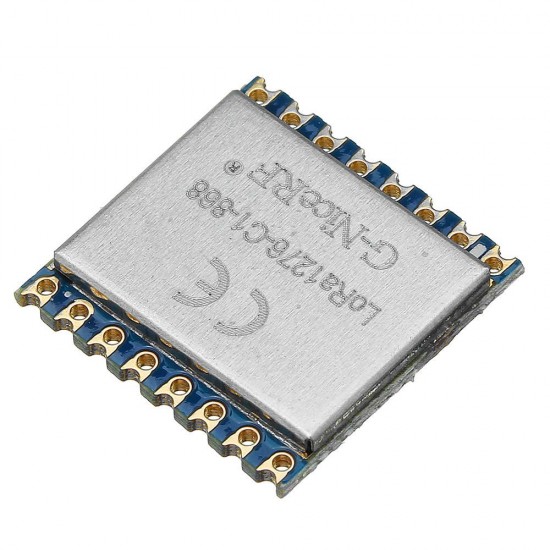

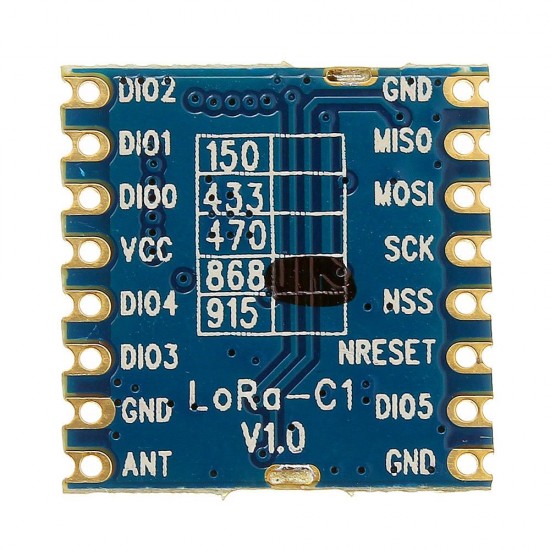

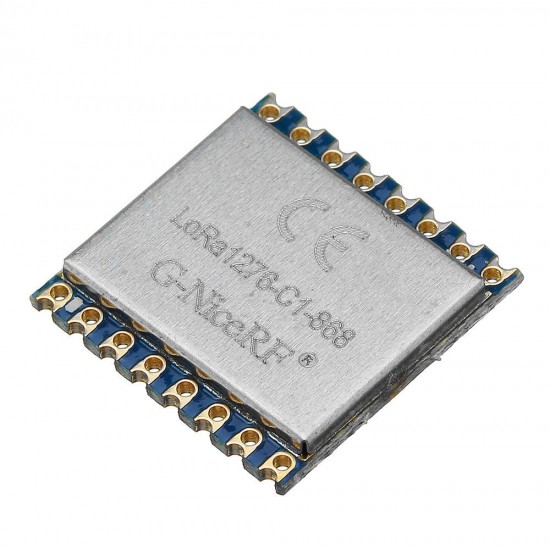

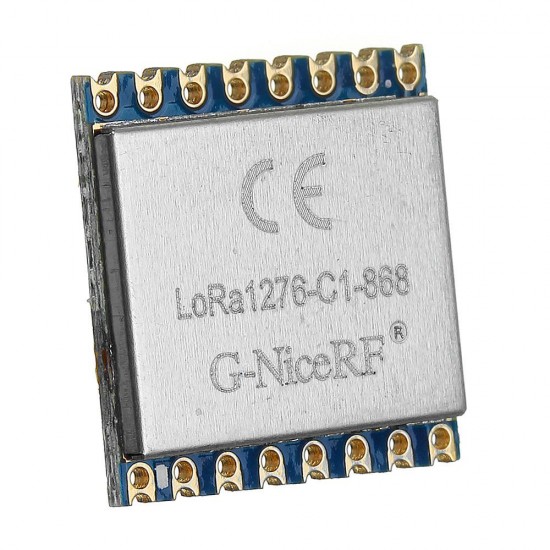

Lora1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This module is 100mW and ultra small size, widely used in AMR,remote industrial control filed.

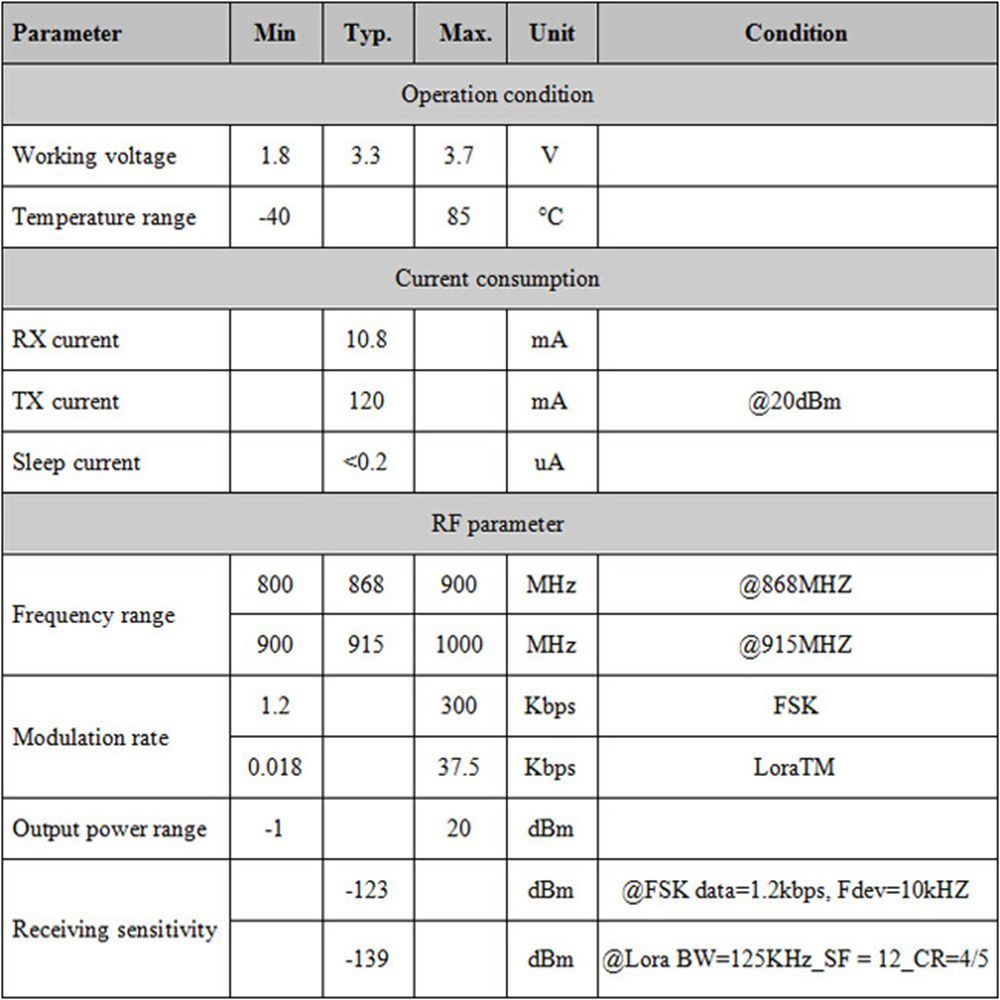

Features:

-Frequency Range:868MHz(Customizable:137~1020MHz)
Sensitivity up to -139dBm @Lora
Maximum output power:20 dBm
13mA@receiver mode
Sleep current <200 nA
Data transfer rate:@FSK,1.2-300 Kbps
@Lora TM,0.018-37.5 Kbps
Lora TM,FSK,GFSK & OOK Modulation mode
Built-in ESD Protection
127 dB Dynamic Range RSSI
Packet engine up to 256 bytes with FIFO and CRC
Hopping frequency
Built-in temperature sensor and low battery indicator
Excellent blocking immunity
Operating Temperature Range:--40~+85°C

Application:

- Remote meter reading
- Industrial control
- Home automation remote sensing
- Toys control
- Sensor network
- Tire pressure monitoring
- Health monitoring
- Wireless PC peripherals

Package Included:

1 x 868MHz LoRa Module


LoRa1276-C1-SX1276-868MHz-LoRa-Module-Remote-Spread-Spectrum-Wireless-Module-20dBm-100mW-3-5KM-1416393

LoRa1276-C1-SX1276-868MHz-LoRa-Module-Remote-Spread-Spectrum-Wireless-Module-20dBm-100mW-3-5KM-1416393

LoRa1276-C1-SX1276-868MHz-LoRa-Module-Remote-Spread-Spectrum-Wireless-Module-20dBm-100mW-3-5KM-1416393

LoRa1276-C1-SX1276-868MHz-LoRa-Module-Remote-Spread-Spectrum-Wireless-Module-20dBm-100mW-3-5KM-1416393
