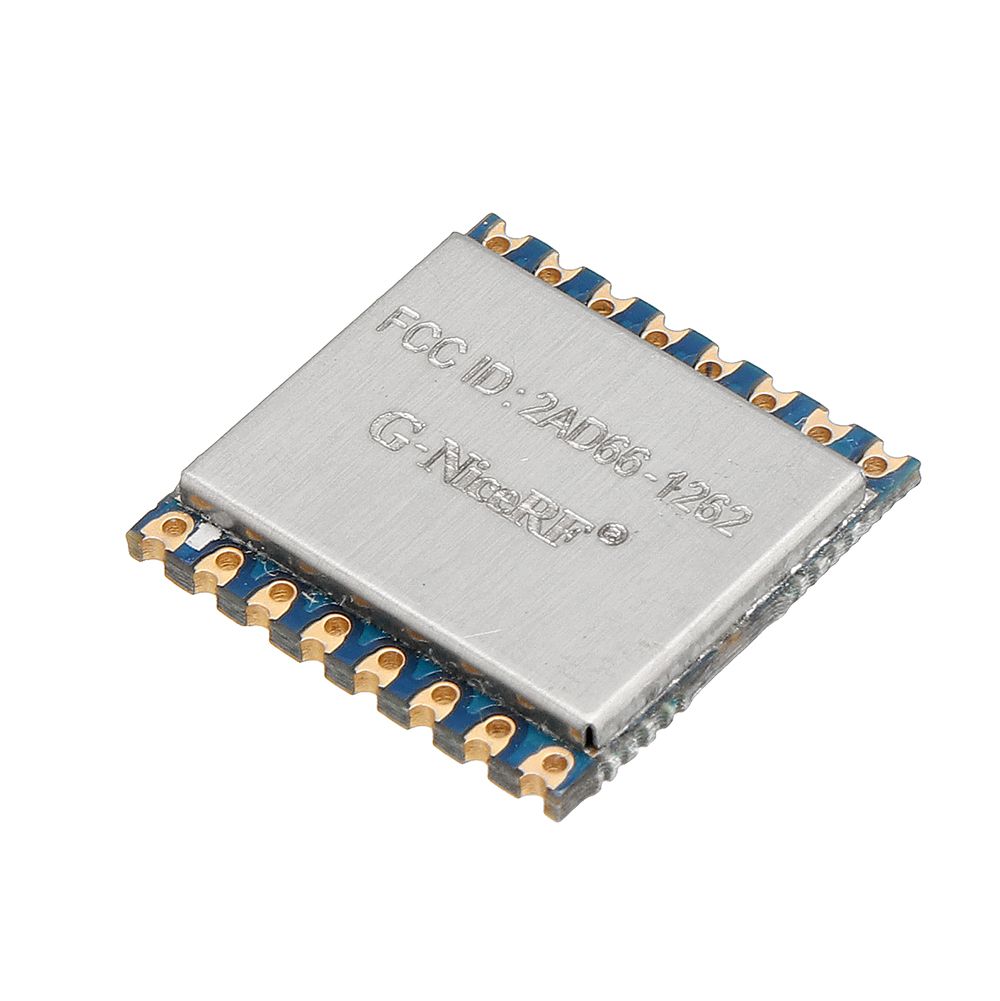

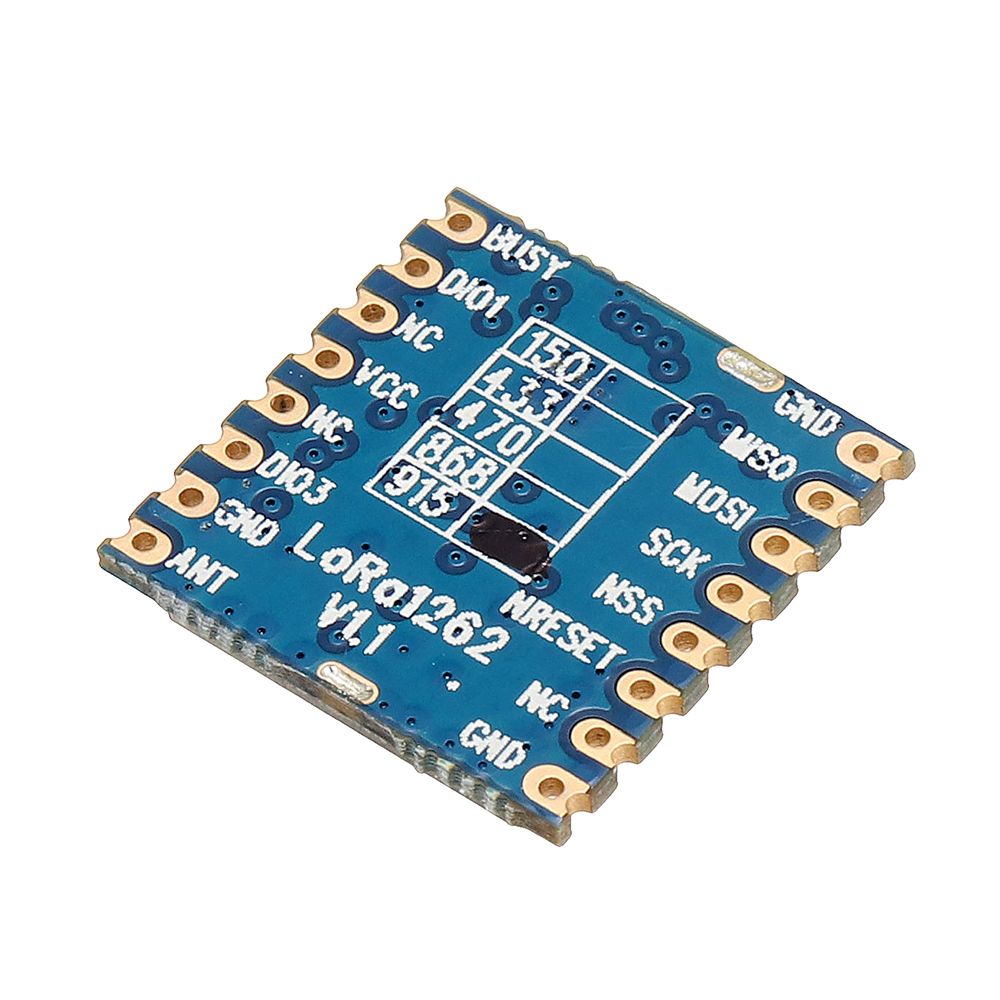

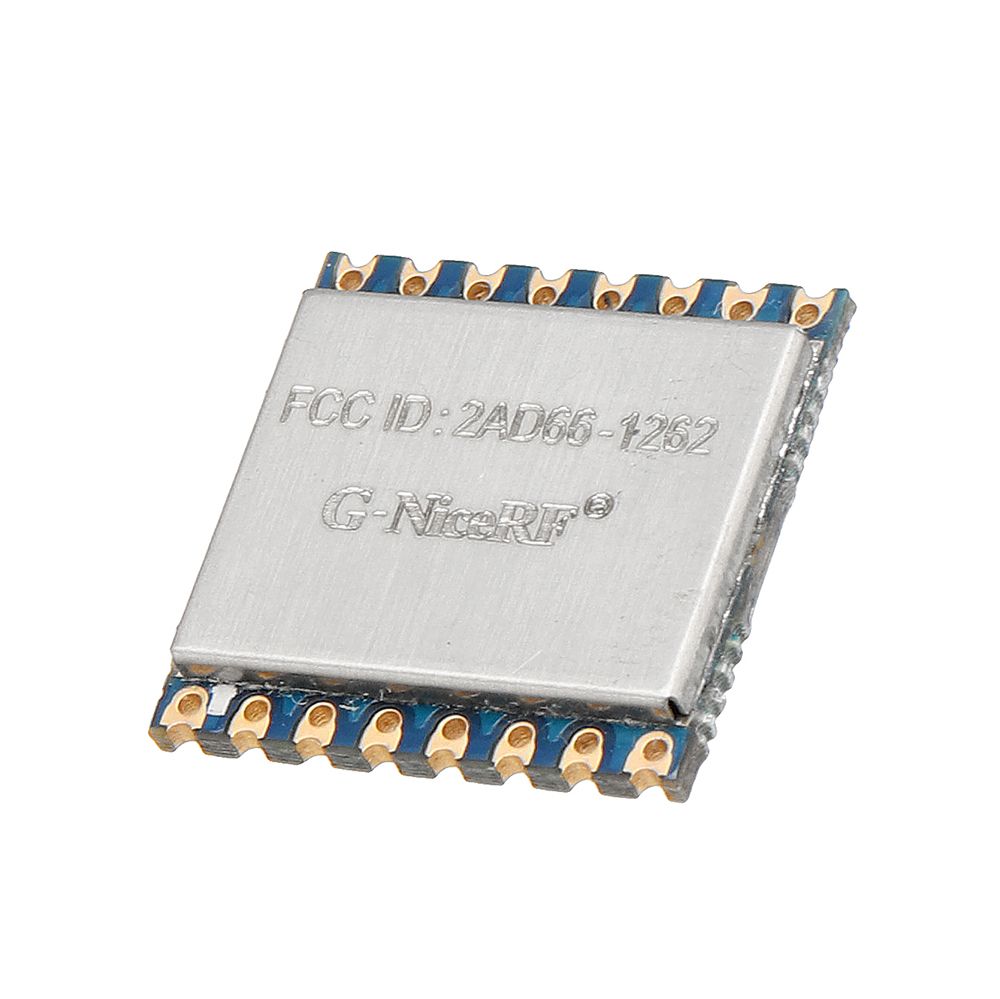

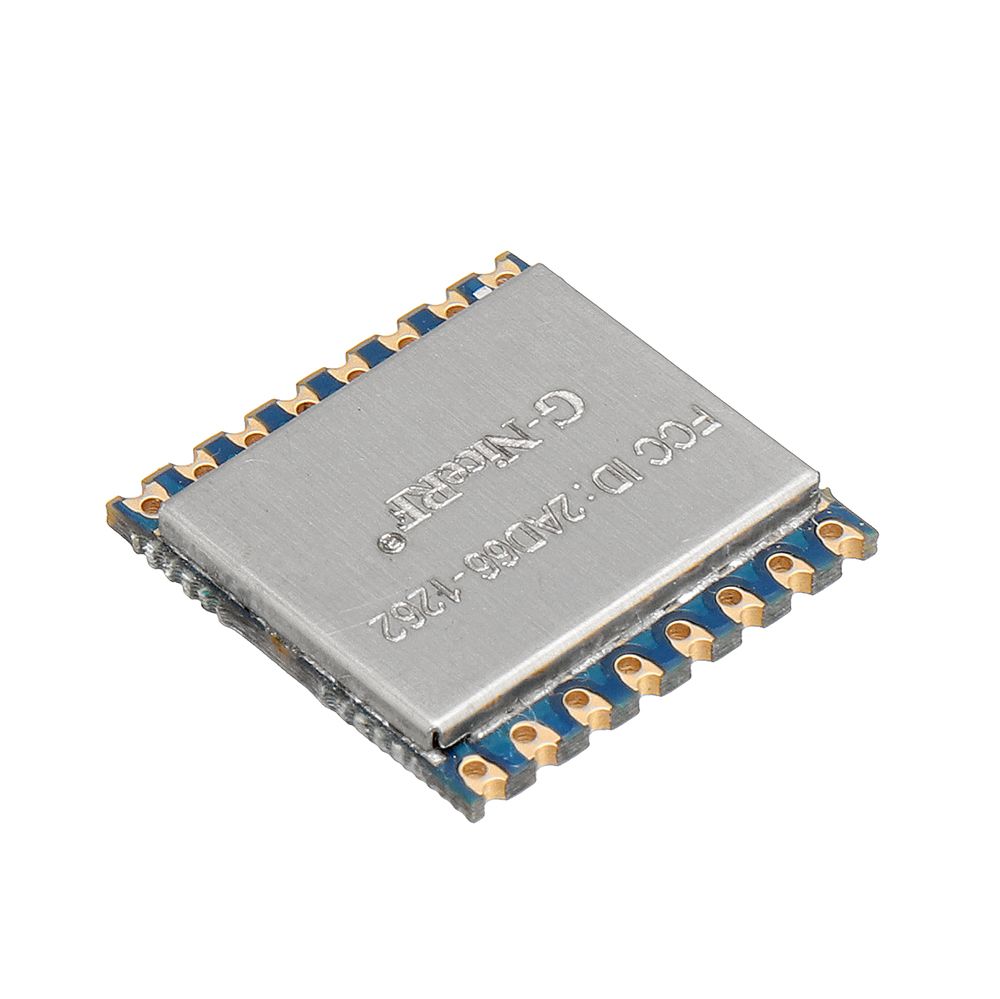

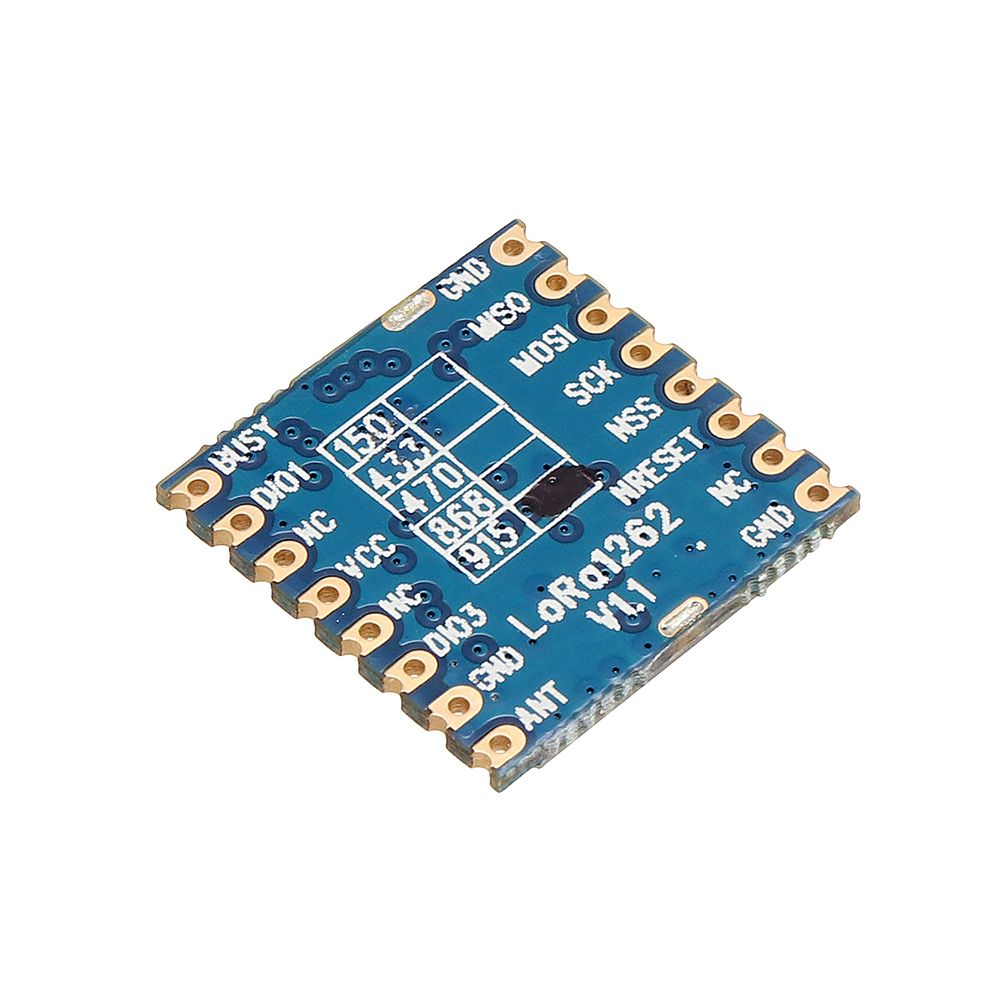

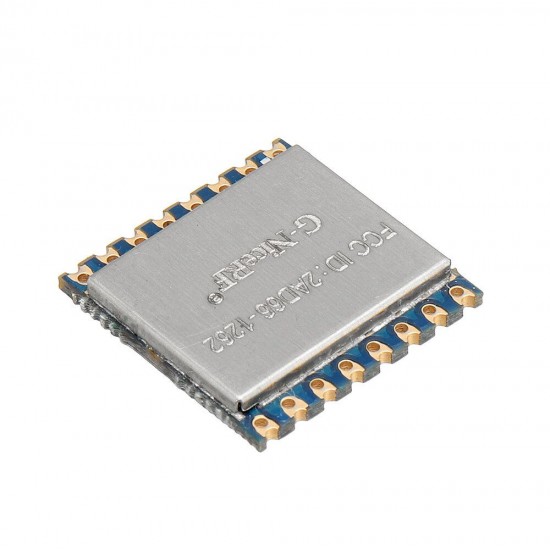

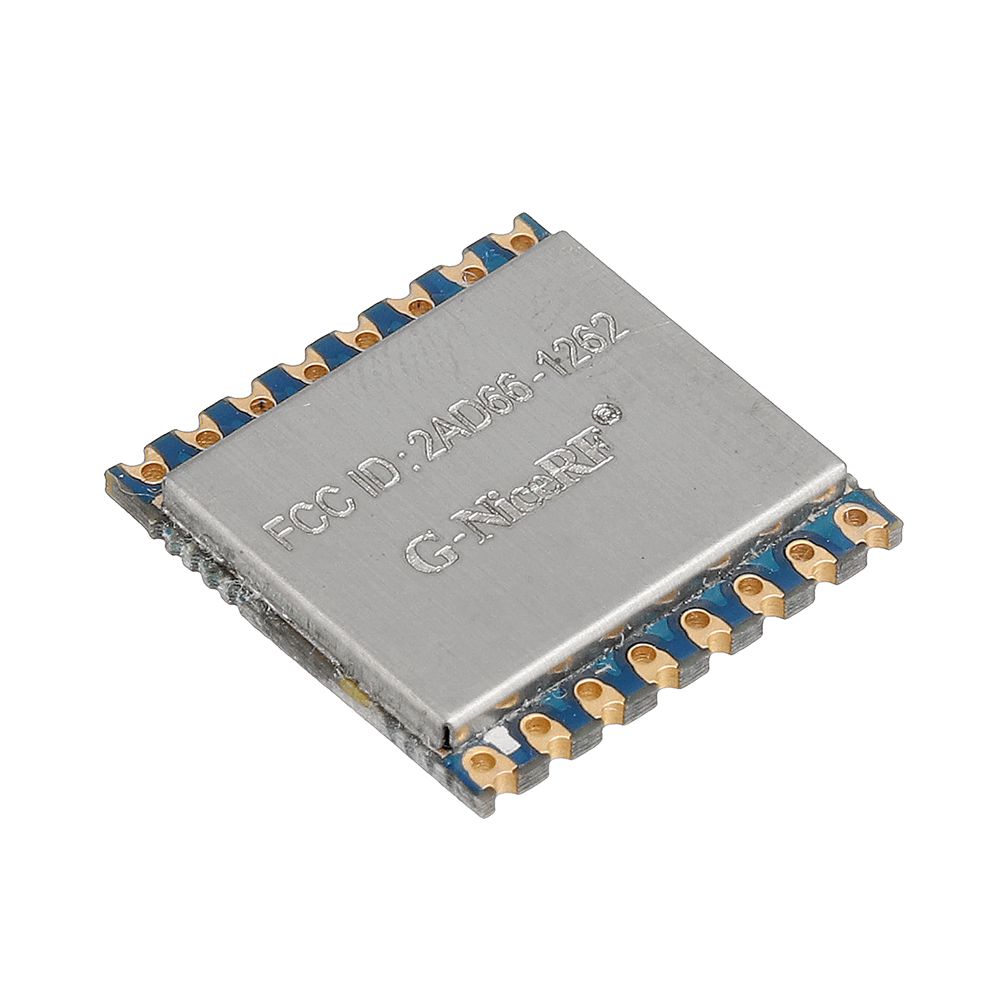

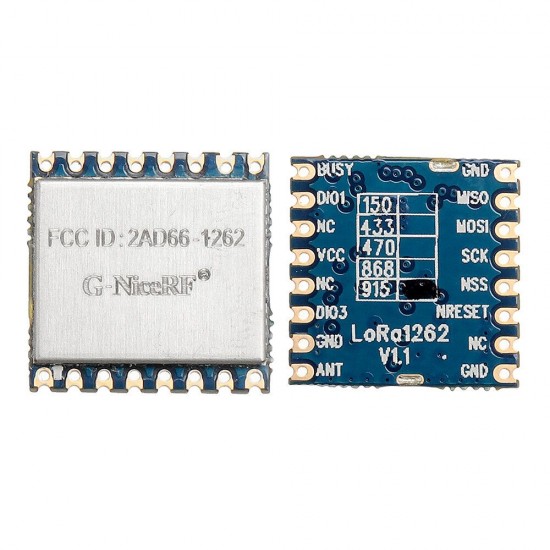

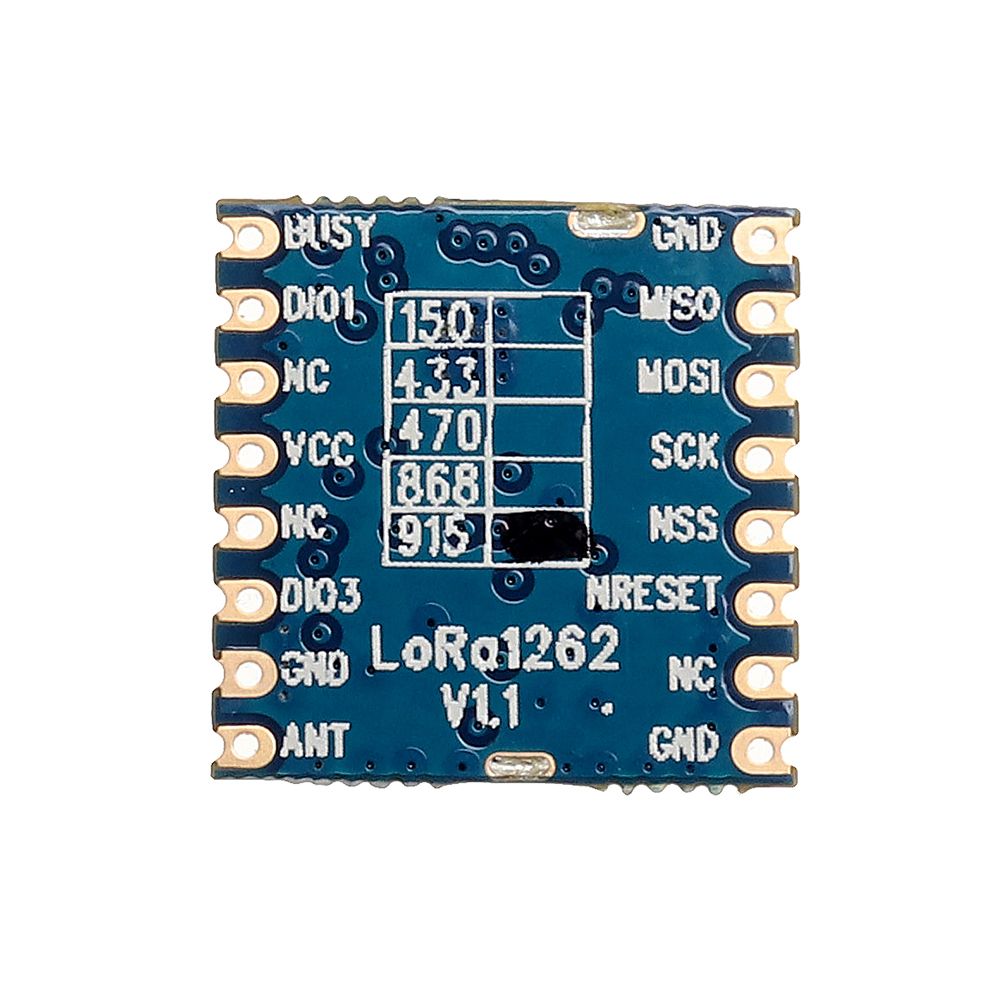

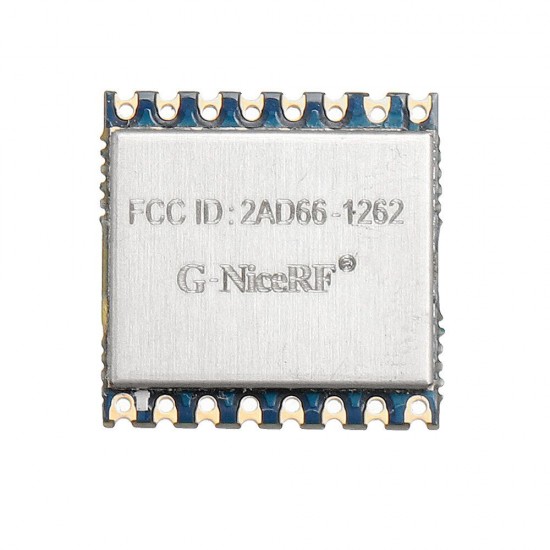

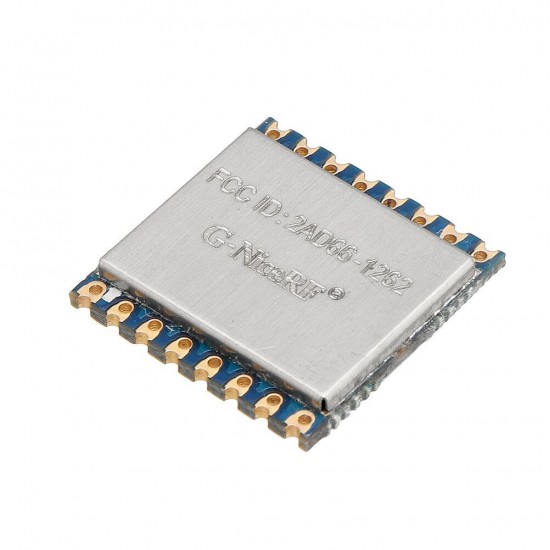

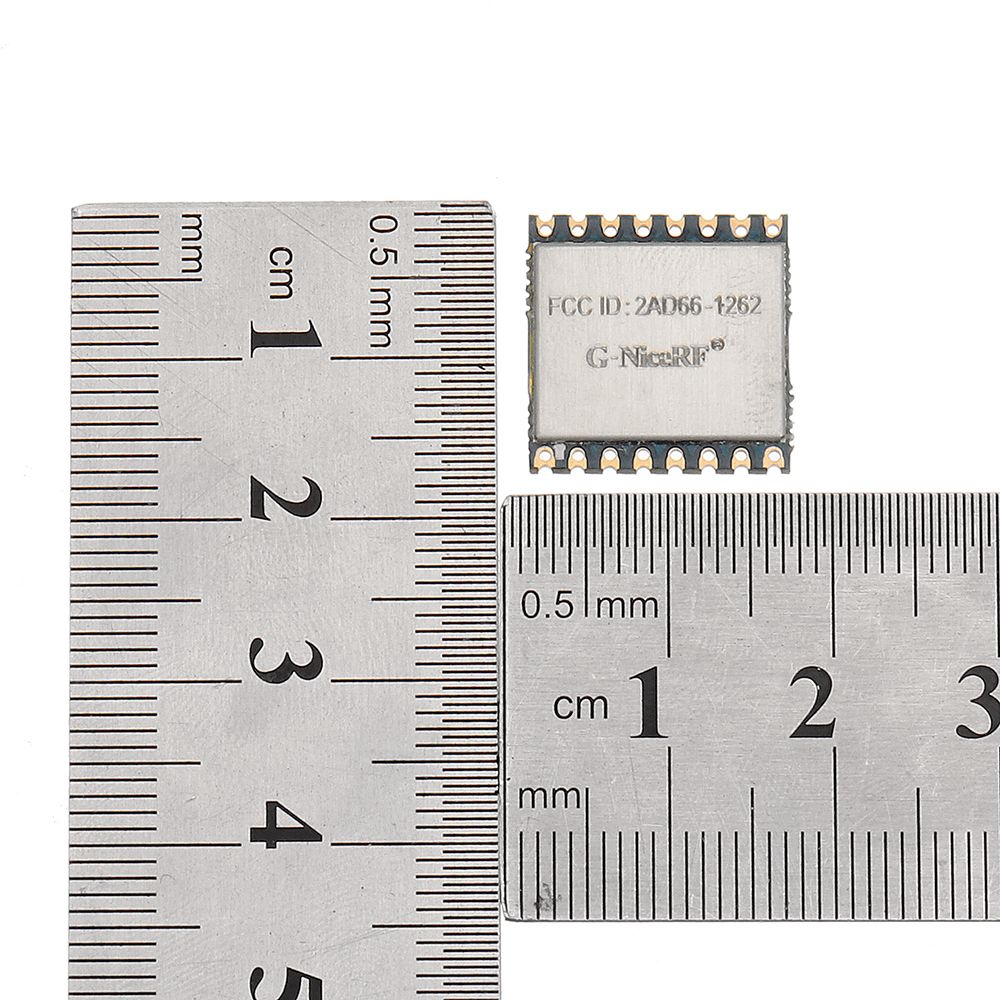

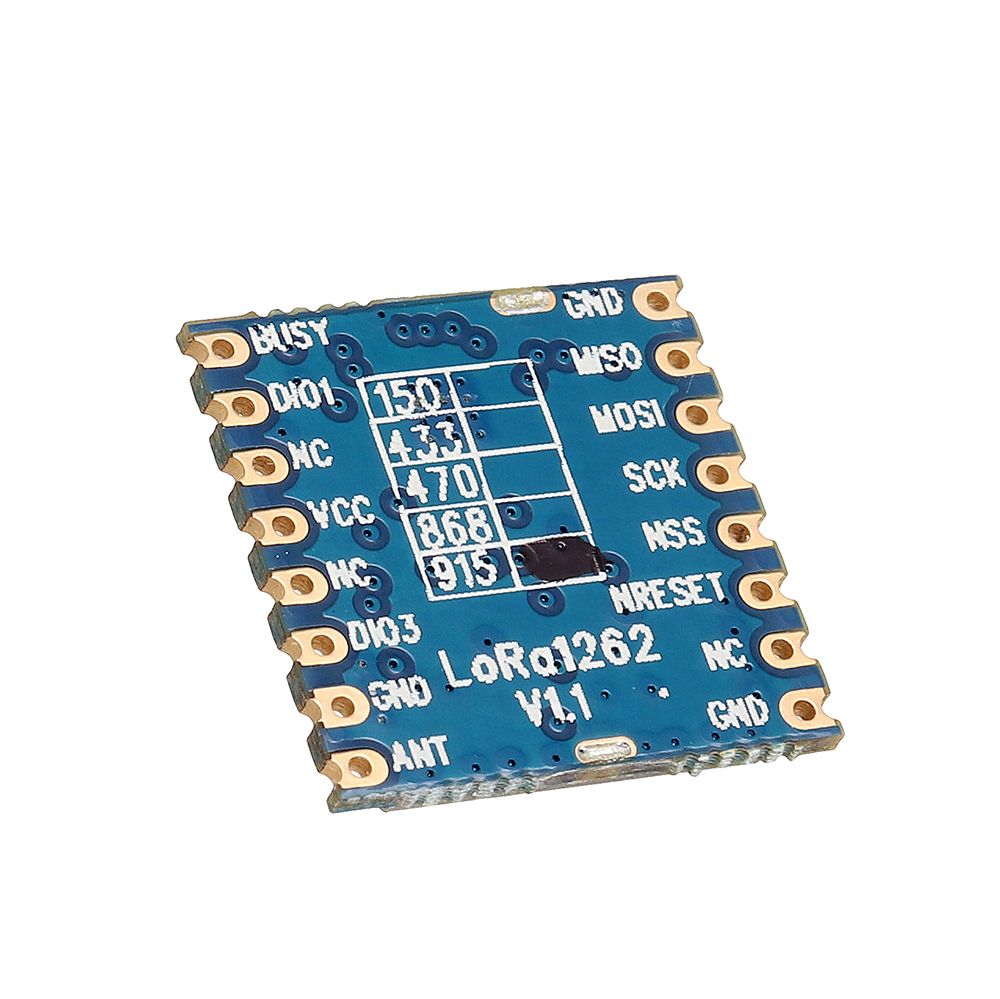

LoRa1262 160mW SX1262 Wireless Remote Module Low Power Consumption TCXO Crystal

Based on 0 reviews. - Write a review

$16.99

Ex Tax: $16.99

Stock: In Stock
Model: EB0045320
SKU: EB0045320

Available Options

frequency

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Remote Control: NO

Precise details>>

Description:

The LoRa1262 wireless module uses Semtech's SX1262 device, which uses a high-precision TCXO crystal oscillator, ultra-low receive current and sleep current, and sensitivity of -148dBm. Built-in 64KHz crystal oscillator can wake up the microcontroller periodically under low power consumption. The module antenna switch is integrated and controlled by the chip, which saves the resources of the external MCU. The compact size and 22dBm (160mW) output power have great advantages in IoT and battery-powered applications.

Features:

Frequency Range: 433/470/868/915 MHz

Sensitivity up to -148dBm @Lora

Maximum output power:

22dBm（160mw）

Data transfer rate:0.018-62.5 Kbps

Packet engine up to 256 bytes with FIFO and CRC

With TCXO, accuracy 1.5pp

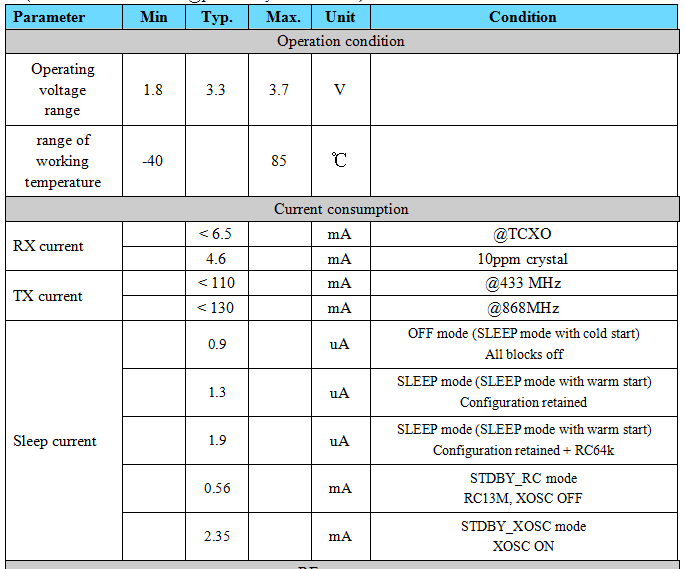

Specification:

LoRa1262-160mW-SX1262-Wireless-Remote-Module-Low-Power-Consumption-TCXO-Crystal-1725053

Applications:

Smart meters

Supply chain and logistics

Building automation

Agricultural sensor

Smart cities

Retail store sensors

Asset tracking

Street lights

Parking sensors

Environmental sensors

Healthcare

Safety and security sensors

Remote control applications

Package included:

1 x LoRa1262-868MHZ (LoRa SX1262 Chip LoRa Module)

1 x SW868-TH13 (Wireless RF Antenna)
