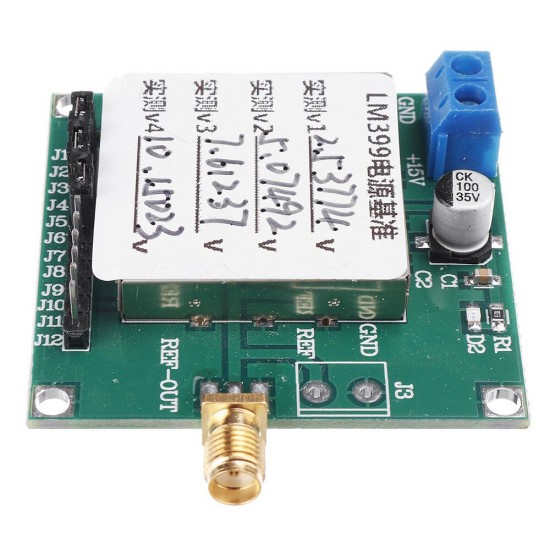

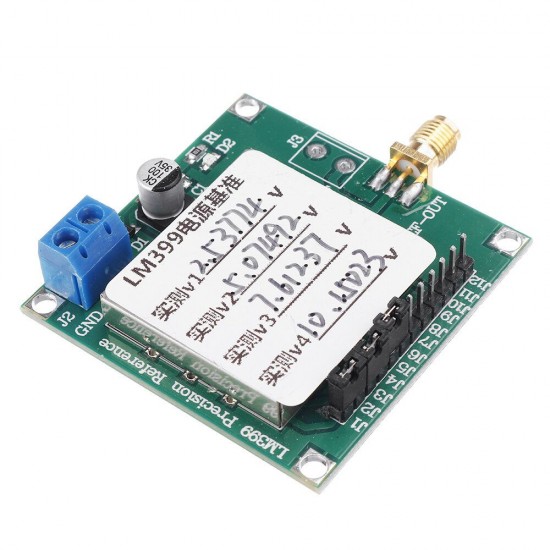

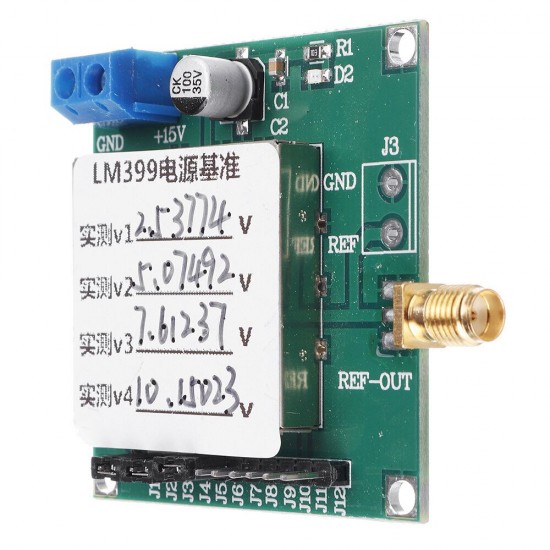

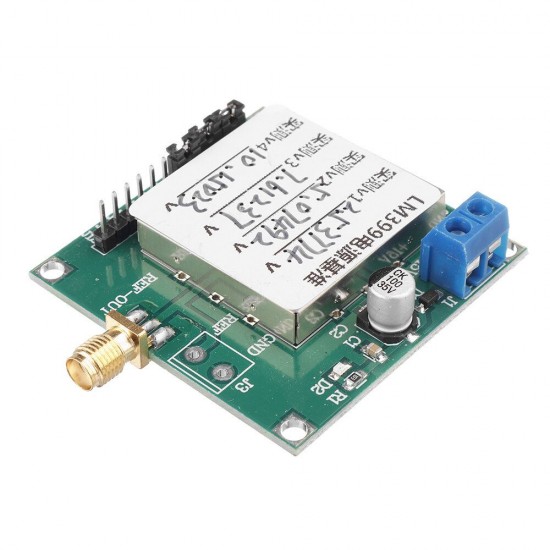

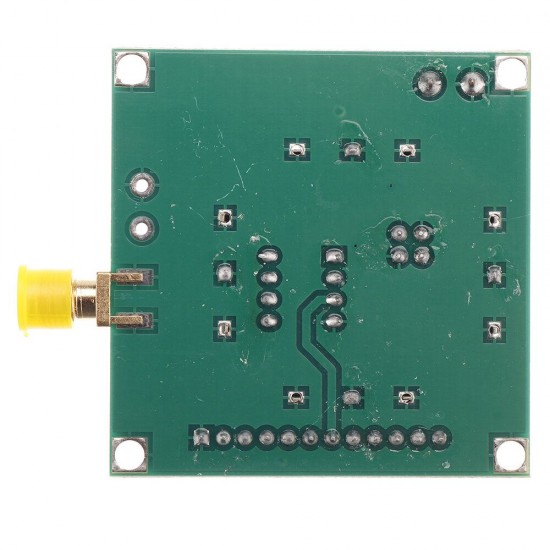

LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source

LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source
$29.99
Ex Tax: $29.99
  • Stock: In Stock
  • Model: EB0048250
  • SKU: EB0048250
  • Voltage: 12V
    Precise details>>
    >
    Specification:

    Input voltage: +15V
    Output voltage: +10V/+7.5V/+5V/+2.5V
    Accuracy: 0.00001
    Chip temperature drift: 0.5ppm/℃
    Size: 5*5cm

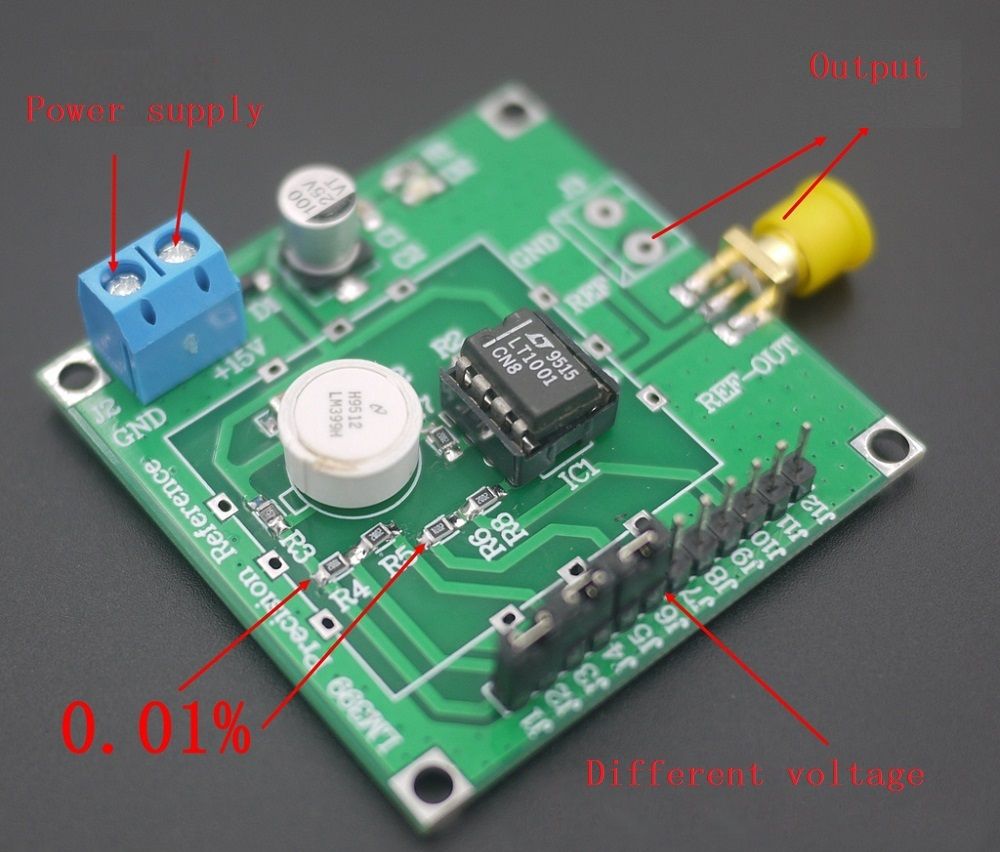

    Jumper cap connection Output voltage
    Short J5 to J6 5V
    Short J7 to J8
    Short J1 to J2 10V
    Short J3 to J4
    Short J5 to J6
    Short J3 to J4 7.5V
    Short J5 to J6
    Short J7 to J8
    Short J5 to J6 2.5V
    Short J7 to J8
    Short J11 to J12
    Short J5 to J6 6V
    Short J7 to J8
    Short J1 to J2
    Short J5 to J6 4V
    Short J7 to J8
    Short J9 to J10

    Package included:

    1 x Power supply module
