LE GO+ Module MEGA328 Inside 4 Channels DC Encoder Motor Module with 10cm Motor and DC Adapter I2C Compatible M5 ESP32 Board
- Stock: In Stock
- Model: EB0050168
- SKU: EB0050168
Description:

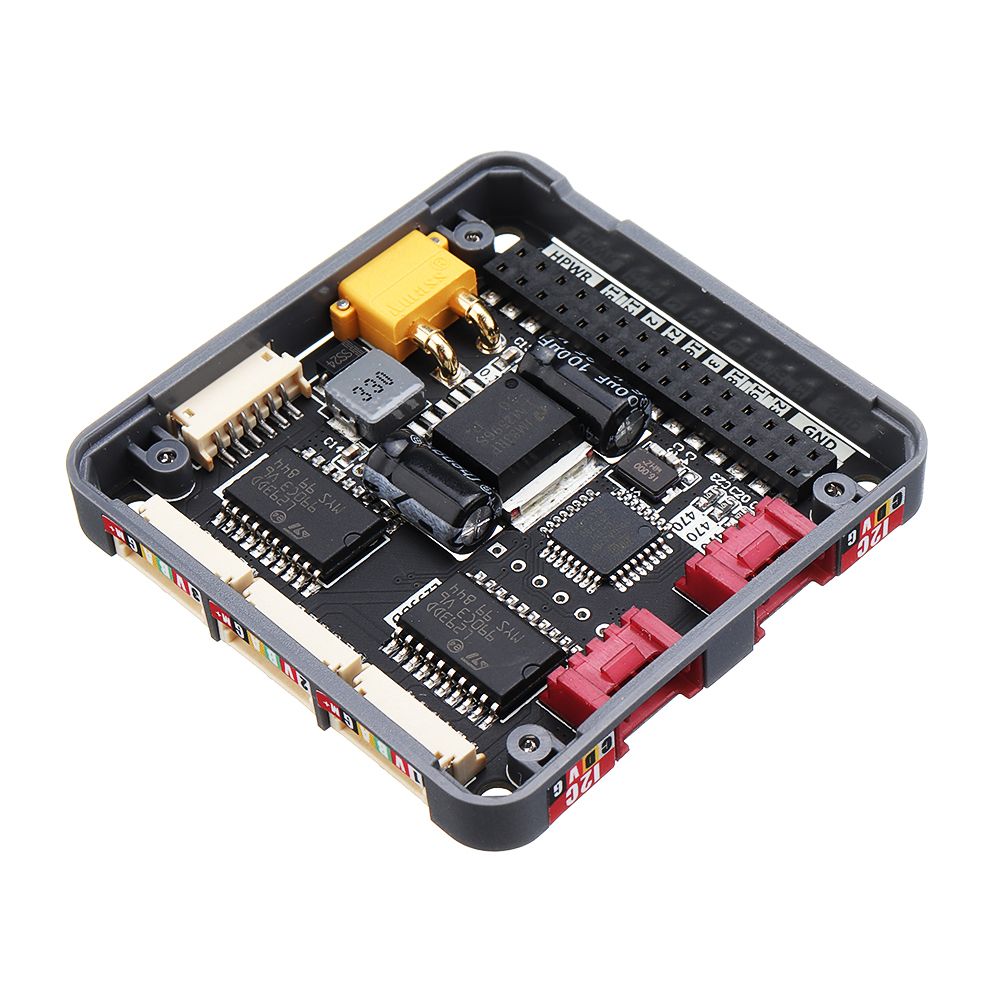

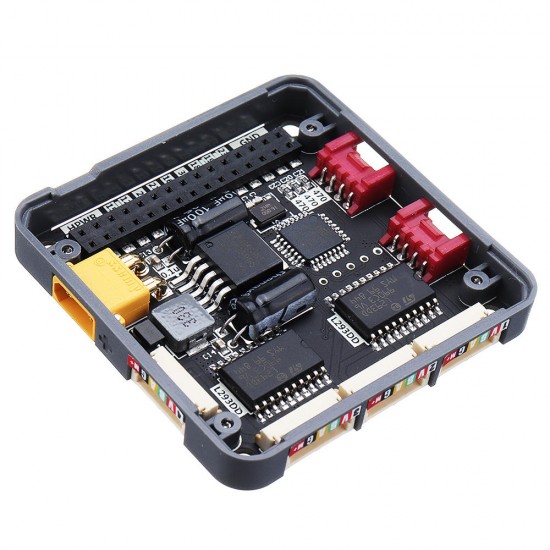

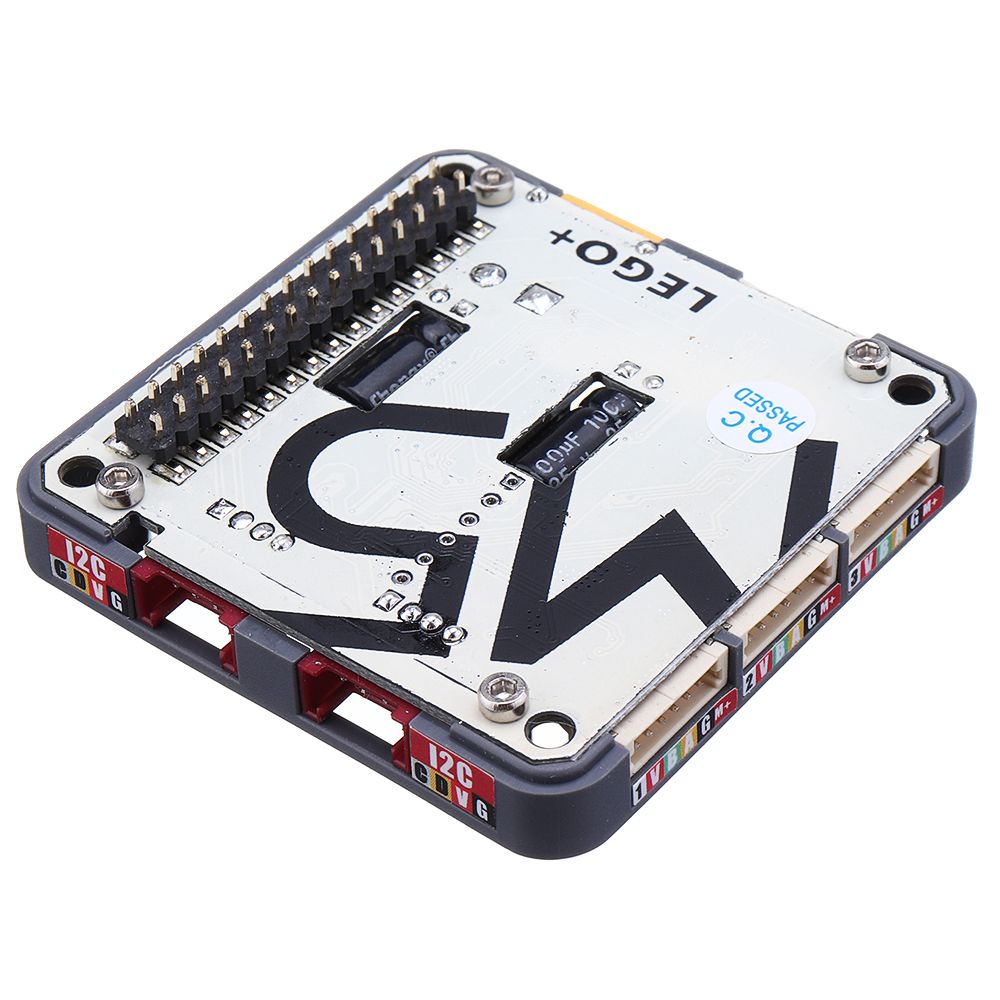

LE GO+ is a LE GO DC Motor Driver module. It's build with MEGA328 and L293DD, implemented 4 driver channels. A DC power input is designed for power supplement. Through M-BUS the DC in can automaticlly power the M5 core at top.
Series Communication: IIC (0x56).
LE GO motor is one of the Technic pieces form LE GO. The purpose of LE GO Technic is to create more advanced models with more complex technical functions, compared to the simpler brick-building properties of normal Le go.
Product Features:
- DC Power input: 6-12V

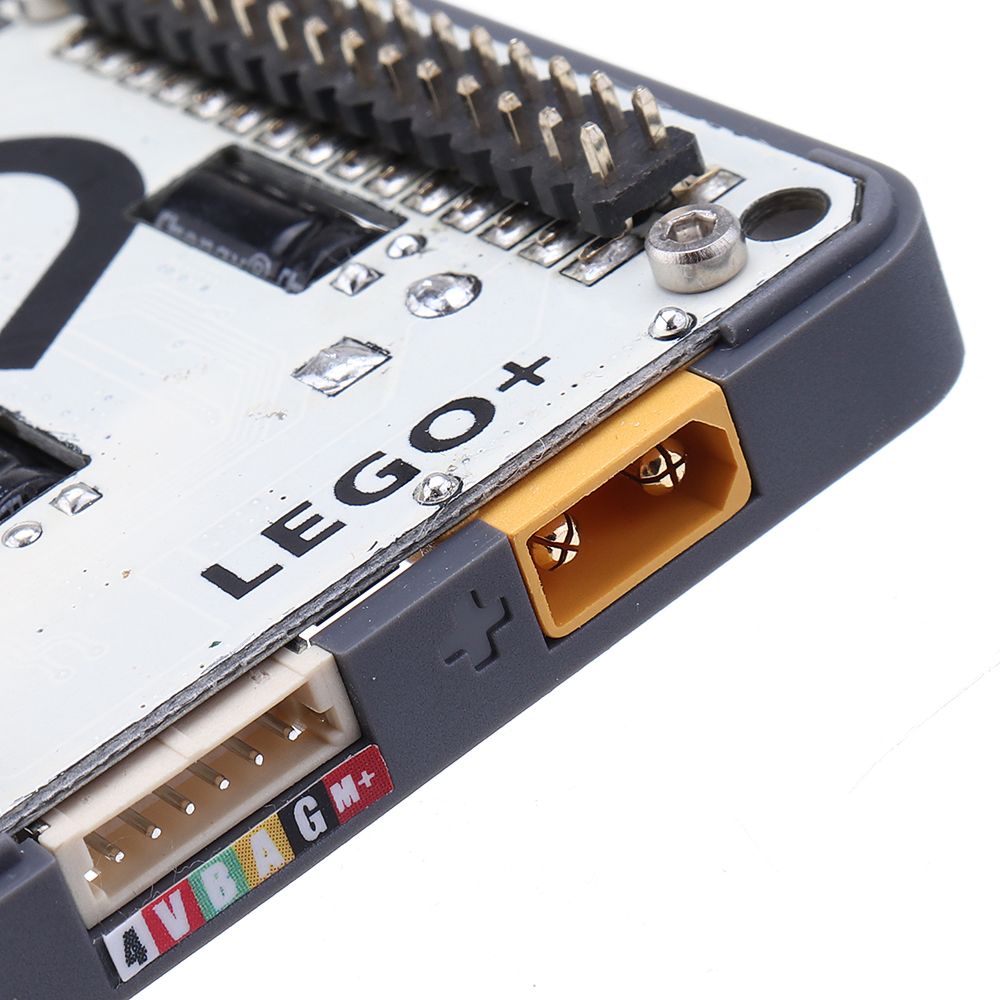

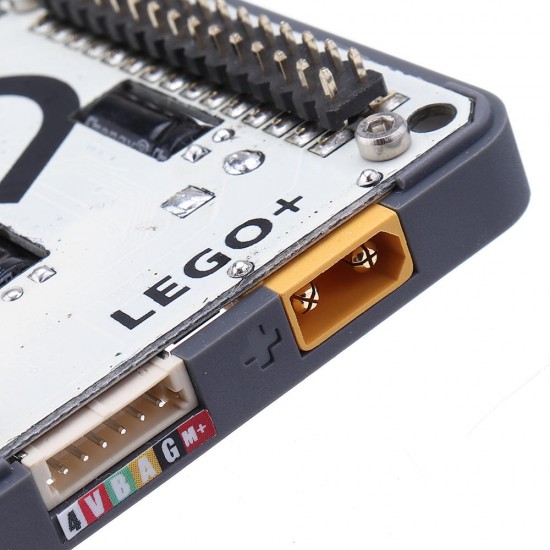

- DC Connector Type: XT60 (female)

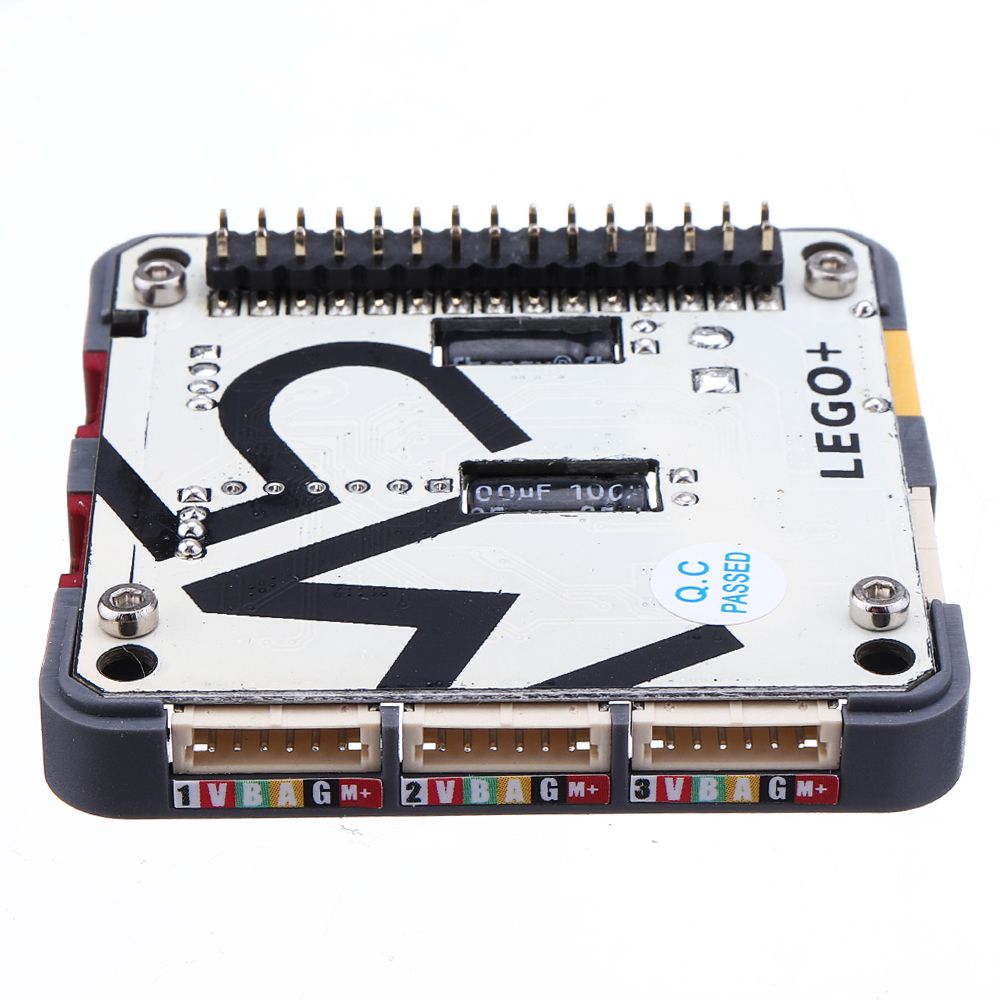

- 4x LE GO motor port
- 2x IIC GROVE port (extend PORTA from M5 Core)
- L293DD: PUSH-PULL Driver Chip
- Product Size: 54.2mm x 54.2mm x 12.8mm
- Product weight: 27.5g

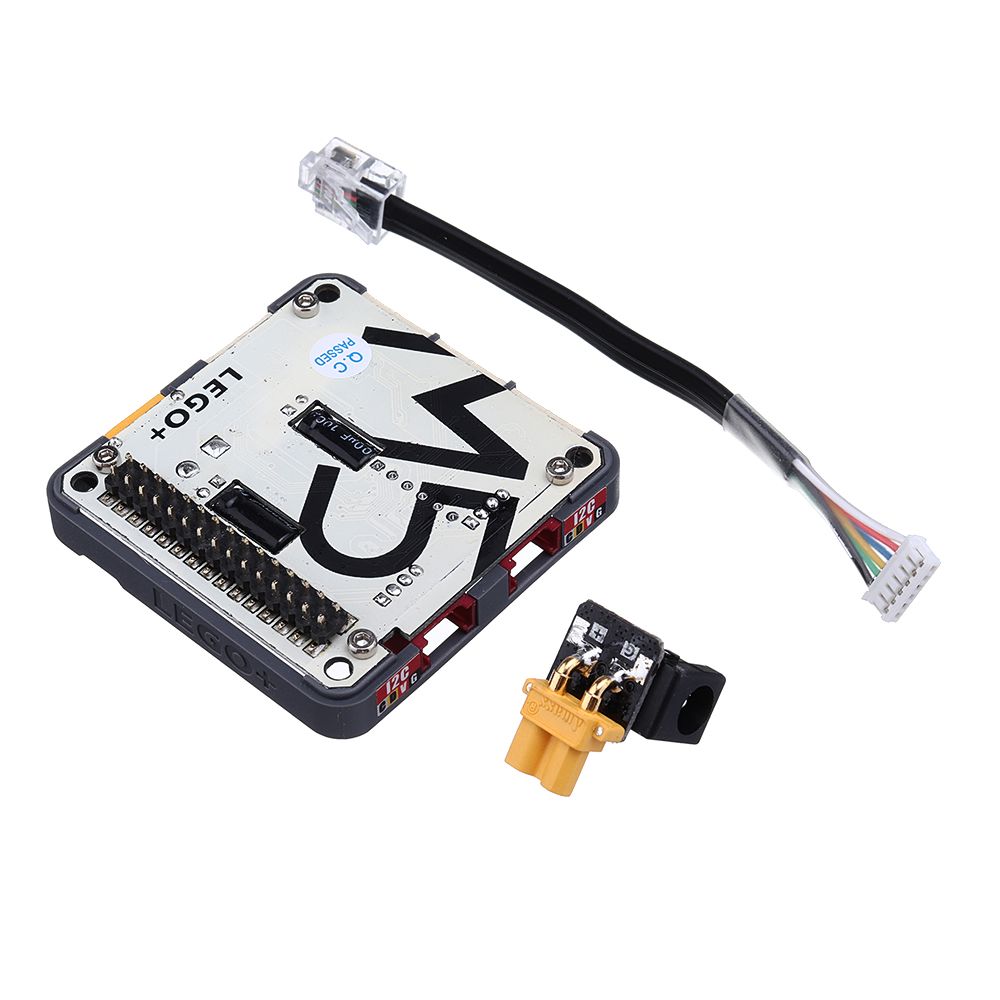

Package Included:
- 1x LE GO+ module

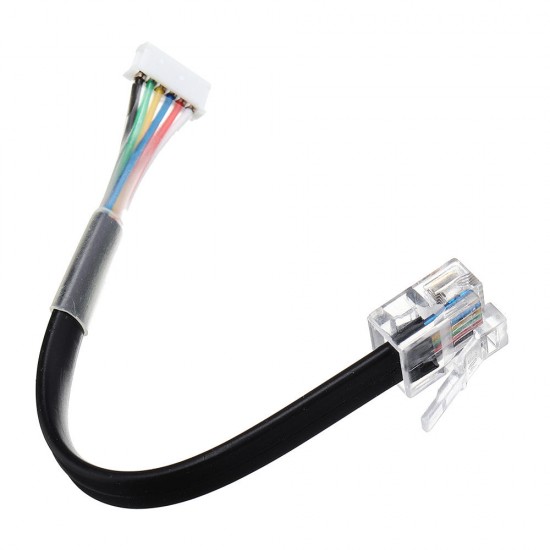

- 1x 10cm LE GO cable

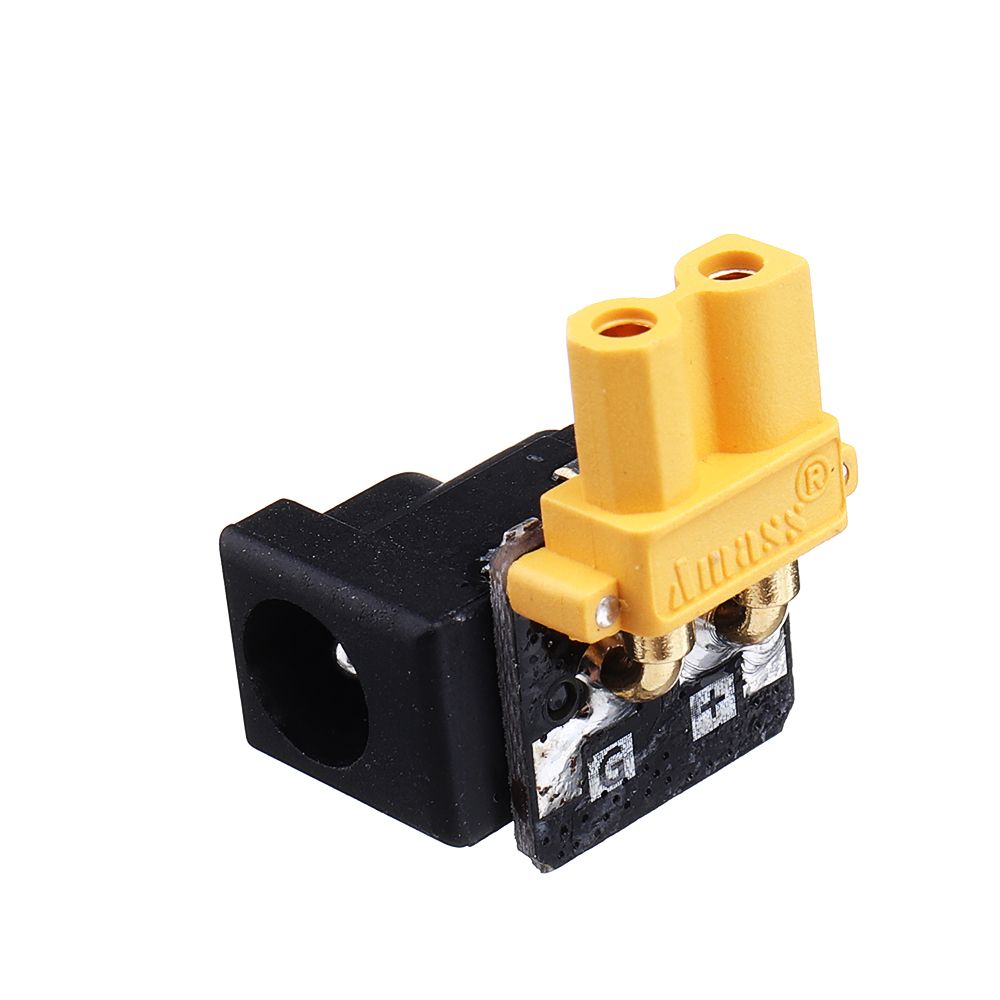

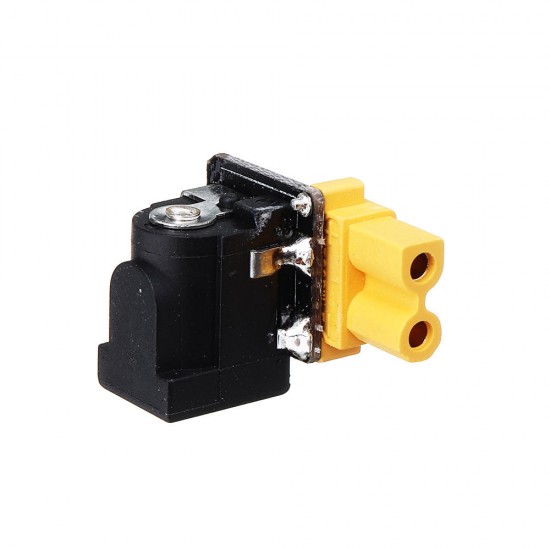

- 1x DC connector
Related Link:
-
Offical Video: https://www.youtube.com/channel/UCozgFVglWYQXbvTmGyS739w
-
Forum: http://forum.m5stack.com/
-
The Firmware of inside MEGA328: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/Module/LEGO_PLUS/firmware_328p
EasyLoader
: https://m5stack.oss-cn-shenzhen.aliyuncs.com/EasyLoader/Module/EasyLoader_LEGO_PLUS.exe
1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the master through simple steps, and a series of function verification can be performed.(Currently EasyLoader is only available for Windows OS)
2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click "Burn" to start burning.
3.The CP210X (USB driver) needs to be installed before the EasyLoader is burned.PinMap:
Mega328 ISPDownload interface Pin foot definition
Example:
UIFlow
Schematic:NOTE:
If you want to change the firmware inside MEGA328 chip which has implemented the motor driver code by default, you can overwrite through ISP port. Below shows the location of ISP port.
