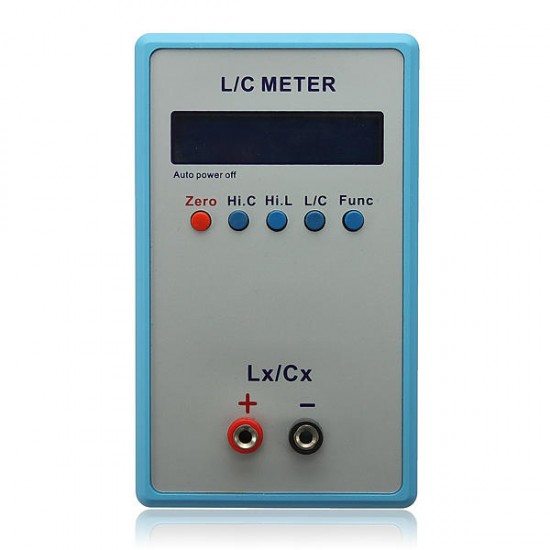

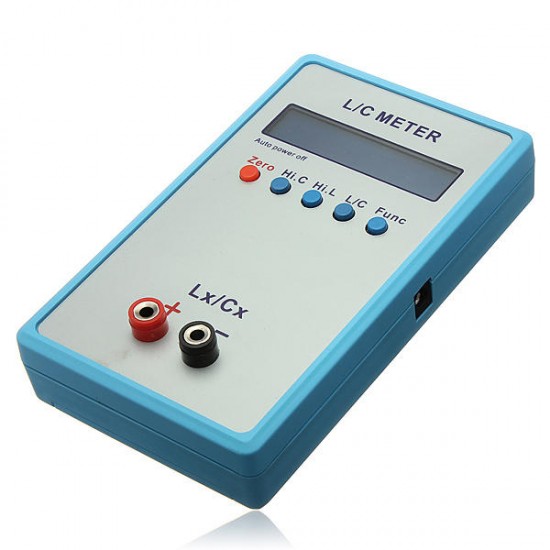

LC200A Digital L/C Handheld Inductance Capacitance Multimeter
- Stock: In Stock
- Model: EB004806
- SKU: EB004806
LC200A Digital L/C Handheld Inductance Capacitance Multimeter with USB Cable
Modle : LC200A
Handheld portable, low-power.
5 minutes intelligent auto power-off function.
Specification :
Measurement accuracy : 1%
Capacitance measuring scope : 0.01 pF - 10uF
The minimum resolution : 0.01 pF
Big Capacitance measuring scope : 1uF-100mF
The minimum resolution : 0.01uF
Inductance measuring scope : 0.001 uH - 100mH
Big inductance measuring scope : 0.001 mH - 100H
The minimum resolution : 0.001uH
Test frequency : L/C about 500KHZ Big inductance about 500HZ(can display current test frequency value)
Effective display digits : 4 digits
LCD display mode : 1602

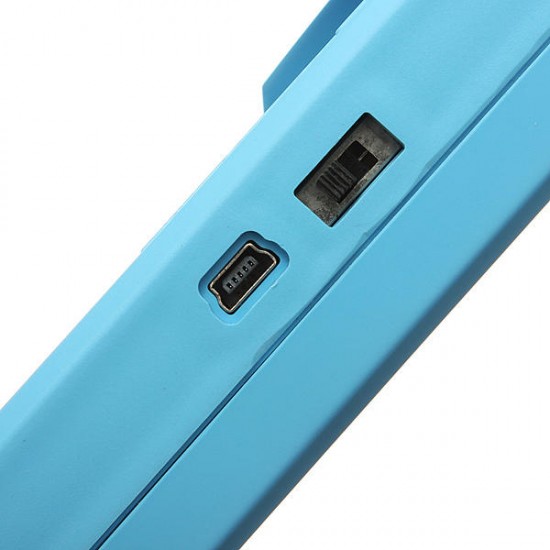

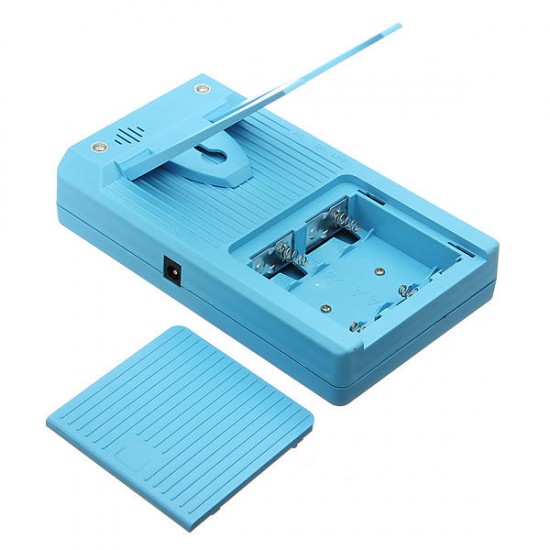

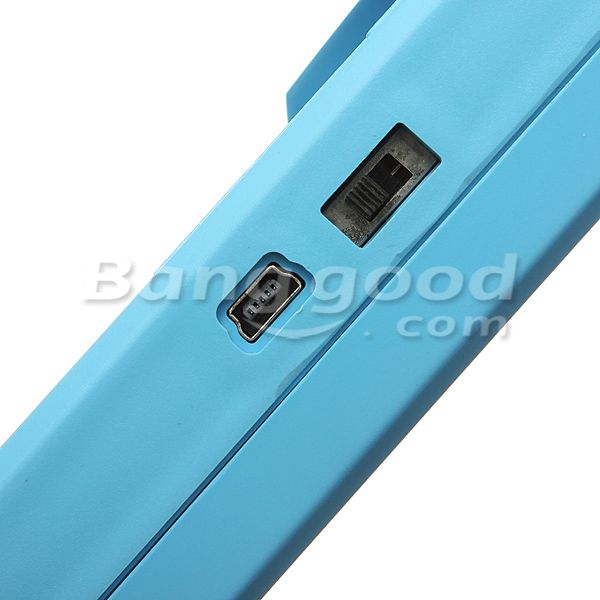

Power supply : mini USB interface 4X1.5V 5# battery or DC 5V Power Supply
Power Supply Work Voltage : 110 - 240V
Note : Before testing a Capacitance or inductance, Please reset to zero, if you test a Capacitance, and find the value is unstable, that meaning this capacitance's stability or frequency characteristic is very poor.

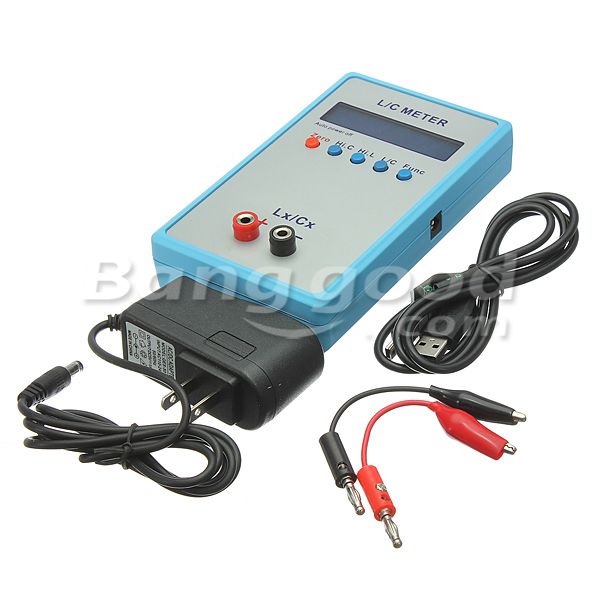

Package included :
1x LC200A L/C Inductance Capacitance Digital Meter
1x DC 5V Power Supply (EU plug / US plug for option)

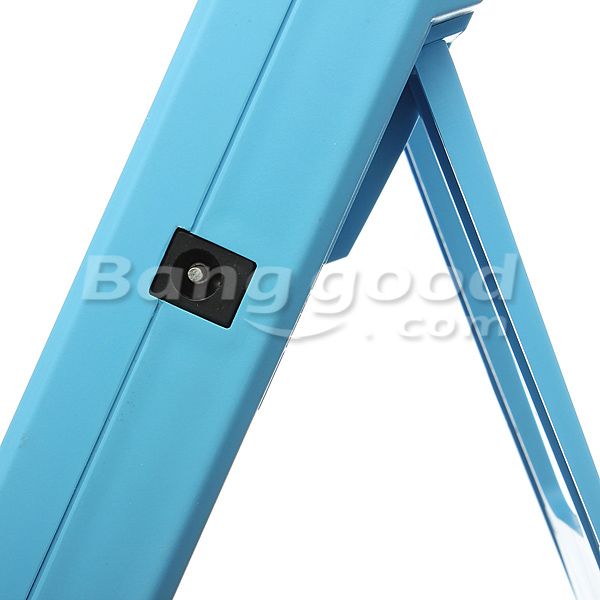

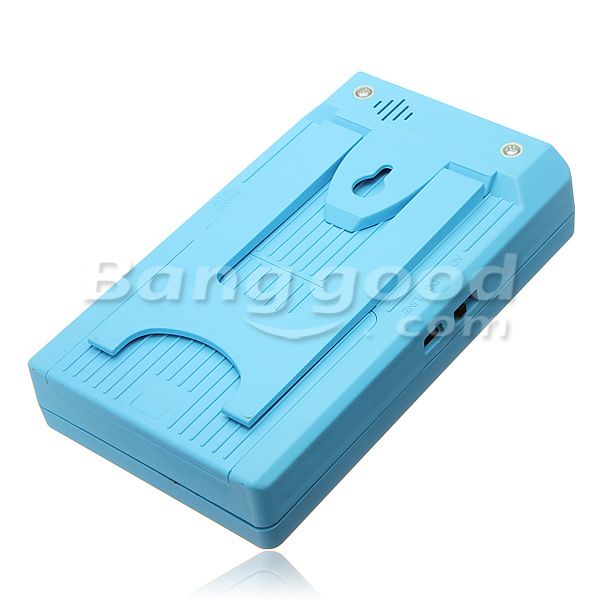

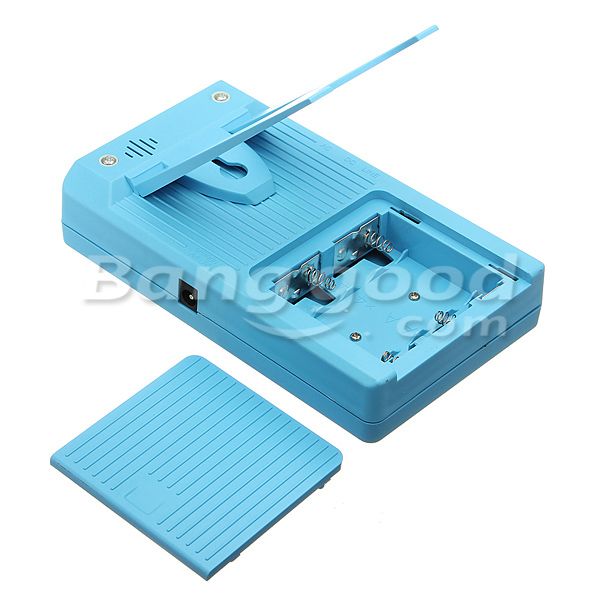

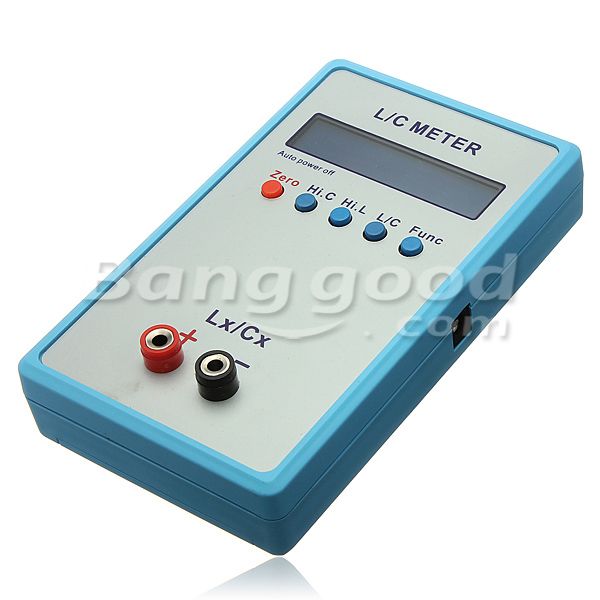

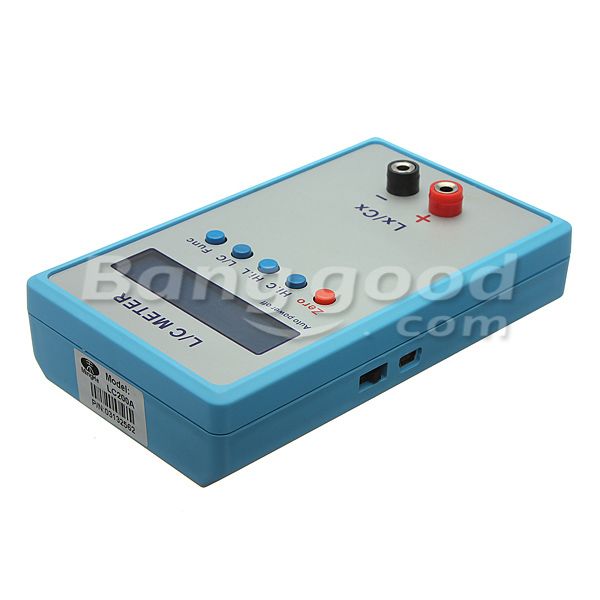

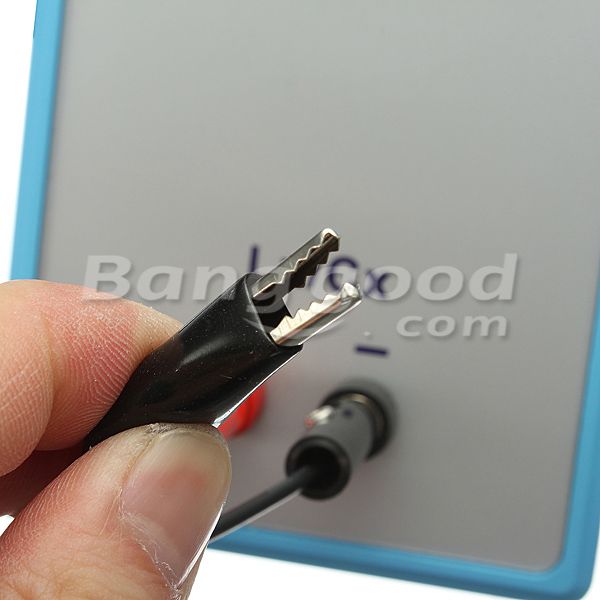

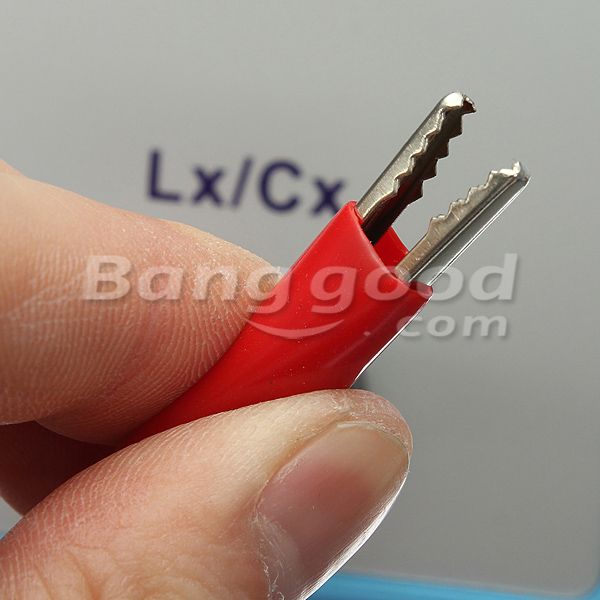

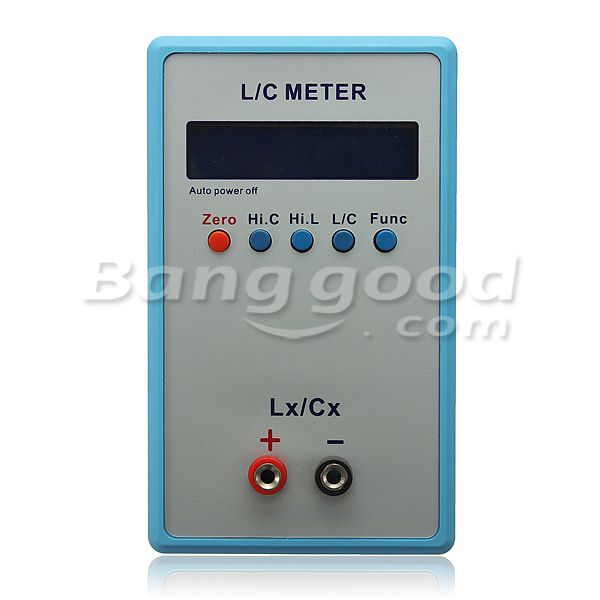

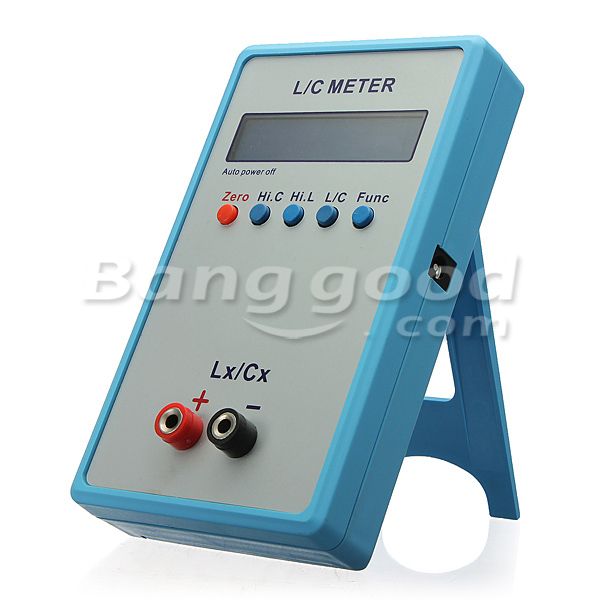

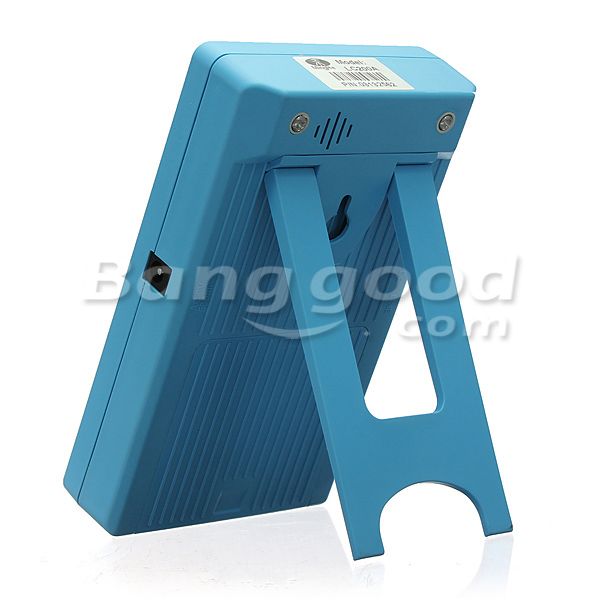

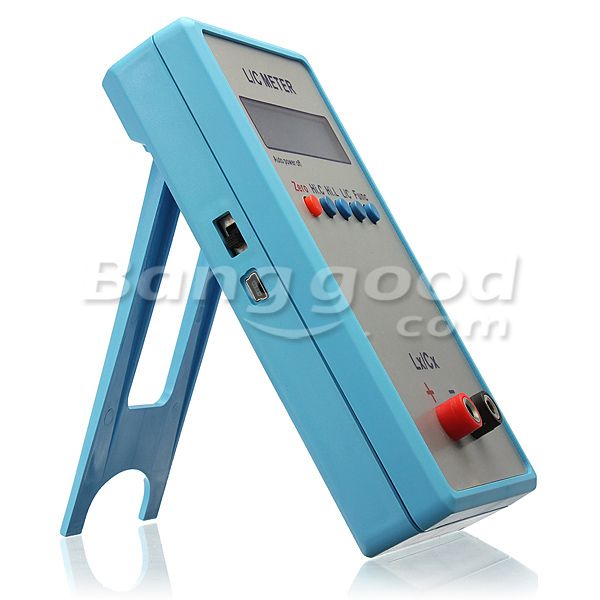

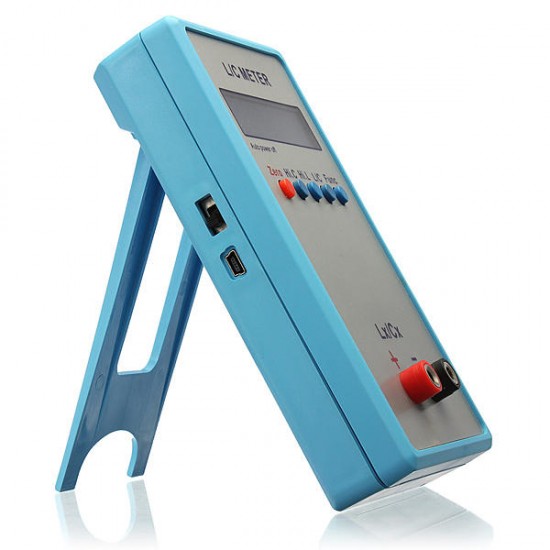

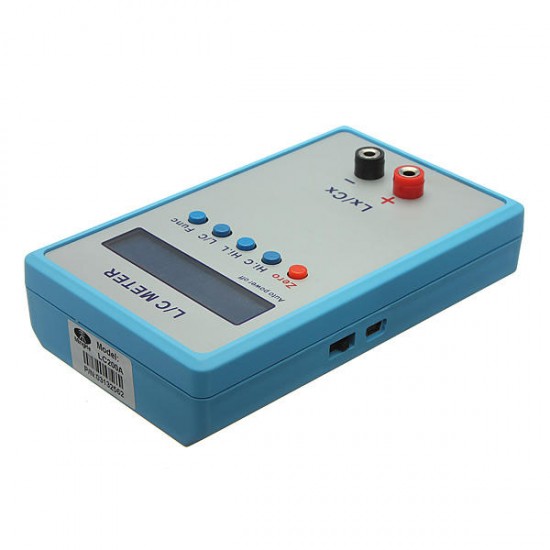

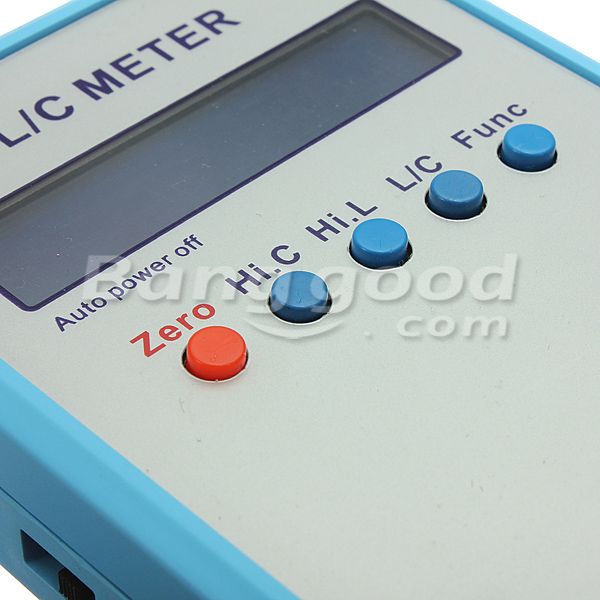

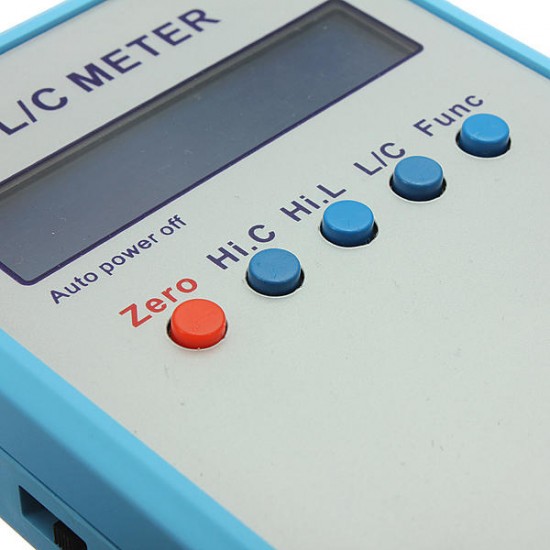

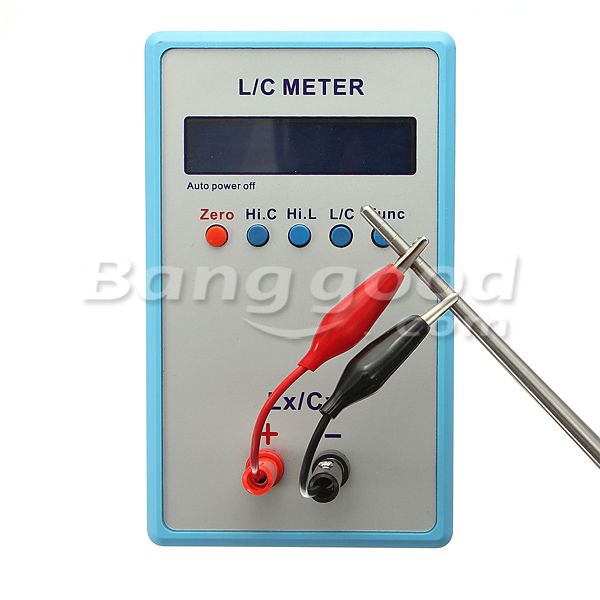

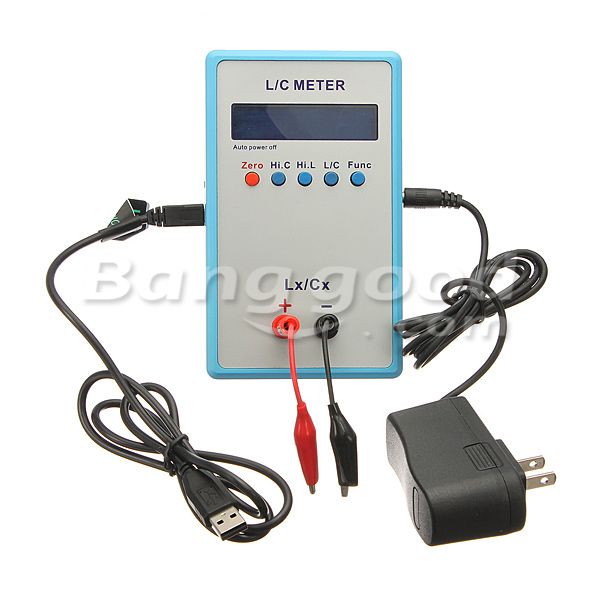

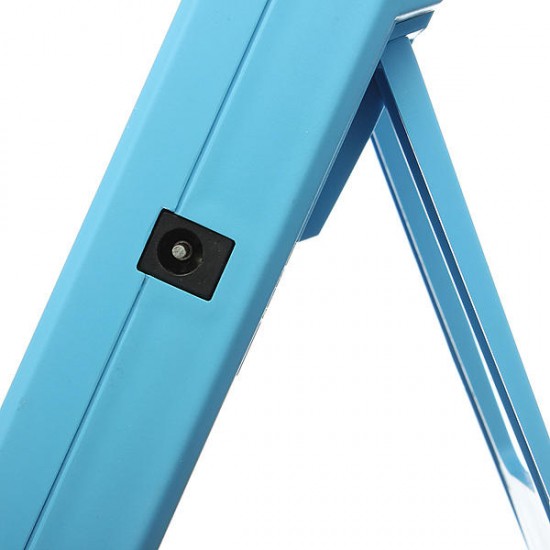

Details pictures :
