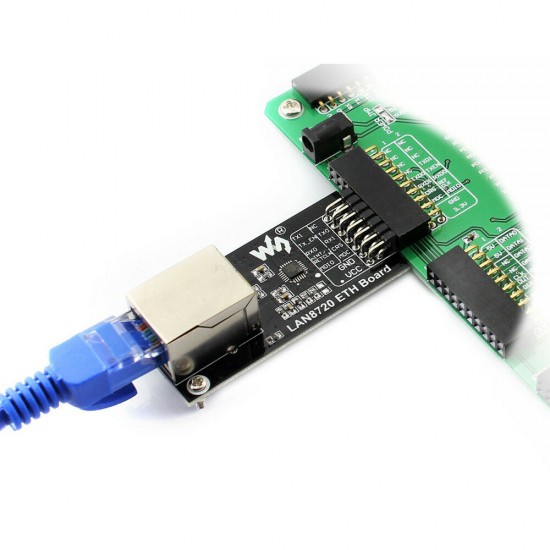

LAN8720 Network Module Ethernet Module Ethernet Transceiver RMII Interface Development Board
- Stock: In Stock
- Model: EB0041435
- SKU: EB0041435
- Voltage: 5V(USB)
Precise details:
Feature:
High-performance 10/100Mbp Ethernet transceiver (PHY)
Ultra low power consumption design, can use 3.3V single power supply
The use of RMII interface greatly reduces the control pins of the MCU
Support HP Auto-MIDX
The chip is packaged in a 24-pin QFN (4x4 mm), lead-free
Flexible power management architecture
Integrated 1.2V regulator
IO voltage range: +1.6V to +3.6V
Documents:
Schematic: Click here to open
Sample tutorial: Click here to open
LAN8720A: Click here to open
LAN8720A QFN Rev D Schematic Checklist: Click here to open
Package includes:
1 x LAN8720 Network Module Ethernet Module
Feature:
High-performance 10/100Mbp Ethernet transceiver (PHY)
Ultra low power consumption design, can use 3.3V single power supply
The use of RMII interface greatly reduces the control pins of the MCU
Support HP Auto-MIDX
The chip is packaged in a 24-pin QFN (4x4 mm), lead-free
Flexible power management architecture
Integrated 1.2V regulator
IO voltage range: +1.6V to +3.6V
Documents:
Sample tutorial: Click here to open
LAN8720A QFN Rev D Schematic Checklist: Click here to open
Package includes:
1 x LAN8720 Network Module Ethernet Module
