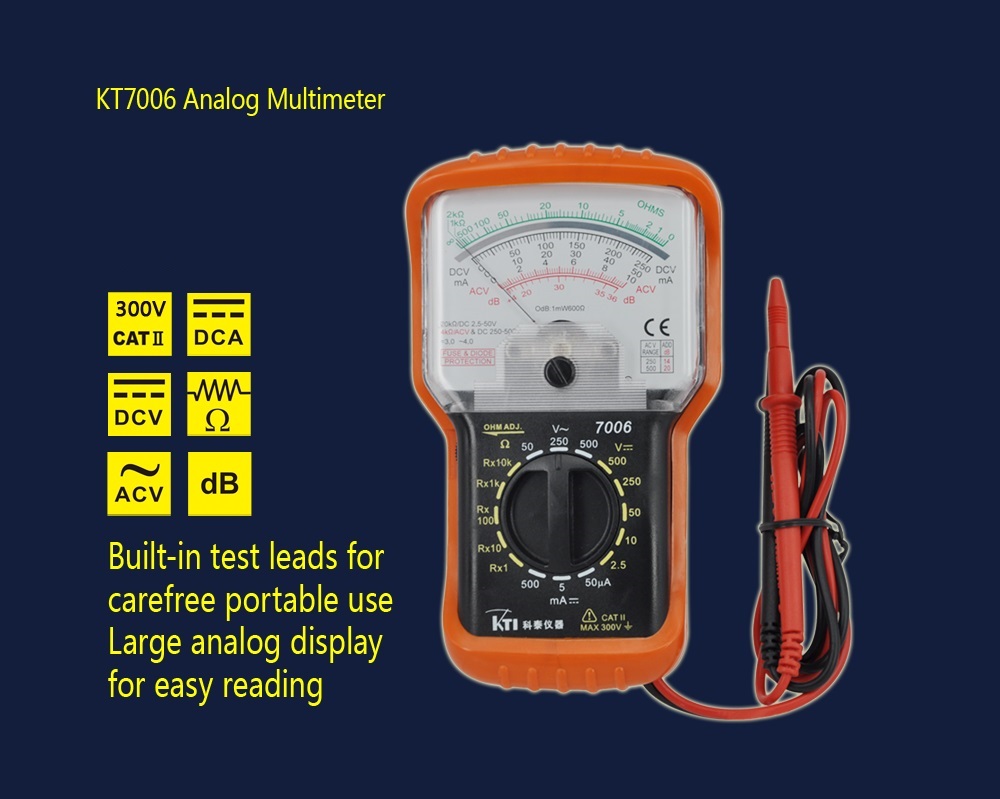

KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance

KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
KT7006 Analog Multimeter Built-in Test Leads Large Display AC/DC Voltage DC Current Measurement Input Impedance
$21.32
Ex Tax: $21.32
  • Stock: In Stock
  • Model: EB004460
  • SKU: EB004460
Features:


● 16 ranges in 5 functions
● Overload protection
● AC/DC voltage measurement up to 500V
● DC current measurement up to 500mA
● Resistance measurement up to 20MΩ
● Fuse: F500mA/250V
● Input impedence: 4KΩ/ VAC, 20KΩ/ VDC

Specification:


DC Voltage 2.5/10/50/250/500V (±3.0% f.s)
AC Voltage 50/250/500V (±4.0% f.s)
DC Current 50μ/5/500mA (±3.0% f.s)
Resistance 2K/20K/200K/2M/20MΩ (±3.0% of full arc)
dB measurement: 4~56 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 155x88x49mm
Weight Approx. 295g included battery
Measurement Category EN61010-1,CAT II,600V
Power: 1.5V & 9V battery( included)

Package includes:


1 x KT7006 Analog Multimeter
1 x Test Leads

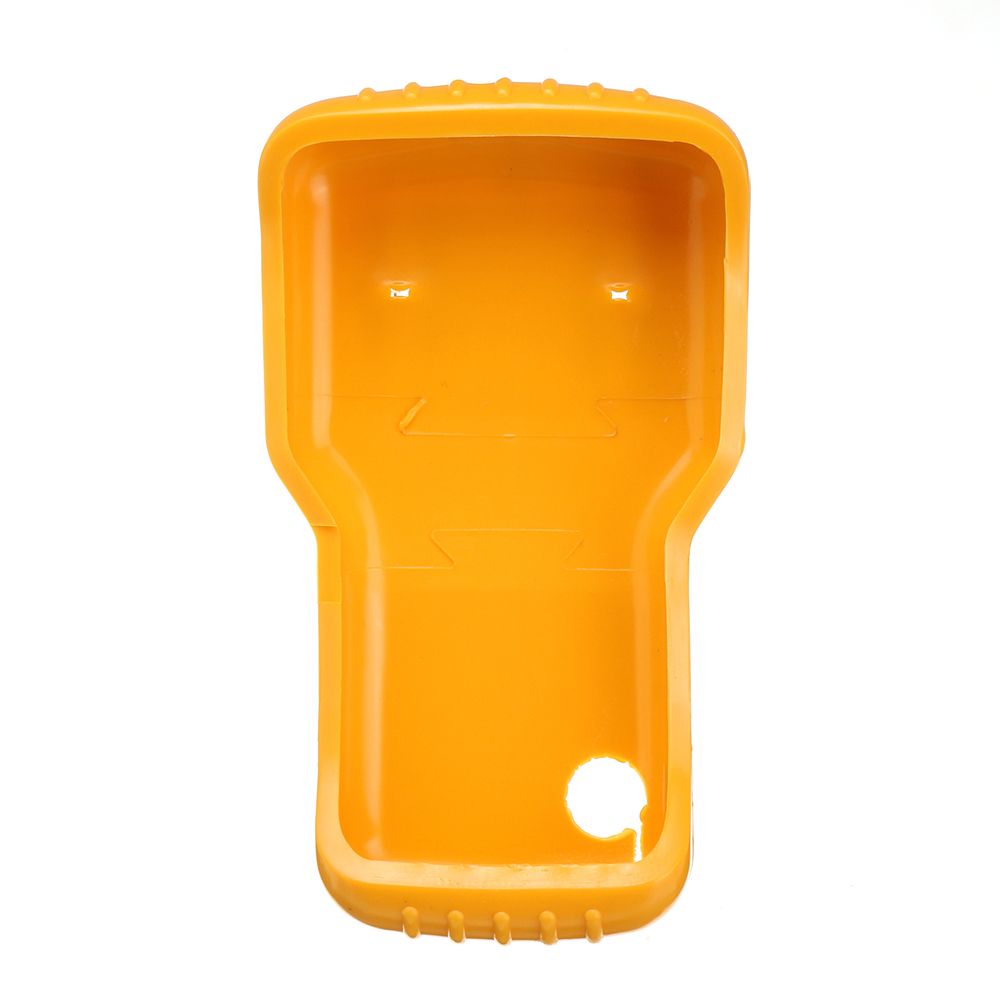

1 x protective case

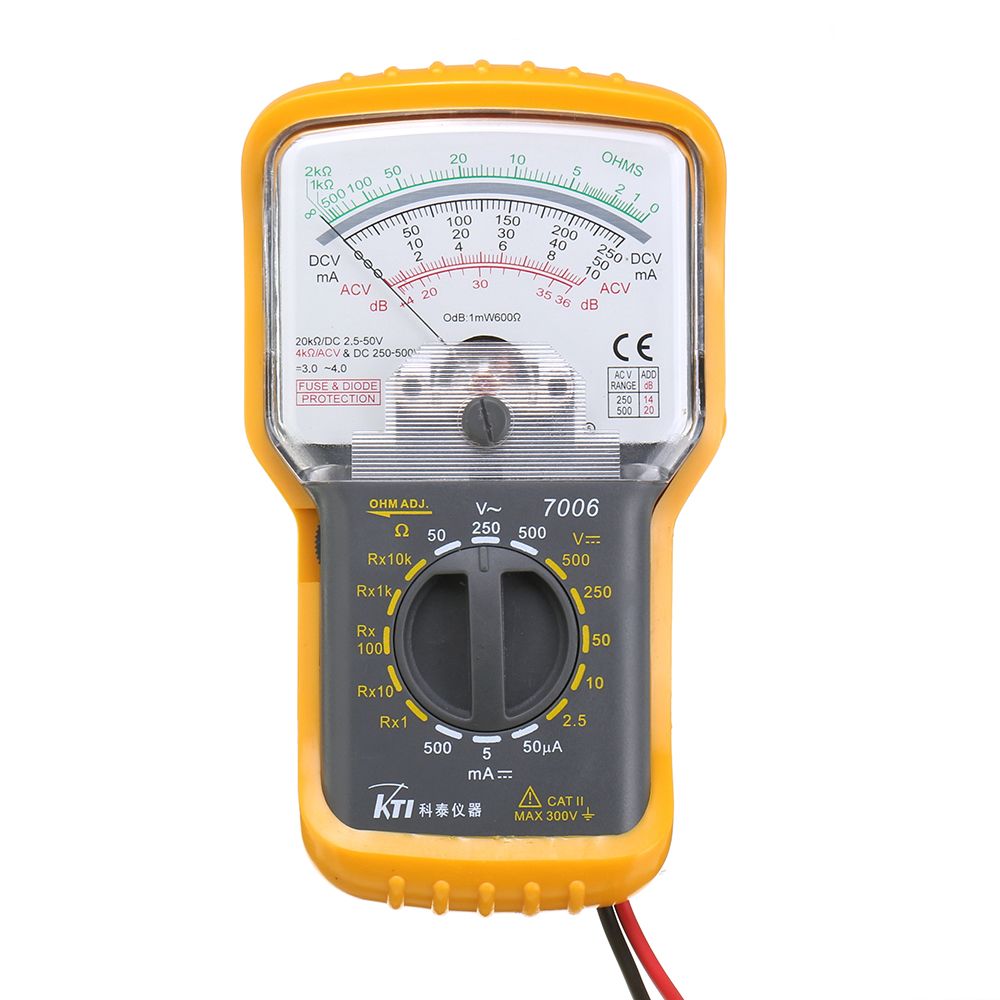

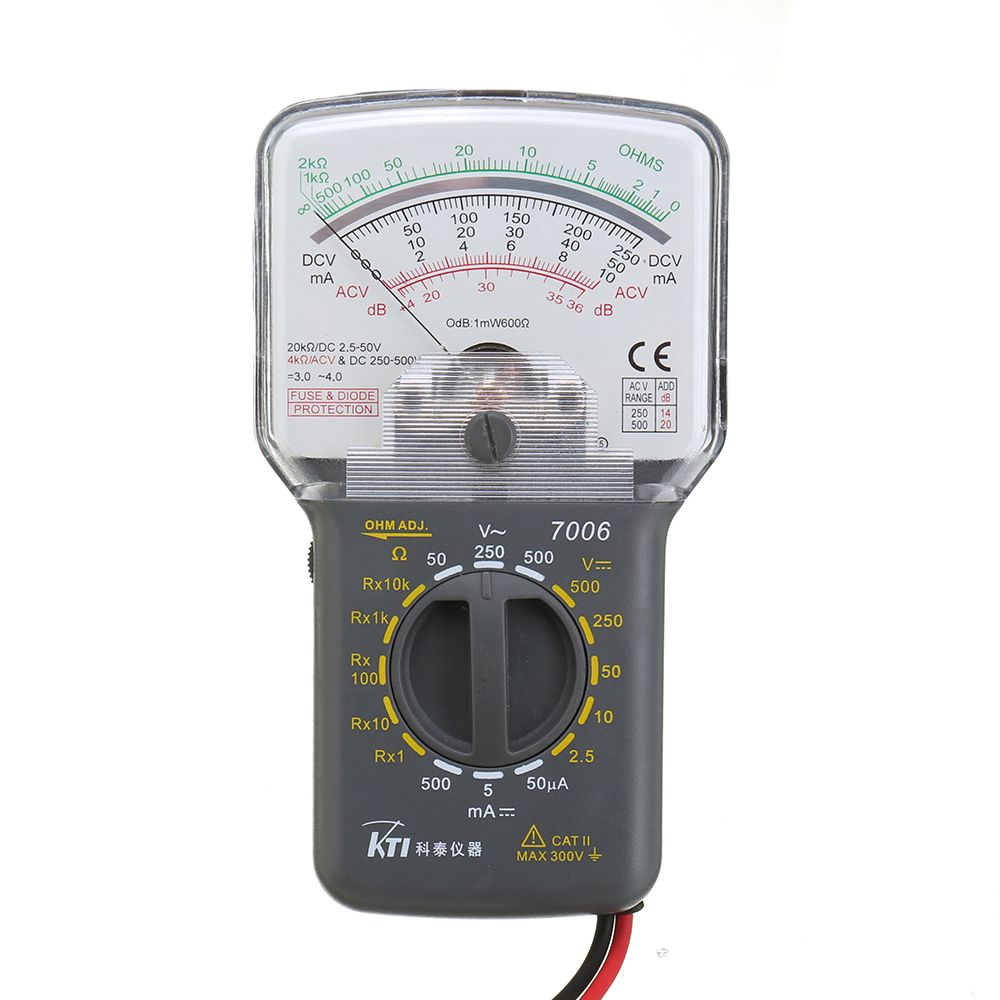

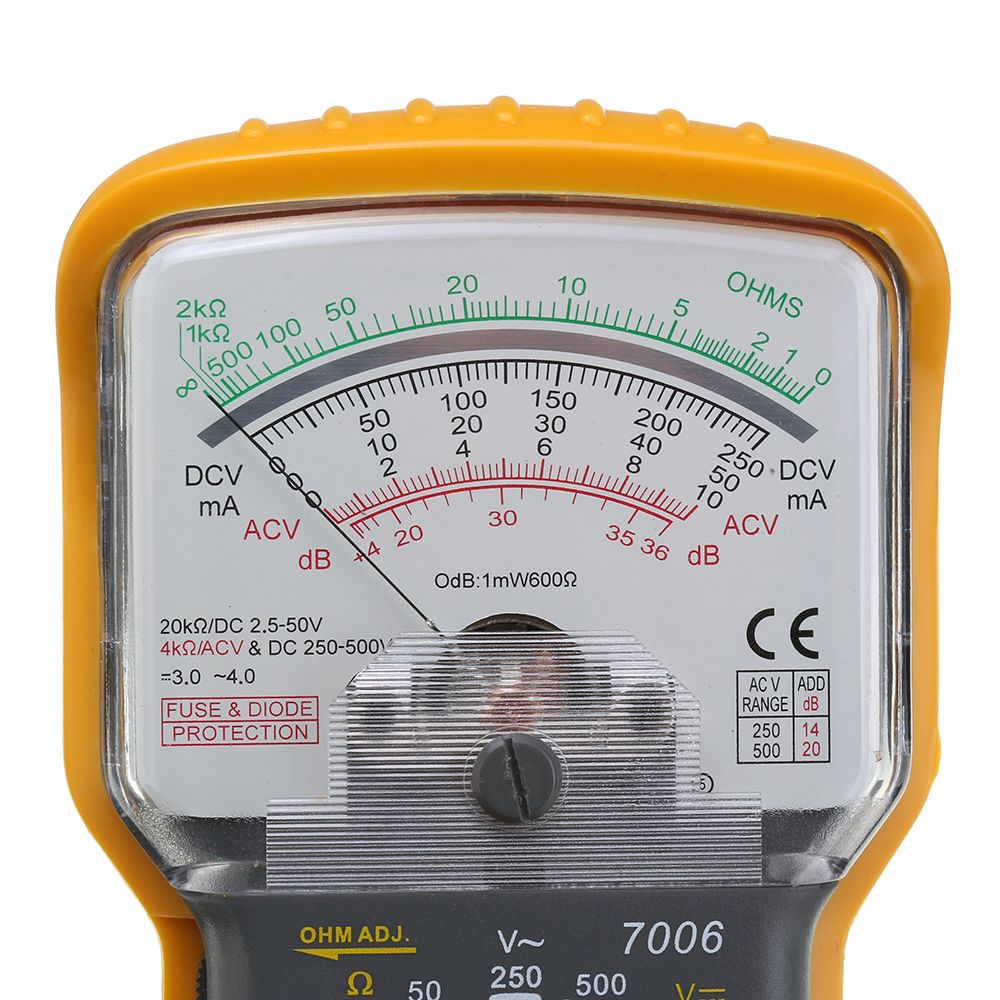

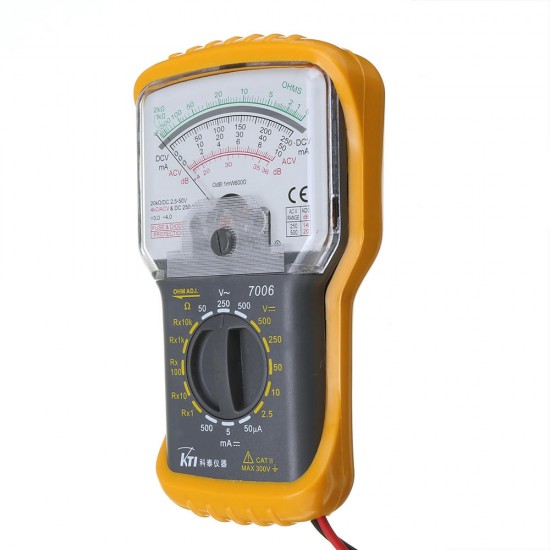

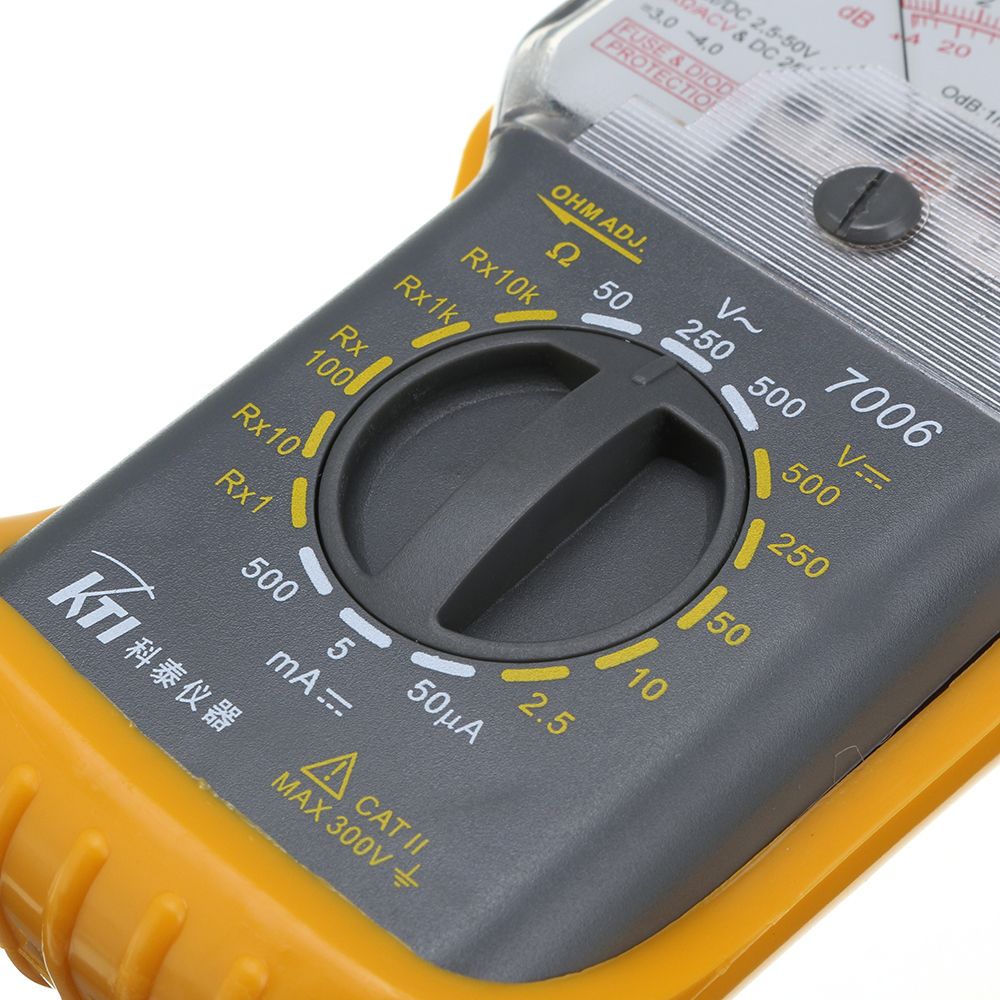

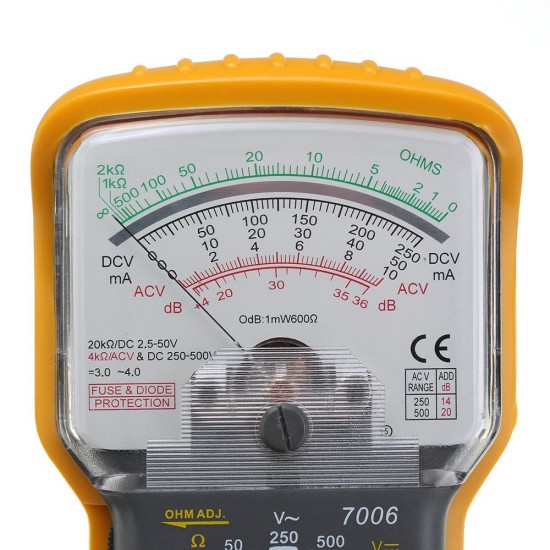

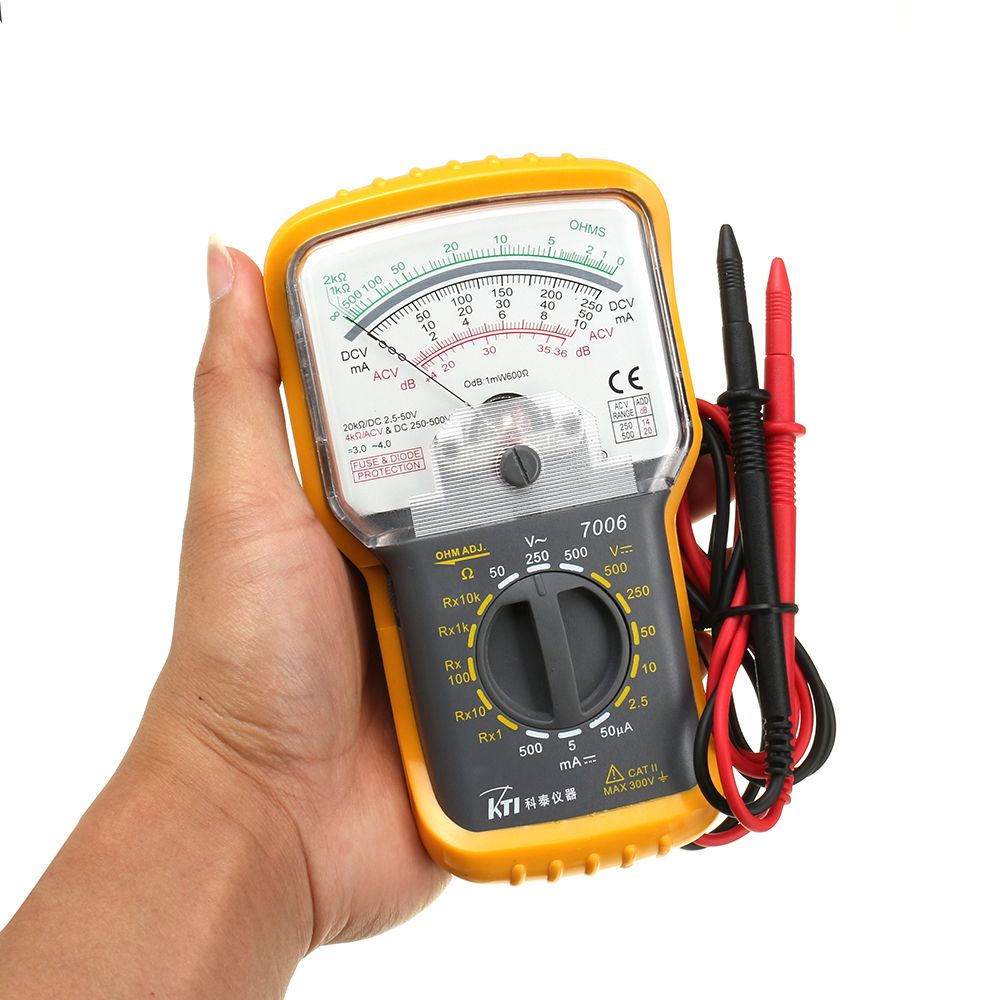

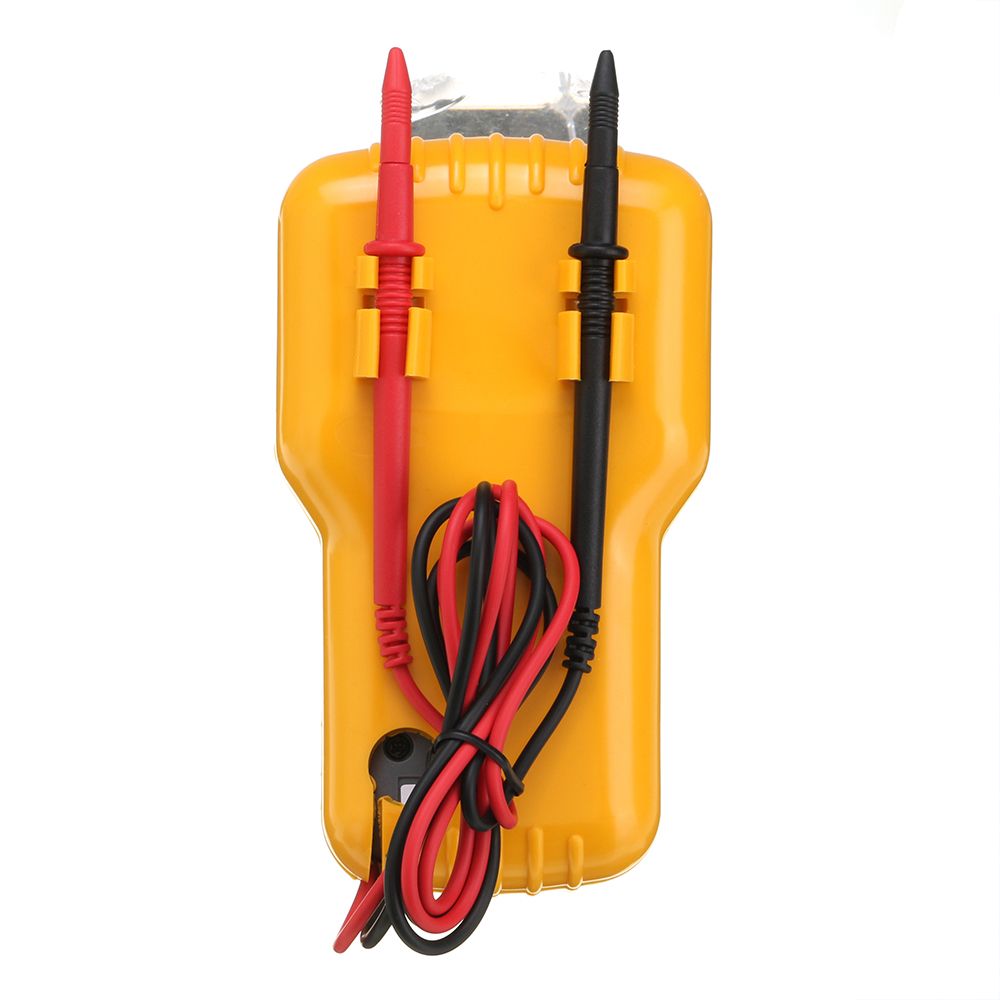

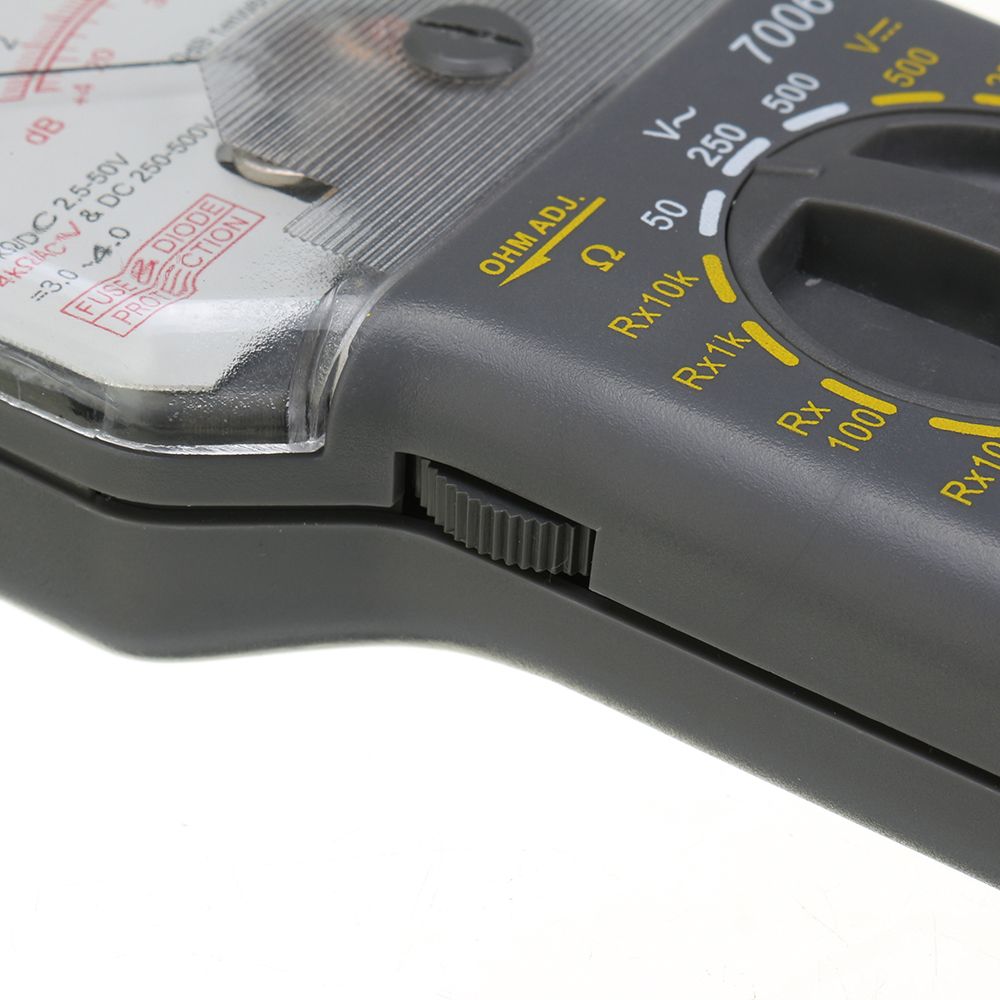

Details pictures:




KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457




KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457


KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457

KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457

KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457

KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457

KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457

KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457

KT7006-Analog-Multimeter-Built-in-Test-Leads-Large-Display-ACDC-Voltage-DC-Current-Measurement-Input-1435457
