KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector

KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
KM001C USB Tester Quick Charger Voltage Current Ripple Dual Type-C Meter Power Bank Detector
$56.24
Ex Tax: $56.24
  • Stock: In Stock
  • Model: EB002994
  • SKU: EB002994
Features:

1. Voltage / current by  power detection.
2. Output capacity / energy detection.
3. USB PD trick.
4. Ripple test.
5. Data offline storage.
6. PC online communication.
7. Charger line complement detection.
8. Data wire line resistance detection.

Specification:

Screen material: OLED/ pure white
Screen resolution: 128*64
Interface type: Type-C/USB-C
Number of interfaces: 3pcs (including one HID port)
Internal resistance of interface: About 28m ohm
Independent power supply: HID port (5V)
Working current: 4-25mA/5mA (standby)
Voltage precision: 0.10%
Current accuracy: 0.10%
Voltage resolution: 0.0001V
Current resolution: 0.0001A/1uA
Maximum voltage / rated range: 0-28V/0-24V
Maximum current / rated range: 0-8A/0-5A
Offline curve record: 2560x5 group or 12800x1 group
Number of capacity and energy statistics: 5
Acquisition speed: 110501001000 times (upper computer)
USB3.1 transmission: measured 670MB/s
PD video transmission: Hardware 2.0 above

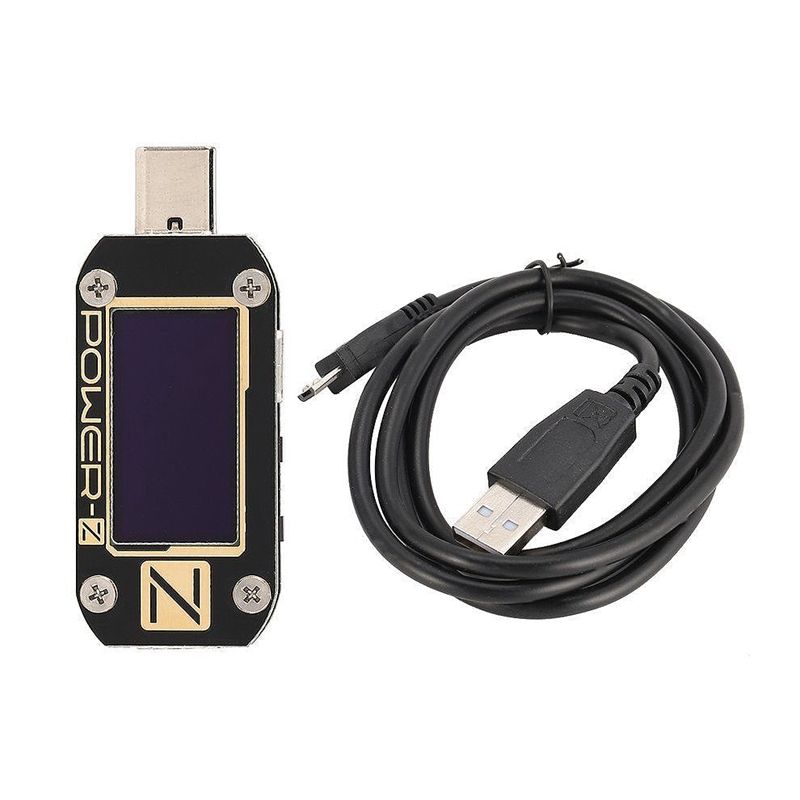

Package Includes:

1 x POWER-Z USB PD Tester

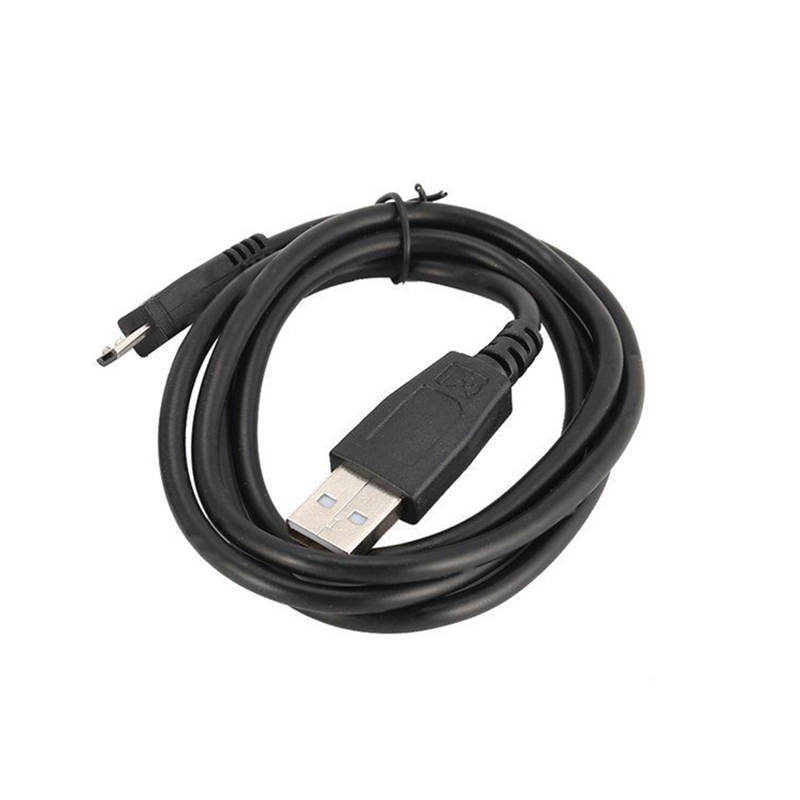

1 x USB Cable

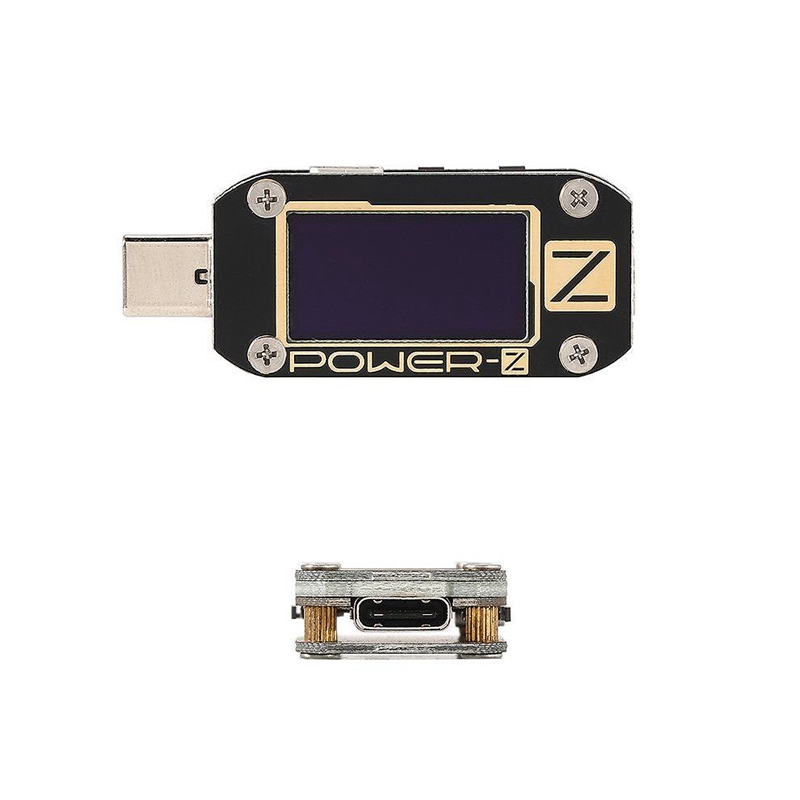

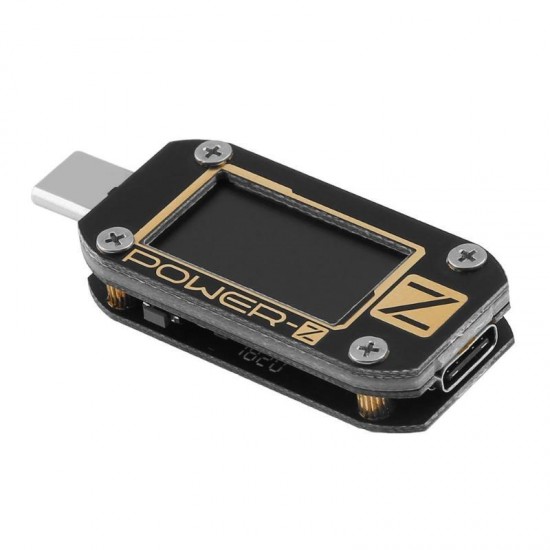

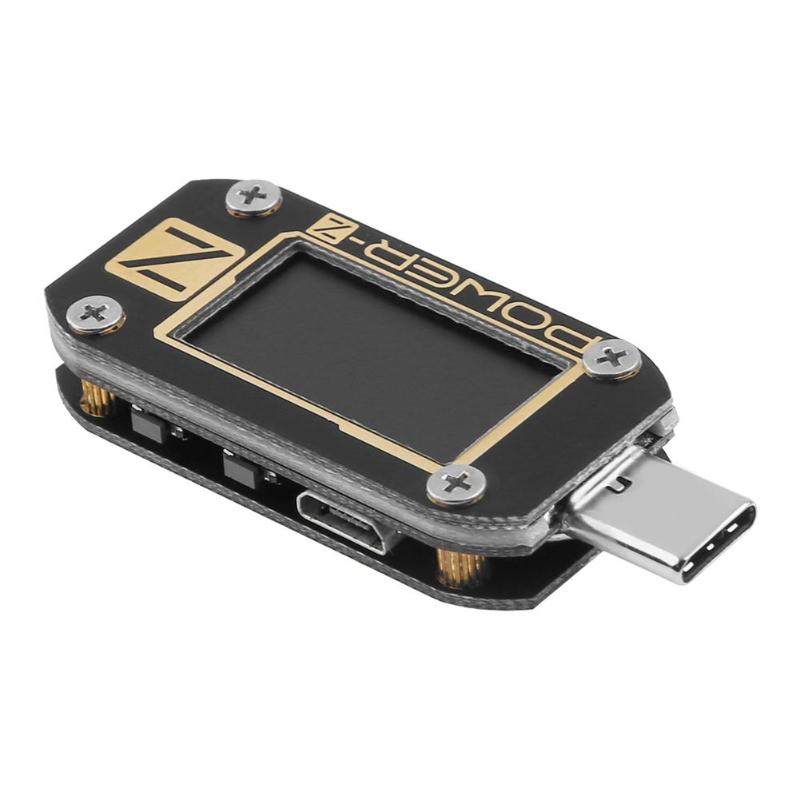

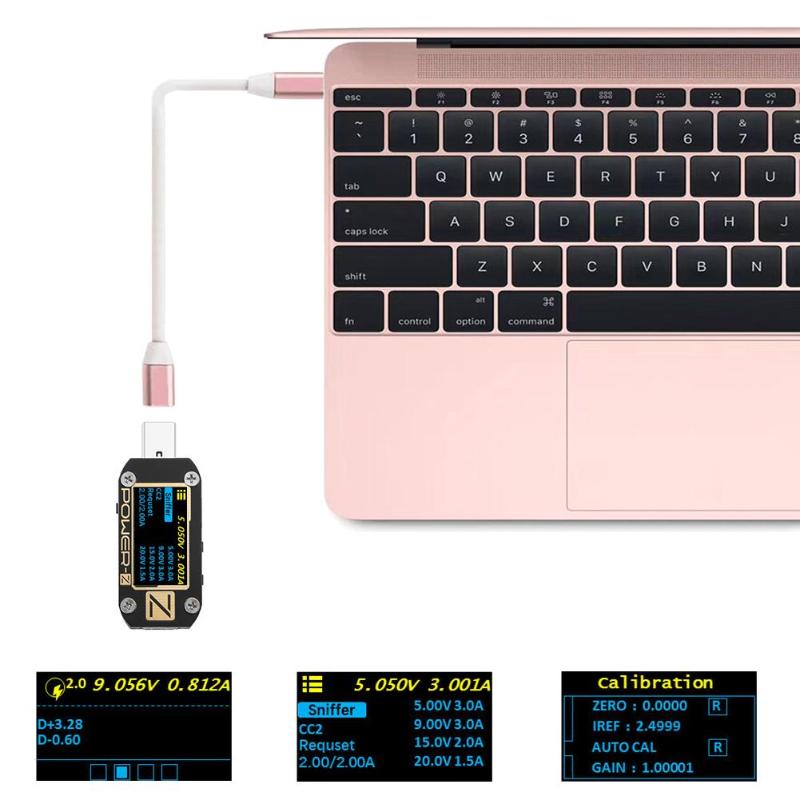

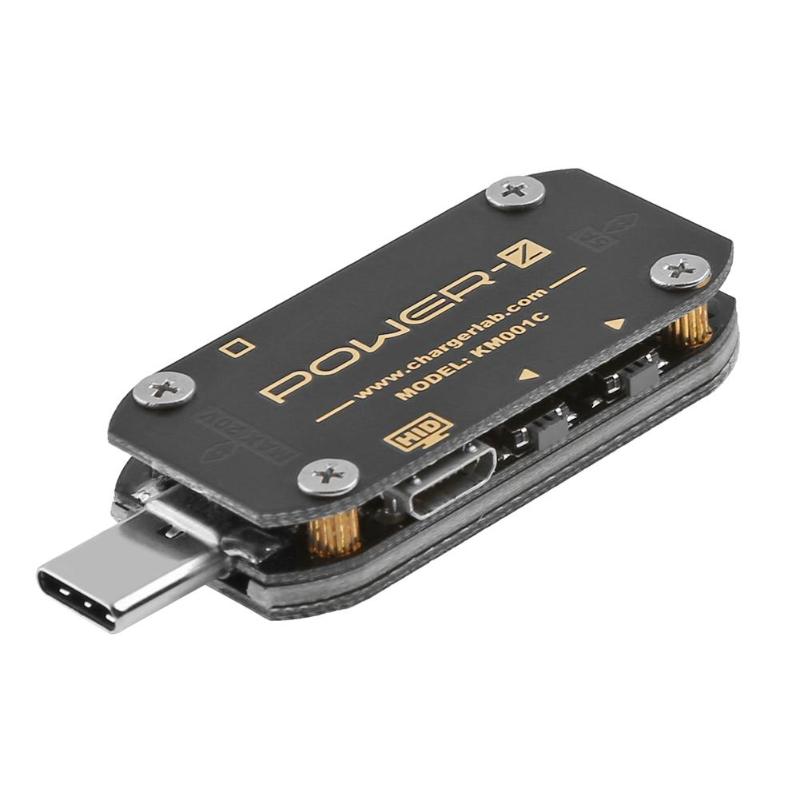

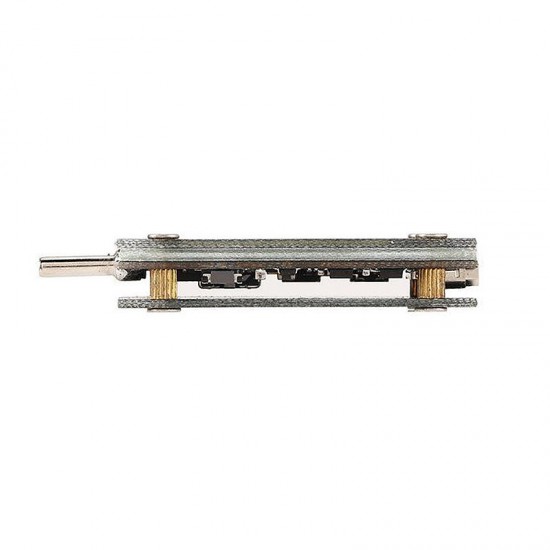

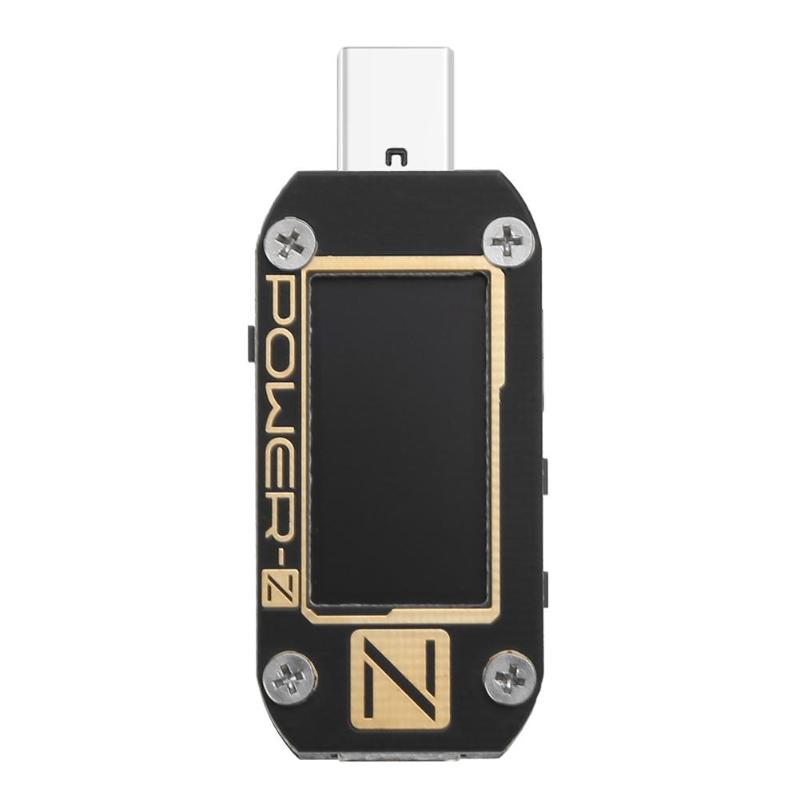

Details Pictures:

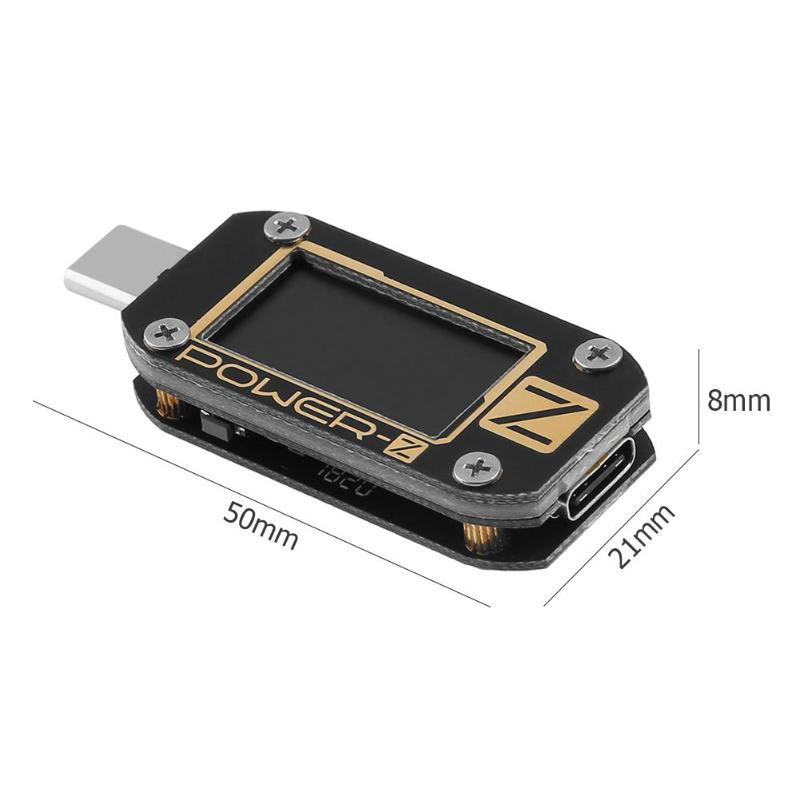

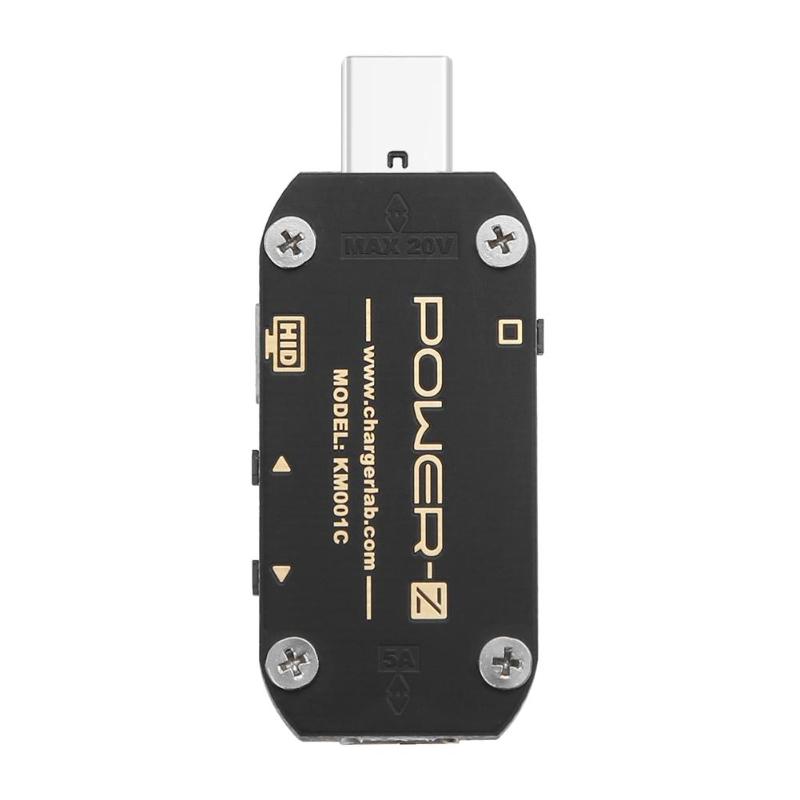

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023



KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023

KM001C-POWER-Z-USB-Tester-Quick-Charger-Voltage-Current-Ripple-Dual-Type-C-Meter-Power-Bank-Detector-1588023
