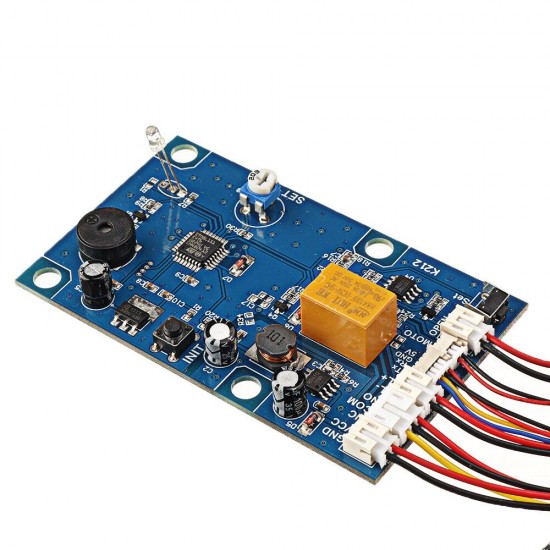

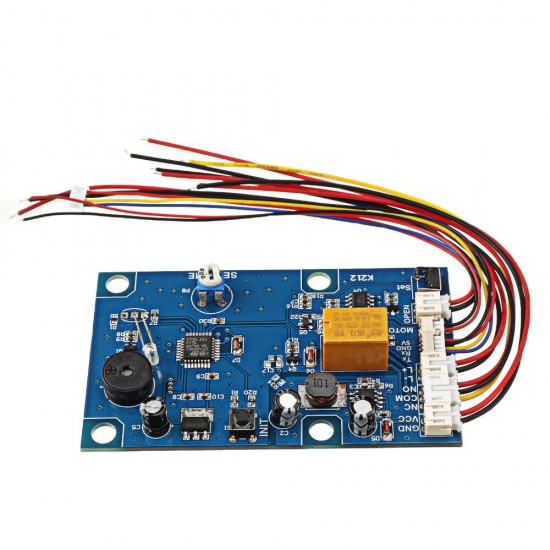

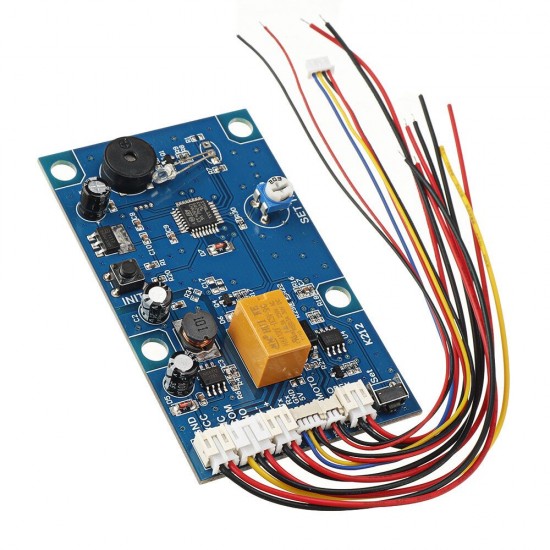

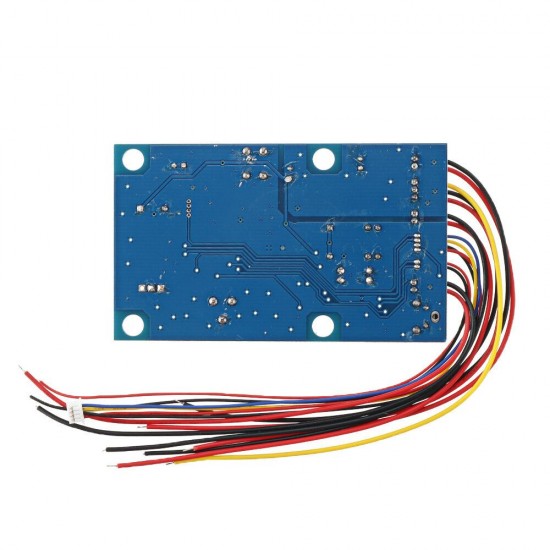

K212 Switch Power Supply Fingerprint Access Control Control Board Door System
K212 Switch Power Supply Fingerprint Access Control Control Board Door System
$12.99
Ex Tax: $12.99
- Stock: In Stock
- Model: EB0049261
- SKU: EB0049261
- Price Tag: US$ 5.99 - US$ 15.99
- Voltage: DC 12V,DC 24V
Precise details>>
Precise details:
>>>Manual: Click here to open<<<
Specifications:
·Power supply: DC8--30V,
·Stand-by mode current:40mA
·Fingerprint capacity: 200
·Interface output of motor: ±DC5V,300mA
·Interface output of relay: 3A
K202 is designed for low power consumption, the power supply is DC12V, the relay time can be adjusted by rotating the button, relay time: 0.5-13 seconds.
It is very easy to register fingerprint, just need to press SET button to register fingerprint and long press SET button to back to factory default.

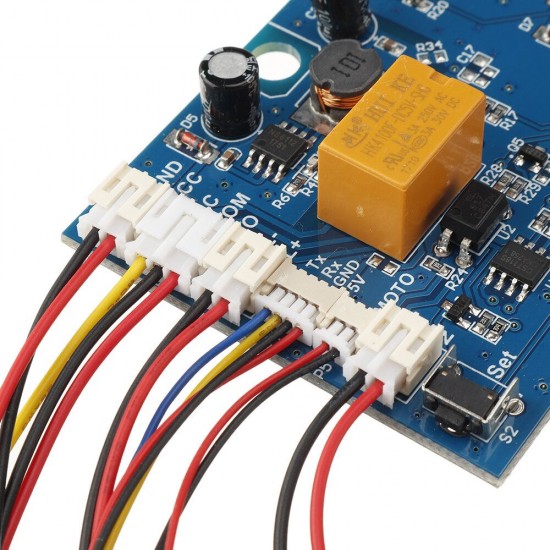

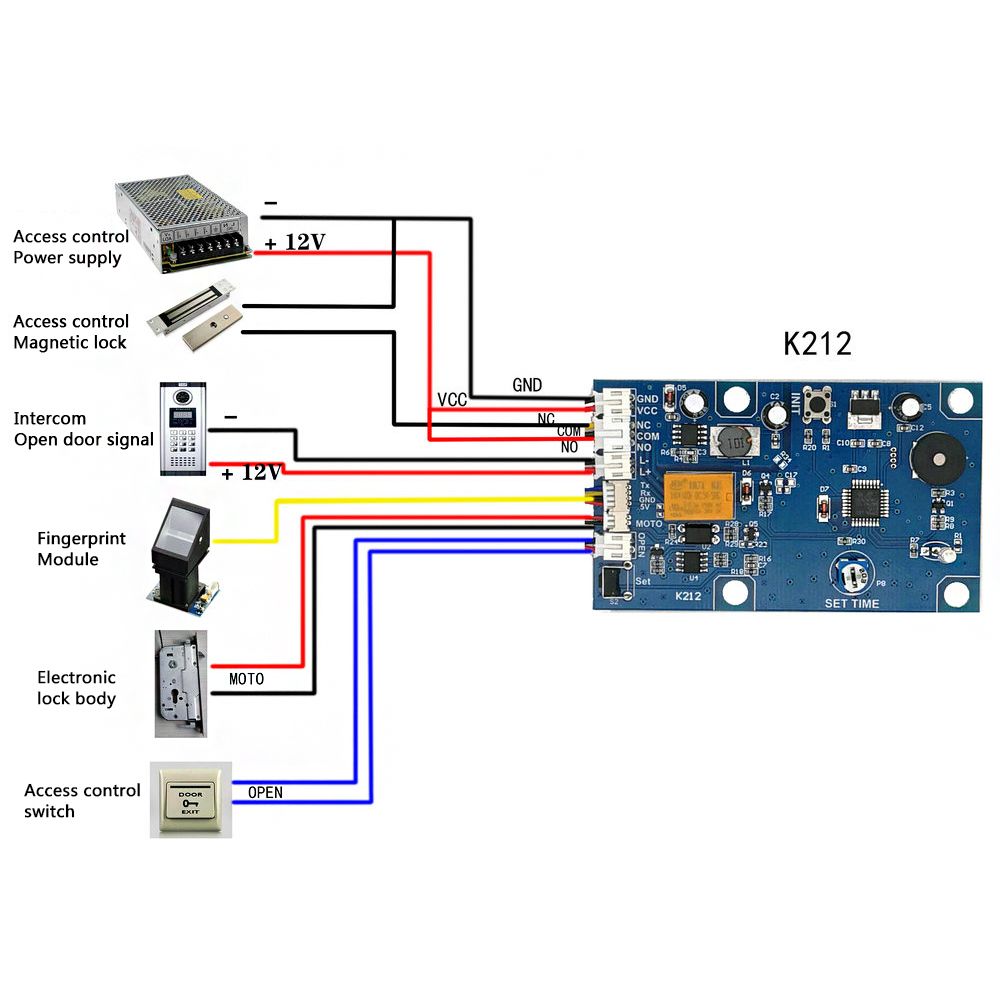

Interface Usage:
P1：Power supply, Input voltage: DC8--30V, Input current: 0.3A
P2：Relay output
P3：Active Signal of open door, Voltage DC12V(Input)
P4：Fingerprint module(Input)
P5：Micro-motor(Output)
P6：Button for opening door, closing signal(Input)
Adjustable resistance: Setting closing time for relay
Operation Instructions:
1. System on working state, indicator light(LED) flash slowly.
2. Press SET button, system in register state and indicator light flash fastly.
3. Fingerprint can be registered continuously when system in register state; if no need for adding fingerprint more, exit after waiting 5 seconds or by press SET button;
4. When back to factory default, press RESET button until hear“Di”, release the button, hearing “Di” long beep means operation successful;
5. Fingerprint verified or the button for opening door closed, the relay actuated,the relay time can be set by adjustable resistance, setting time:0.5-9 seconds; Motor interface output DC5V and keep 0.5 seconds; stop 5 seconds, then minus voltage outputted and keep 0.5 seconds.
Package Included:
1 x K212 Switch Power Supply Fingerprint Access Control Control Board
| Model | K200 | K200-3.3 | K202 | K212 | K215-V1.2 | K216 |

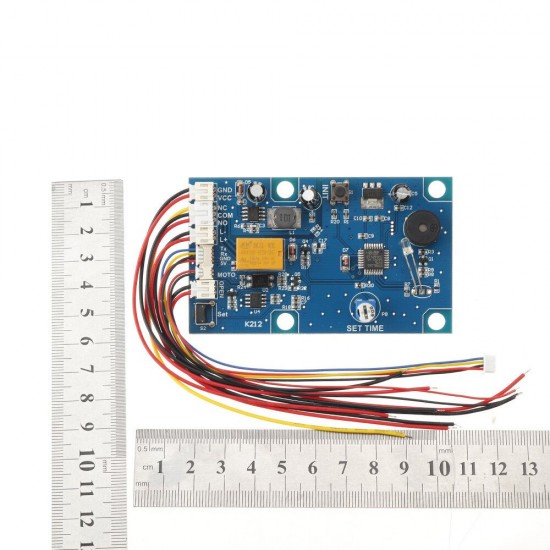

| Size | 46*25.4mm | 46*25.4mm | 64.4*25.4mm | 89*53mm | 70*36.4mm | 84*49*20mm |
| Power Supply | 4*AA battery or DC5V | 4*AA battery or DC5V | DC12V | DC8-24V,8mA | DC10-30V | DC10-30V |
| Capacity | 120 | 120 | 120 | 200 | 200 | 300 |
| Stand-by current | less than 7uA | less than 5uA | 15uA | 40mA | 40mA | 6mA(DC12V) |
| Output | DC5-6V,500mA | DC5-6V,500mA | Relay(max current 10A) | Motor:±DC5V,300mA Relay：3A | Relay(max current 10A) | Relay(max current 10A) |
| Connector | MX 1.25mm 6Ppin | MX 1.0mm 6Ppin | MX 1.25mm 6Ppin/MX 1.0mm 6Ppin | MX 1.25mm 4Ppin | MX 1.25mm 6Ppin/MX 1.0mm 6Ppin | MX 1.25mm 6Ppin/MX 1.0mm 6Ppin |
| Connect fingerprint module | R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501 | R502,R502-A,R503 | R301T,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 | R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501 | R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 | R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 |
| Features and Functions | 1.Low power consumption 2.Four mode for relay output 3.can connect electronic lock body,relay |
1.Low power consumption 2.Four mode for relay output 3.can connect electronic lock body,relay |
1.Low power consumption 2.Relay rotation button:0.5-15s 3.can connect electronic lock body,relay |
1.Two output:motor signal output /relay output(0.5-9s) 2.can connect door open key signal and access control intercom signal |
1.Relay:1 second or normally open and normally close function 2.Car,motorcycle,access control |
1.can control by remote control 2.relay:0.5s-20s 3.Car,elevator control,access control |
Specifications:
·Power supply: DC8--30V,
·Stand-by mode current:40mA
·Fingerprint capacity: 200
·Interface output of motor: ±DC5V,300mA
·Interface output of relay: 3A
K202 is designed for low power consumption, the power supply is DC12V, the relay time can be adjusted by rotating the button, relay time: 0.5-13 seconds.
It is very easy to register fingerprint, just need to press SET button to register fingerprint and long press SET button to back to factory default.
Interface Usage:
P1：Power supply, Input voltage: DC8--30V, Input current: 0.3A
P2：Relay output
P3：Active Signal of open door, Voltage DC12V(Input)
P4：Fingerprint module(Input)
P5：Micro-motor(Output)
P6：Button for opening door, closing signal(Input)
Adjustable resistance: Setting closing time for relay
Operation Instructions:
1. System on working state, indicator light(LED) flash slowly.
2. Press SET button, system in register state and indicator light flash fastly.
3. Fingerprint can be registered continuously when system in register state; if no need for adding fingerprint more, exit after waiting 5 seconds or by press SET button;
4. When back to factory default, press RESET button until hear“Di”, release the button, hearing “Di” long beep means operation successful;
5. Fingerprint verified or the button for opening door closed, the relay actuated,the relay time can be set by adjustable resistance, setting time:0.5-9 seconds; Motor interface output DC5V and keep 0.5 seconds; stop 5 seconds, then minus voltage outputted and keep 0.5 seconds.
Package Included:
1 x K212 Switch Power Supply Fingerprint Access Control Control Board
| Model | K200 | K200-3.3 | K202 | K212 | K215-V1.2 | K216 |
| Size | 46*25.4mm | 46*25.4mm | 64.4*25.4mm | 89*53mm | 70*36.4mm | 84*49*20mm |
| Power Supply | 4*AA battery or DC5V | 4*AA battery or DC5V | DC12V | DC8-24V,8mA | DC10-30V | DC10-30V |
| Capacity | 120 | 120 | 120 | 200 | 200 | 300 |
| Stand-by current | less than 7uA | less than 5uA | 15uA | 40mA | 40mA | 6mA(DC12V) |
| Output | DC5-6V,500mA | DC5-6V,500mA | Relay(max current 10A) | Motor:±DC5V,300mA Relay：3A | Relay(max current 10A) | Relay(max current 10A) |
| Connector | MX 1.25mm 6Ppin | MX 1.0mm 6Ppin | MX 1.25mm 6Ppin/MX 1.0mm 6Ppin | MX 1.25mm 4Ppin | MX 1.25mm 6Ppin/MX 1.0mm 6Ppin | MX 1.25mm 6Ppin/MX 1.0mm 6Ppin |
| Connect fingerprint module | R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501 | R502,R502-A,R503 | R301T,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 | R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501 | R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 | R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 |
| Features and Functions | 1.Low power consumption 2.Four mode for relay output 3.can connect electronic lock body,relay |
1.Low power consumption 2.Four mode for relay output 3.can connect electronic lock body,relay |
1.Low power consumption 2.Relay rotation button:0.5-15s 3.can connect electronic lock body,relay |
1.Two output:motor signal output /relay output(0.5-9s) 2.can connect door open key signal and access control intercom signal |
1.Relay:1 second or normally open and normally close function 2.Car,motorcycle,access control |
1.can control by remote control 2.relay:0.5s-20s 3.Car,elevator control,access control |
