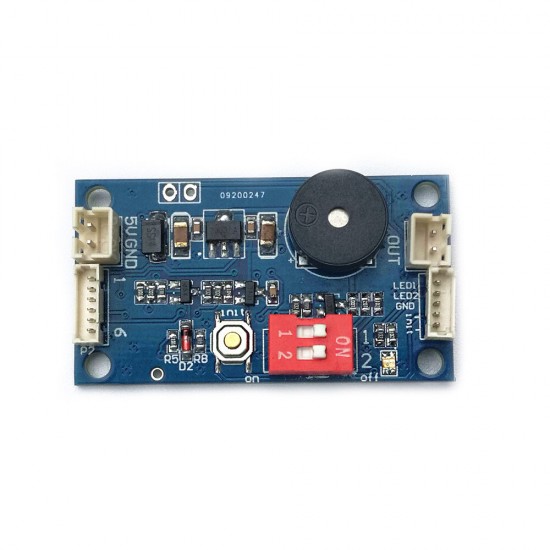

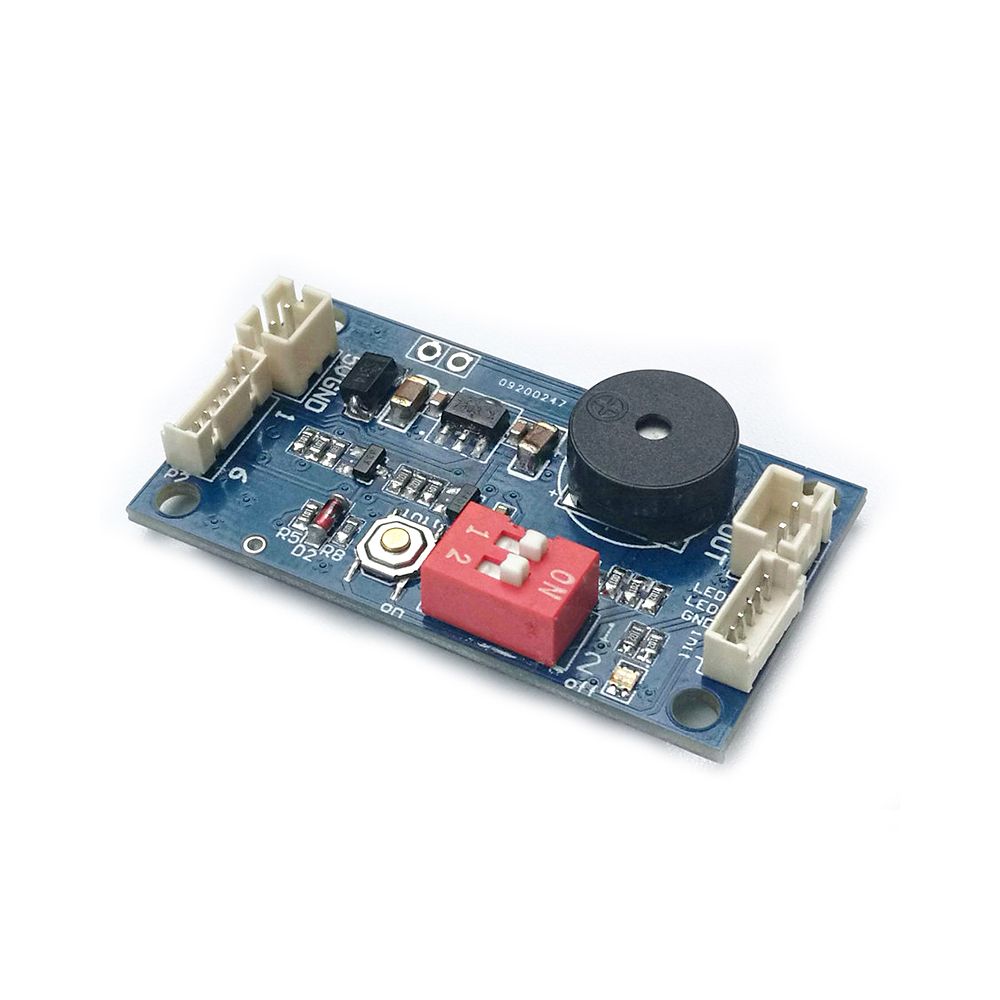

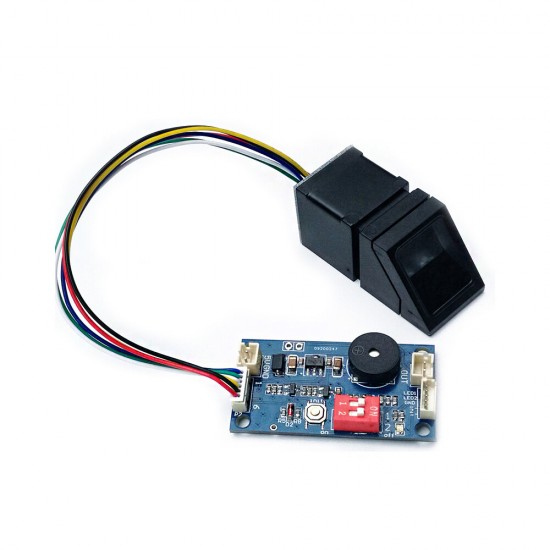

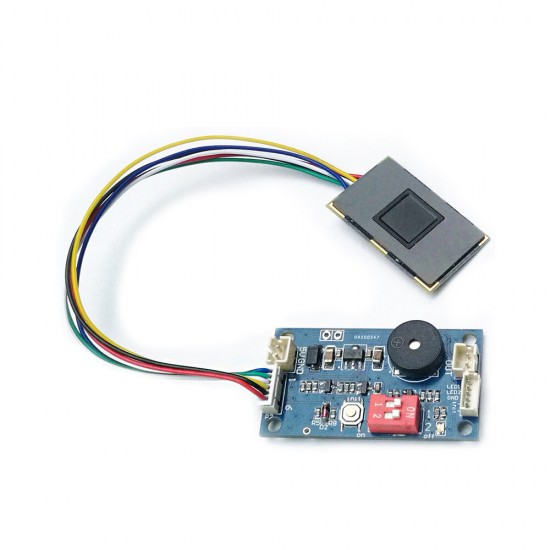

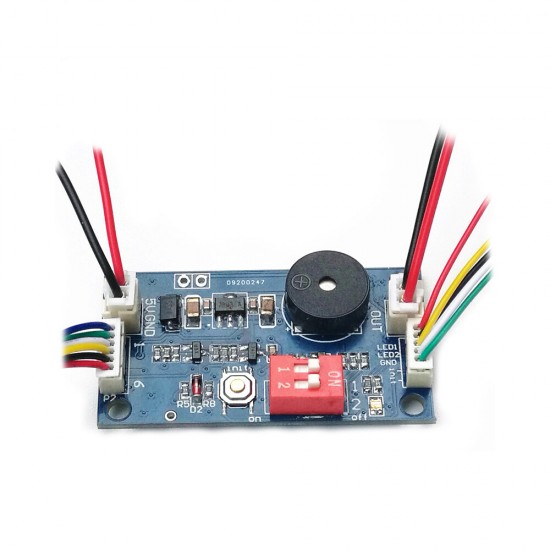

K200 Multi-function Fingerprint Access Control Control Board Work with R300 R301T R302 R303 R303T R305 R306 R307 R501 Fingerprint Module

Based on 0 reviews. - Write a review

$9.99

Ex Tax: $9.99

Stock: In Stock
Model: EB0050021
SKU: EB0050021

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

>>>Manual: Click here to open<<<

Specifications:

·Fingerprint capacity: 120

·Power supply: 4*AA battery or DC5V

·Stand-by mode current: less than 7 uA

·Output: DC5--6V,500mA

Operation Instructions:

1.Press SET button shortly,system in administrator register status and blue indicator light flash fast, press two times for each fingerprint, fingerprint register successfully when hearing music.Fingerprint can be registered continuously,and it can register 20 pieces administrator fingerprint. If no need for adding fingerprint, waiting for 6seconds or press the SET button to exit.

2.When back to factory default, press SET button until hear “Di-Di-Di” beep and release the button,means initialization operation successful.

3.Register User Fingerprint: Press the administrator fingerprint until hear the music and blue indicator light flash fast, means can add user fingerprint.Press two times for each user fingerprint, fingerprint register successful when hearing music. Fingerprint can be registered continuously, it can register 100 pieces user fingerprint.

4.Delete User Fingerprint：Press the administrator fingerprint when hear the music and blue indicator light flash fast, move the finger until hear “DiDiDi” long deep, than all user fingerprints are deleted.

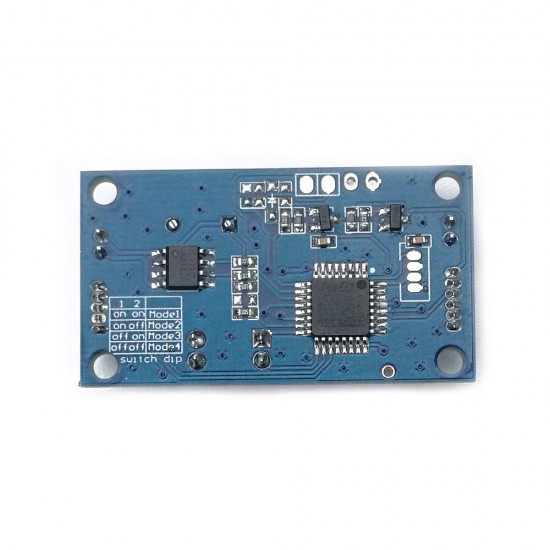

5.Mode selection,setby the toggle switch:

a) 1:ON, 2:ON Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.

b) 1:ON, 2:OFF Output DC5V and keep 1 second

c) 1:OFF, 2:ON Output DC5V and keep 10 seconds

d) 1:OFF, 2:OFF Keeping output DC5V until removing the finger

Note:

1. When the voltage is less than DC4.5V, the red light lightens, means the low voltage warning.

2. In the “D” mode,when need to register user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until hear the music and blue indicator light flash fast,then it can register user fingerprint.

Package Included:

1 x K200 Multi-function Fingerprint Access Control Control Board

Model	K200	K200-3.3	K202	K212	K215-V1.2	K216
Size	46*25.4mm	46*25.4mm	64.4*25.4mm	89*53mm	70*36.4mm	844920mm
Power Supply	4*AA battery or DC5V	4*AA battery or DC5V	DC12V	DC8-24V,8mA	DC10-30V	DC10-30V
Capacity	120	120	120	200	200	300
Stand-by current	less than 7uA	less than 5uA	15uA	40mA	40mA	6mA(DC12V)
Output	DC5-6V,500mA	DC5-6V,500mA	Relay(max current 10A)	Motor:±DC5V,300mA Relay：3A	Relay(max current 10A)	Relay(max current 10A)
Connector	MX 1.25mm 6Ppin	MX 1.0mm 6Ppin	MX 1.25mm 6Ppin/MX 1.0mm 6Ppin	MX 1.25mm 4Ppin	MX 1.25mm 6Ppin/MX 1.0mm 6Ppin	MX 1.25mm 6Ppin/MX 1.0mm 6Ppin
Connect fingerprint module	R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501	R502,R502-A,R503	R301T,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503	R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501	R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503	R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503
Features and Functions	1.Low power consumption 2.Four mode for relay output 3.can connect electronic lock body,relay	1.Low power consumption 2.Four mode for relay output 3.can connect electronic lock body,relay	1.Low power consumption 2.Relay rotation button:0.5-15s 3.can connect electronic lock body,relay	1.Two output:motor signal output /relay output(0.5-9s) 2.can connect door open key signal and access control intercom signal	1.Relay:1 second or normally open and normally close function 2.Car,motorcycle,access control	1.can control by remote control 2.relay:0.5s-20s 3.Car,elevator control,access control
