Jog Type Touch Sensor Module Capacitive Touch Switch Module
- Stock: In Stock
- Model: EB0043054
- SKU: EB0043054
- Voltage: DC3-5V
Precise details:

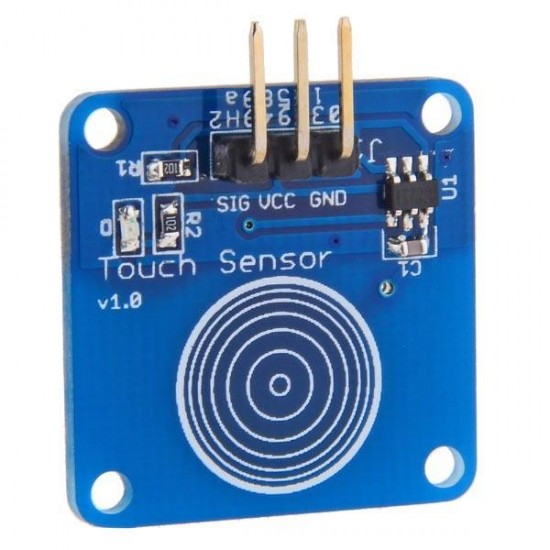

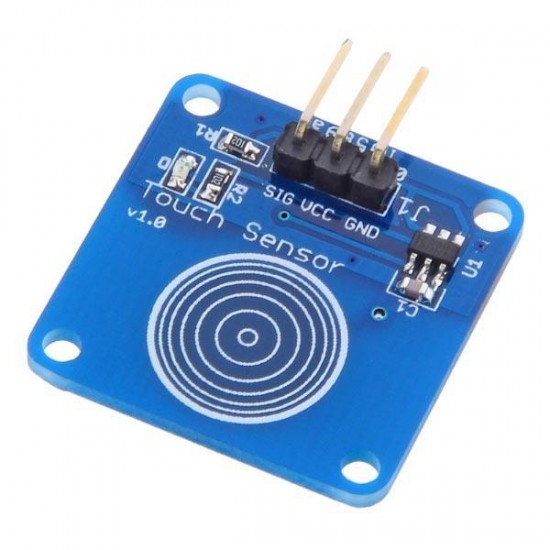

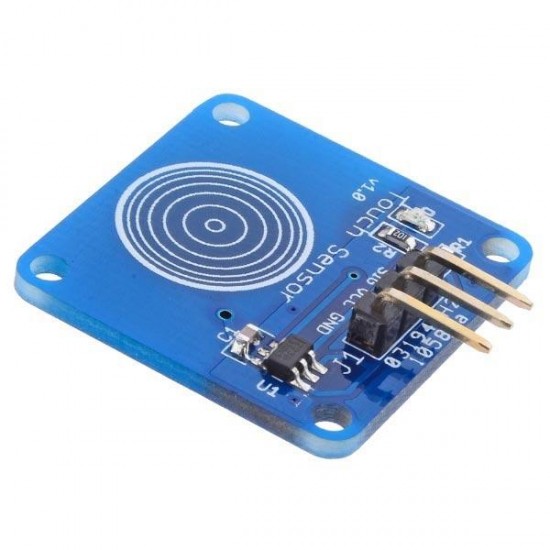

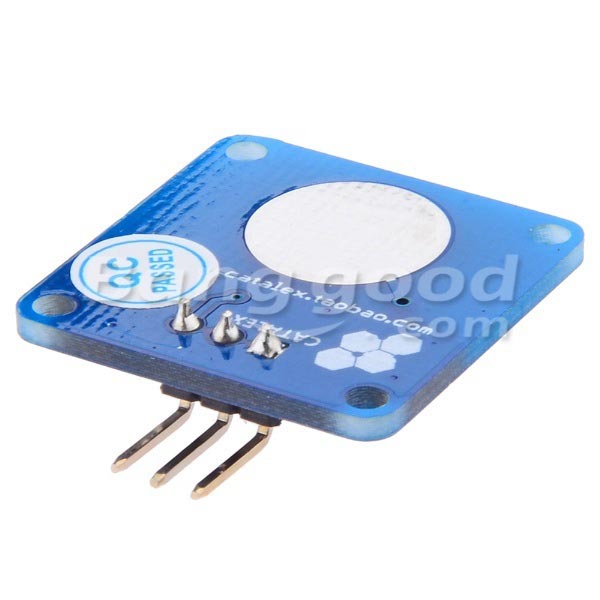

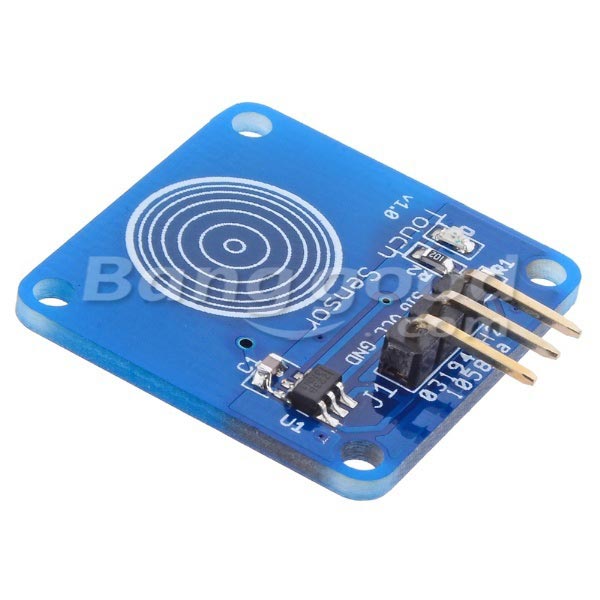

Jog Type Touch Sensor Module Capacitive Touch Switch Module For
Description:
This is jog type capacitive touch switch sensor module based on a touch detection IC TTP223B. Normally, the output is low level(at mode of low power consumption). When the finger touch the corresponding location, output will be high(at quick speed mode). When the module do not be touched for 12 seconds, the mode would switch to low-power mode. It can be installed in the module, such as plastic, glass, non-metallic material surface. But not cover thin sheets(metal) on the surface of the module. Just touch the correct position, it can be hidden in walls, desktops and other parts to be buttons. Allows you to remove the troubles of conventional push-type buttons.
Feature:
Low power consumption
Can replace the traditional key
With four M2 screw holes, easy for operation
Specification:
Operating voltage: DC 2.0V ~ 5.5V
VOH: VCC 0.8V
VOL: VCC 0.3V
Sink current: 8mA @ VCC = 3V, VOL = 0.6V
Source current: -4mA @ VCC = 3V, VOH = 2.4V
Response time: 220ms (at mode of low power consumption) and 60ms (at quick speed mode)
Size: 24 x 24 x 7.2mm
Package included:
1 x Capacitive jpg type touch sensor module
Jog Type Touch Sensor Module Capacitive Touch Switch Module For
Description:
This is jog type capacitive touch switch sensor module based on a touch detection IC TTP223B. Normally, the output is low level(at mode of low power consumption). When the finger touch the corresponding location, output will be high(at quick speed mode). When the module do not be touched for 12 seconds, the mode would switch to low-power mode. It can be installed in the module, such as plastic, glass, non-metallic material surface. But not cover thin sheets(metal) on the surface of the module. Just touch the correct position, it can be hidden in walls, desktops and other parts to be buttons. Allows you to remove the troubles of conventional push-type buttons.
Feature:
Low power consumption
Can replace the traditional key
With four M2 screw holes, easy for operation
Specification:
Operating voltage: DC 2.0V ~ 5.5V
VOH: VCC 0.8V
VOL: VCC 0.3V
Sink current: 8mA @ VCC = 3V, VOL = 0.6V
Source current: -4mA @ VCC = 3V, VOH = 2.4V
Response time: 220ms (at mode of low power consumption) and 60ms (at quick speed mode)
Size: 24 x 24 x 7.2mm
Package included:
1 x Capacitive jpg type touch sensor module
,
