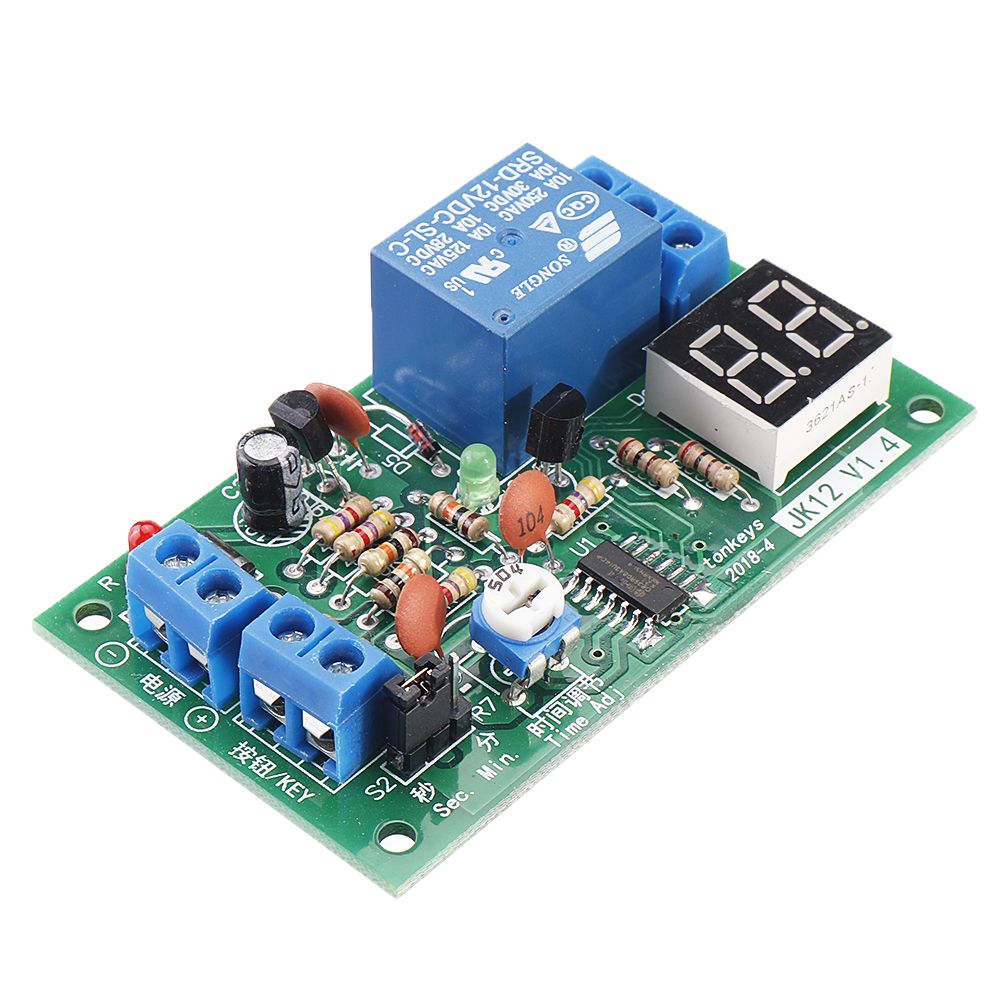

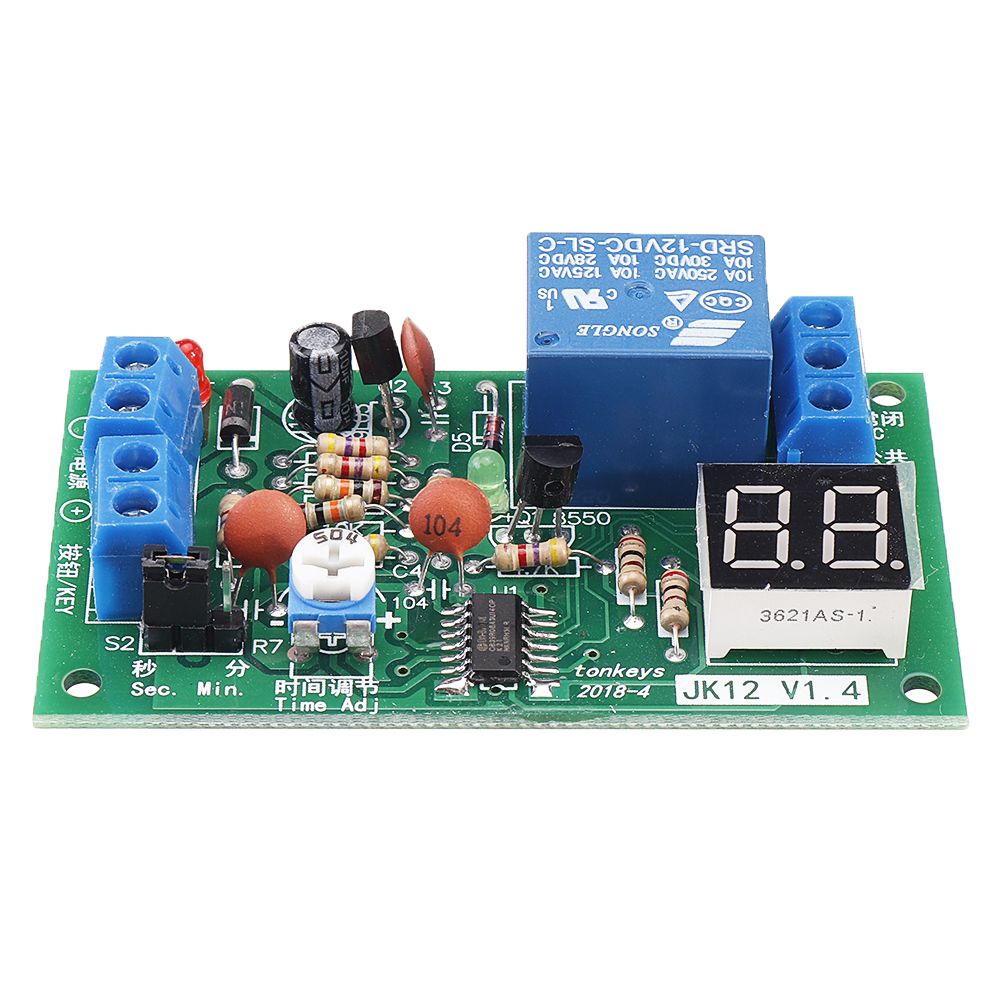

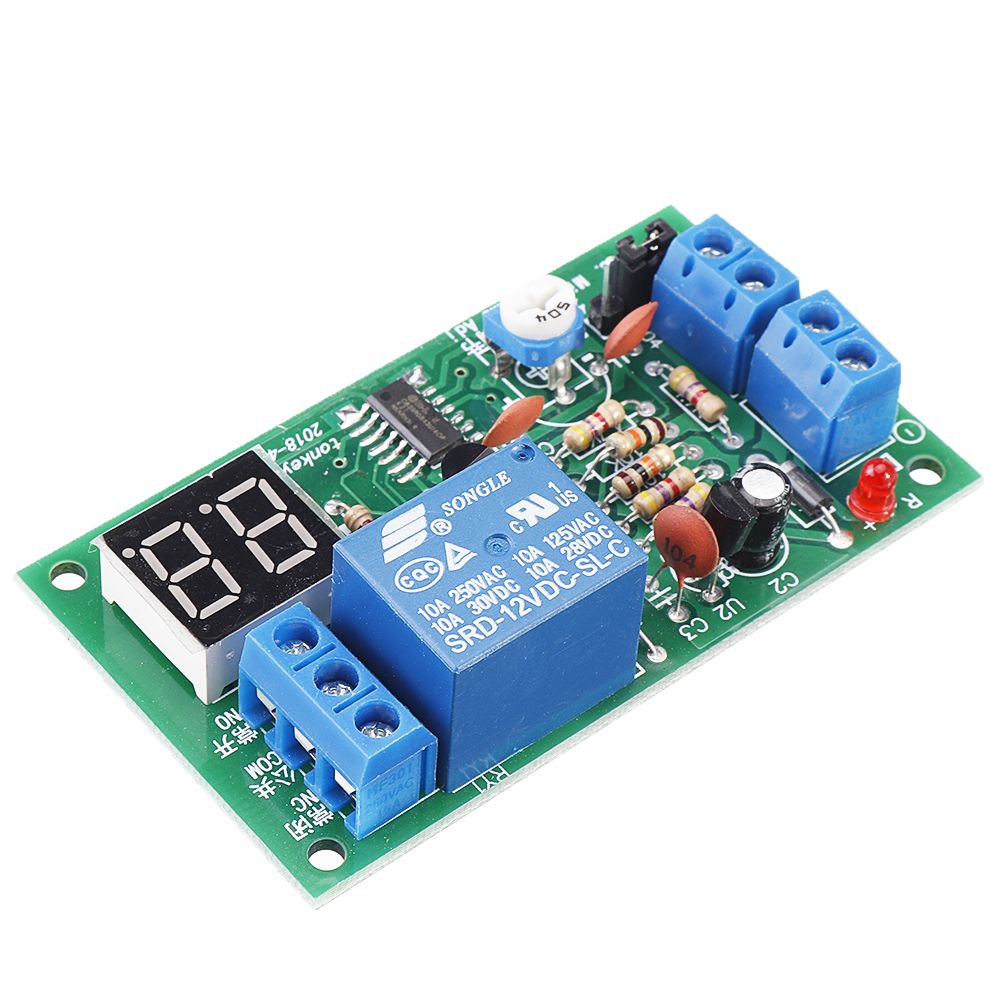

JK12-A 12V Time Adjustable Relay Module with LED Digital Tube Dynamic Display Countdown Single Chip Relay

Based on 0 reviews. - Write a review

$8.99

Ex Tax: $8.99

Stock: In Stock
Model: EB0046065
SKU: EB0046065

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Usage:

This module starts work after triggering. If you need to set the power to start timing, then you can connect the two trigger lines directly.

"Trigger" is simply a touch of two lines. It can be a short touch or a long time. Timing starts when you touch each other.

K: Switching signal trigger, valid at the leading edge

RY: Relay

After power-on, RY has no action. After K is triggered, RY is immediately turned on. After the delay, the RY is disconnected after the countdown ends. When K is triggered again during the delay, it will immediately jump to the end of the delay (ie, RY is disconnected).

Features:

- The button trigger type triggers the action to start immediately and delays. (If the button end is shorted before power-on, each power-on will be turned on and delayed by the setting)

- Display: The set time is displayed during adjustment; during the delay, the countdown is displayed dynamically.

- Switch on the load immediately after the trigger and disconnect the load after the specified time.

- During the delay, the button operation immediately stops the delay and returns to the initial state.

- During the delay, the digital tube reduces the brightness and counts down the delay to display the remaining time in real time.

- Set the time by adjustable resistor. The adjustable range is from 1 to 99. The unit can be selected by jumper. When the jumper is connected to the second, the adjustable range is 1-99 seconds. The jumper is connected to the time division. The adjustable range is 1-99 points.

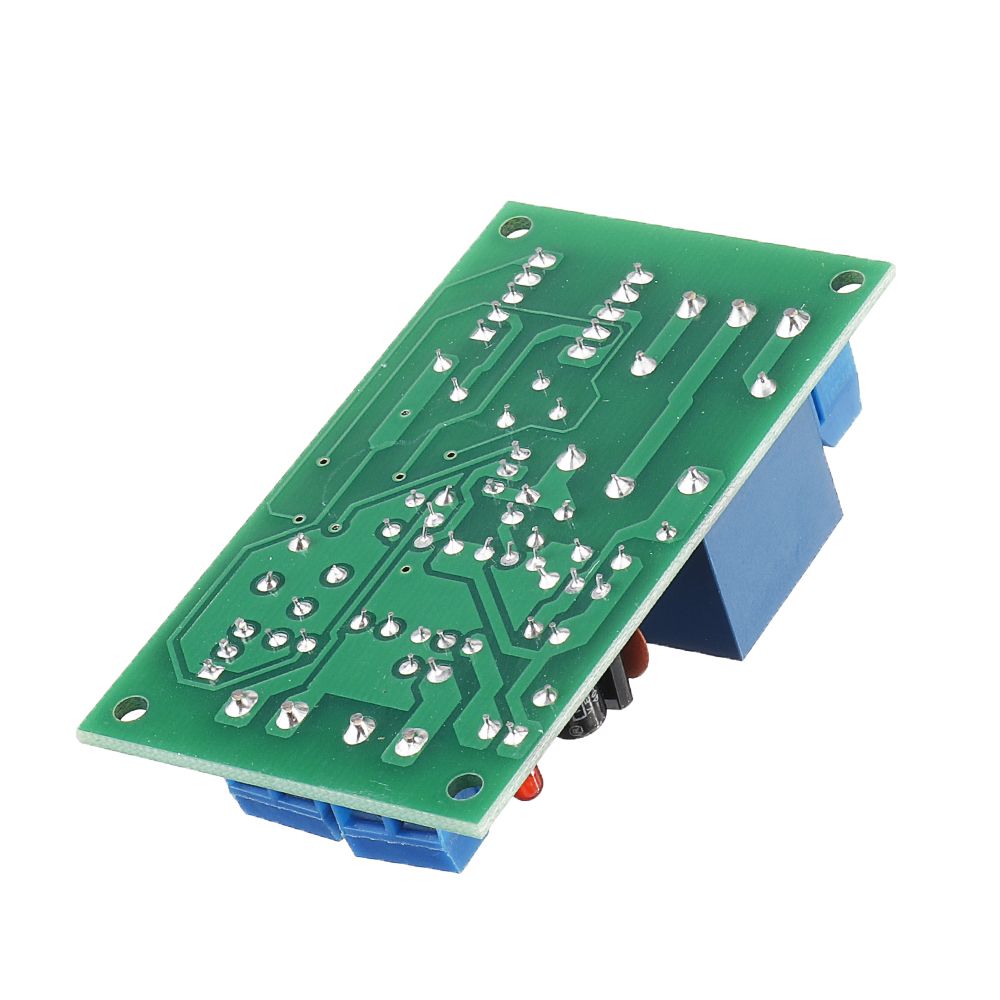

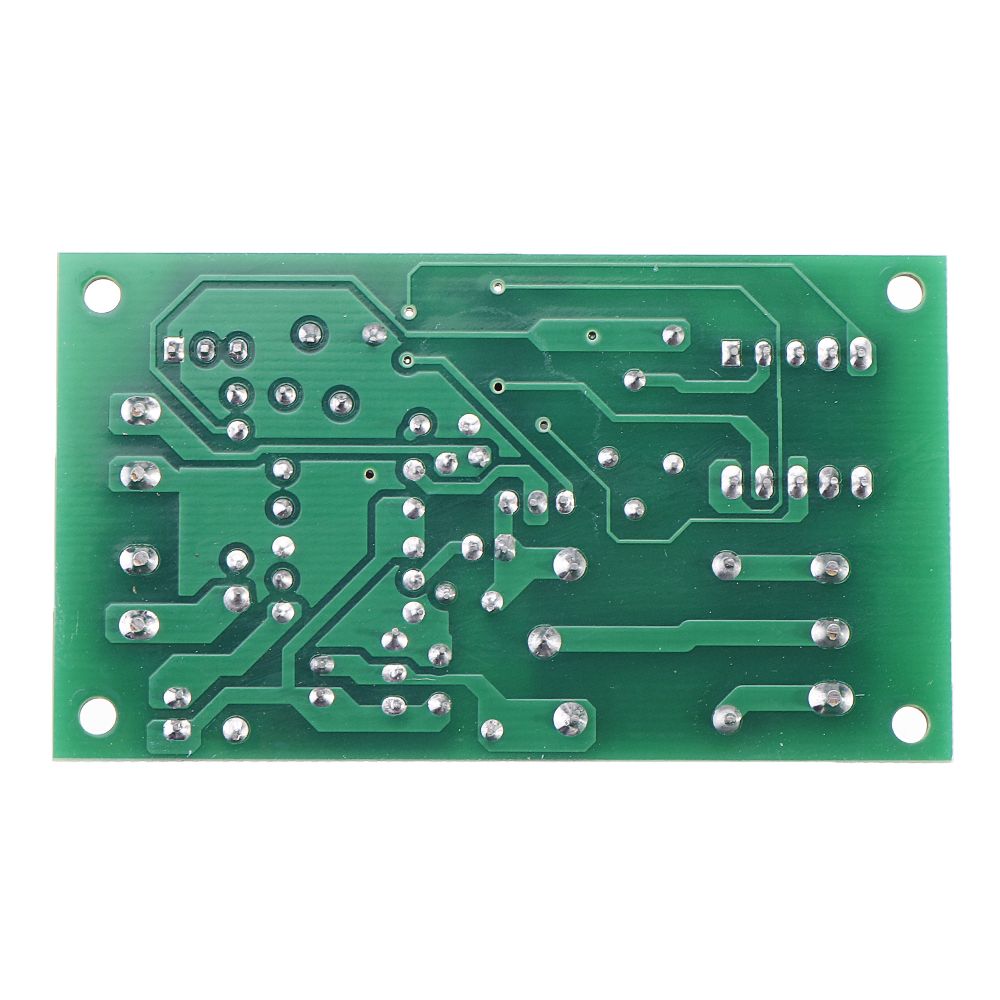

- Board size: 70mm x 40mm, height less than 18mm

Package Included:

1 x JK12-A 12V Time Adjustable Relay Module with LED Digital Tube Dynamic Display
