JDY-40 2.4G Wireless Serial Port Transmission And Transceiver Integrated Remote Communication Module
JDY-40 2.4G Wireless Serial Port Transmission And Transceiver Integrated Remote Communication Module
$6.99
Ex Tax: $6.99
- Stock: In Stock
- Model: EB0045481
- SKU: EB0045481
- Build-in Bluetooth: Yes
Precise details>>
Precise details:

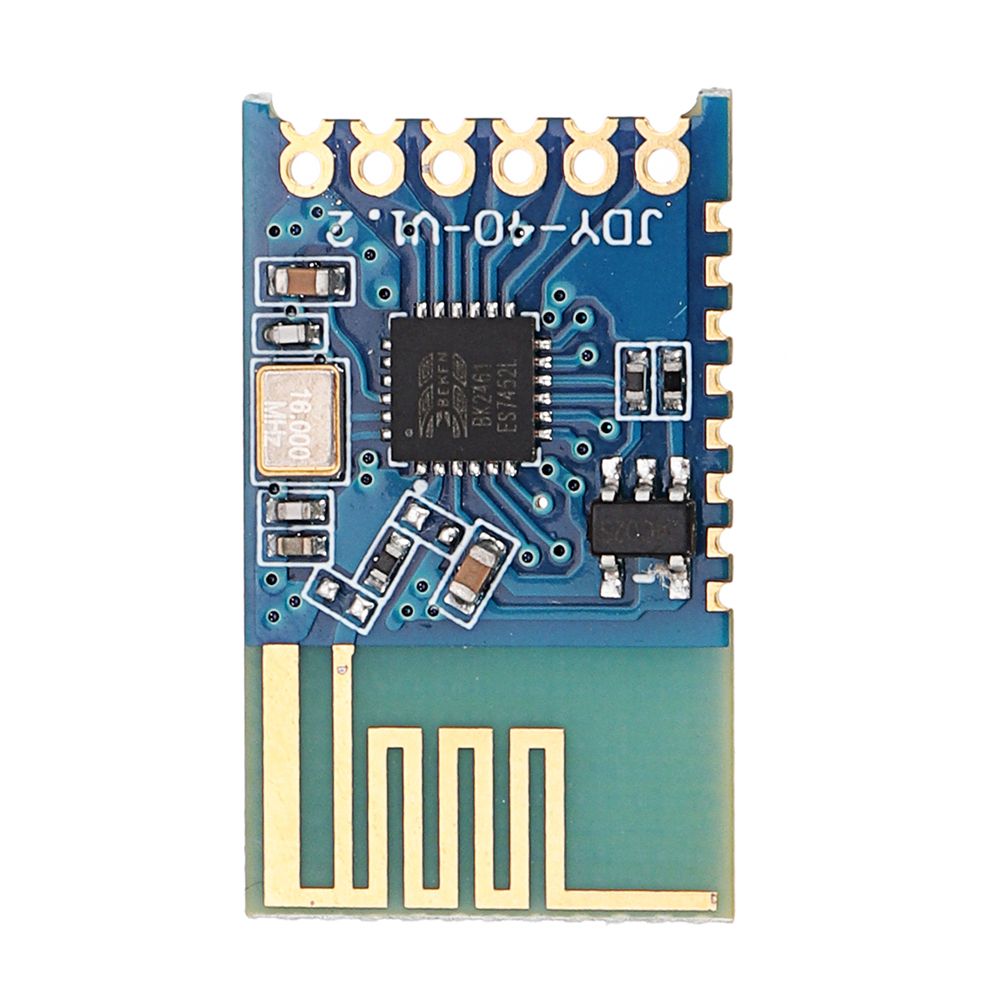

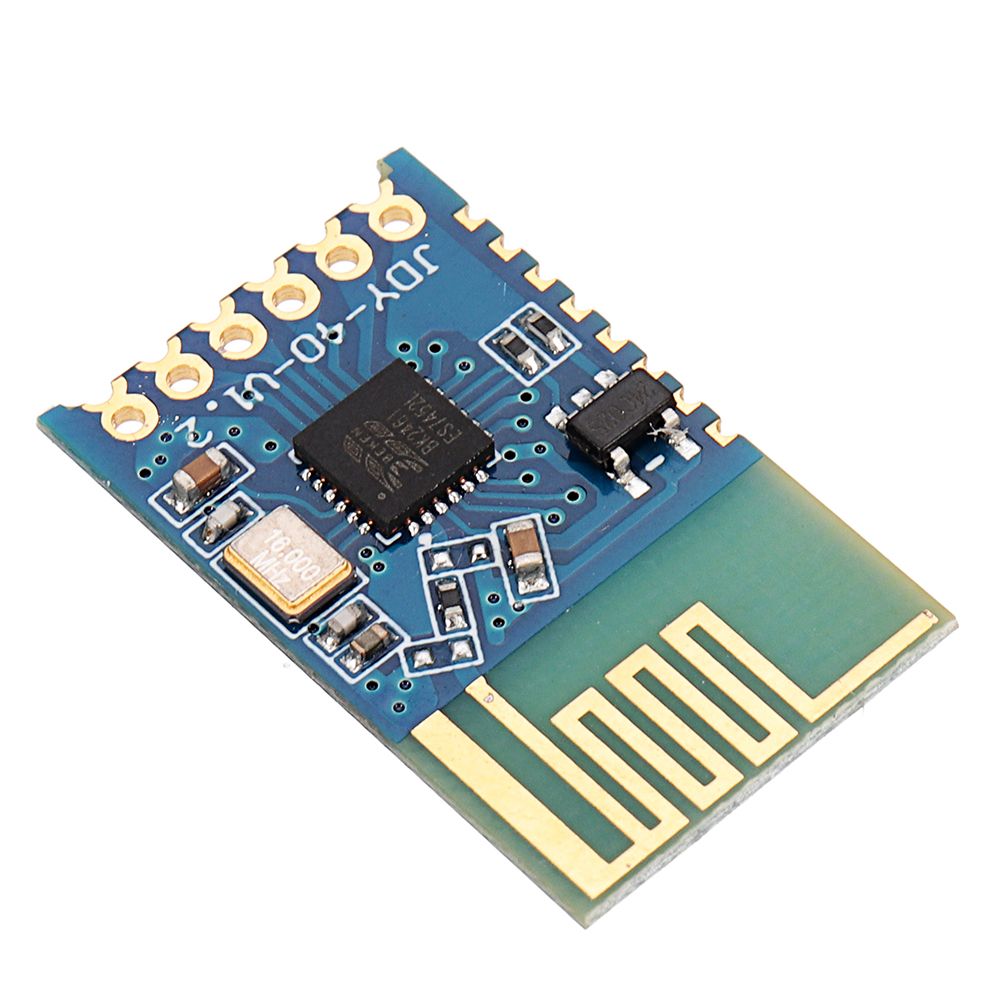

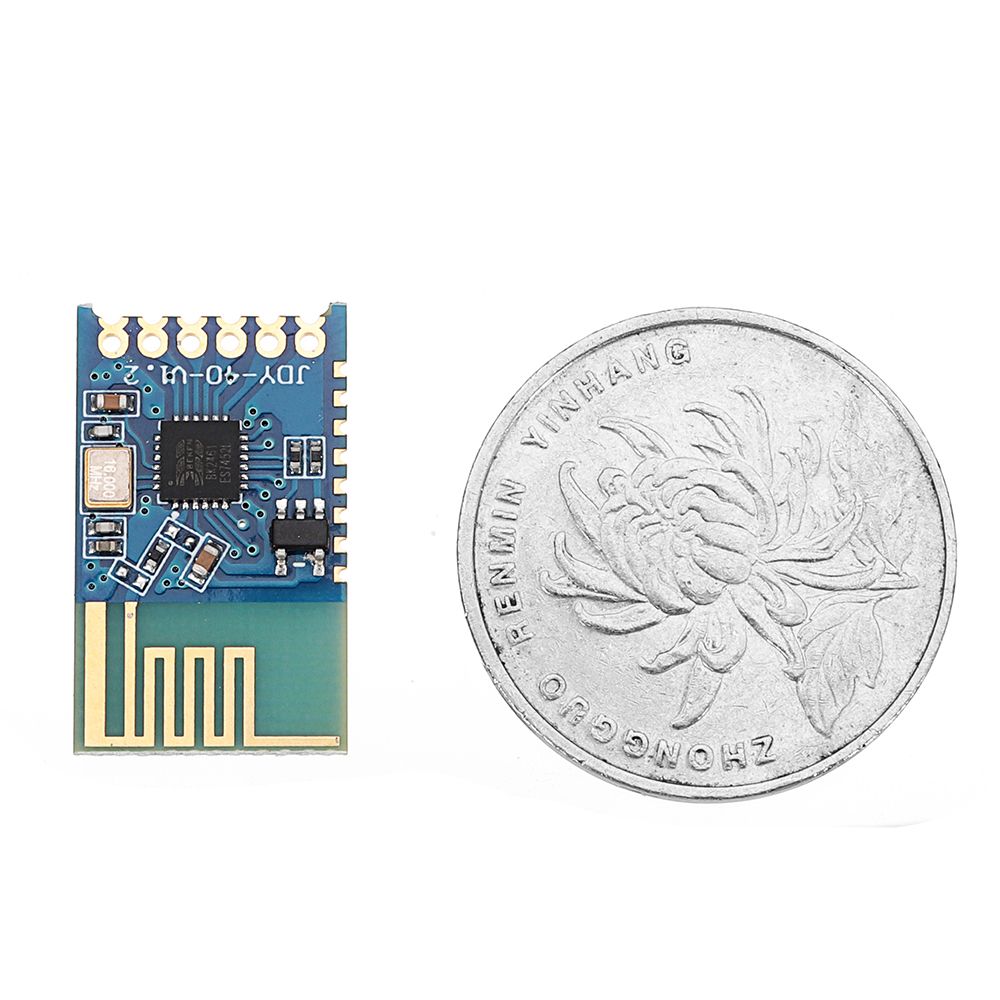

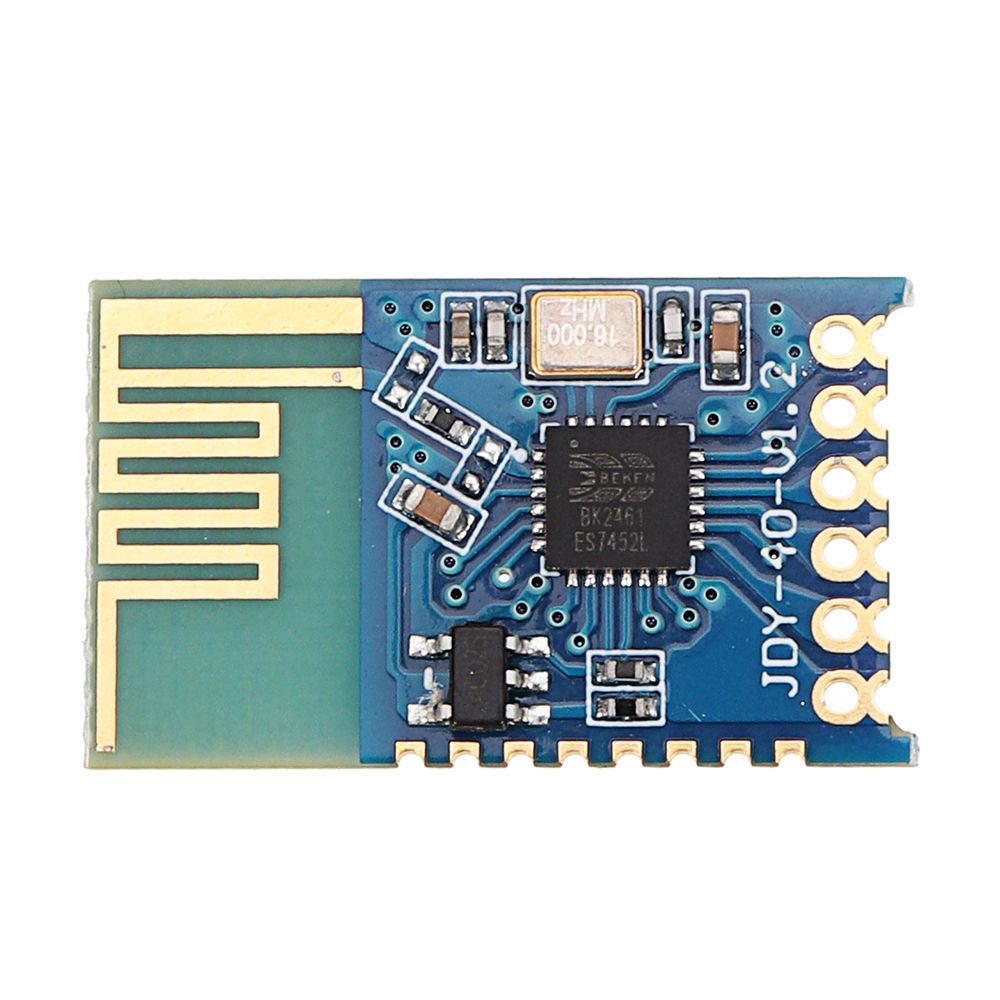

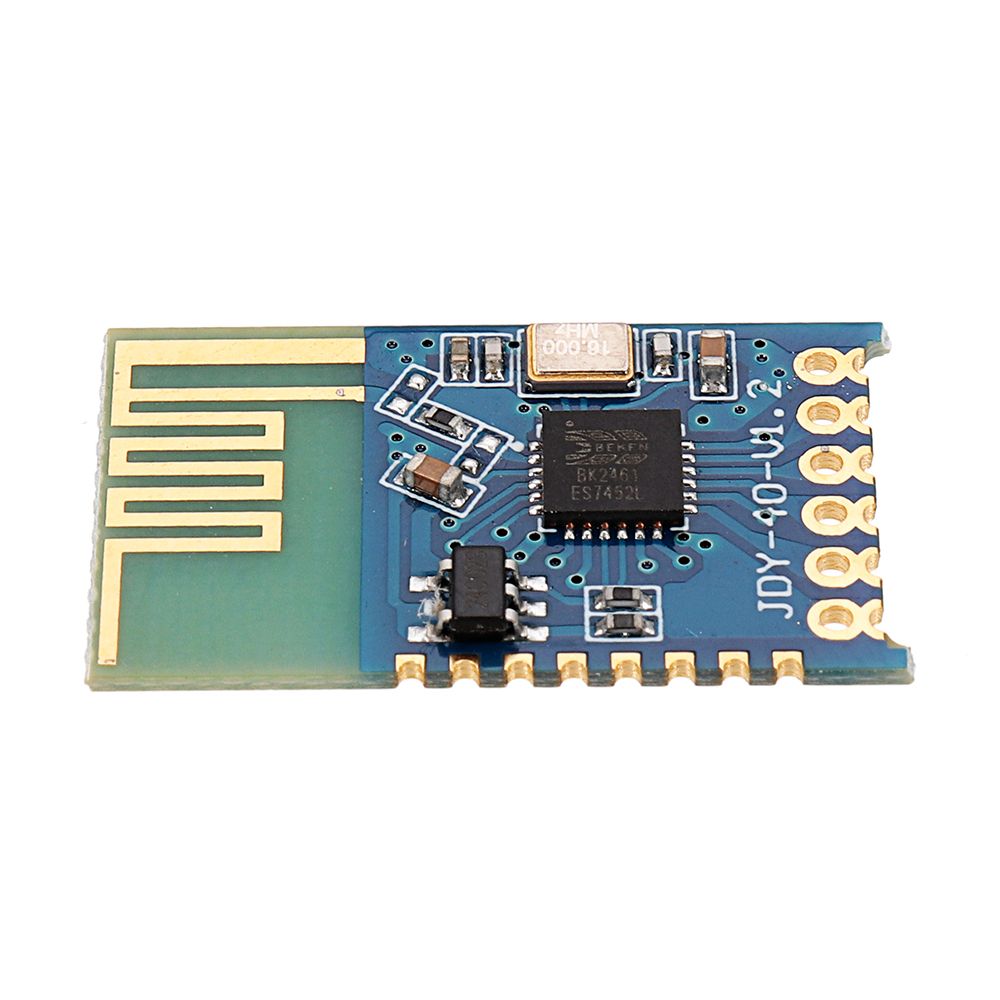

Description:JDY-40 is developed with 2.4G technology, the sight distance is 120 meters, using serial port communication interface, using simple and fast, only need to understand the serial knowledge of the JDY-40 can be applied to the product!

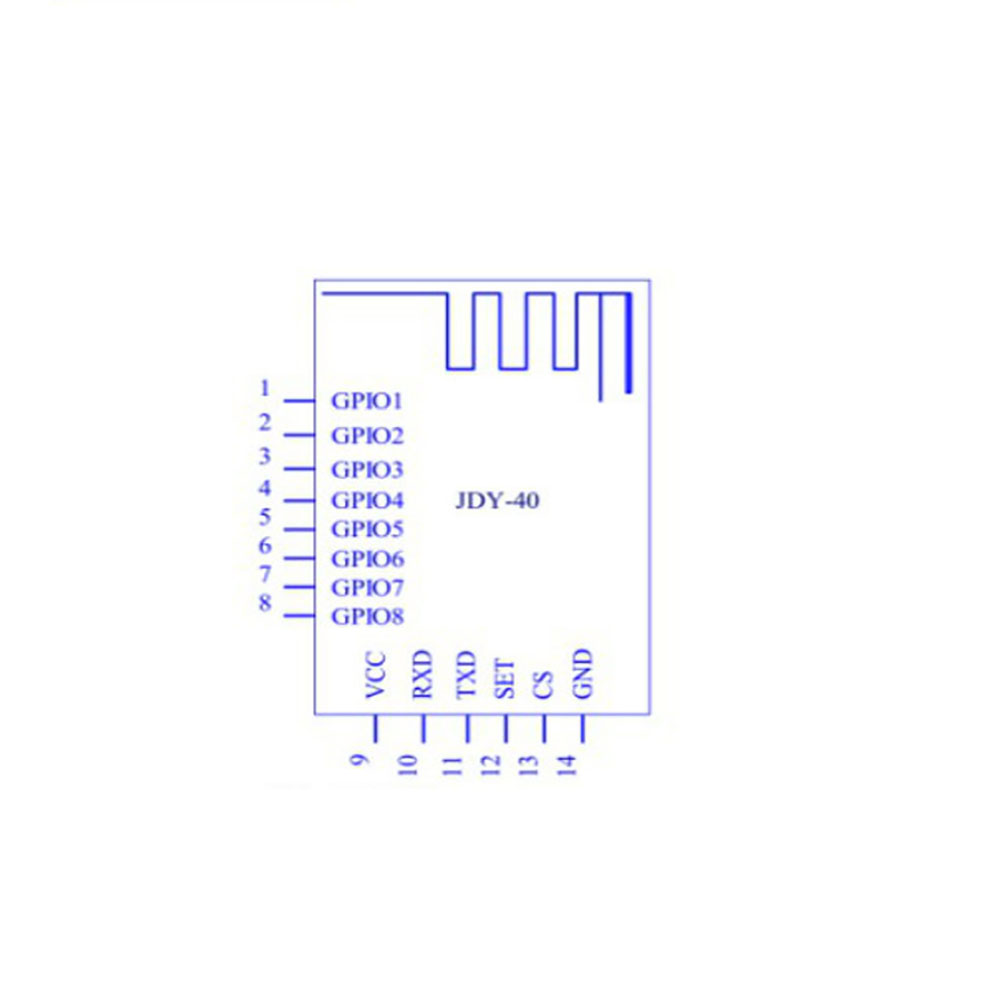

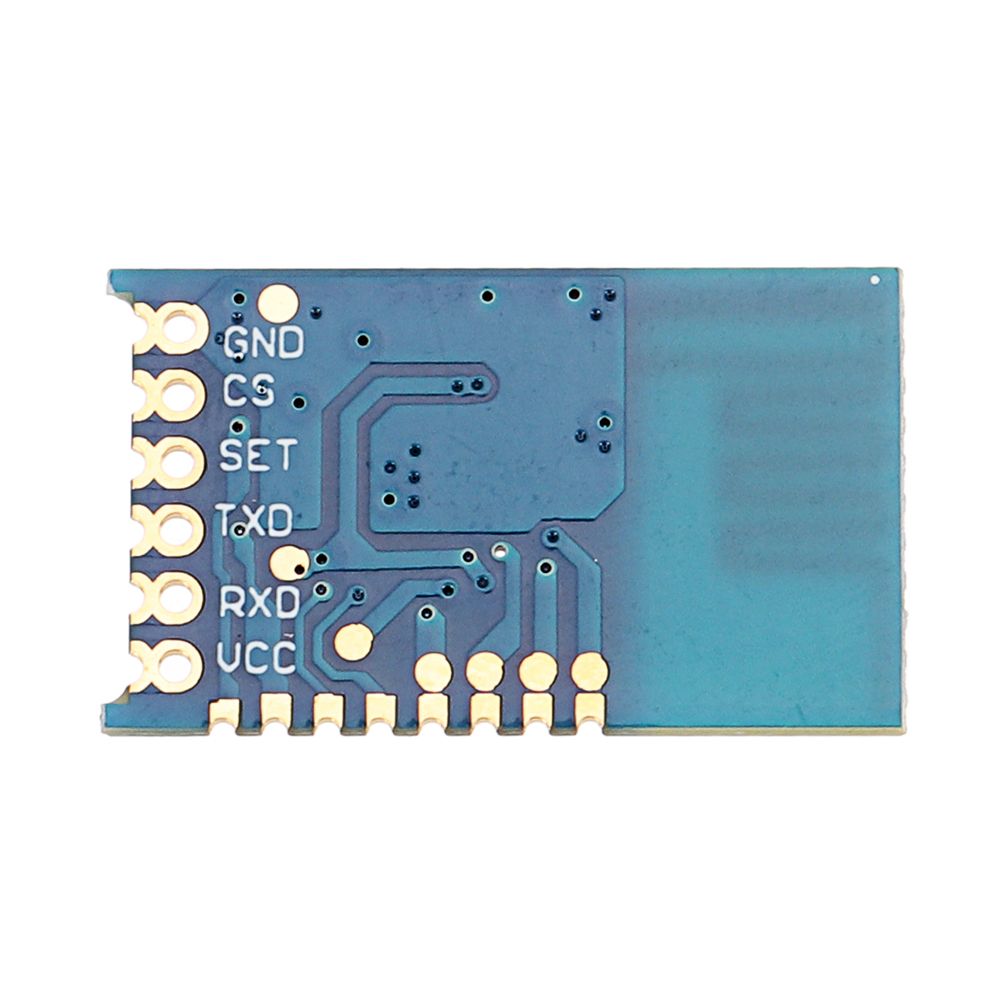

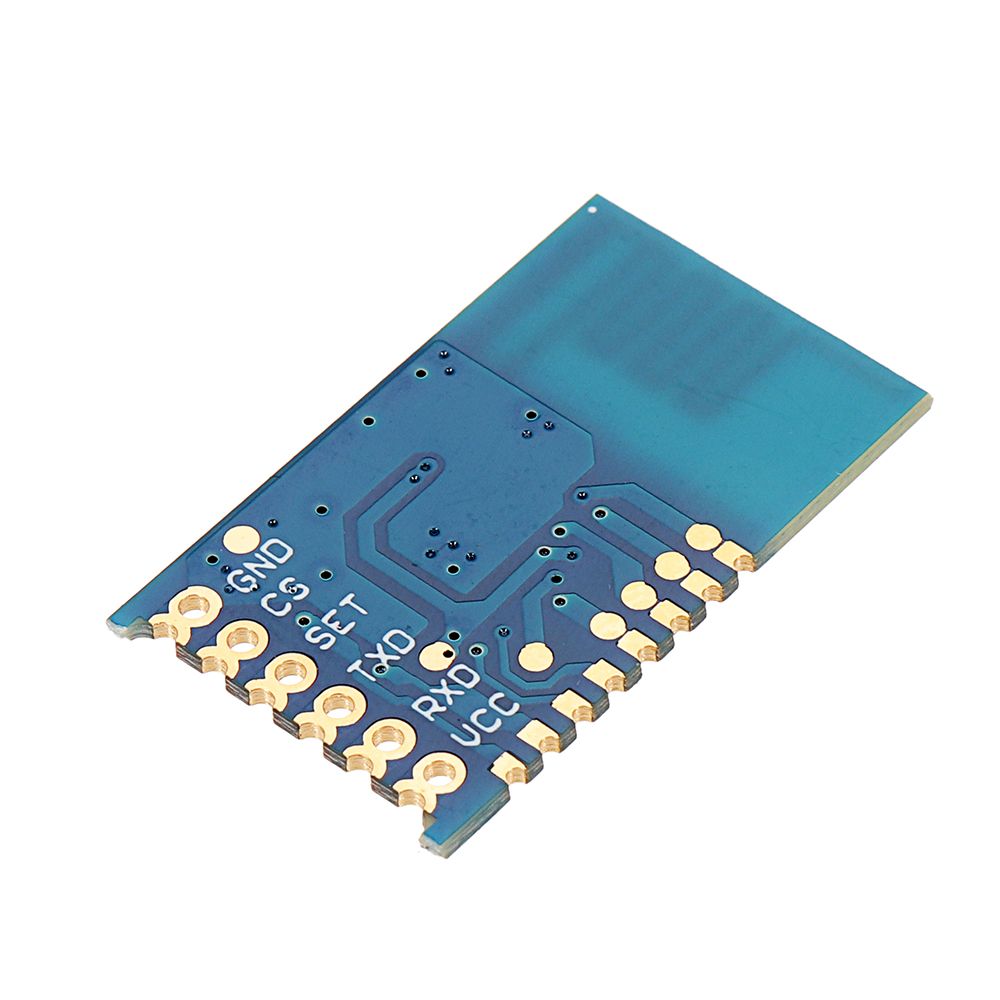

Pin function description:
| Pin | The name of the discipline | Function |
| 1 | GPI01 | Input-output IO, which can be configured by AT+CLSS |
| 2 | GPI02 | Input-output IO, which can be configured by AT+CLSS |
| 3 | GPI03 | Input-output IO, which can be configured by AT+CLSS |
| 4 | GPI04 | Input-output IO, which can be configured by AT+CLSS |
| 5 | GPI05 | Input-output IO, which can be configured by AT+CLSS |
| 6 | GPI06 | Input-output IO, which can be configured by AT+CLSS |
| 7 | GPI07 | Input-output IO, which can be configured by AT+CLSS |
| 8 | GPI08 | Input-output IO, which can be configured by AT+CLSS |
| 9 | VCC | Power supply (2.2-3.6) |
| 10 | RXD | Serial port input pin |
| 11 | TXD | Serial port output pin |
| 12 | SET | AT command switching pin (low level AT instruction, high level transparent transmission) |
| 13 | CS | Transmission or push button mode: CS pin (low level wake-up, high level sleep). IO receive mode:the CS pin needs to be suspended or pulled up |
| 14 | GND | Power supply |
Application scene:
1:2.4G panel switch
2:2.4G remote control
3:2.4G transmission
4: one to many control of mobile phone
5:IO switching control
6:2.4G toys
7: smart home control application
Technical parameter:
| Model | JDY-40 |
| Working band | 2.4G |
| Emissive power | Maximum 12dB |
| working temperature | -40 C - 80 C |
| Reception sensitivity | -97db |
| transmission distance | 120 meters |
| working voltage | 2.2V-3.6V |
| TX current | 40mA |
| RX current | 24mA |
| Sleep current | 5uA |
| communication interface | Standard TTL serial port |
Default configuration:
| Specification | Function | Parameter | Instructions |
| 1 | baud rate | 9600 | AT+BAUD |
| 2 | wireless ID | 8899 | AT+RFID8899 |
| 3 | device ID | 1122 | AT+DVID1122 |
| 4 | channel | 001 | AT+RFC001 |
| 5 | emissive power | 12db | AT+POWE9 |
| 6 | equipment type | A0 | AT+CLSSA0 |
Communication:
it is necessary to configure the RFC, DVID, and RFID that need the communication module to be the same. The module and the module can communicate. When the module comes out, the parameters are all unified, and the user can configure it according to its own needs.
AT instruction instructions:
Specifically, the JDY-40 module needs to add the ending symbol rn to send the AT instruction.
Set / query - baud rate:
| instructions | response | response |
| AT+BAUD | OK | Param(1-7) 1:1200 2:2400 3:4800 4:9600 5:14400 6:19200 Default value:4 |
| AT+BAUD | +BAUD= |
Set / query -RFID:
| instructions | response | response |
| AT+RFID | OK | Param(0000-FFFF) Default value:8899 |
| AT+RFID | +BAUD= |
Set / query -DVID:
| instructions | response | response |
| AT+DVID | OK | Param(0000-FFFF) Default value:8899 |
| AT+DVID | +BAUD= |
Set / query -RFC:
| instructions | response | response |
| AT+RFC | OK | Param(001-128) Default value:001 |
| AT+RFC | +RFC= |
Set / query -POWE:
| instructions | response | response |
| AT+POWE | OK | Param(0-9) 0:-25db 1:-15db 2:-5db 3:0db 4:+3db 5:+6db 6:+9db 7:+10db 8:+10db 9:+12db Default value:9 |
| AT+POWE | +POWE= |
Set / query -CLSS:
| instructions | response | response |
| AT+CLSS | OK | Param A0:serial port transmission (transceiver) C0: remote control or IO button with indicator (transmitter). C 1: remote control or IO button without indicator (transmitter). C 2:IO normally high level, after receiving the signal, low level, delay. High level after 30mS C 3:IO is usually low level, after receiving the signal, the high level has been Recovery of low level after delayed 30mS C 4:IO is usually low level, and receives the high level of the pressed signal. Receive raised signal low level The IO level is reversed when the C 5:IO receives the pressed signal. Default value: A0 |
| AT+CLSS | +CLSS= |
Package included:
1 x JDY-40 2.4G Wireless Serial Port Transmission And Transceiver Integrated Remote Communication Module
JDY-40 is developed with 2.4G technology, the sight distance is 120 meters, using serial port communication interface, using simple and fast, only need to understand the serial knowledge of the JDY-40 can be applied to the product!
Pin function description:
| Pin | The name of the discipline | Function |
| 1 | GPI01 | Input-output IO, which can be configured by AT+CLSS |
| 2 | GPI02 | Input-output IO, which can be configured by AT+CLSS |
| 3 | GPI03 | Input-output IO, which can be configured by AT+CLSS |
| 4 | GPI04 | Input-output IO, which can be configured by AT+CLSS |
| 5 | GPI05 | Input-output IO, which can be configured by AT+CLSS |
| 6 | GPI06 | Input-output IO, which can be configured by AT+CLSS |
| 7 | GPI07 | Input-output IO, which can be configured by AT+CLSS |
| 8 | GPI08 | Input-output IO, which can be configured by AT+CLSS |
| 9 | VCC | Power supply (2.2-3.6) |
| 10 | RXD | Serial port input pin |
| 11 | TXD | Serial port output pin |
| 12 | SET | AT command switching pin (low level AT instruction, high level transparent transmission) |
| 13 | CS | Transmission or push button mode: CS pin (low level wake-up, high level sleep). IO receive mode:the CS pin needs to be suspended or pulled up |
| 14 | GND | Power supply |
Application scene:
1:2.4G panel switch
2:2.4G remote control
3:2.4G transmission
4: one to many control of mobile phone
5:IO switching control
6:2.4G toys
7: smart home control application
Technical parameter:
| Model | JDY-40 |
| Working band | 2.4G |
| Emissive power | Maximum 12dB |
| working temperature | -40 C - 80 C |
| Reception sensitivity | -97db |
| transmission distance | 120 meters |
| working voltage | 2.2V-3.6V |
| TX current | 40mA |
| RX current | 24mA |
| Sleep current | 5uA |
| communication interface | Standard TTL serial port |
Default configuration:
| Specification | Function | Parameter | Instructions |
| 1 | baud rate | 9600 | AT+BAUD |
| 2 | wireless ID | 8899 | AT+RFID8899 |
| 3 | device ID | 1122 | AT+DVID1122 |
| 4 | channel | 001 | AT+RFC001 |
| 5 | emissive power | 12db | AT+POWE9 |
| 6 | equipment type | A0 | AT+CLSSA0 |
Communication:
it is necessary to configure the RFC, DVID, and RFID that need the communication module to be the same. The module and the module can communicate. When the module comes out, the parameters are all unified, and the user can configure it according to its own needs.
AT instruction instructions:
Specifically, the JDY-40 module needs to add the ending symbol rn to send the AT instruction.
Set / query - baud rate:
| instructions | response | response |
| AT+BAUD | OK | Param(1-7) 1:1200 2:2400 3:4800 4:9600 5:14400 6:19200 Default value:4 |
| AT+BAUD | +BAUD= |
Set / query -RFID:
| instructions | response | response |
| AT+RFID | OK | Param(0000-FFFF) Default value:8899 |
| AT+RFID | +BAUD= |
Set / query -DVID:
| instructions | response | response |
| AT+DVID | OK | Param(0000-FFFF) Default value:8899 |
| AT+DVID | +BAUD= |
Set / query -RFC:
| instructions | response | response |
| AT+RFC | OK | Param(001-128) Default value:001 |
| AT+RFC | +RFC= |
Set / query -POWE:
| instructions | response | response |
| AT+POWE | OK | Param(0-9) 0:-25db 1:-15db 2:-5db 3:0db 4:+3db 5:+6db 6:+9db 7:+10db 8:+10db 9:+12db Default value:9 |
| AT+POWE | +POWE= |
Set / query -CLSS:
| instructions | response | response |
| AT+CLSS | OK | Param A0:serial port transmission (transceiver) C0: remote control or IO button with indicator (transmitter). C 1: remote control or IO button without indicator (transmitter). C 2:IO normally high level, after receiving the signal, low level, delay. High level after 30mS C 3:IO is usually low level, after receiving the signal, the high level has been Recovery of low level after delayed 30mS C 4:IO is usually low level, and receives the high level of the pressed signal. Receive raised signal low level The IO level is reversed when the C 5:IO receives the pressed signal. Default value: A0 |
| AT+CLSS | +CLSS= |
Package included:
1 x JDY-40 2.4G Wireless Serial Port Transmission And Transceiver Integrated Remote Communication Module
