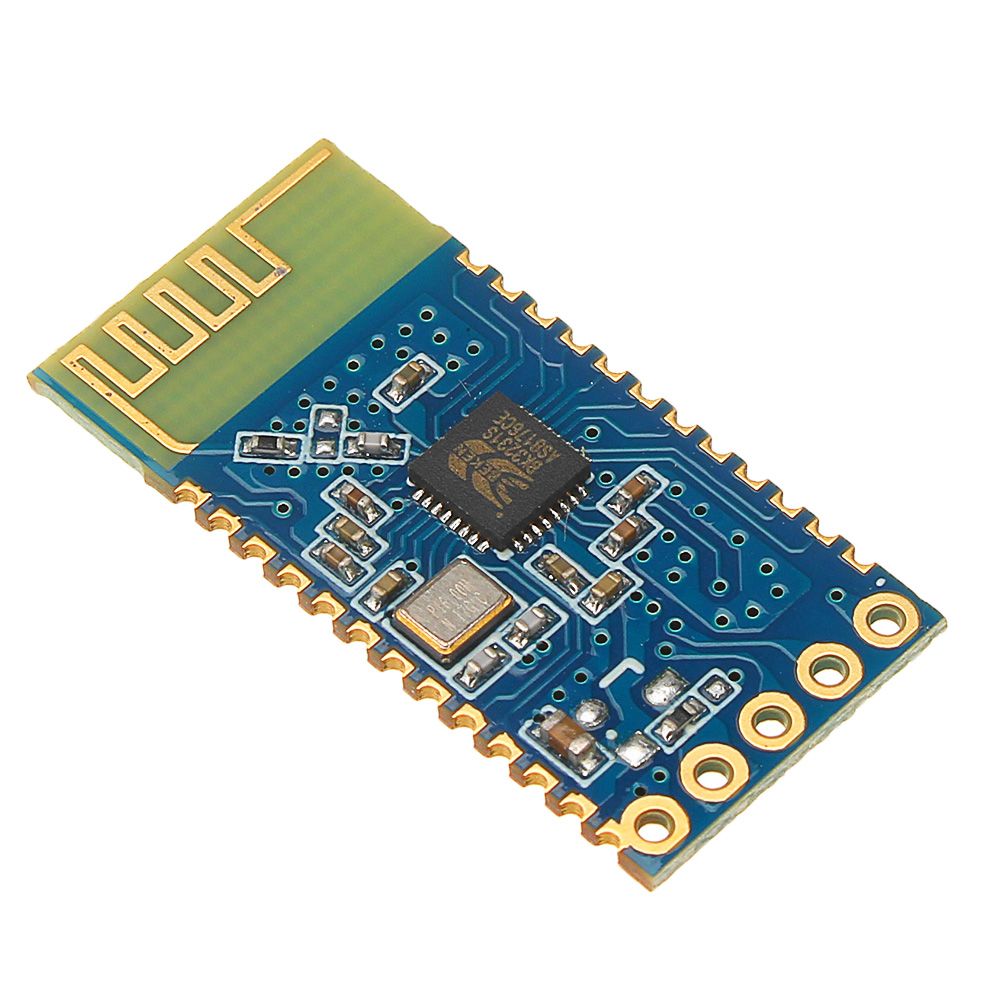

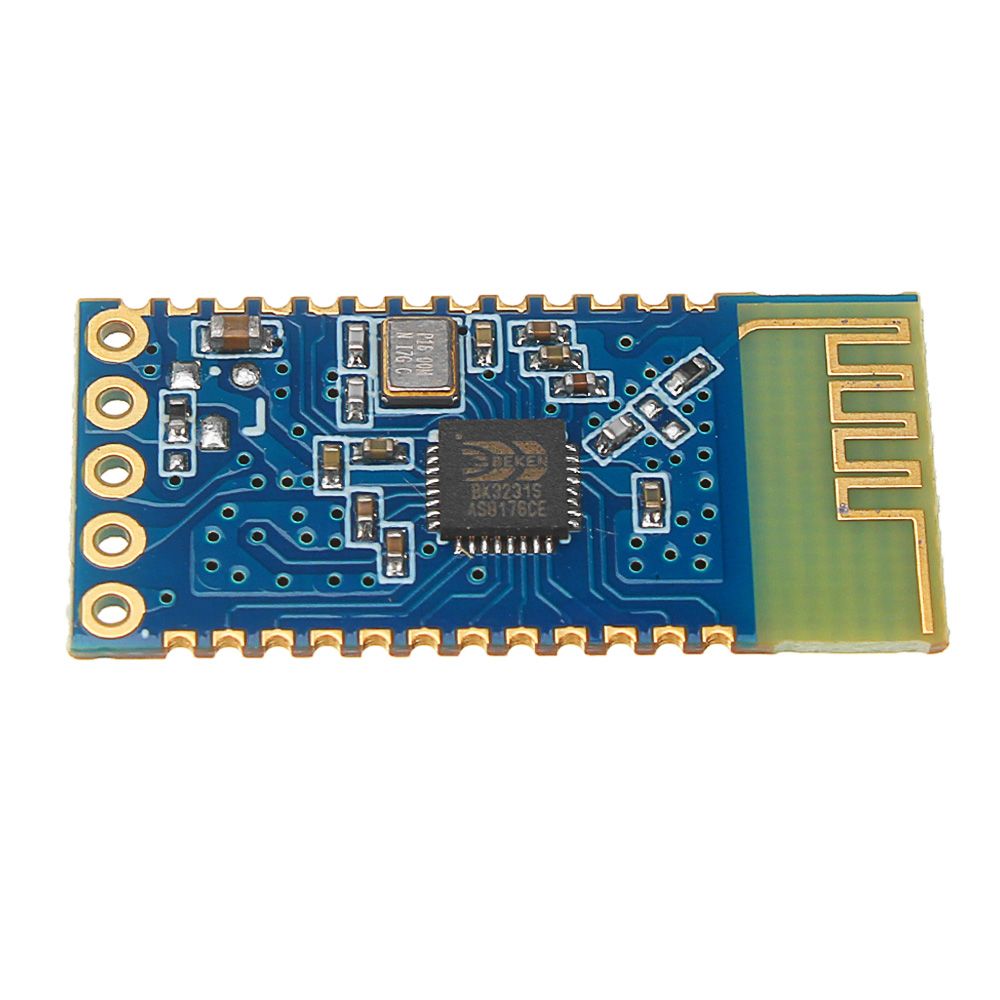

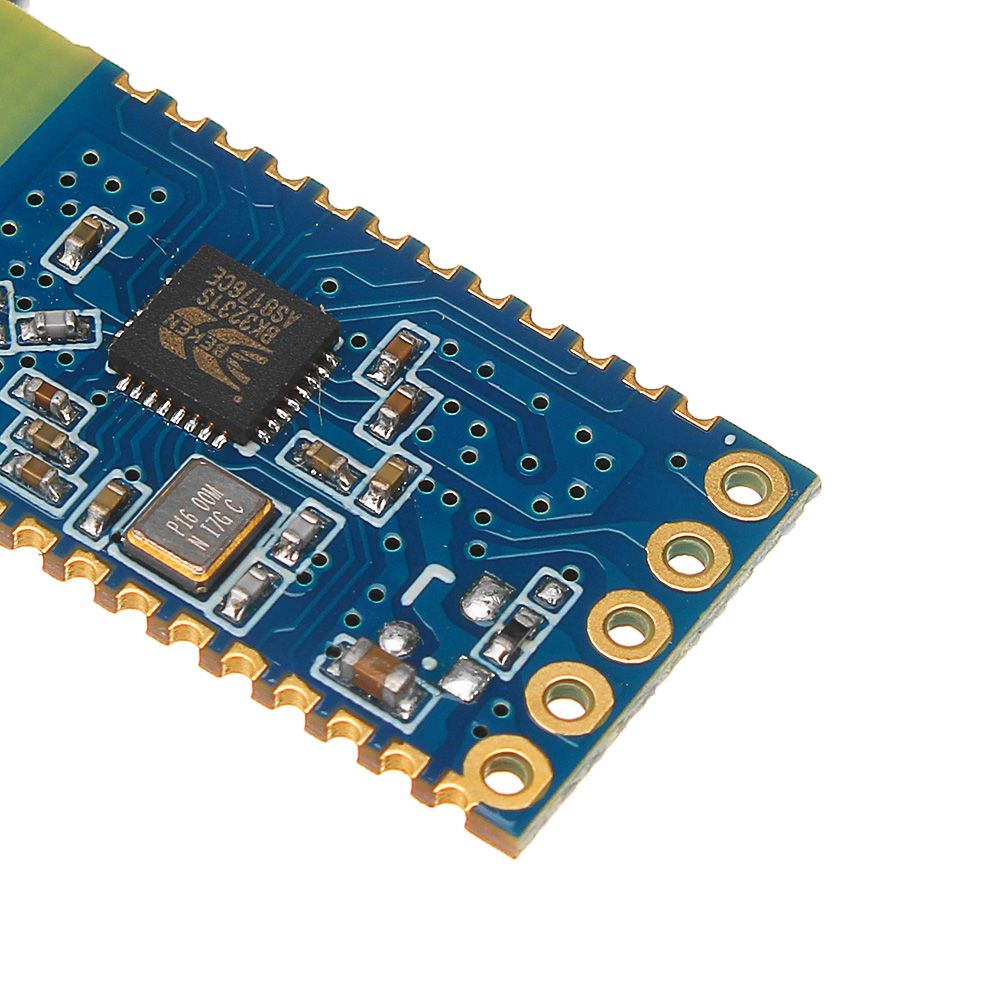

JDY-31 bluetooth Module 2.0/3.0 SPP Protocol Android Compatible With HC-05/06 JDY-30

Based on 0 reviews. - Write a review

$3.49

Ex Tax: $3.49

Stock: In Stock
Model: EB0042465
SKU: EB0042465

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Build-in Bluetooth: Yes

Precise details>>

Manual: https://www.renhotecic.com/image/download/pdf/20190129043725SKUA87502.pdf

Introduction:

JDY-31 bluetooth is based on bluetooth 3.0 SPP design, which can support Windows, Linux, android data transmission, working frequency band 2.4GHZ, modulation mode GFSK, maximum transmission power 8db, maximum transmission distance 30 meters, support users to modify device name through AT command The baud rate and other instructions are convenient and quick to use.

Applications:

JDY-31 is a classic bluetooth protocol that can communicate with bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied

-Windows computer bluetooth serial port transparent transmission

-Android bluetooth serial port transparent transmission

-Smart home control

-Automotive ODB testing equipment

-bluetooth toy

-Share mobile power, share weight

-Medical equipment

Parameter:

Model: JDY-31

Working frequency band: 2.4GHZ

Communication interface: UART

Operating voltage: 1.8-3.6V (3.3V recommended)

Working temperature: -40 ° C - 80 ° C

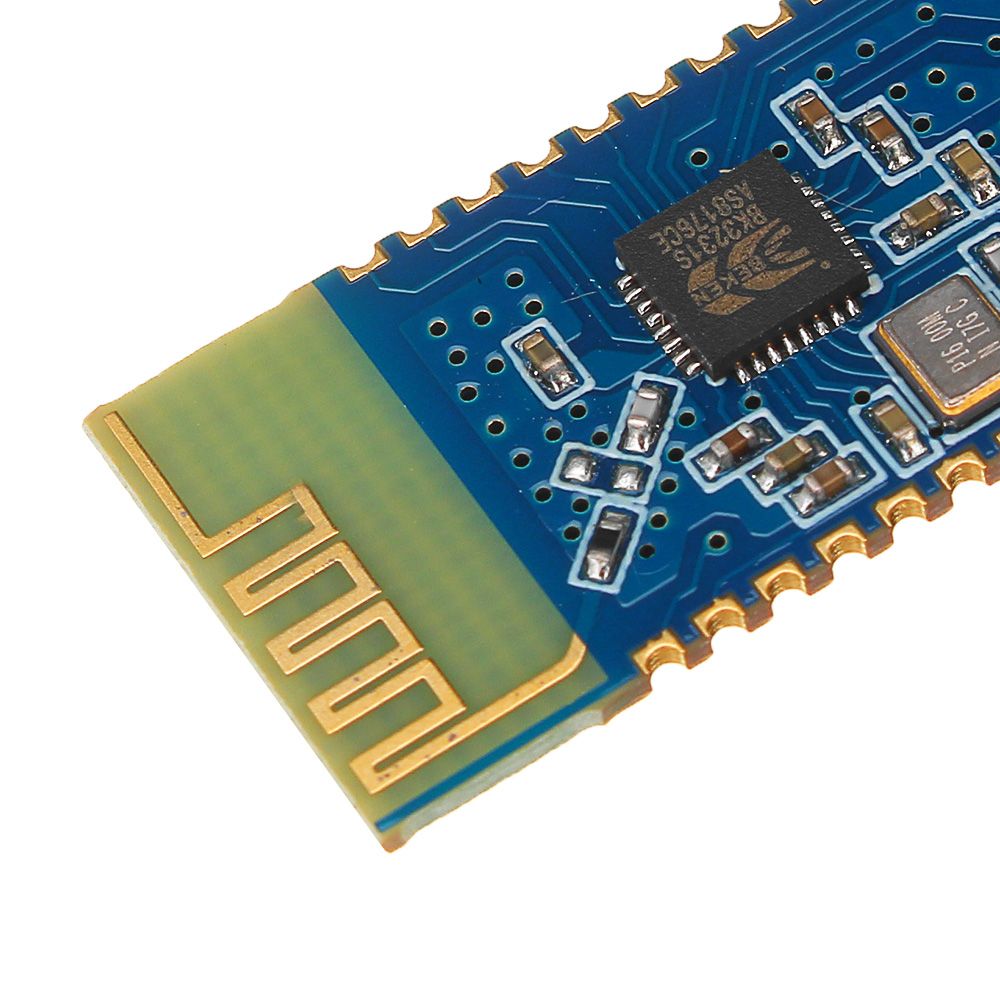

Antenna: Built-in PCB antenna

Transmission distance: 30 meters

Master-slave support: slave

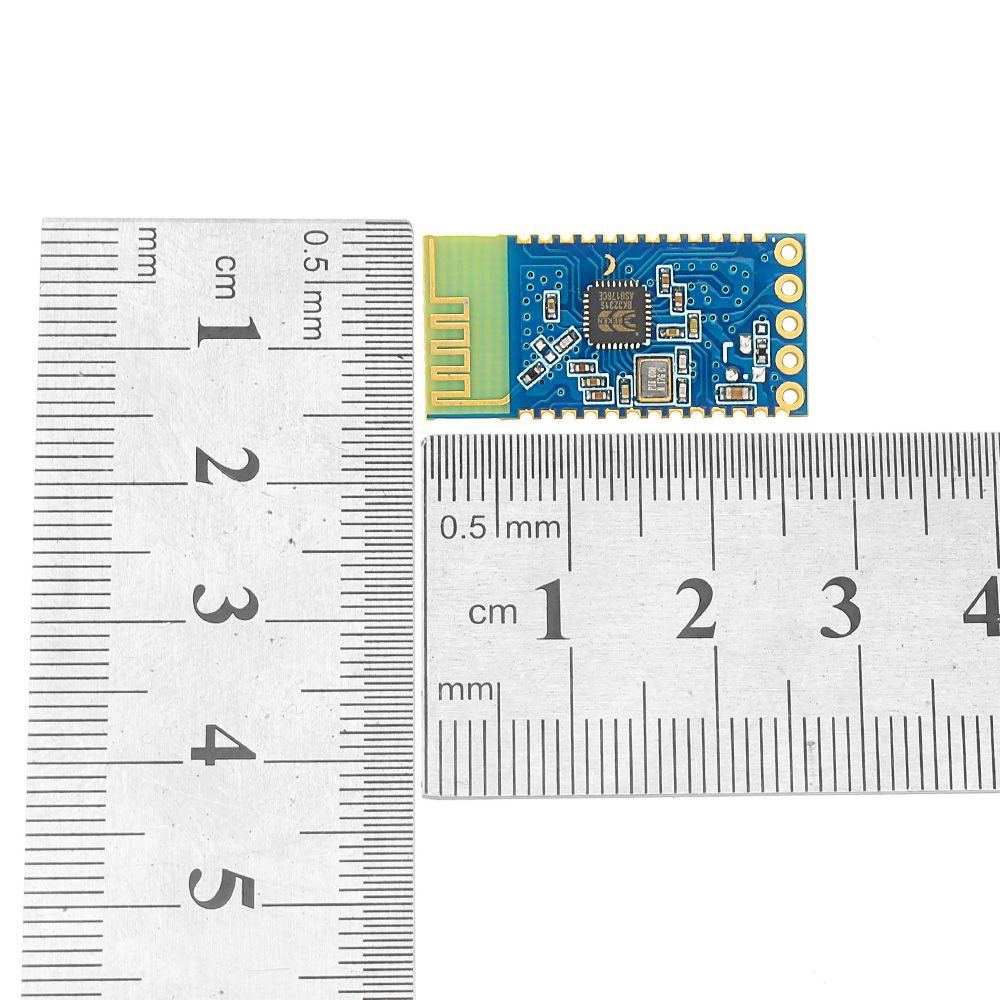

Module size: 19.6 * 14.94 * 1.8 mm (length, width, height)

bluetooth version: bluetooth 3.0 SPP

STM soldering temperature: <260°C

Unconnected operating current: 4.7mA

Current after BLE connection: 7.3mA

Transmitting power: 8db (maximum)

Receive sensitivity: -97dbm

SPP maximum throughput: 16K bytes/s (android, windows)

Package includes:

1 x JDY-31 module
