JDS2800 15MHZ 40MHZ 60MHZ Signal Generator Digital Control Dual-channel DDS Function Signal Generator Frequency Meter Arbitrary
- Stock: In Stock
- Model: EB004711
- SKU: EB004711
JDS2800 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc. The instrument adopts the Direct Digital Synthesizer (DDS) technology and provides stable , precision, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.
1. Adopt 320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2;Ability to reproduce patterns of custom waveform;
2. Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation;
3. Max. output frequency(sine wave) up to 15MHz/40MHz/60MHz(optional), 266MSa/s sampling rate and 14bits vertical resolution;

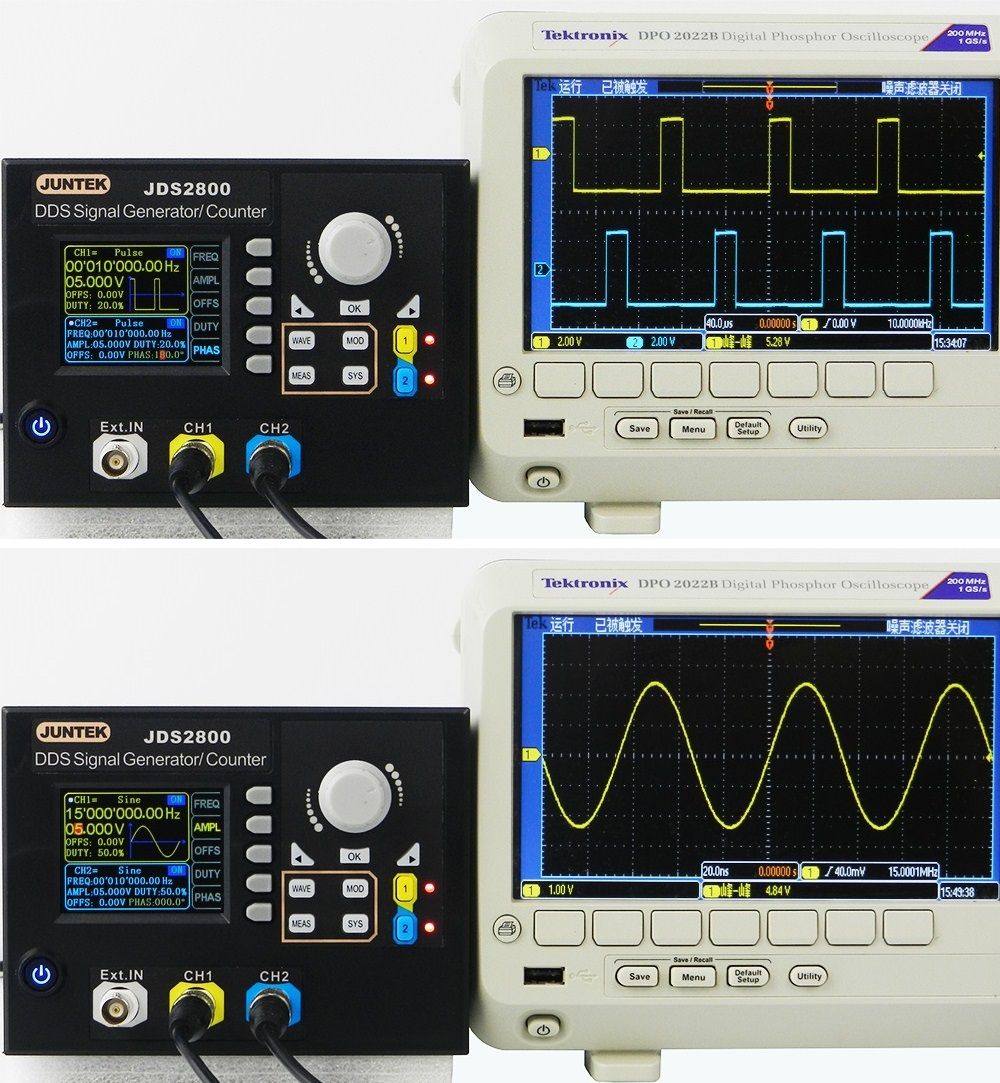

4. Completely independent dual channels output, synchronizing operation and adjustable phase difference;

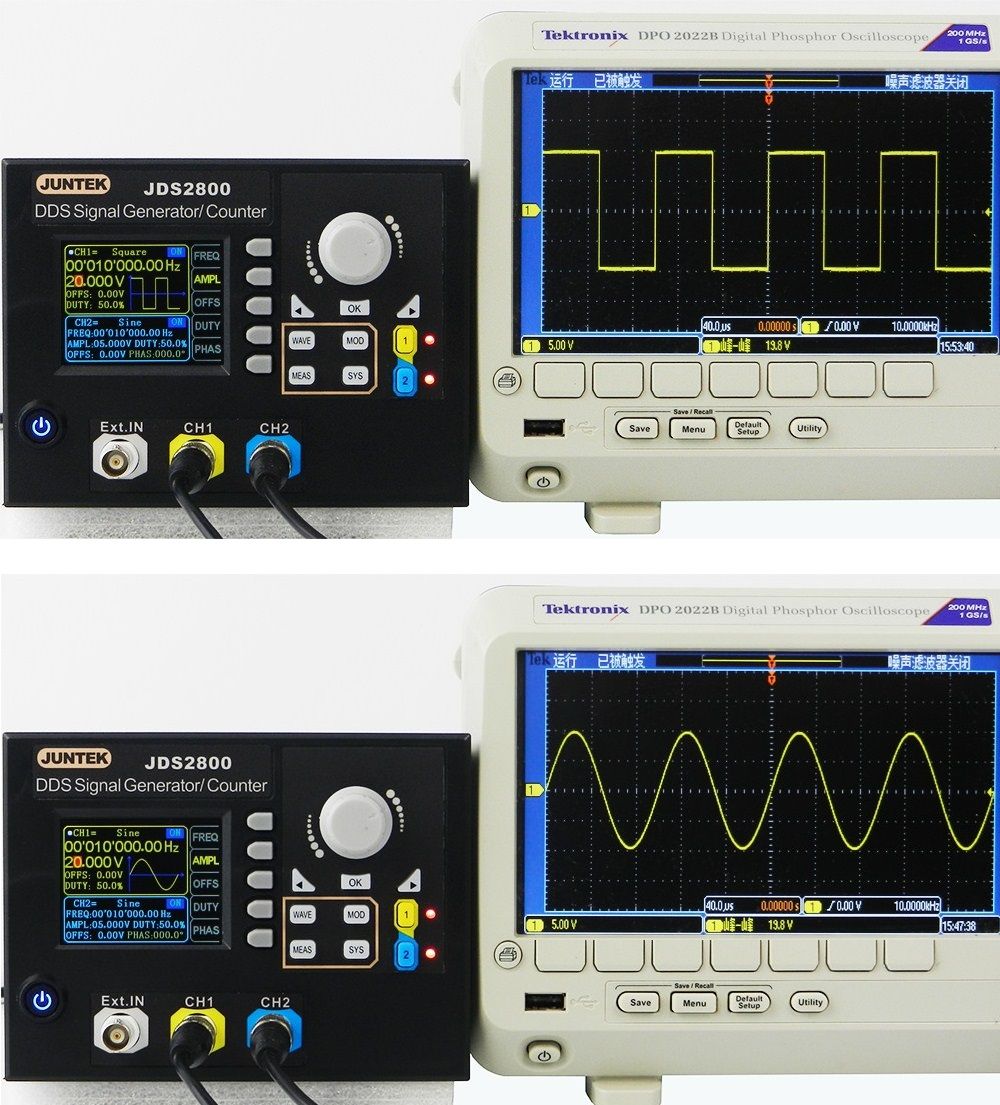

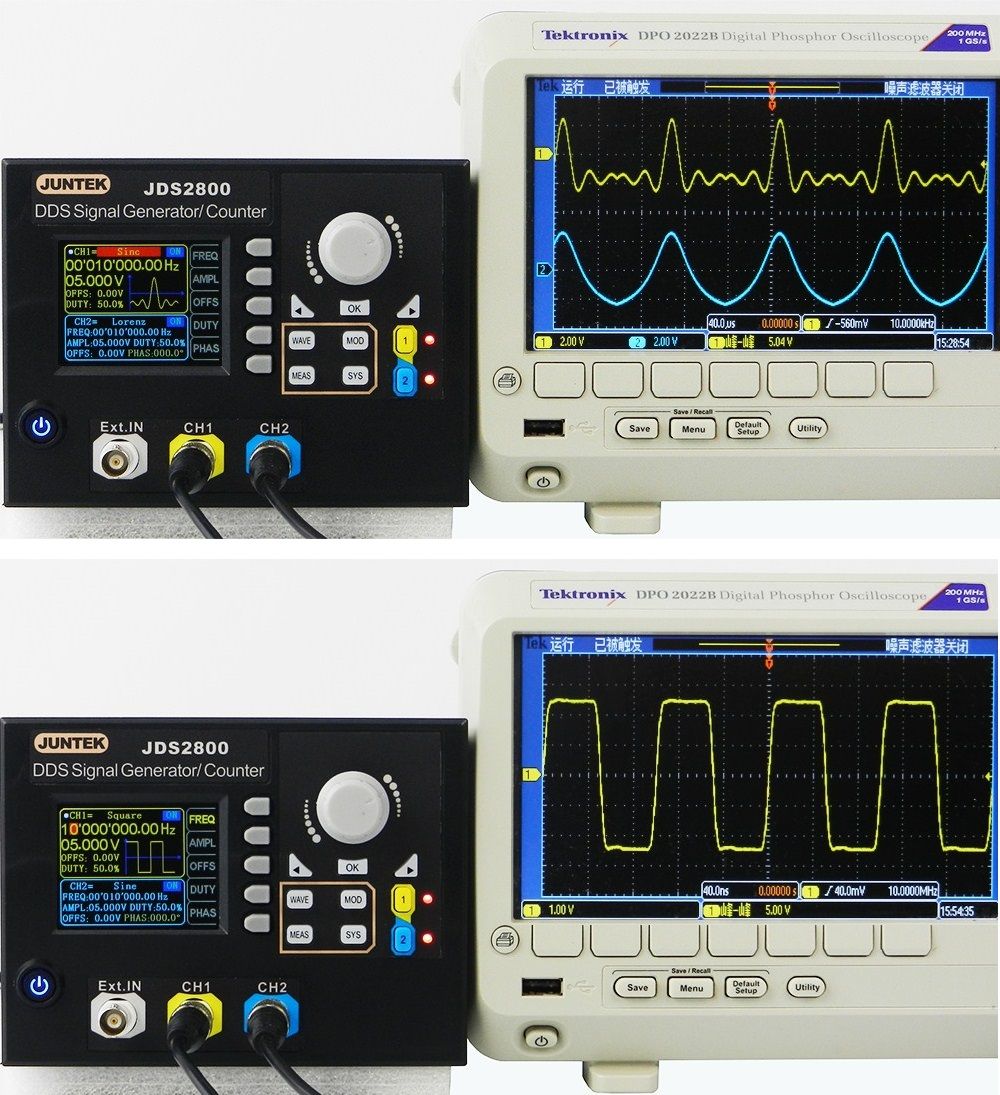

5. Great improvement for square wave performance, square frequency range up to 25MHz with no distortion;
6. 60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits;
7. High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz;
8. High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 0Vpp~20Vpp;
9. Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%;
10. Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions;
11. With pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains;
12. Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range;
13. -9.99V~9.99V DC offset range, offset resolution: 0.01V;
14. With digital signal output function, CMOS output range 0~10V;
15. Storage feature: can store 100 groups of parameters set by the user and extract at any time;
Counter function: with DC and AC coupling modes;
16. Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument;
17. Communication function: the PC can be used to control the instrument;
18.With output short-circuit protection: all signal output can work 60s under load short-circuit conditior;

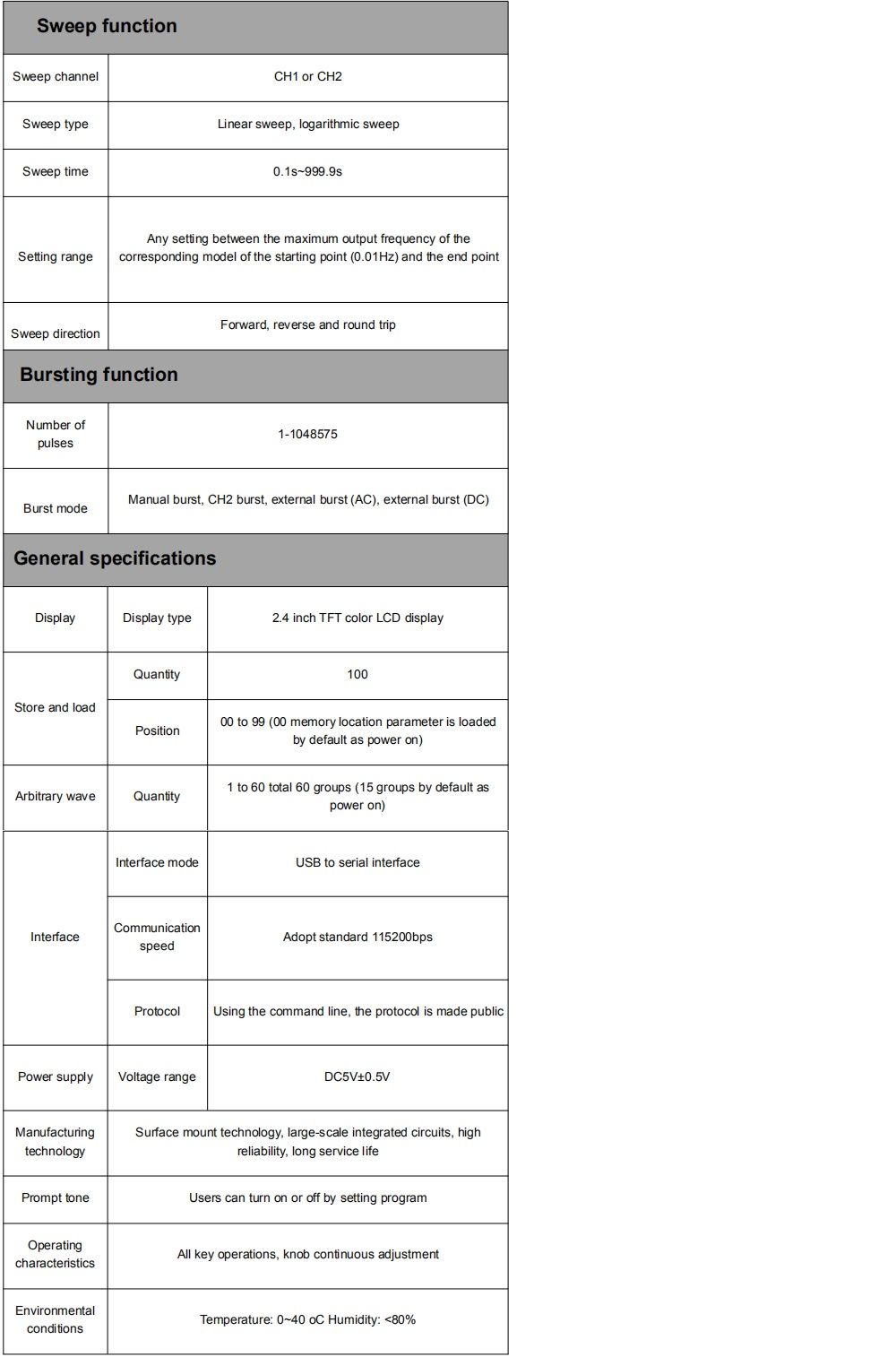

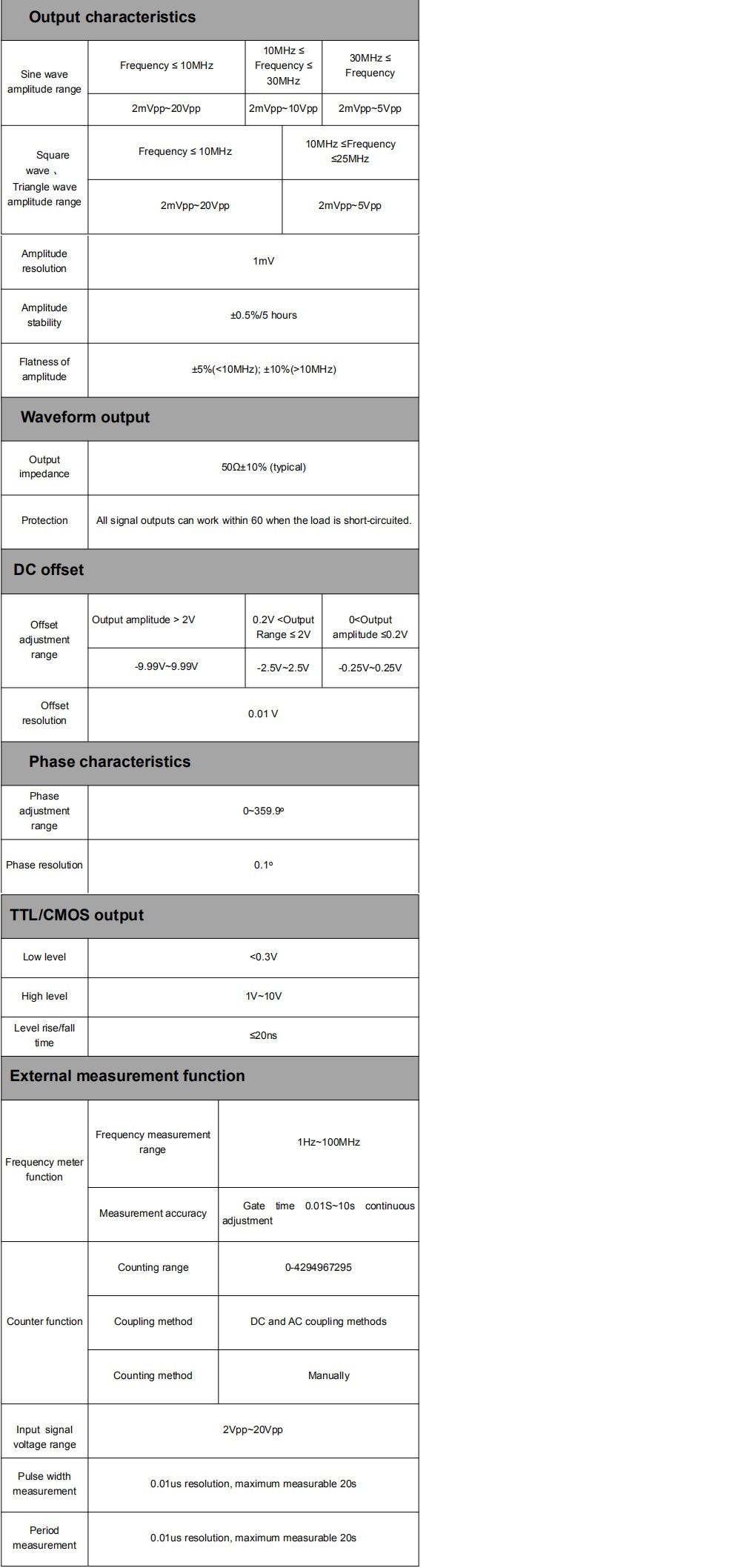

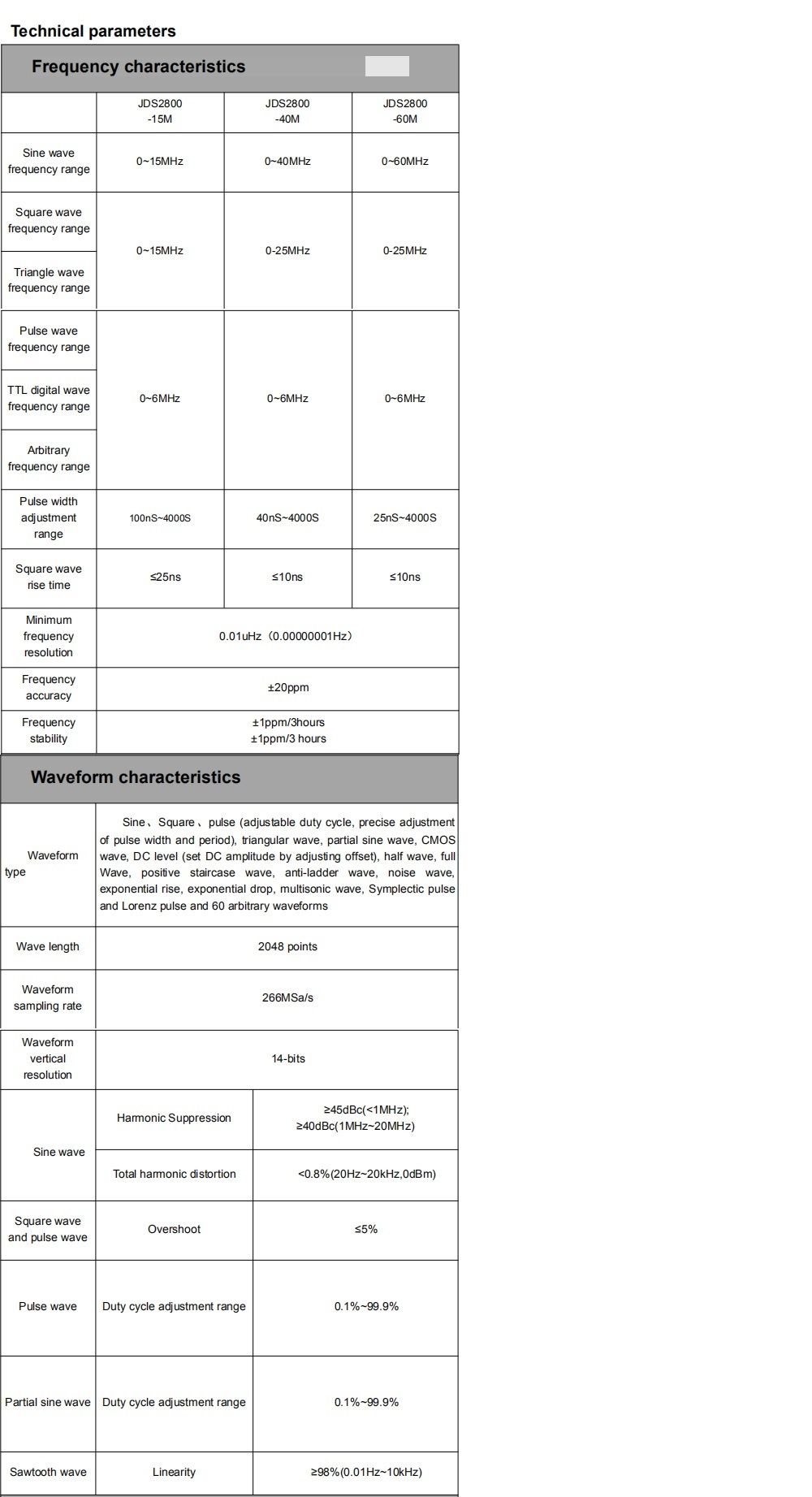

Specifications:
Display type: 2.4 inch TFT color LCD
Storage and loading - Quantity: 100 groups
Storage and loading – Location: 00 to 99(extract 00 place data at default boost state)
Arbitrary wave – quantity: 1 to 60, totally 60 groups (default boost 15 groups)
Interface mode: USB to serial interface
Extension interface: There is serial interface of TTL level mode to be convenient for secondary development.
Communication speed - Adopt standard: 115200 bps
Communication protocol - Adopt command: line mode, open protocol
Power supply: DC 5 V±0.5 V
Manufacturing process: Surface-mount technology, large scale integrated circuit, high reliability, long service life
The user can set ON or OFF by procedure

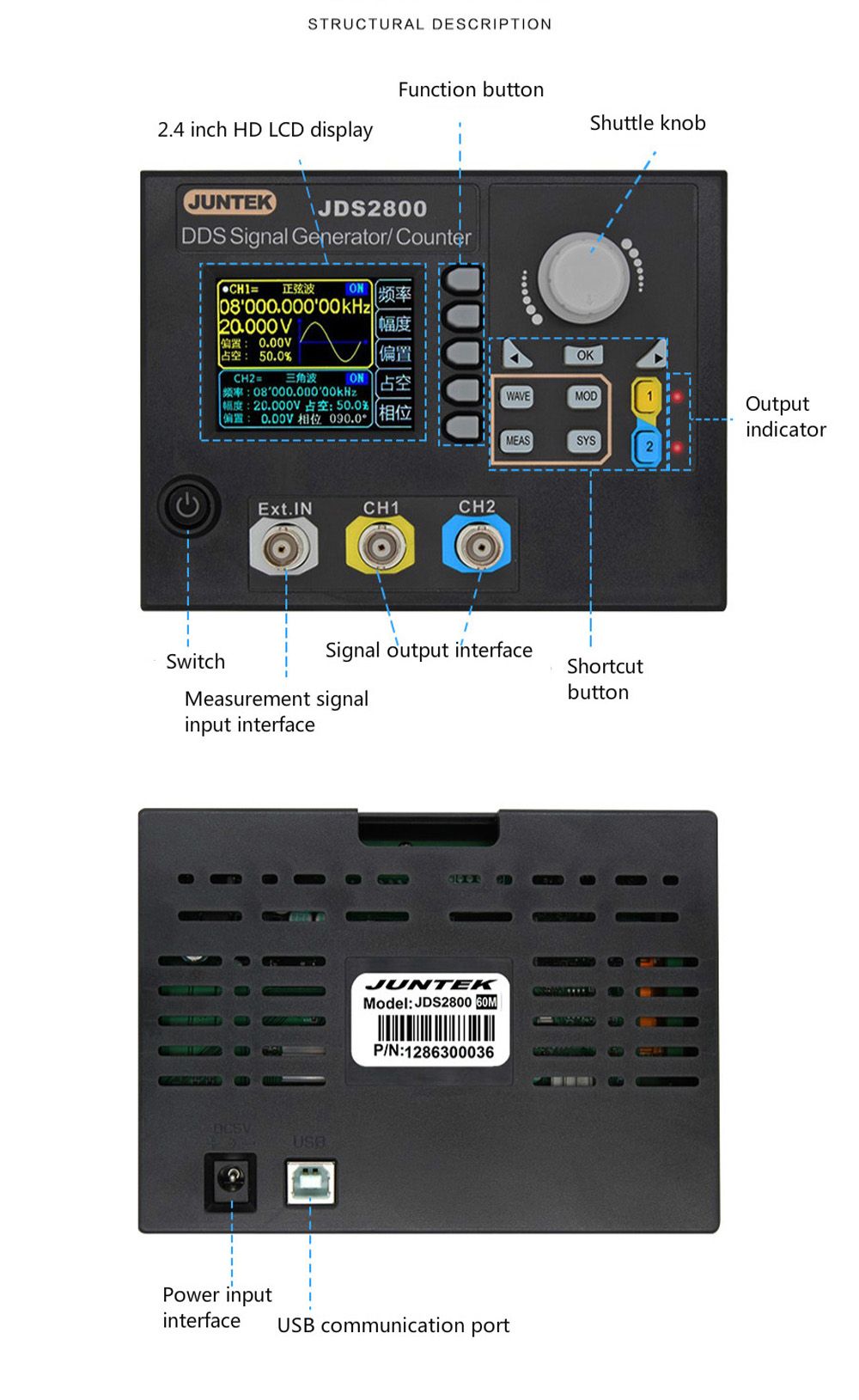

Operating characteristics: Full button operation, knob continuous adjustment
Weight: 275g

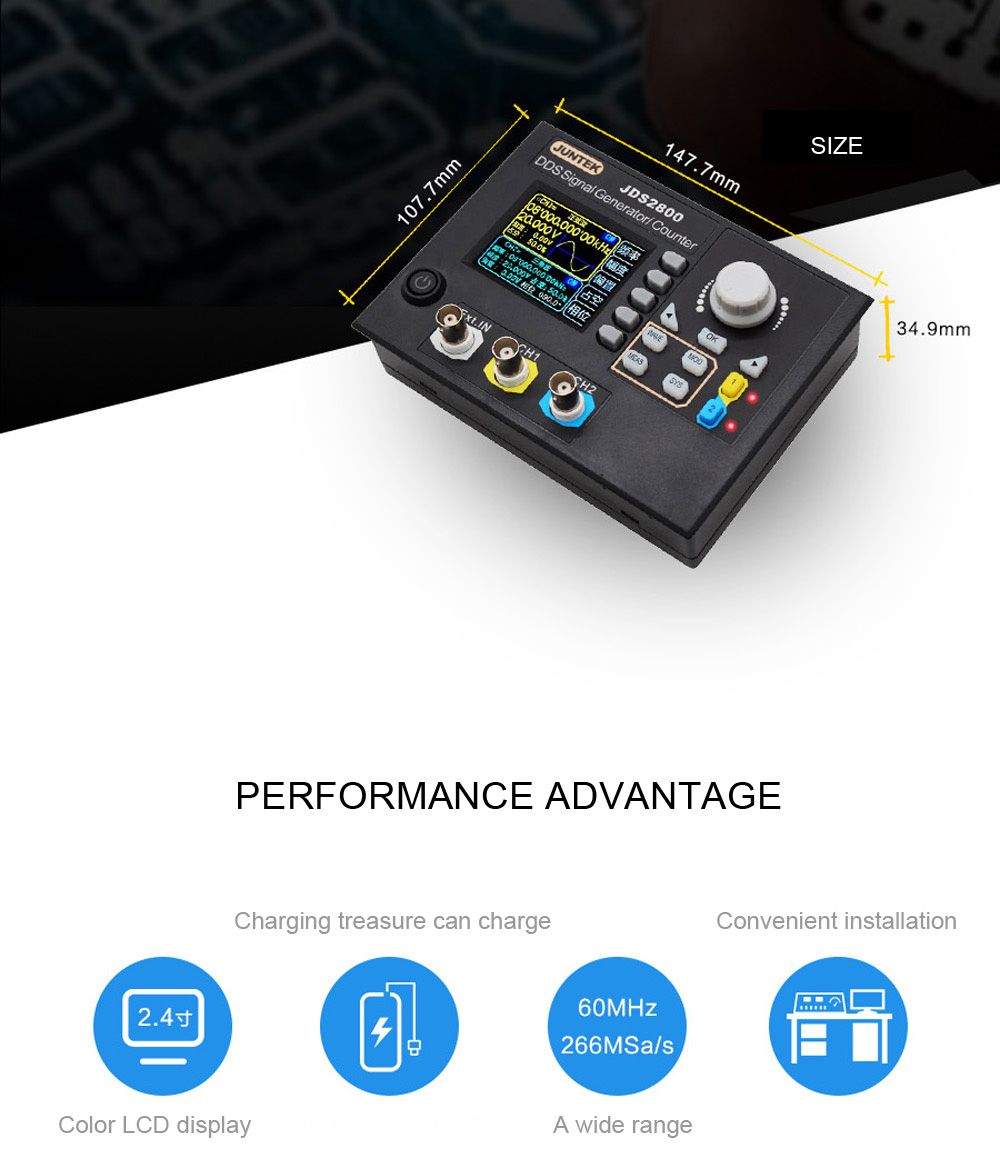

Size: 147.7*107.7*34.9mm
package Weight: 600g
packageSize: 170*120*100mm

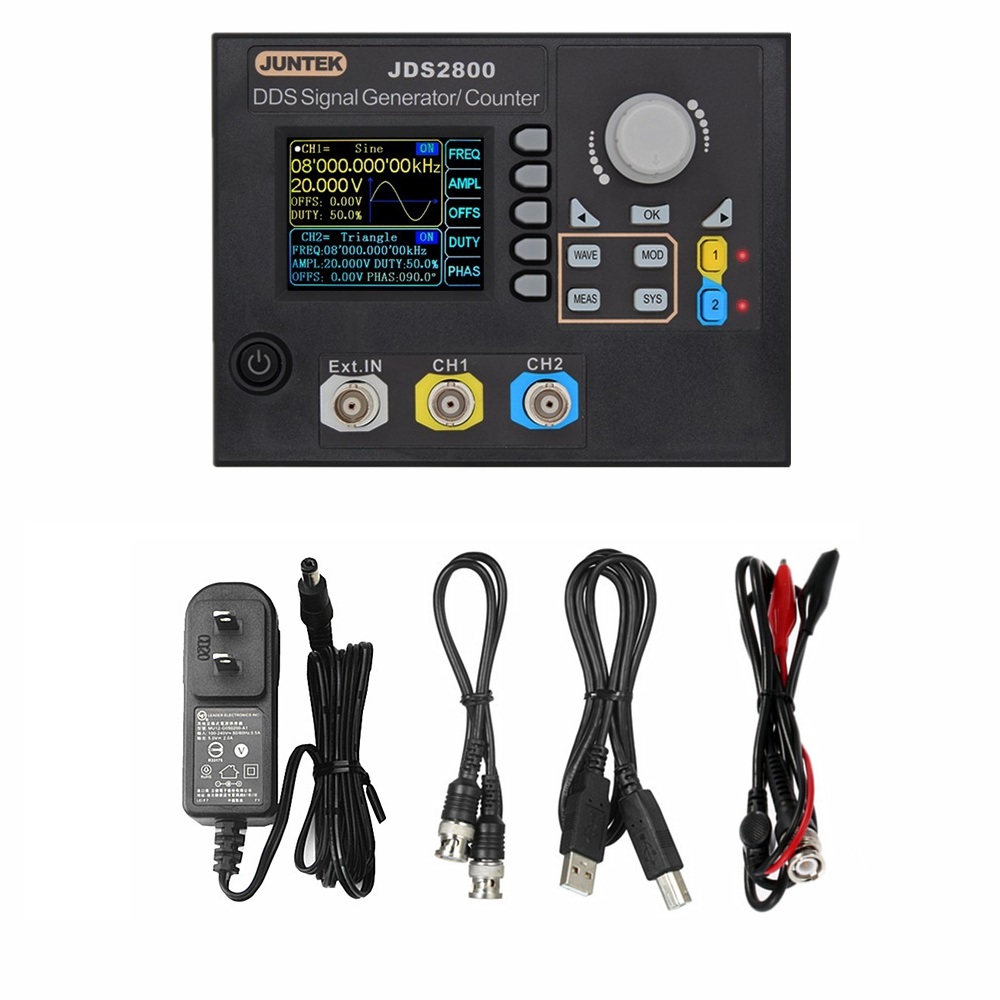

Package Includes:
1 x DDS Signal Generator
1 x Power Adapter (In:100~240V~50/60Hz,Out:5.0V-2.0A)
1 x USB Data Cable
1 x BNC-BNC Cable
1 x BNC-Clip Cable
Note:We will send you a plug adapter according to your country.
