JC-SQ875 SQ875 CSR8675 Wireless Lossless bluetooth 5.0 Audio Stereo Receive bluetooth Decoder Board ES9018 DAC

Based on 0 reviews. - Write a review

$43.71

Ex Tax: $43.71

Stock: In Stock
Model: EB0041412
SKU: EB0041412

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

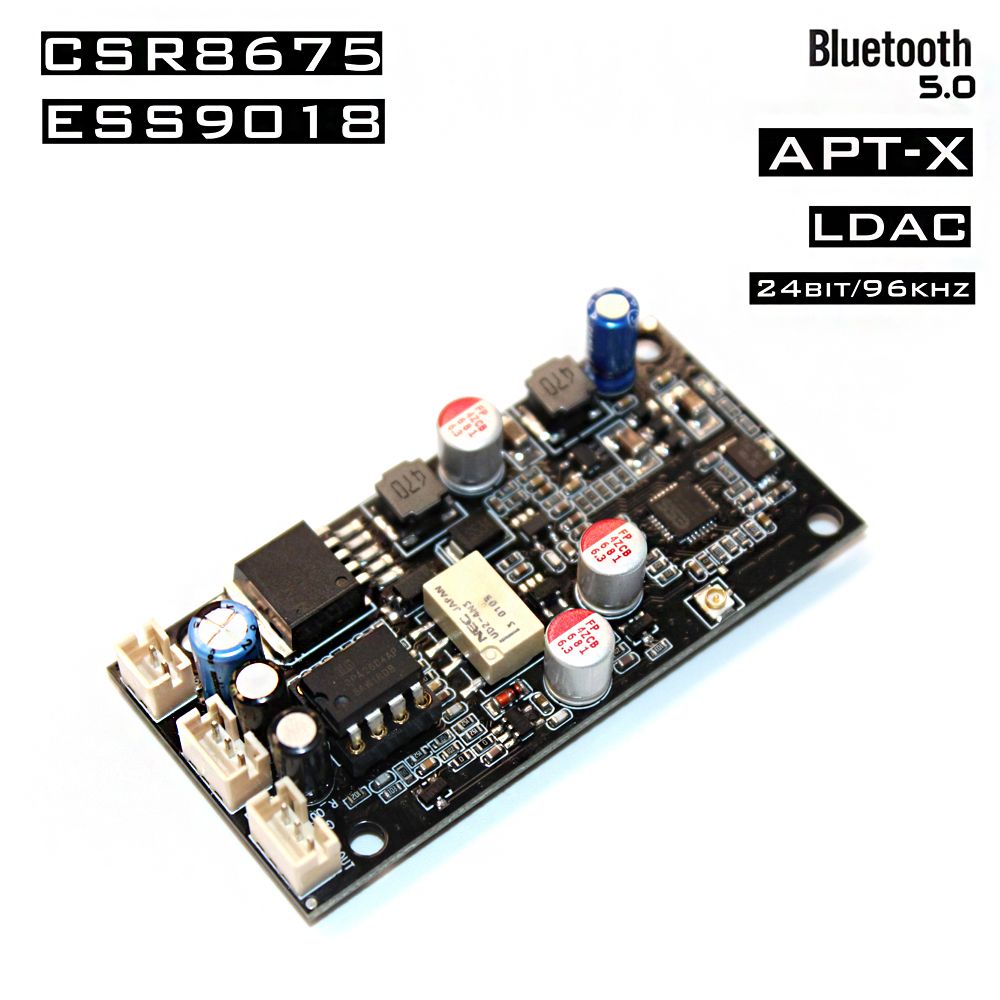

1. Bluetooth audio receiver board adopts CSR8675 chip solution Bluetooth digital audio signal reception, I2S digital signaltransmission to ES9018 chip decoding, output analog audio signal through dual op amp filter amplification output.

2. supports wireless Bluetooth reception and one AUX analog audio input for switching output. Lossless switching with relays will not have any effect on sound quality.

3. The module defaults to AUX line mode, the switching mode is automatic switching, and Bluetooth is preferred.

4.The module is a high-level version that supports the LDAC protocol and supports a sampling rate of 24bit/96khz, which exceeds the APT-HD's 24-bit/48knz sampling rate.

5. a DC single-supply power supply, wide voltage range DC 5V-32V, product design multi-stage voltage regulator, Bluetooth module, DAC chip, op amp chip are powered by independent power management chip, the op amp uses dual (positive and negative) 13V power supply, Fever level design.

Description:

JC-SQ875-SQ875-CSR8675-Wireless-Lossless-bluetooth-50-Audio-Stereo-Receive-bluetooth-Decoder-Board-E-1747653

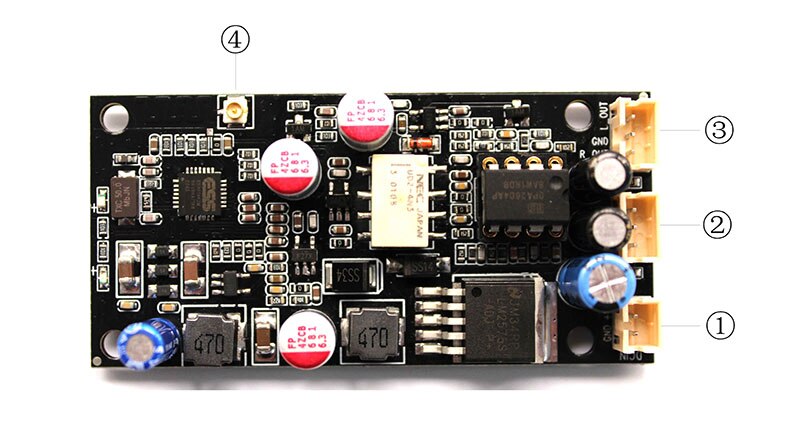

1. DC power input , red (+12V) is positive and black (GND) is negative. Support DC5V-32V, note: AC power cannot be used.

2. AUX analog audio input , white line (INL) is the left channel, black (GND) is the audio ground, and red (INR) is the right channel. Note: The audio ground wire cannot be connected incorrectly.

3. Audio output , white line (L-OUT) is the left channel, black (GND) is the audio ground, and red (R-OUT) is the right channel. Note: The audio ground wire cannot be connected incorrectly.

4. The Bluetooth external antenna is buckled, and the antenna with the buckle is directly fastened, and the 2. 4G antenna can be used. The module must be installed in the gold M case and an external antenna must be added.

Package Included:

1 x JC-SQ875 bluetooth Decoder
