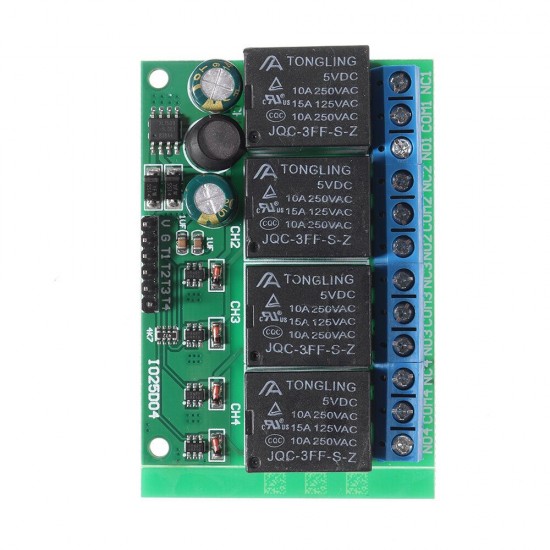

IO25D04 4CH DC 6V-24V Flip-Flop Latch Relay Module Bistable Self-locking Electronic Switch Low Pulse Trigger Board Button MCU IO Control Board

Based on 0 reviews. - Write a review

$13.99

Ex Tax: $13.99

Stock: In Stock
Model: EB0047088
SKU: EB0047088

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

Working voltage: DC 6-24V

Working current: 1 relay 37mA;2 relay 73 mA; 3 relay 1 10mA; 4 relay 146 mA

Standby current: 2mA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: Low pulse trigger

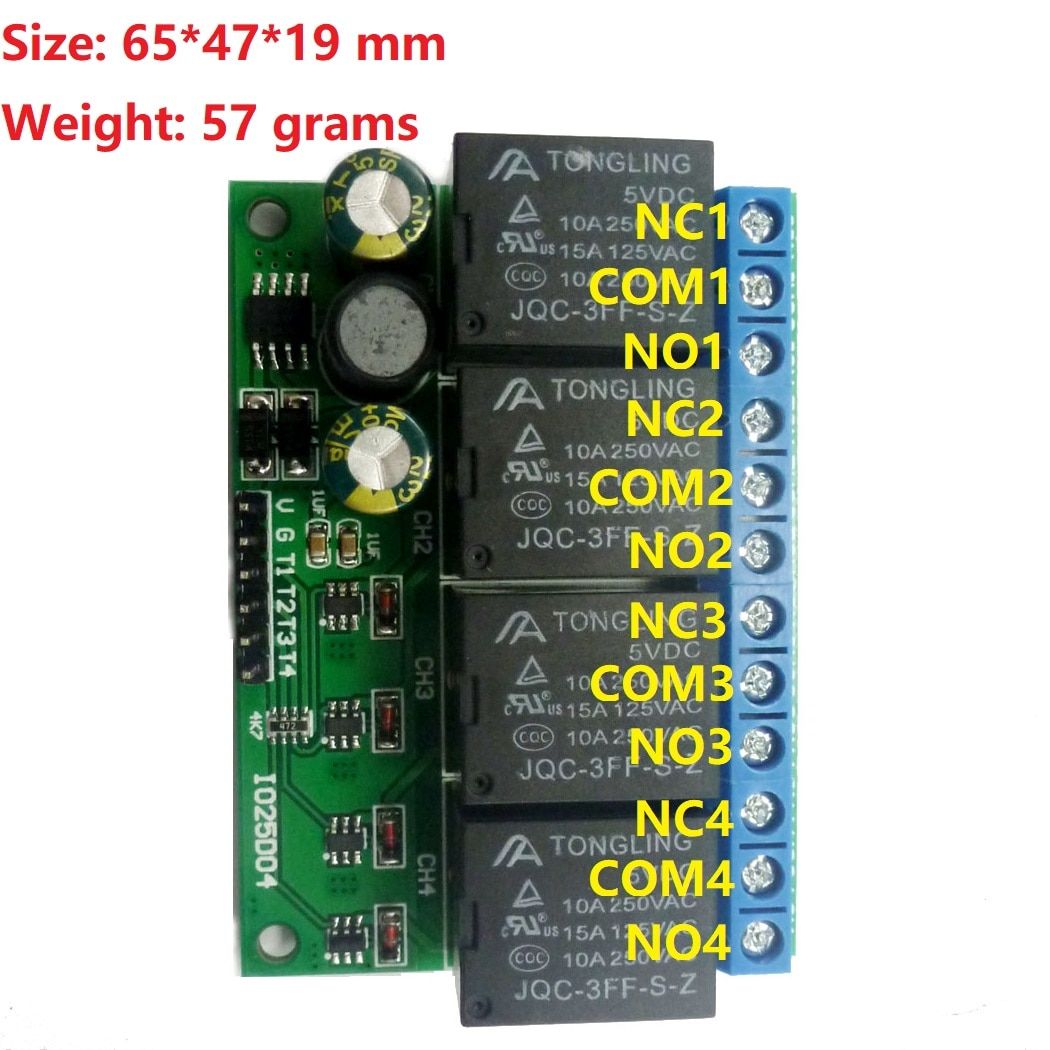

Size: 65 x 47 x 19mm

Weight: 57 g

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

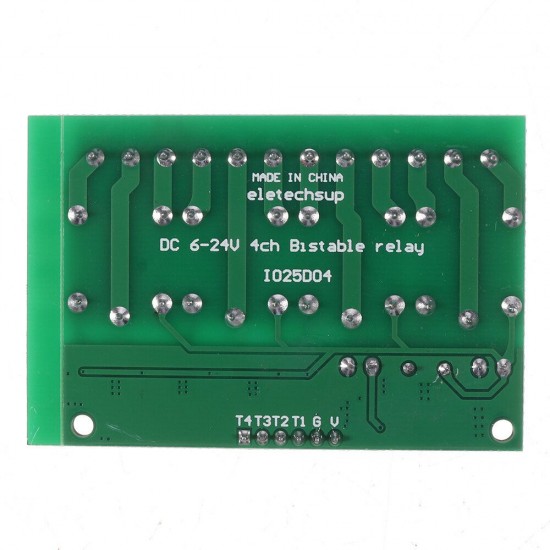

Module Interface:

1. V: positive power supply (VCC)

2. G: negative power supply (GND)

3. T1 : Trigger port 1

4. T2 : Trigger port 2

5. T3 : Trigger port 3

6. T4 : Trigger port 4

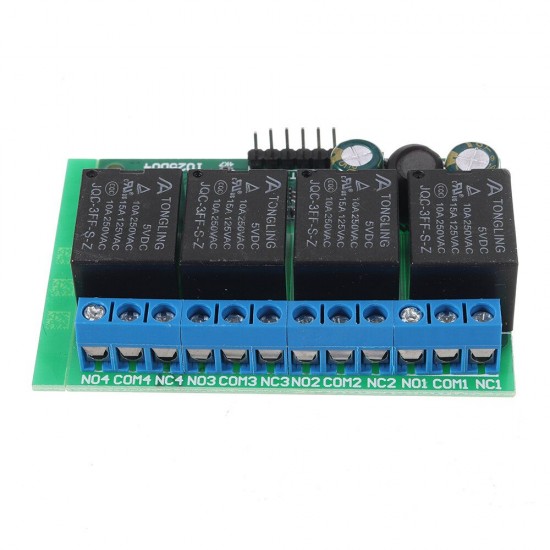

Relay Outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

Use:

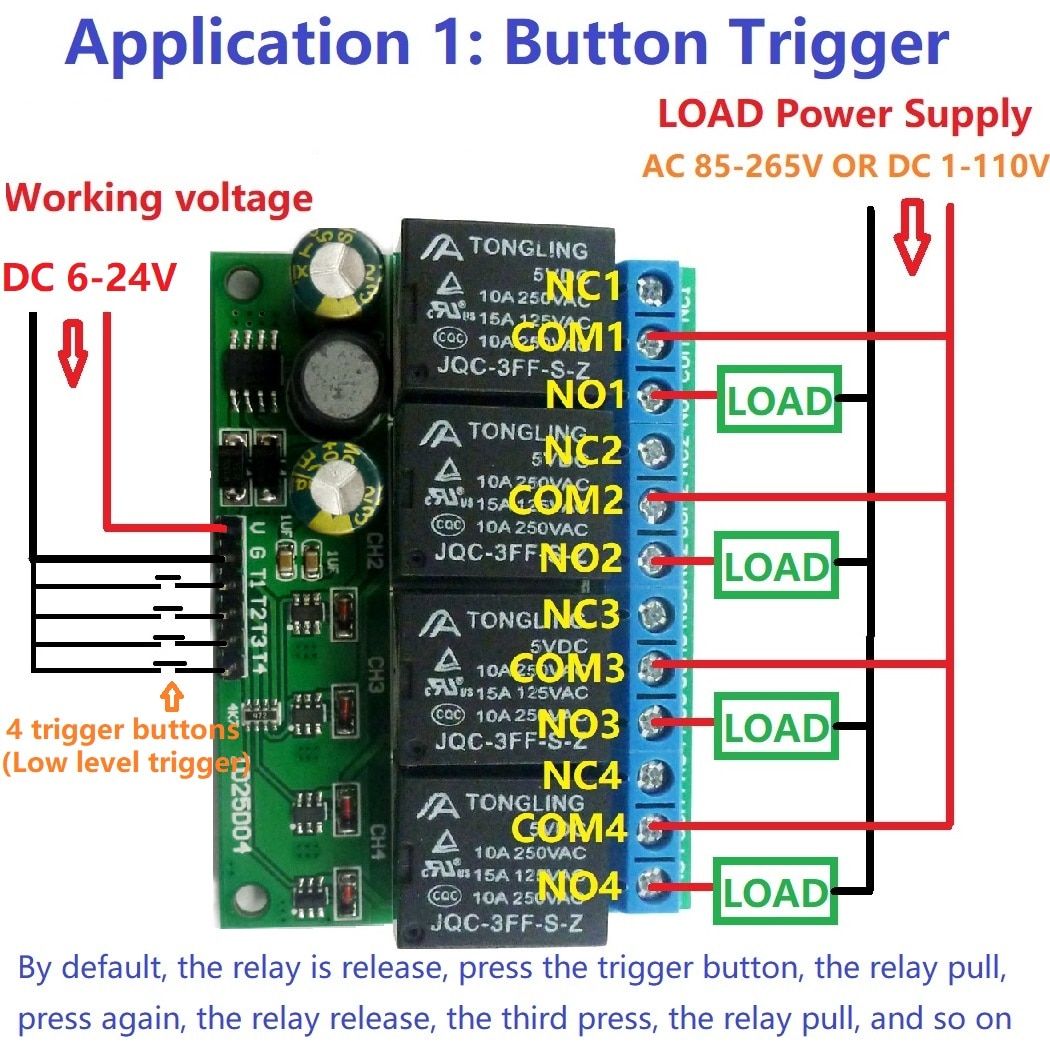

Use 1:

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

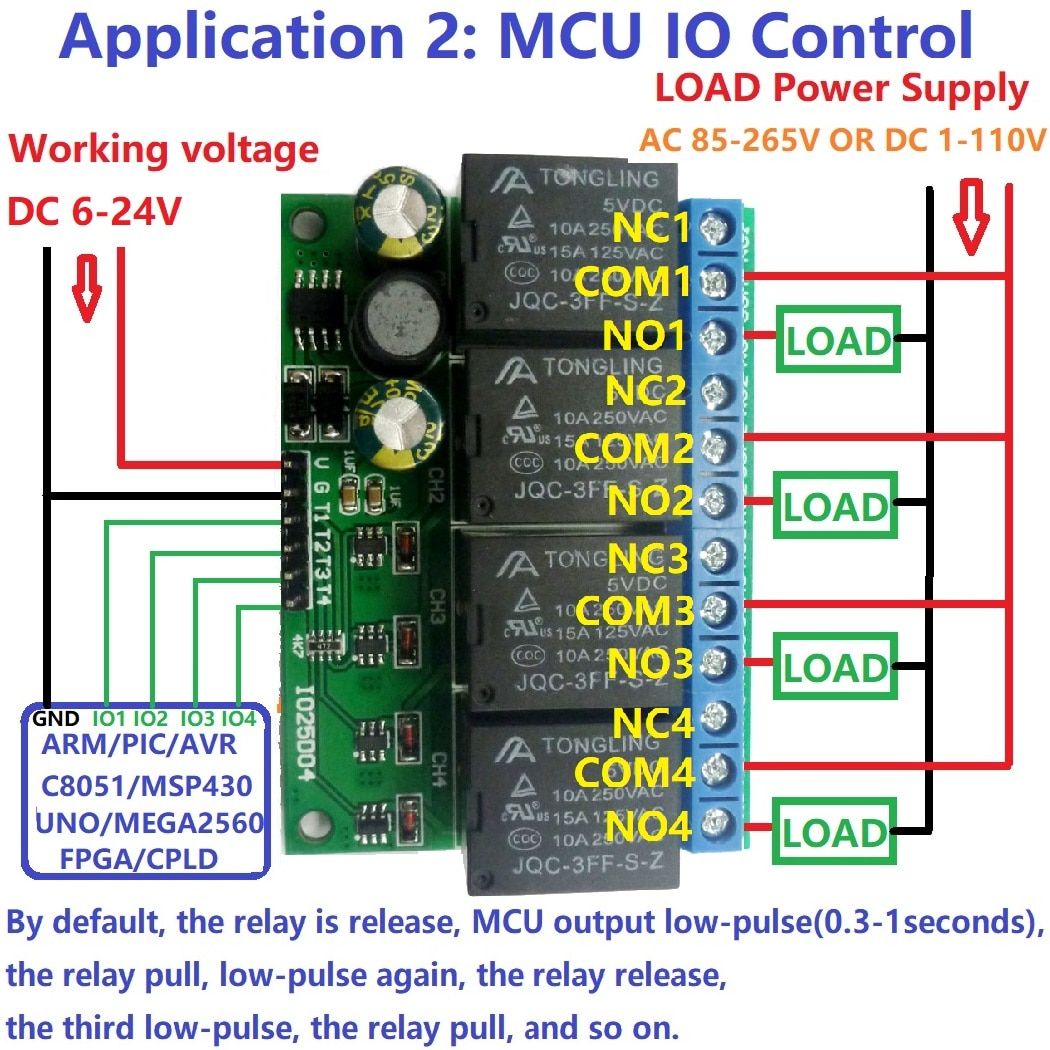

Use 2:

By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.

IO25D04-4CH-DC-6V-24V-Flip-Flop-Latch-Relay-Module-Bistable-Self-locking-Electronic-Switch-Low-Pulse-1658212

Typical Applications:

Automotive electronics

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car

PLC

Package Included:

1 x IO25D04 4CH Flip-Flop Latch Relay Module DC 6V-24V
