$12.99
Ex Tax: $12.99
  • Stock: In Stock
  • Model: EB0046320
  • SKU: EB0046320

Available Options

Technical Parameters:

Control voltage: DC3.3-24V
Input current: 5-10mA
Output type: non-contact type
Drive component: P/N channel FET
Maximum output current: 6A
Output voltage: DC5-24V
Operating time: 1ms or less
Reset time: 1ms or less
Maximum switching frequency: 2000Hz

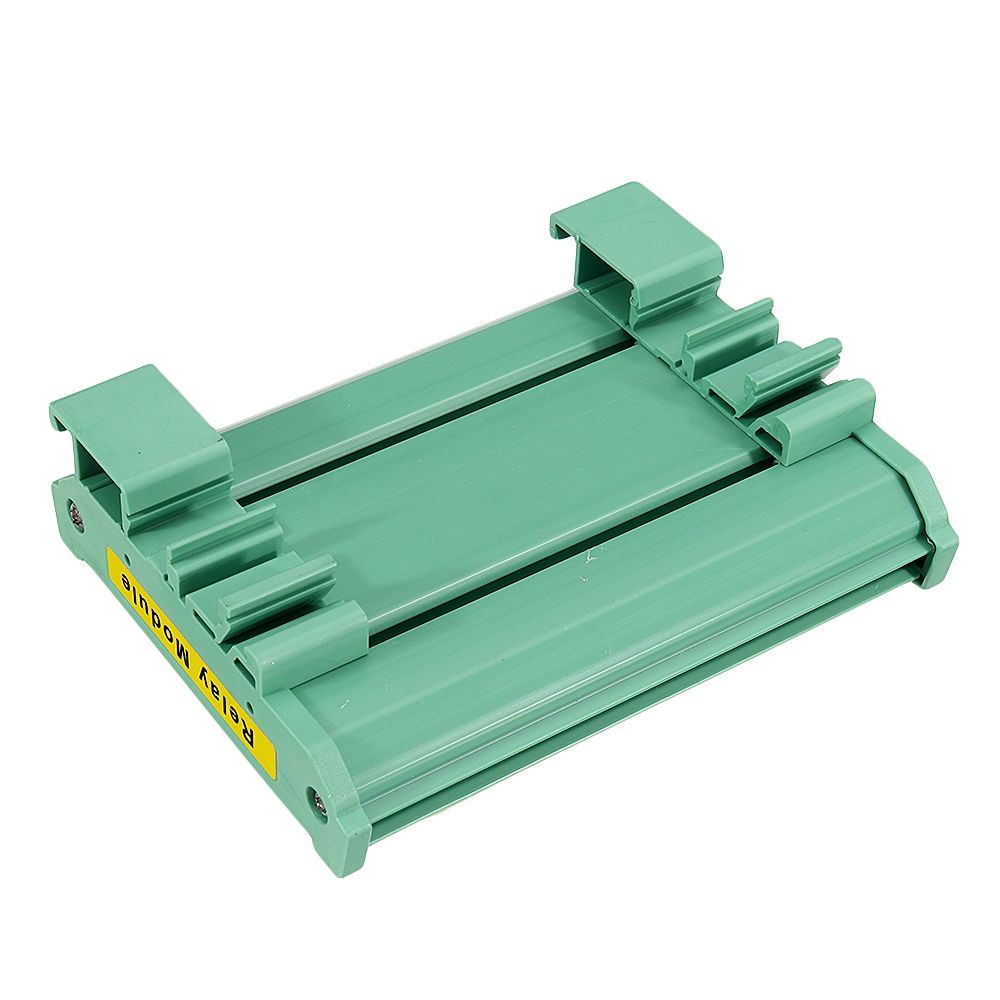

Horizontal group installation: standard rail mounting

Instructions:

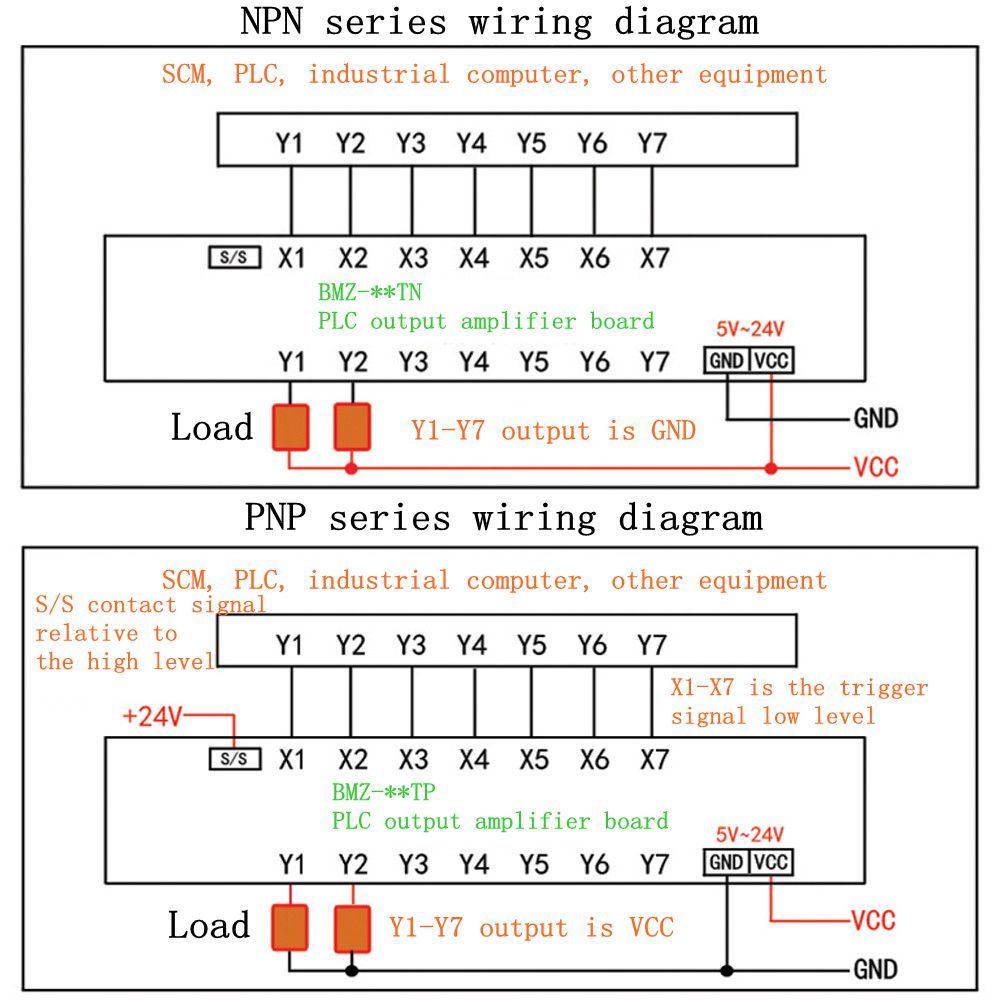

X1~X7 are the access terminals of the trigger signal.
S/S is the selection terminal for the high and low levels of the trigger signal.

E.g:

When the trigger signal is high, then the S/S terminal should be connected to the negative terminal corresponding to the trigger signal.
Conversely, when the trigger signal is low, the S/S terminal should be connected to the positive pole corresponding to the trigger signal.


IO-Card-PLC-Signal-Amplifier-Board-NPN-to-PNP-Mutual-Input-Optocoupler-Isolation-Transistor-Output-R-1545489

Package includes:

1 x Relay module
