IMX219-83 Stereo Camera 8MP Binocular Camera Module Depth Vision Dual IMX219 8 Megapixels Supports Jetson Nano Developer Kit

Based on 0 reviews. - Write a review

$57.99

Ex Tax: $57.99

Stock: In Stock
Model: EB0042572
SKU: EB0042572

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC5V

Precise details>>

Documents:

Code: Click here to open: https://www.waveshare.com/w/upload/a/a4/D219-9dof.tar.gz

Overview:

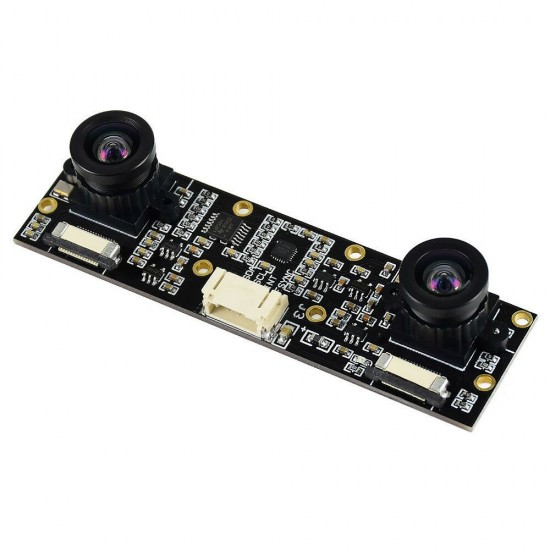

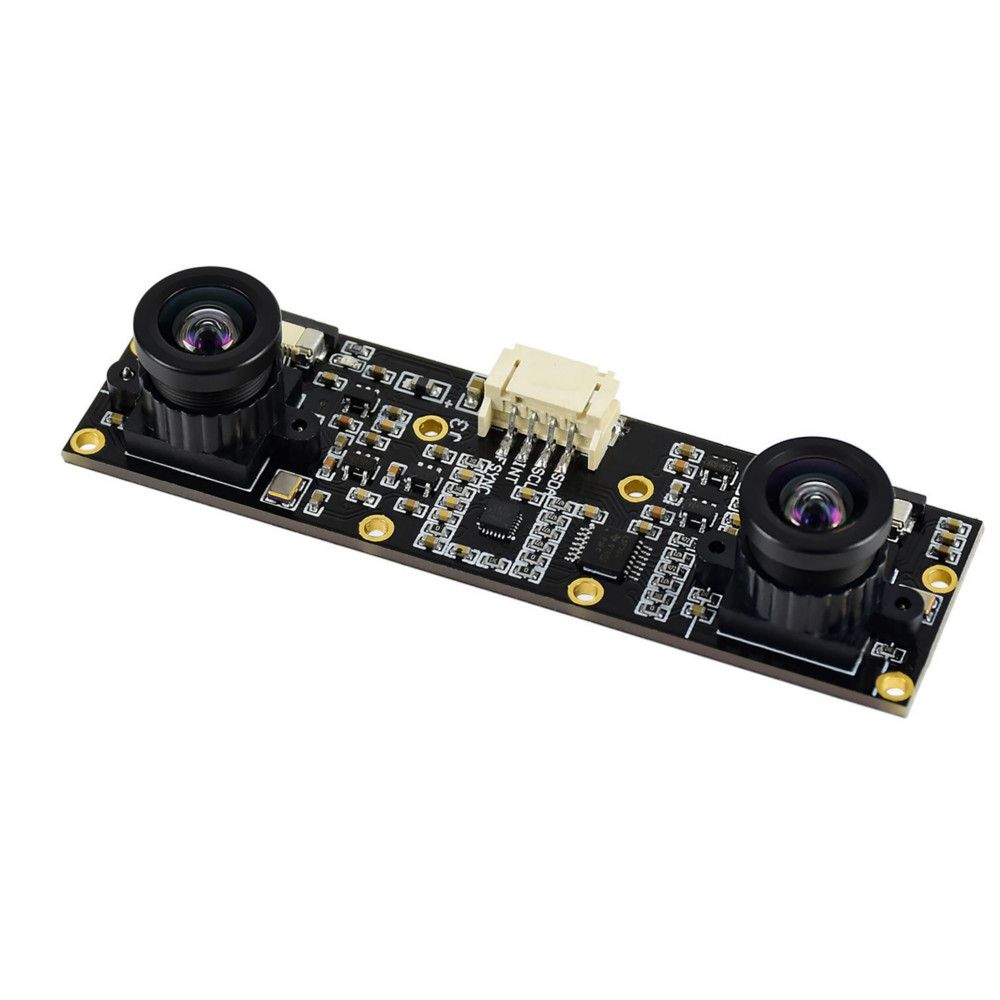

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications:

8 Megapixels

Sensor: IMX219

Resolution: 3280 × 2464 (per camera)

Lens specifications:

CMOS size: 1/4inch

Focal Length: 2.6mm

Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)

Distortion: <1%

Baseline Length: 60mm

ICM20948:

Accelerometer:

Resolution: 16-bit

Measuring Range (configurable): ±2, ±4, ±8, ±16g

Operating Current: 68.9uA

Gyroscope:

Resolution: 16-bit

Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec

Operating Current: 1.23mA

Magnetometer:

Resolution: 16-bit

Measuring Range: ±4900μT

Operating Current: 90uA

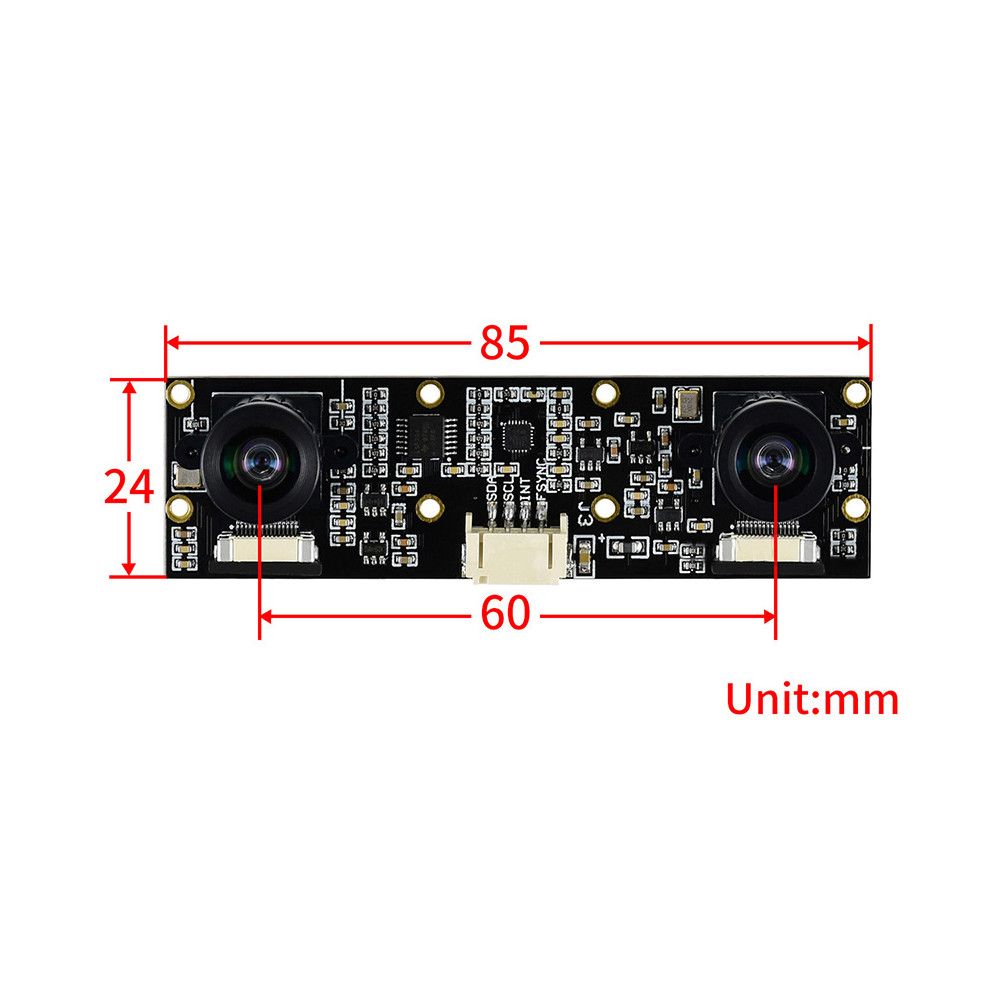

Dimension: 24mm × 85mm

Applications:

AI vision applications like depth vision and stereo vision.

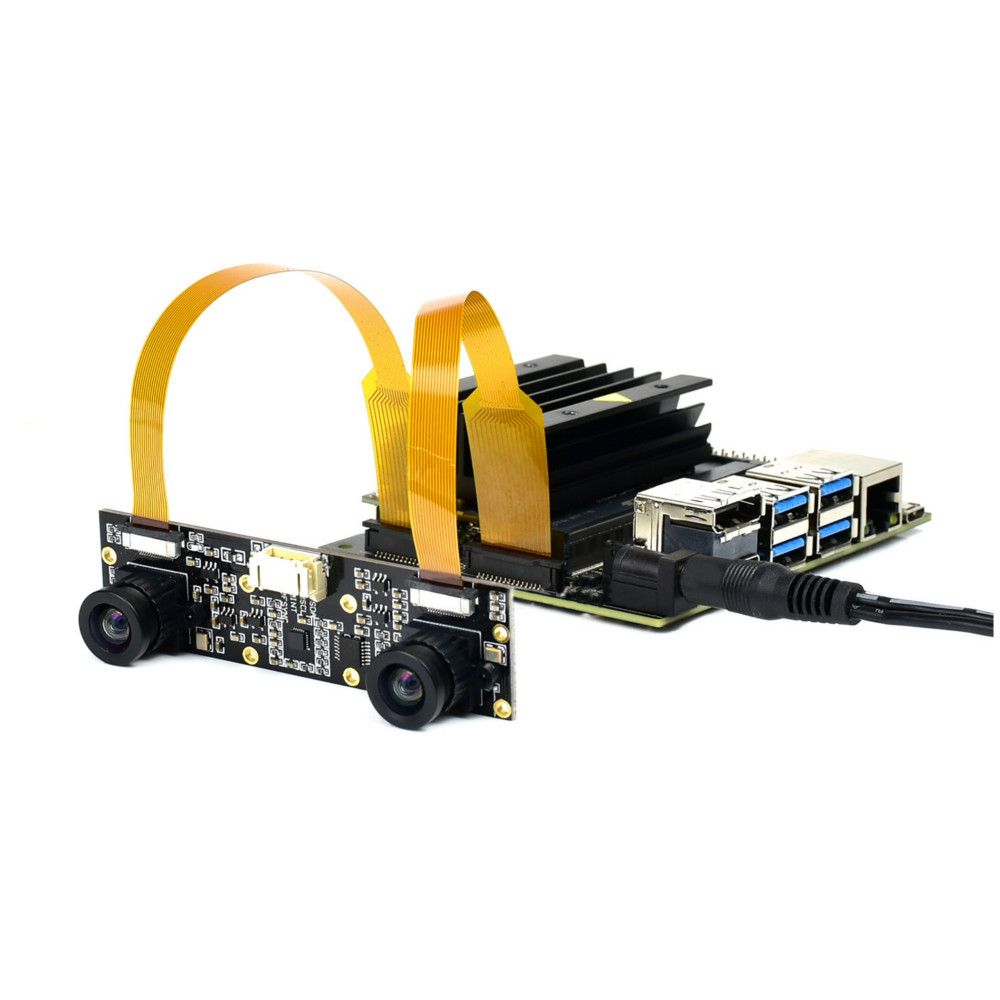

Hardware connection:

Connect the camera to the CSI interfaces of Jetson Nano. Set the metal side of FFC into Heat-sink

Connect an HDMI LCD to Jetson Nano

Connect the I2C interface (only the SDA and SCL pins are required) of the Camera to I2C interface of the Jetson Nano Developer Kit (the Pin3, and Pin5)

Package includes:

(Note: the Jetson Nano Developer Kit does not includes)

1 x IMX219-83 Stereo Camera

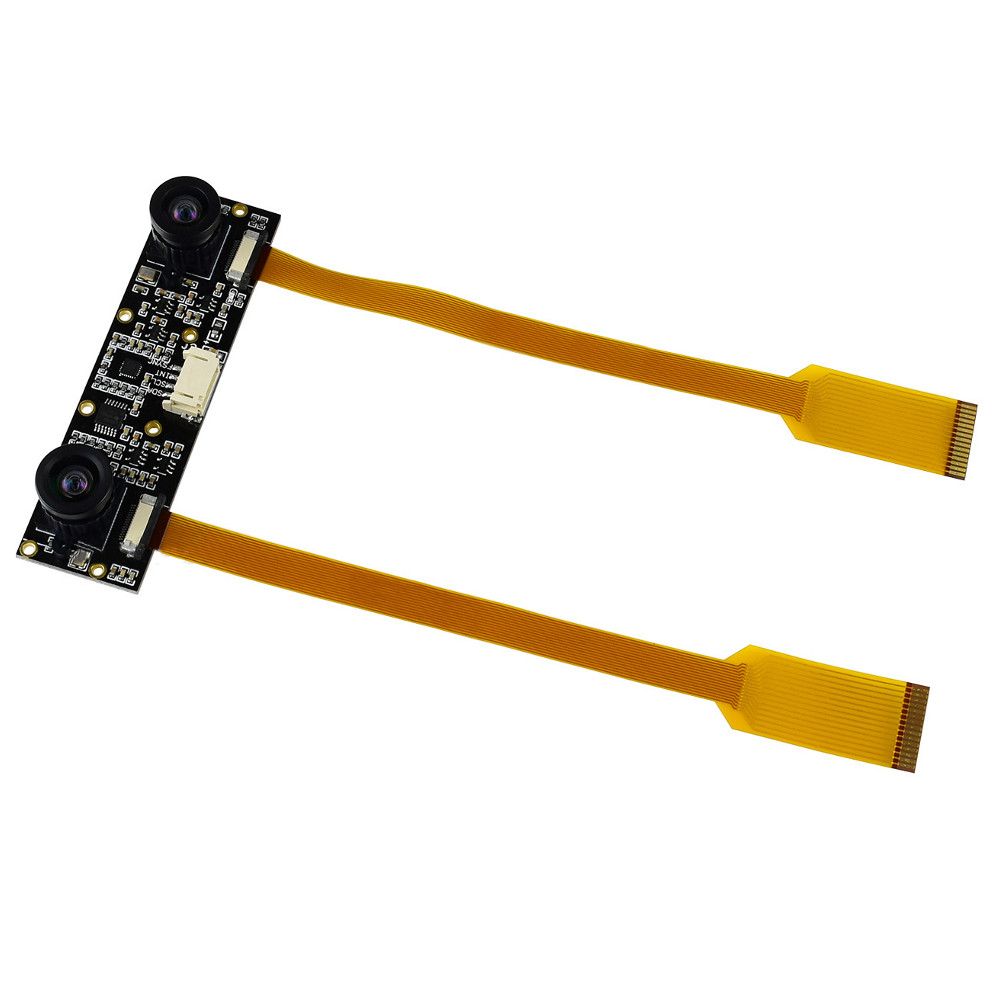

1 x FPC cable (2PCS)

1 x PH2.0 4PIN cable
