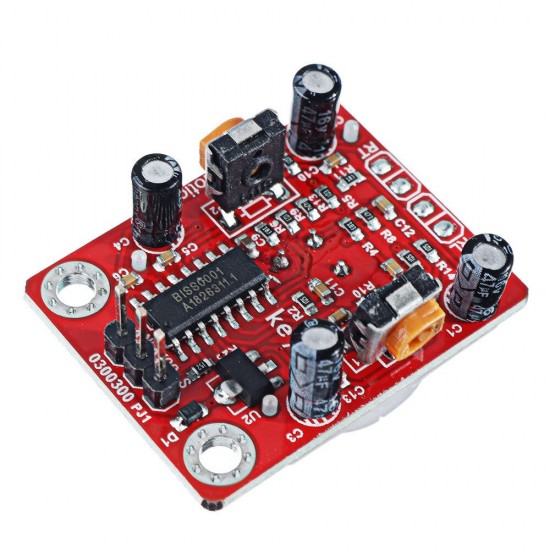

Human Body Infrared Pyroelectric Sensor(Pad hole) with Pin Header Module Digital Signal

Based on 0 reviews. - Write a review

$6.99

Ex Tax: $6.99

Stock: In Stock
Model: EB0043592
SKU: EB0043592

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC5V

Precise details>>

Description:

This module is compatible with various MCU control boards, such as MCU. Module contains 2 kind of interface for you . One is the anti-reverse insertion white terminal with a pitch of 2.54mm,we can use the module's own wire to connect to the microcontroller. To facilitate wiring, we also specially designed an extension that is fully compatible with this module and UNO R3 microcontroller board. The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight connected to the microcontroller.

Specification:

Working voltage: DC 5V-15V

Quiescent current: <20uA

Interface: Anti-reverse interface PIN interface

Hole size: 3mm in diameter

Trigger mode: L can not be triggered repeatedly / H can be triggered repeatedly

Maximum detection distance: 7m

Sensing angle: <100 degree cone angle

Wire length: 200mm

Control signal: digital signal

Light color: warn light

Size:37*26*25mm

Weight: 6.8g

Package included:

1 x Human Body Infrared Pyroelectric Sensor

(the other items are not includes)
