M8P Rover Lite UBLOX M8P GPS GLONASS Module compatible for PIXHAWK4 Flight Controller RC Drone FPV Racing Multicopter Multirotor
- Stock: In Stock
- Model: EB000557
- SKU: EB000557
Specification:
Brand: Renhotec
Item Name: H-RTK M8P Rover Lite
| GNSS | GPS L1 GLONASS L1 BeiDou L1 |
| Antennas Peak Gain(MAX) | 1.5dBi |
LNA Gain (typical) | 20.5±1dB |
| TIME-TO-FIRST Fix | Cold Start: ≤ 35s Hot Start: ≤ 1s |
RTK-SurveIn-Time | N/A |
| Data & Update Rate | RAW: 10Hz MAX RTK: 5Hz MAX |
| Port | 26cm Pixhawk4 compatible GH1.25 10-pin cable included |
| Antenna Connection Type | N/A |
| Baud Rate | 38400 5Hz(default) can be set |
Working Voltage | 4.75V~5.25V |
Dimensions | Diameter:50mm Height:14.5mm |
Weight | 32g |
User Manual, DOWNLOAD
Description:

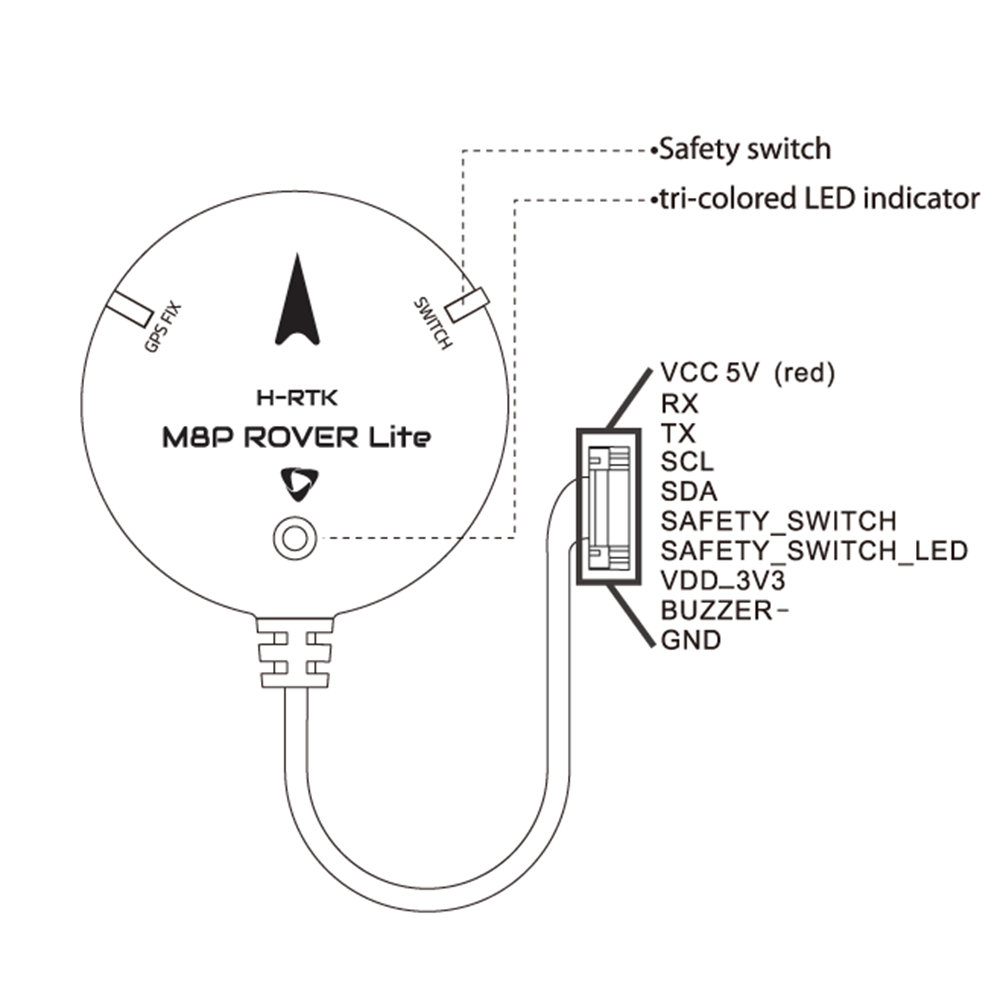

This model is lower cost, light weight, and has high performance, It can meet the needs of general DIY users. Due to the lower cost, this model can also greatly minimize the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.
Package Included:

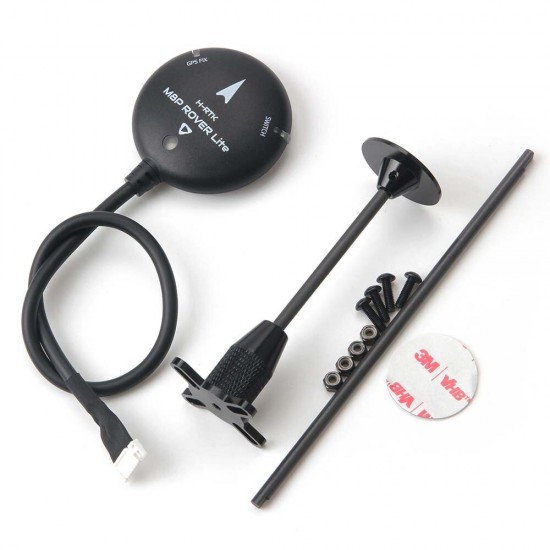

1 X Holybro H-RTK M8P Rover Lite GPS Module
