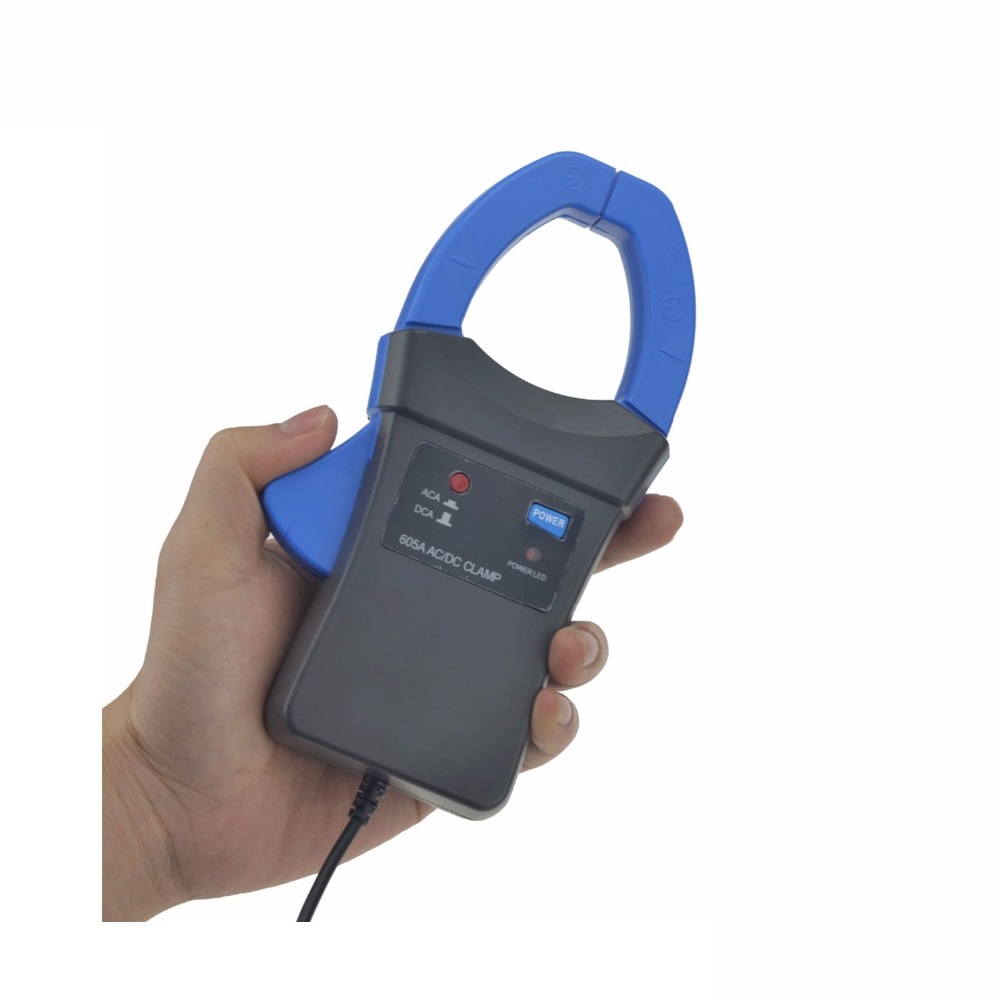

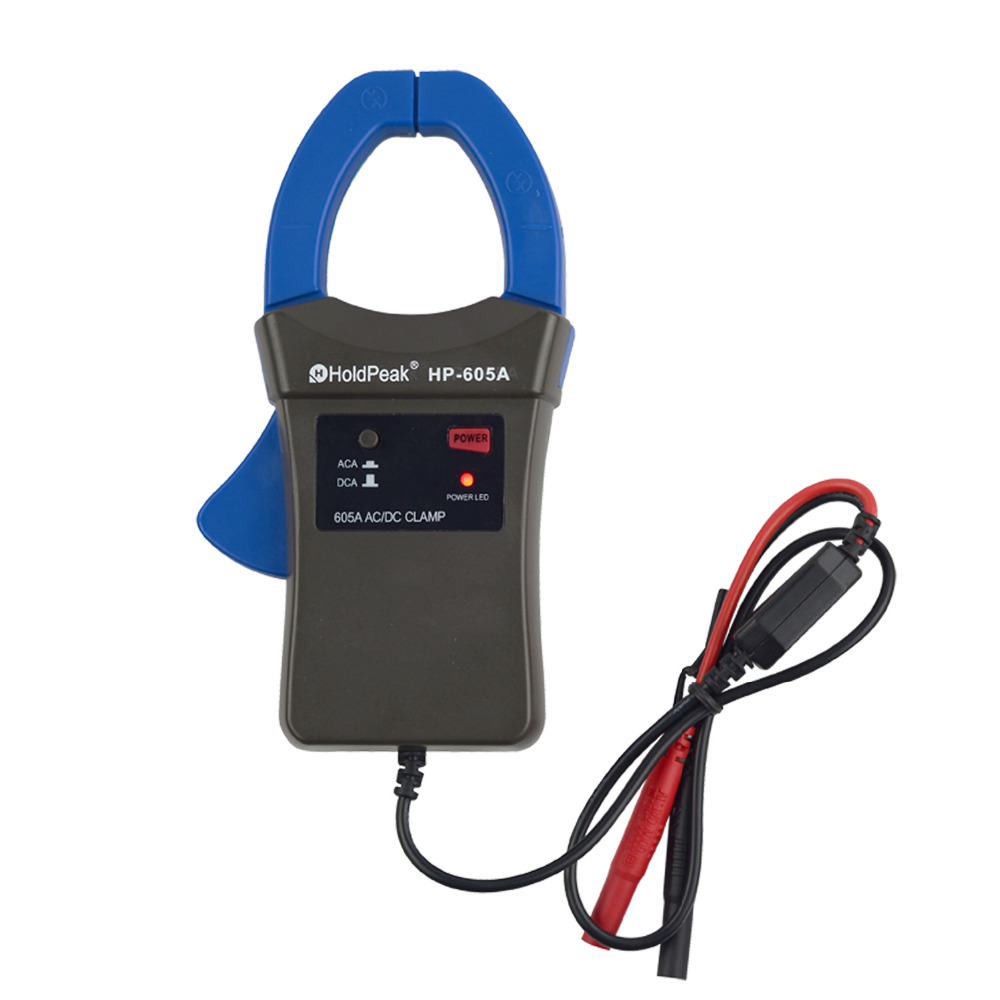

HP-605A Clamp Adapter Multimeter 600A AC/DC Current Power LED 45mm Jaw Caliber for High Amper
- Stock: In Stock
- Model: EB004256
- SKU: EB004256

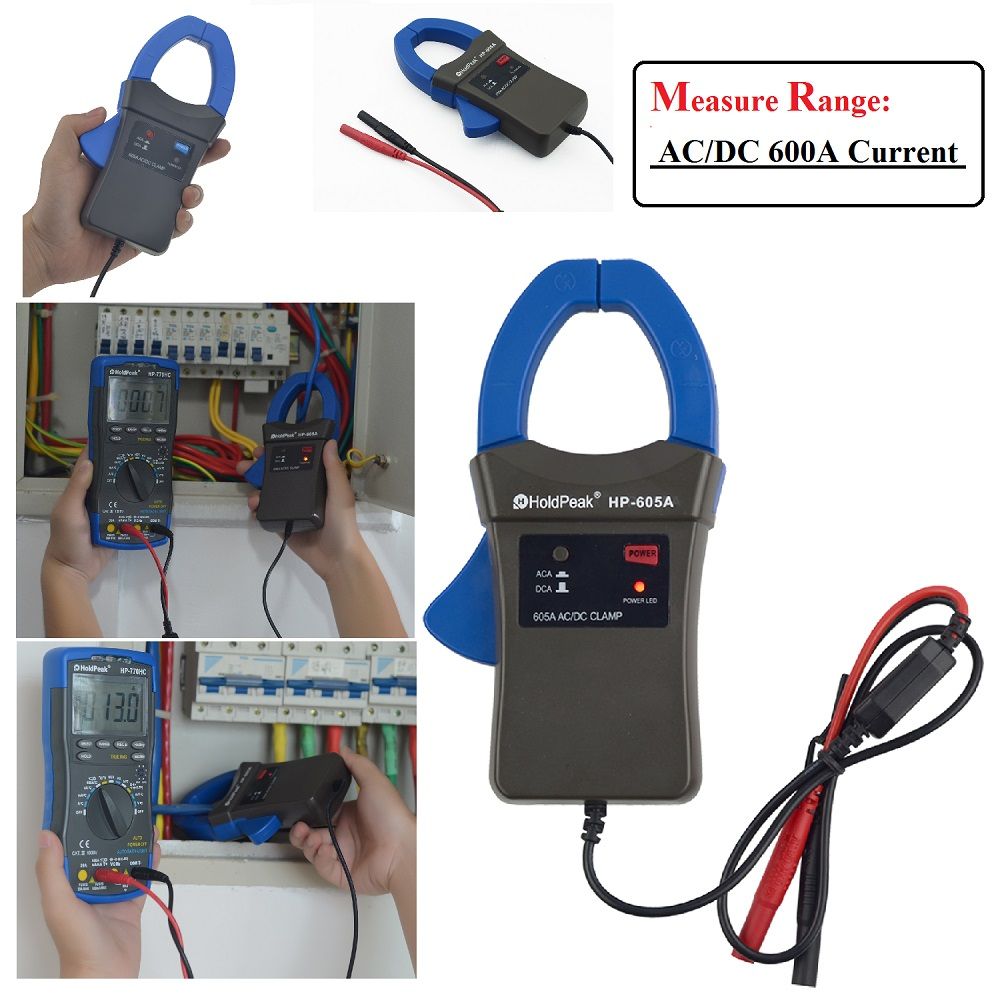

Measure Range: AC/DC 600A Current
Jaw Caliber: 400mm
Battery Type ( Not included in the package list ):9V*1
Dimension: 178*90*36mm
DC and AC 600A Current Measurement
1)Set the selector switch of multimeter to desired “600A” position.
2)Connect the black banana plug of the AC/DC Special Current Clamp Adapter to "COM" socket and the red banana plug to the "µA mA" socket.
3)Press “SELECT” button on the multimeter and push AC/DC button on the Clamp Adapter to choose “DC” or “AC” measurement .
4)When perform DC current measurement, always push “REL” key until the multimeter reads zero.

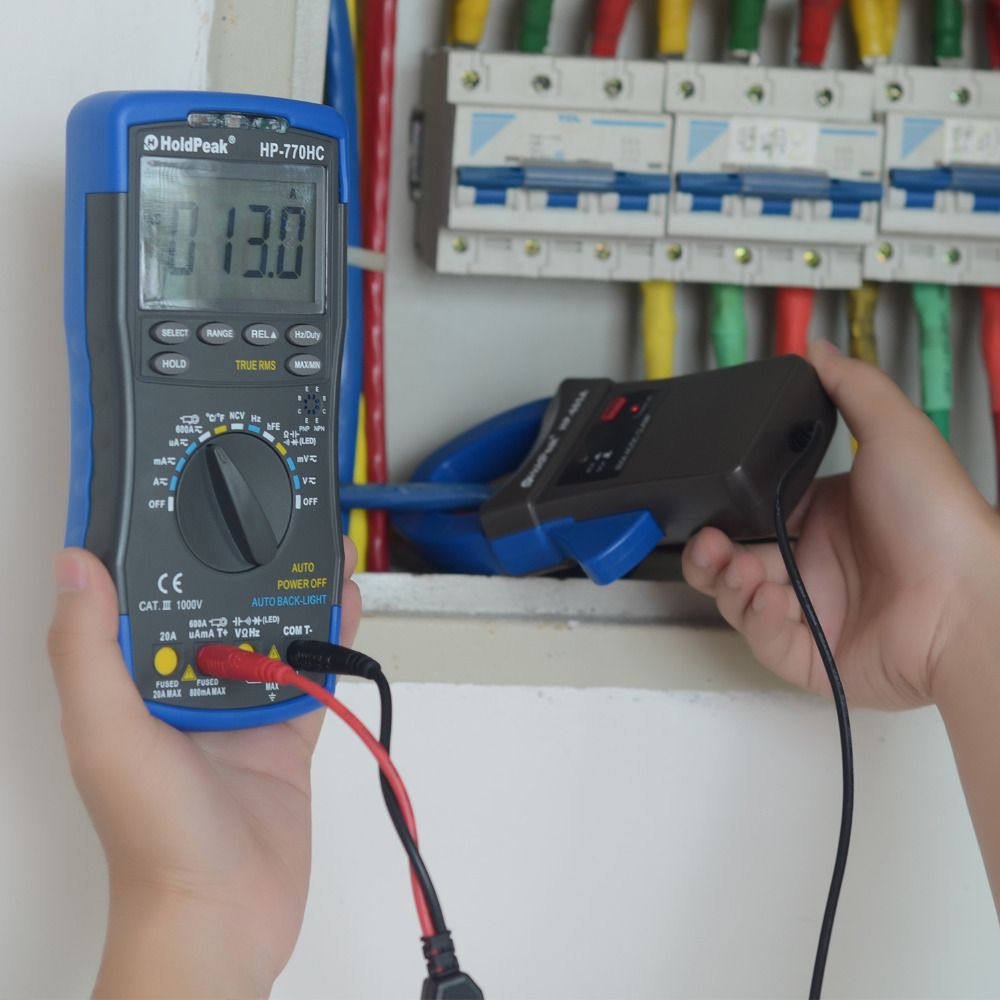

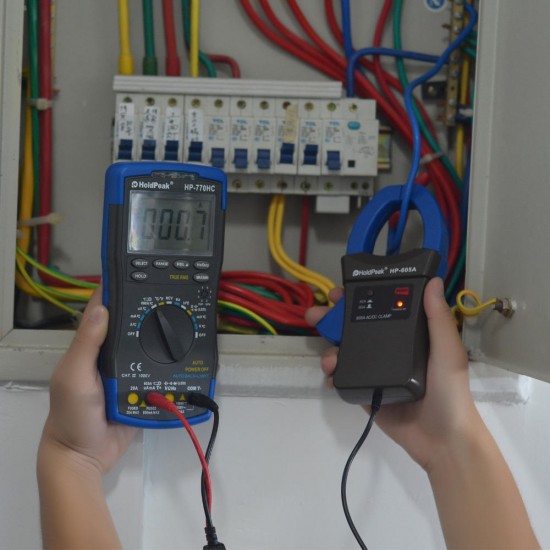

5)Clamp the Jaws around the one conductor to be measured. Center the conductor within the Jaw using the Centering Marks as guides.
6)Read the result from the multimeter LCD panel. The arrow in the Jaw indicates the DC current direction of positive current flow (positive to negative).
Package Includes:
1x HP-605A Clamp Adaptor
1x English User Manual
Details Pictures:
