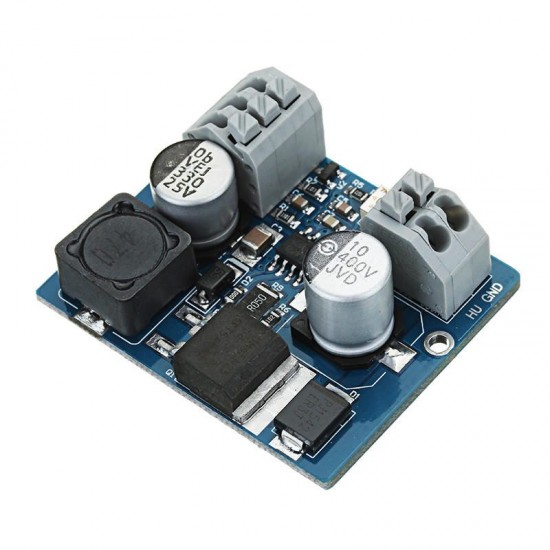

High Voltage DC 12V 24V to 85-235V Power Supply Boost Module For Nixie Tube Glow Tube Magic Eye
- Stock: In Stock
- Model: EB0043642
- SKU: EB0043642
| Feature | Symbol | Minimum | Typical | Maximum | Unit |
| Renhotec | Vin | 10 | 12 | 24 | Volts |
| Output voltage (Io=10mA) | Vout | 85 | --- | 235 | Volts |
| Output current (Vin=12V Vout=90V) | Iout | 0 | 45 | 95 | mAmps |
| Output current (Vin=12V Vout=170V) | 0 | 35 | 55 | mAmps | |
| Output current (Vin=12V Vout=220V) | 0 | 24 | 35 | mAmps | |
| Output control terminal voltage (SHDN) | Vshdn | 1.2 | --- | Vin | Volts |
| Output control terminal current (SHDN) | Ishdn | --- | --- | 2 | mAmps |
| No-load quiescent current (Vin=12V Vout=170V) | Ioff | --- | 15 | --- | mAmps |
| Conversion efficiency (Vin=12-18V, 50%-80% rated load) | Efficiency | --- | 80 | --- | % |
,
,
,
,
,
,
