DSO5102B 7inch 2-Channel Digital Storage Oscilloscope

DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
$472.55
Ex Tax: $472.55
  • Stock: In Stock
  • Model: EB004593
  • SKU: EB004593
Description :

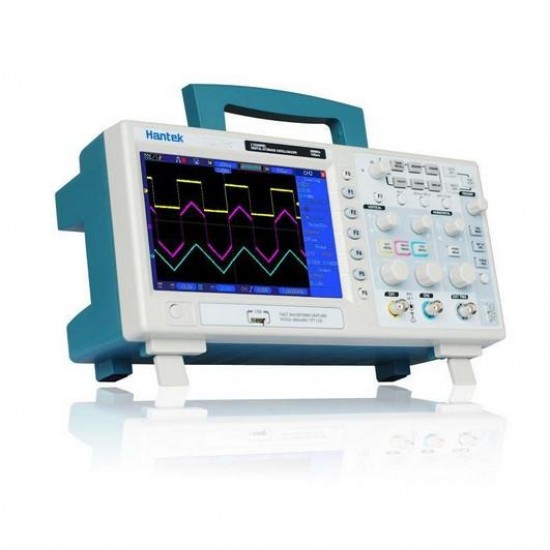

Professional Hantek DSO5102B 7inch 2-Channel Digital Storage Oscilloscope

Features:


200 / 100 / 60MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 1M
Trigger mode : edge / pulse width / line selectable video / slop / overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis

Specification :

Model
DSO5202B
DSO5102B
DSO5062B
Bandwidth
200MHz
100MHz
60MHz
Real-time Sample Rate
1GSa/s
Equivalent Sample Rate
25GSa/s
Record Length(Sample Points)
Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional)
SEC/DIV Range
4nS/div-40S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy
500ps
Vertical
A/D Converter
8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range
2mV/div~5V/div at input BNC
Position Range
±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div)
Bandwidth Limit
20MHz
Rise Time at BNC
≤1.7ns
≤3.5ns
≤5.8ns
DC Gain Accuracy
±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div
Trigger
Trigger Sensitivity
(Edge Trigger Type)
DC : CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
EXT(Typical) 200mV from DC to 40MHz
EXT/5(Typical) 1V from DC to 40MHz
AC: Attenuates signals below 10Hz
HF Reject: Attenuates signals above 80kHz
LF Reject: Attenuates signals below 150kHz
Noise Reject: Reduces trigger sensitivity
Trigger Level Range
CH1, CH2 : ±8 divisions from center of screen
EXT : ±1.2V EXT/5 : ±6V
Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns)
CH1, CH2 : ±(0.3div×V/div) (within ±4 divisions from center of screen)
EXT : ±(6% of setting + 40mV)
EXT/5 : ±(6% of setting + 200mV)
Holdoff Range
100ns-10s
Trigger Type
Edge
Trigger on the rising or falling edge
Pulse Width
Trigger (when >,<,=,≠) on positive or negative pulses
Pulse Width Range: 20ns-10s
Video
Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
Slope
Trigger (when >,<,=,≠) on a positive or negative slope
Set Time: 20ns–10s
Overtime
from the rising or falling edge
Set Time: 20-10s
Alternate
Internal trigger on edge, pulse width, video or slope
Measurement
Cursors
Manual : The difference between voltage cursors V, the difference between time cursors T,
1/T calculated by Hz.
Tracing : The voltage and time at a waveform point
Automatic
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time,
Positive Width, Negative Width
Display
Type
Right angle 7 inch TFT 16-digit color LCD
Resolution
800 x 480 dots
Contrast
16 gears, with the progress bar to show adjustment
Interface
USB host and USB slave
Power Supply
Voltage
100-120VACRMS(±10%), 45Hz to 440Hz,CAT II
120-240VACRMS(±10%), 45Hz to 66Hz,CAT II
Power
<30W
Fuse
2A, T rating, 250V
Mechanical
Size
Length : 313mm, Width : 108mm, Height : 142mm

Package includes :

1 x Professional Original Hantek DSO5102B 2-Channel Digital Oscilloscope
(Full accessories as picture shows)
Comes in color retail box.

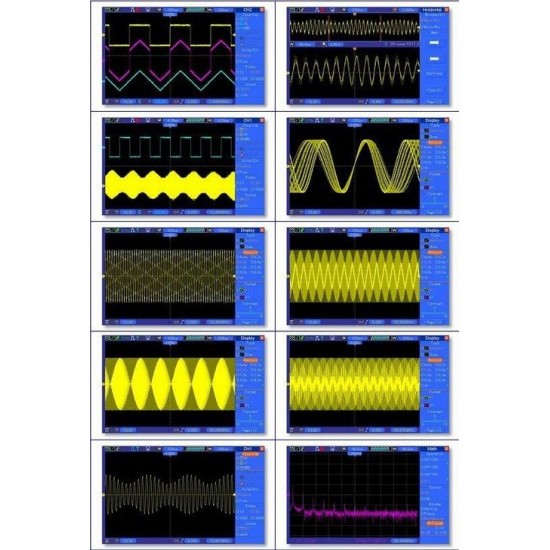

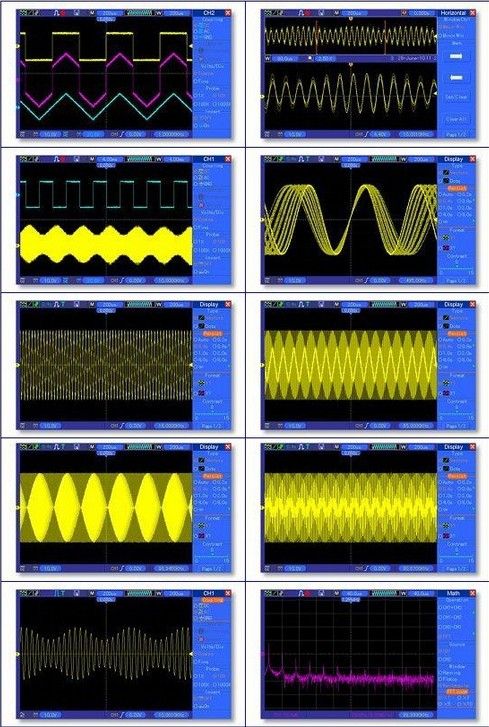

Details pictures :
