DSO1202B

200MHz oscilloscope with 6,000 multimeter;

Battery power operation (installed) industrial design;

Large 5.7 inch TFT color LCD display, LED backlight, display clearly.

Features:

200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.

1M Memory Depth.

High Refresh Rate (2500 frames).

Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed

One- automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.

Easy-to-use -up menu with built-in multi-language help system.

32 Automatic Measurements.

Waveform Math: Add, Subtract, Multiply, and Divide.

Store and recall over.

Automatic cursor tracking measurements.

XY Mode.

Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.

Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.

Pass/Fail function compares a stored waveform to an unknown input.

Average Mode for smoothing waveforms.

Square Wave Output (2V, 1kHz) for probe adjustment.

USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance.

Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.

Hantek-DSO1202B-Handheld-Oscilloscope-2-Channels-200MHz-with-6000-Multimeter-1463706

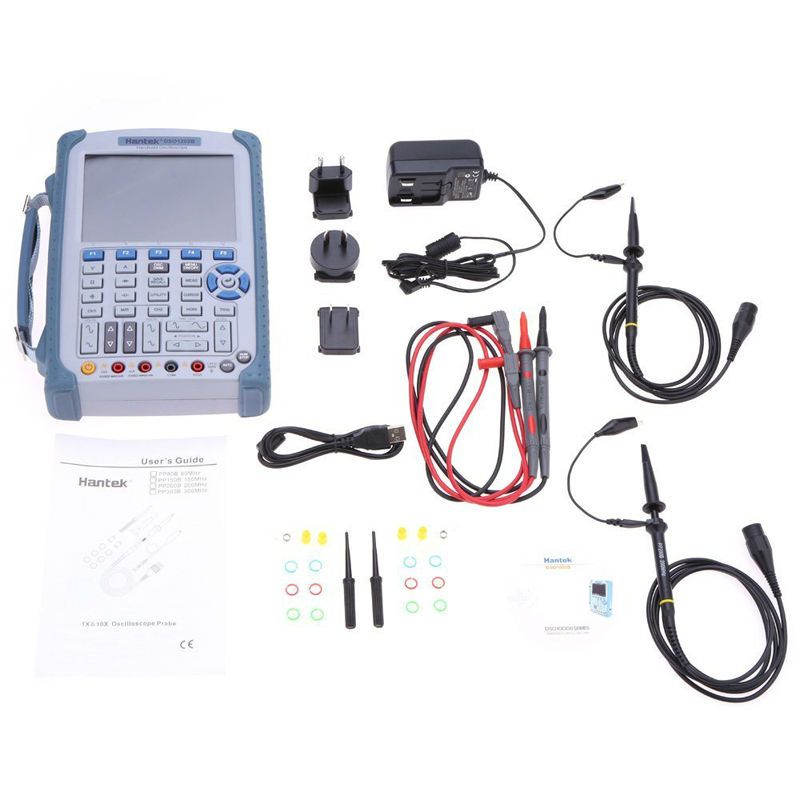

Package included:

1 x Hantek DSO1202B Handheld Oscilloscope

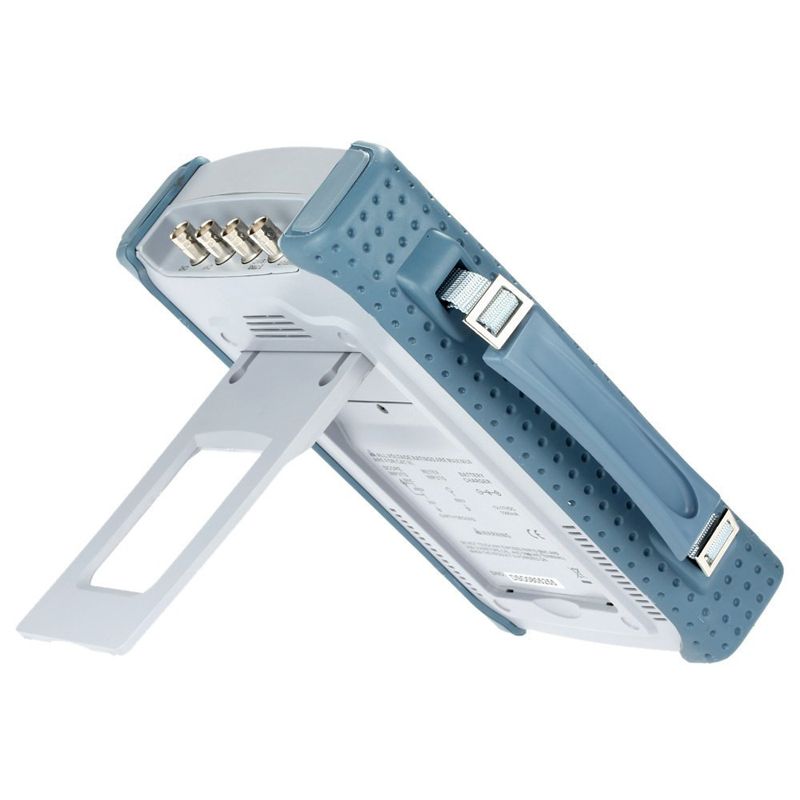

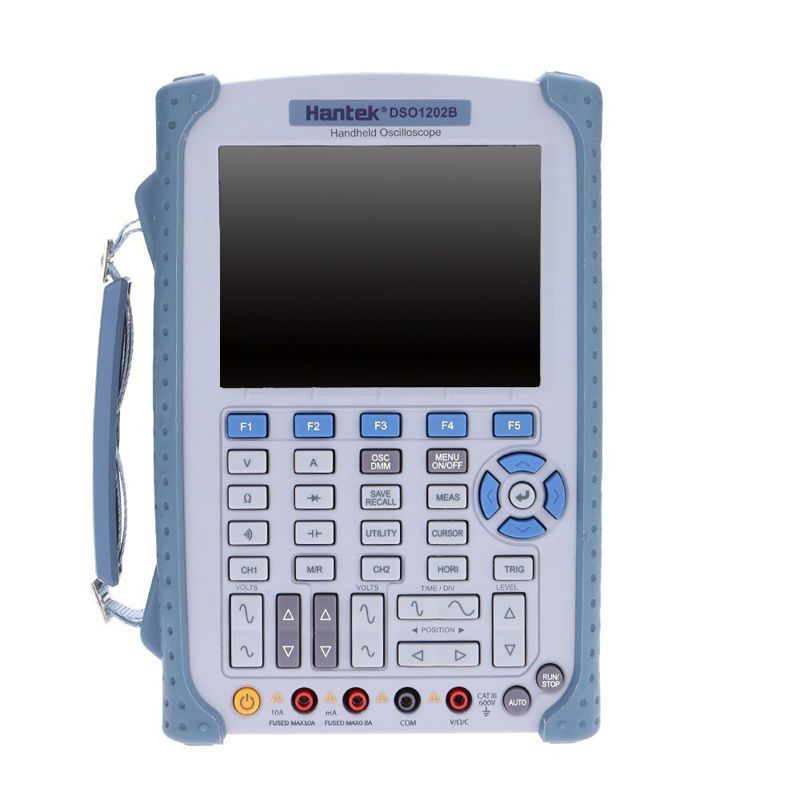

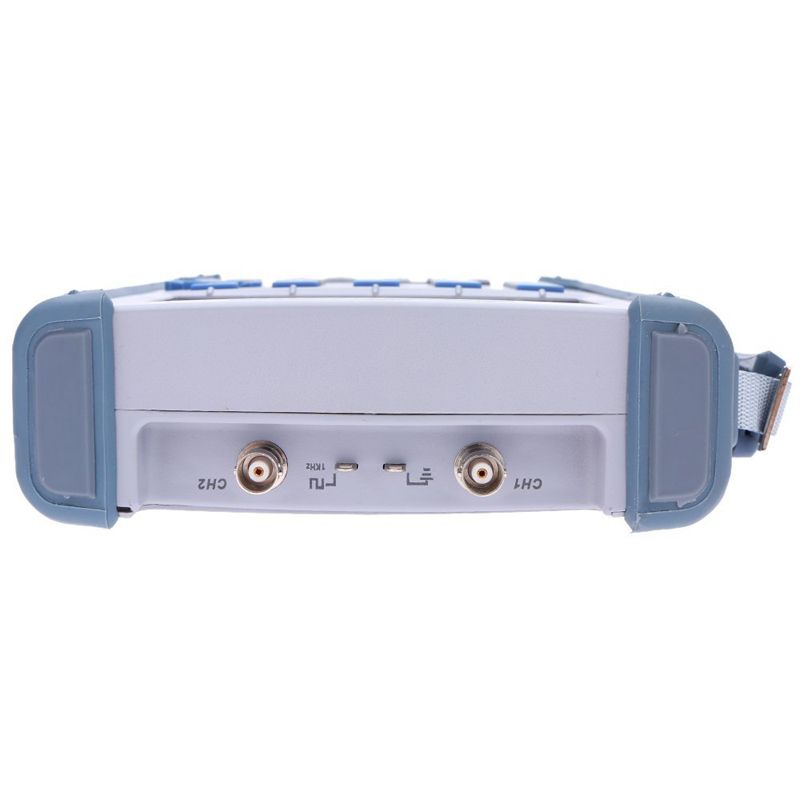

Details pictures:
