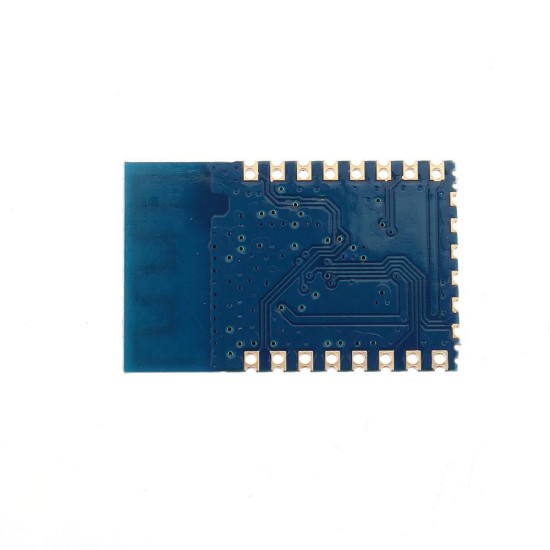

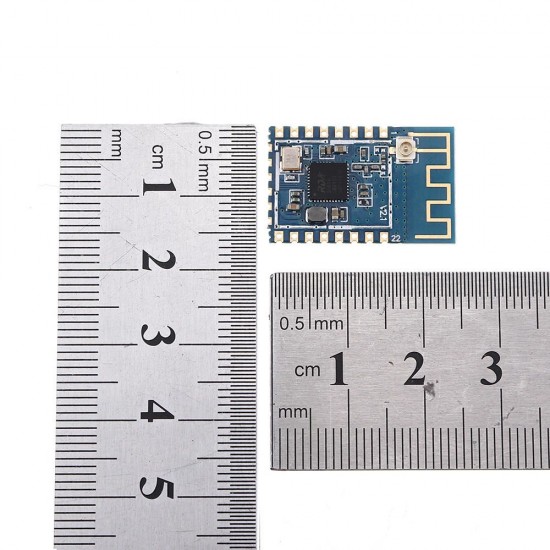

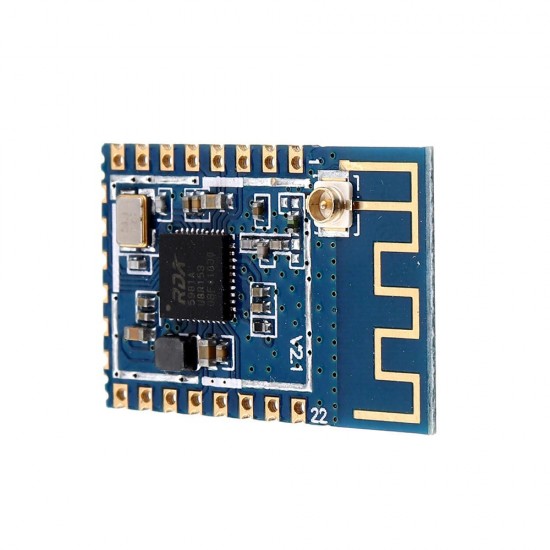

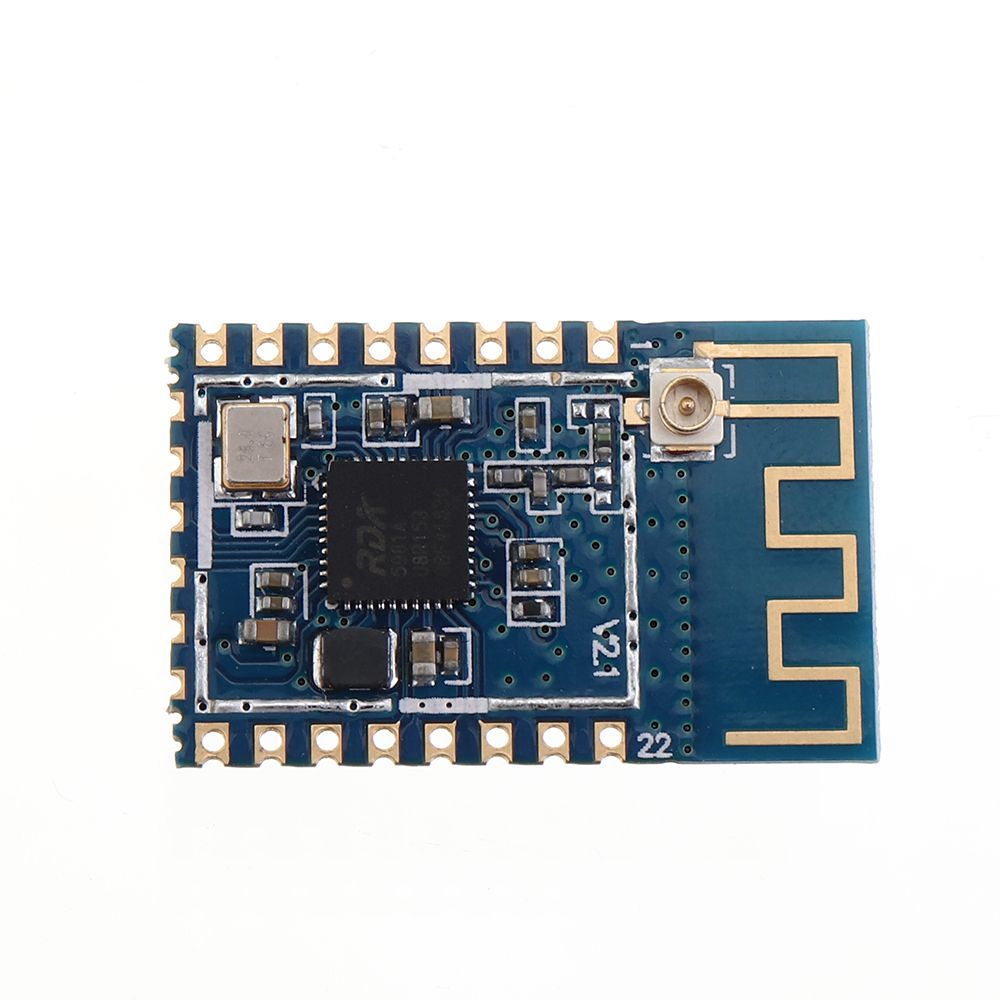

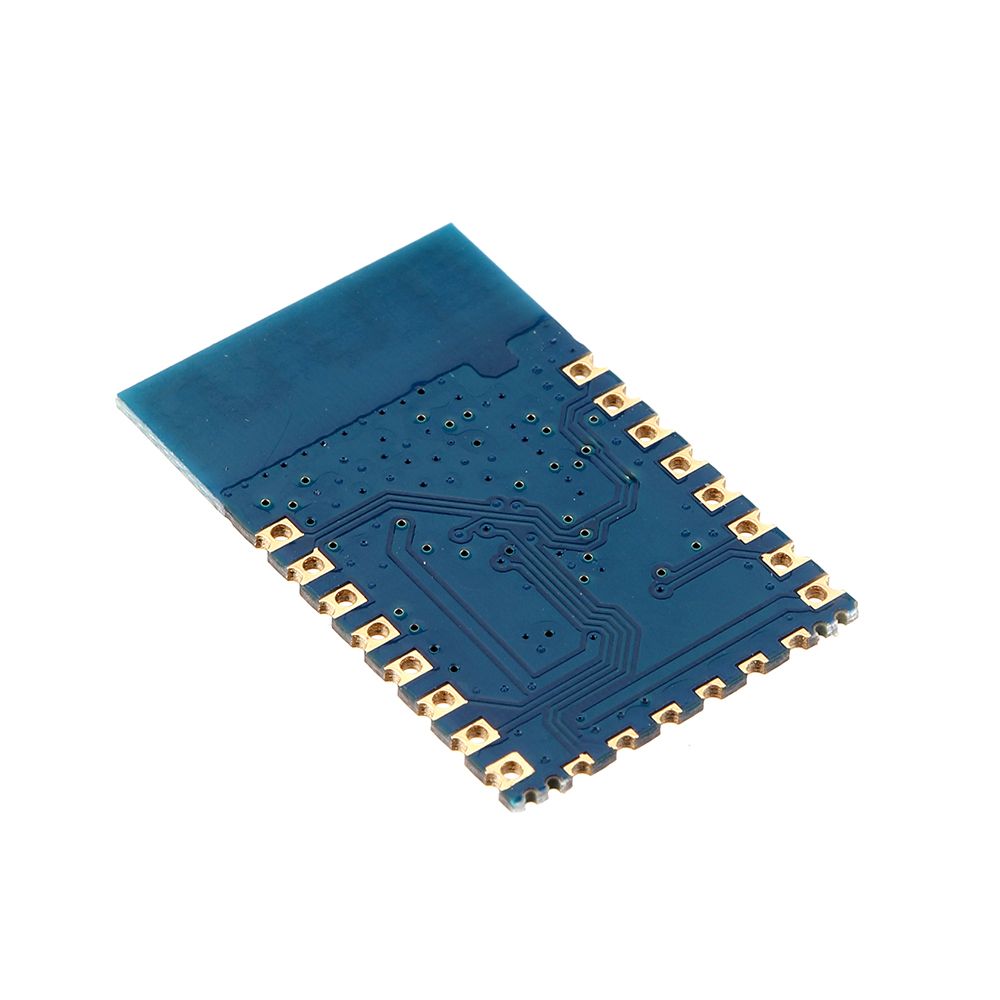

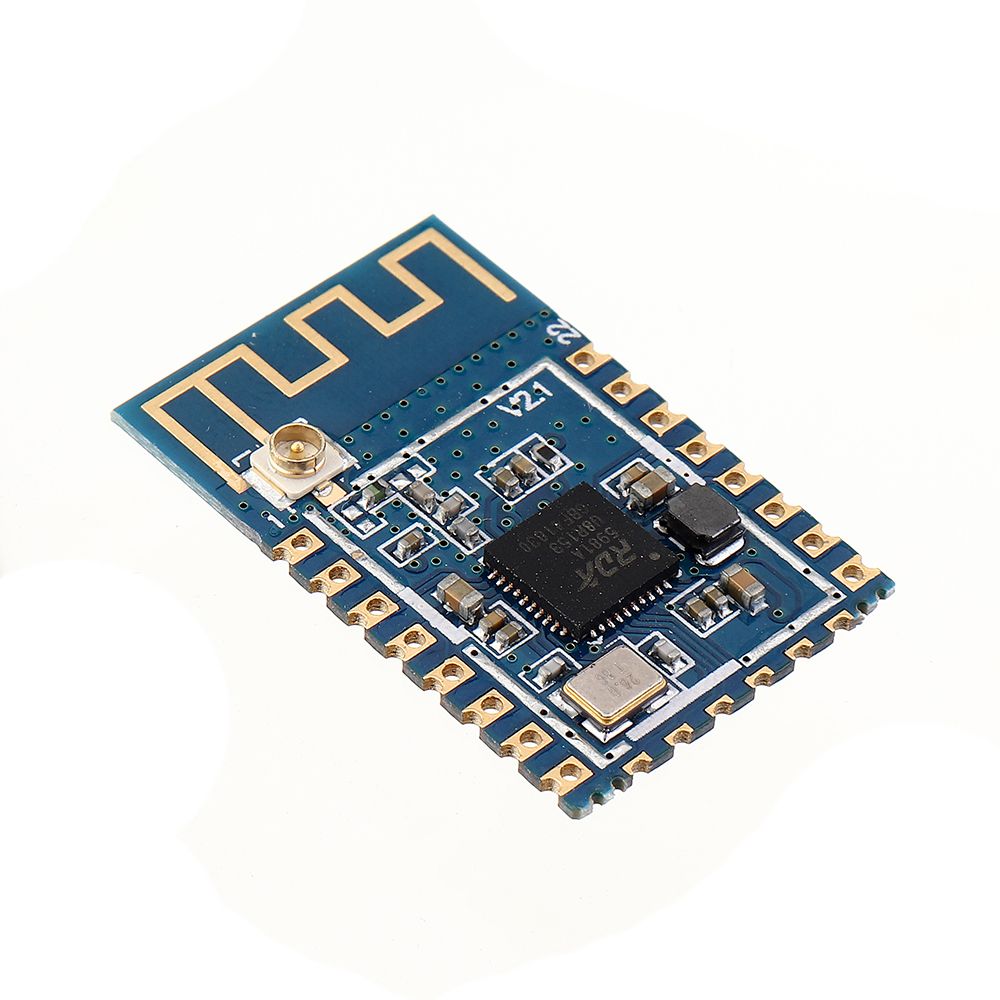

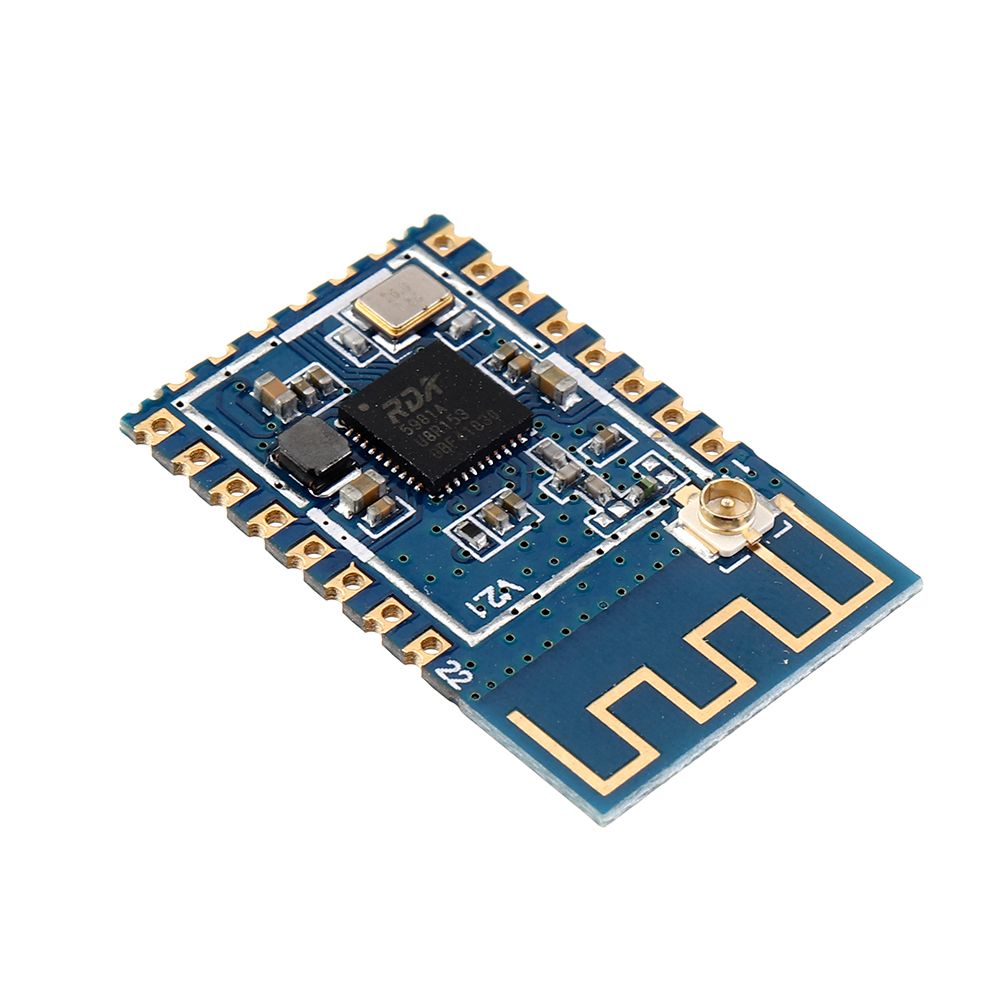

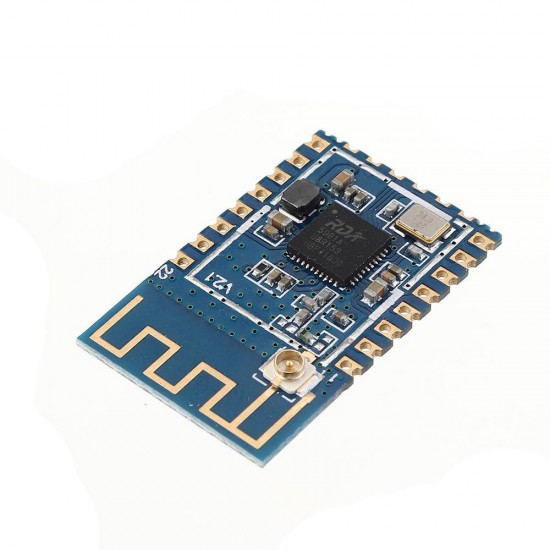

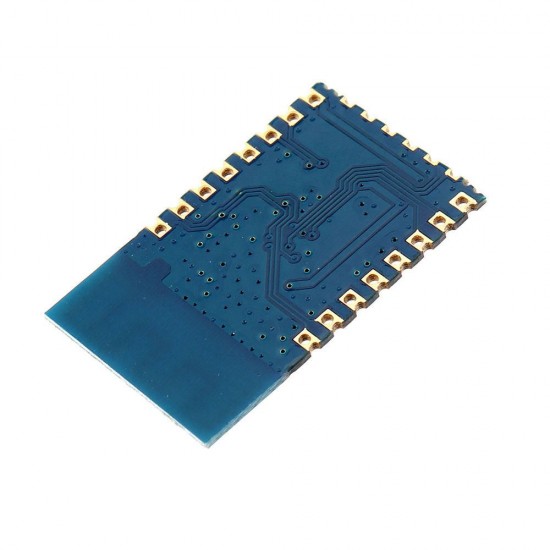

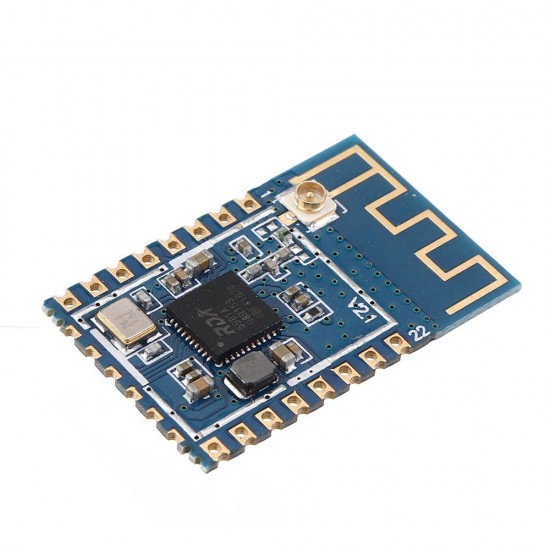

HLK-M50 RDA5981 Wireless Serial WIFI Module for Smart Home IoT Replace ESP8266
- Stock: In Stock
- Model: EB0045494
- SKU: EB0045494
|
Project | Parameters | |
| Memory System | Built-in RAM | 96K Bytes User SRAM 32K Bytes icache |
| Built-in Flash | Built-in 8Mbit flash | |
| Item | Parameter |
| GPIO | supports up to 17 GPIO ports, of which 16 can trigger interrupts |
| Serial performance | supports up to 2 serial ports, baud rate can be configured to 1200bps - 4Mbps |
| I2S Interface Features | Supports 2 I2S Interfaces; I2S Host BCLK Supports 96/192/384/512 / 44.1 / 88.2KHz; Supports 16/32 bit per channel, Data Format Configurable as 16/20 / 24bit or Software Configurable Maximum 24bit per channel) |
| I2C Interface Performance | Supports one I2C standard interface. Support master or slave operation. There are 3 standard speed modes: 1. Standard mode (<100Kb/s) 2. Fast mode (<400Kb/s) 3. High-speed mode (<3.4Mb/s) |
| PWM Interface Performance | Supports up to eight PWM interfaces; PWM cycle and duty cycle programmable, duty cycle can be configured between 0-100; cycle programmable, the software can choose a different clock to produce longcycles
|
| SPI Interface | As the SPI host, up to 4 SPI slave; SPI clock programmable and maximum 20Mhz; data length can be configured by software, the maximum 64bit; |
| SDMMC Interface | Support 1 SDMMC interface |
| USB Interface | Support 1 USB interface |
