HL0162 4 Channel OnvifUSB WIFI NVR Network Video Recorder for IP Camera
- Stock: In Stock
- Model: EB0024906
- SKU: EB0024906
| Model | HL0162 |
| Features | 1, Adapt Hi3515C chipset.High performance, stable, more clearer picture. |
| 2. Support muti-mode internet input, ONVIF agreement with standard, can connect to IPC with onvif and client with onvif. | |
| 3.Adapt one-step online support remote vewing control monitoring, recording, backup mobile surveillance, Mobile phone client to achieve two-dimensional code scanning. | |
| 4. Standard VGA, HDMI | |
| 5. support mouse, button, remote controller, USB, network, SATA backup. | |
| The main processor | Hi3515C |
| System resources | 4ch 1080P recording and 1ch 1080P playback at the same time |
| Coding ability | 4ch 1080P/960P/720P Real time |
| Local playback | 1ch 1080P/960P/720P |
| Display | 1,4ch display |
| Operation system | Embedded Linux operation system |
| Video standard | PAL: 625TVL, 50FPS; NTSC: 525TVL, 60FPS |
| Image compression | H.264(High Profile) |
| Operation interface | 16-bit true color GUI, on-screen menu tips |
| Voice intercom | No Support |
| Recording mode | By manual,scheduled,alarm,motion detection |
| Recording search | By time,event,access,log |
| Space Occupation | Video:CIF 4~5G/day/ch, D1 16~20G/day/ch, 720P 25~30G/day/ch, 960P 35~40G/day/ch 1080P 45~50G/day/ch Audio: 691.2M/day/ch |
| Recording storage | Local hard disk,Network |
| Backup Mode | Network backup,USB backup |
| Video input | 4ch 1080P/960P/720P Pure network input |
| Video output | 1ch VGA |
| Audio input | No Support |
| Audio output | No Support |
| Alarm input | No Support |
| Alarm output | No Support |
| Network interface | RJ45 10M/100M adaptable Ethernet port |
| USB interface | 2xUSB2.0 |
| HDD interface | 1xSATA interface,maximum 4T HDD |
| Power supply | 12V 2A power supply |
| Power Consumption | <10W |
| Operation emperature | 0℃-55℃ |
| Humidity | 10% |
| Atmospheric Pressure | 86kpa |

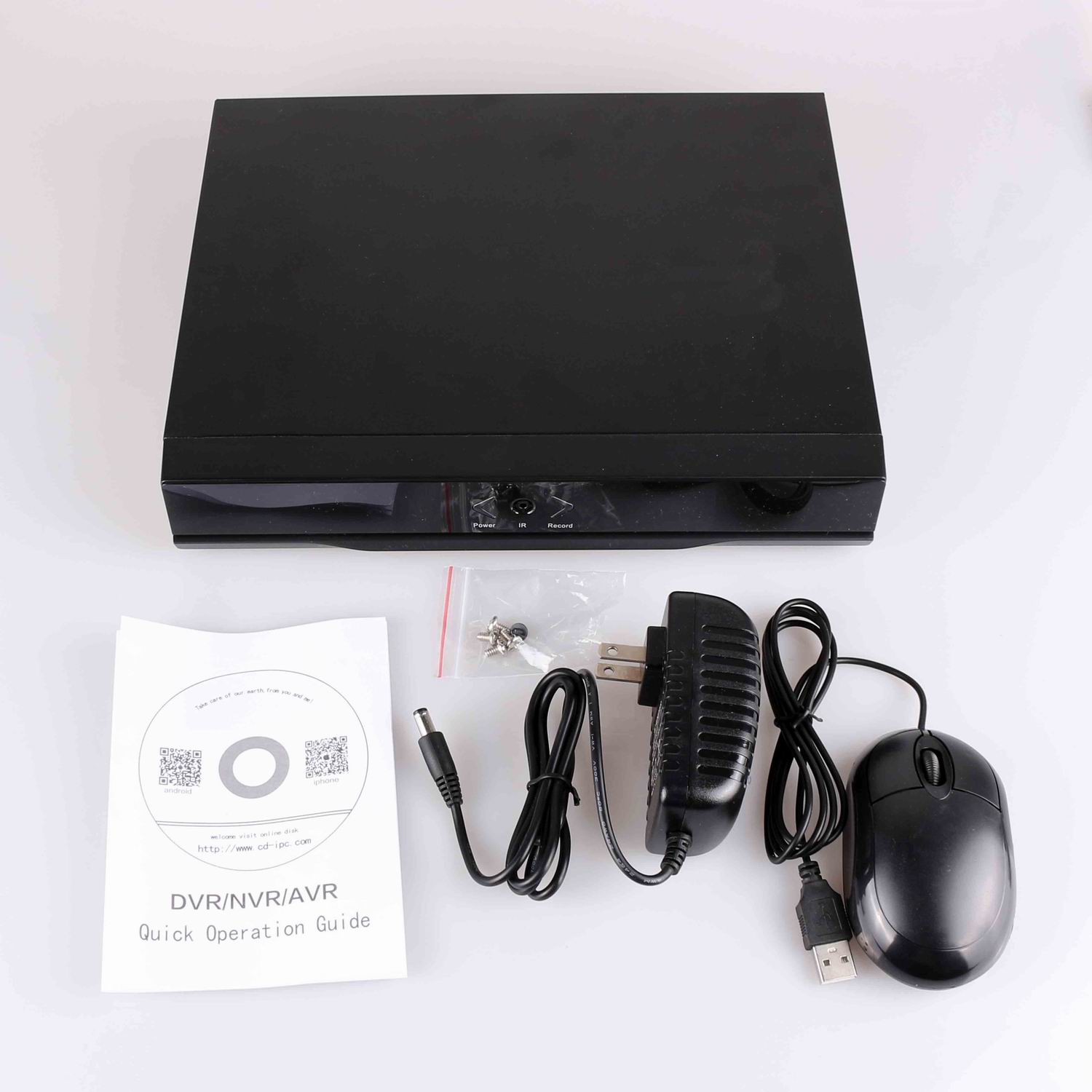

1 x User Manual
1 x USB Mouse(this one can not support the remote control)
1 x Power Plug
,
,
,
,
,
,
,
