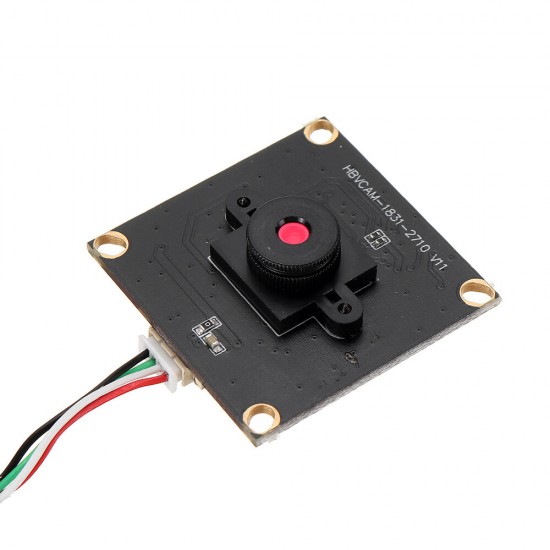

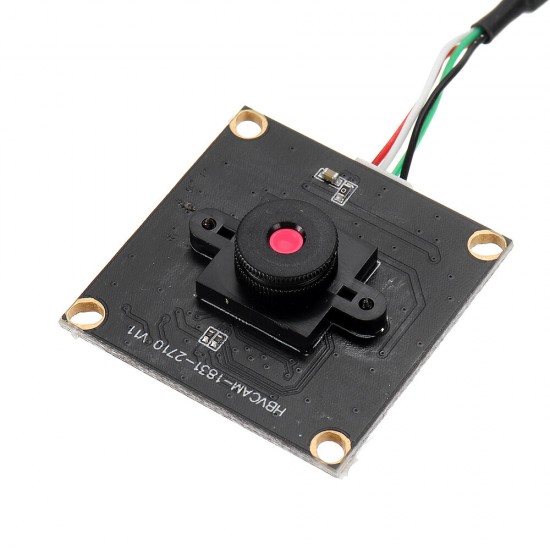

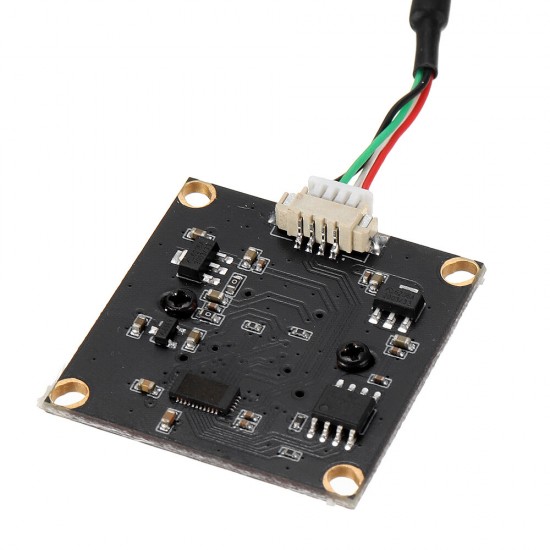

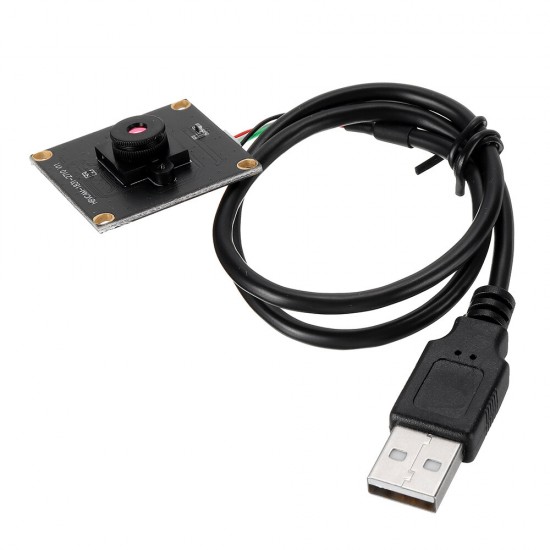

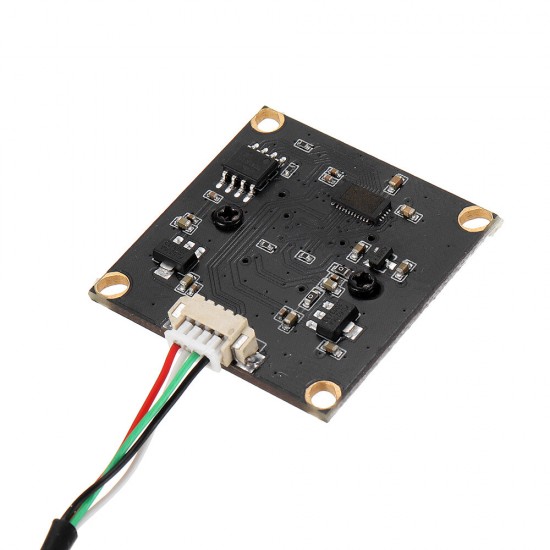

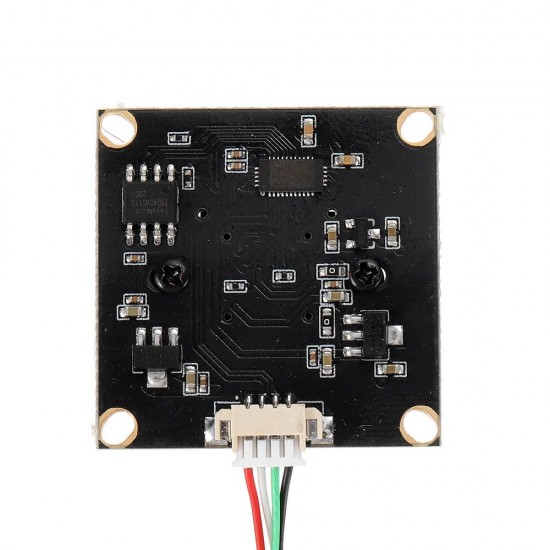

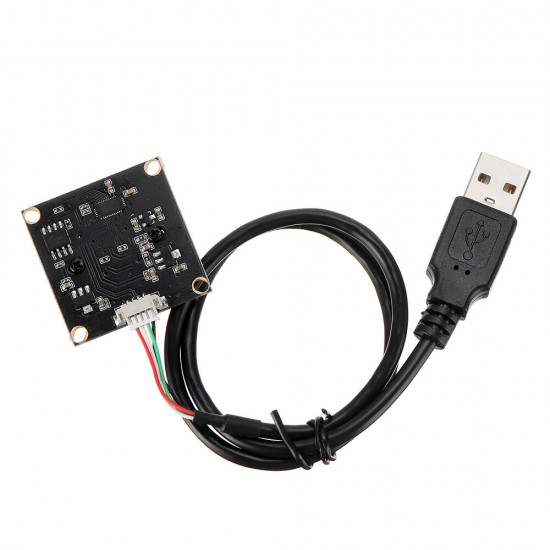

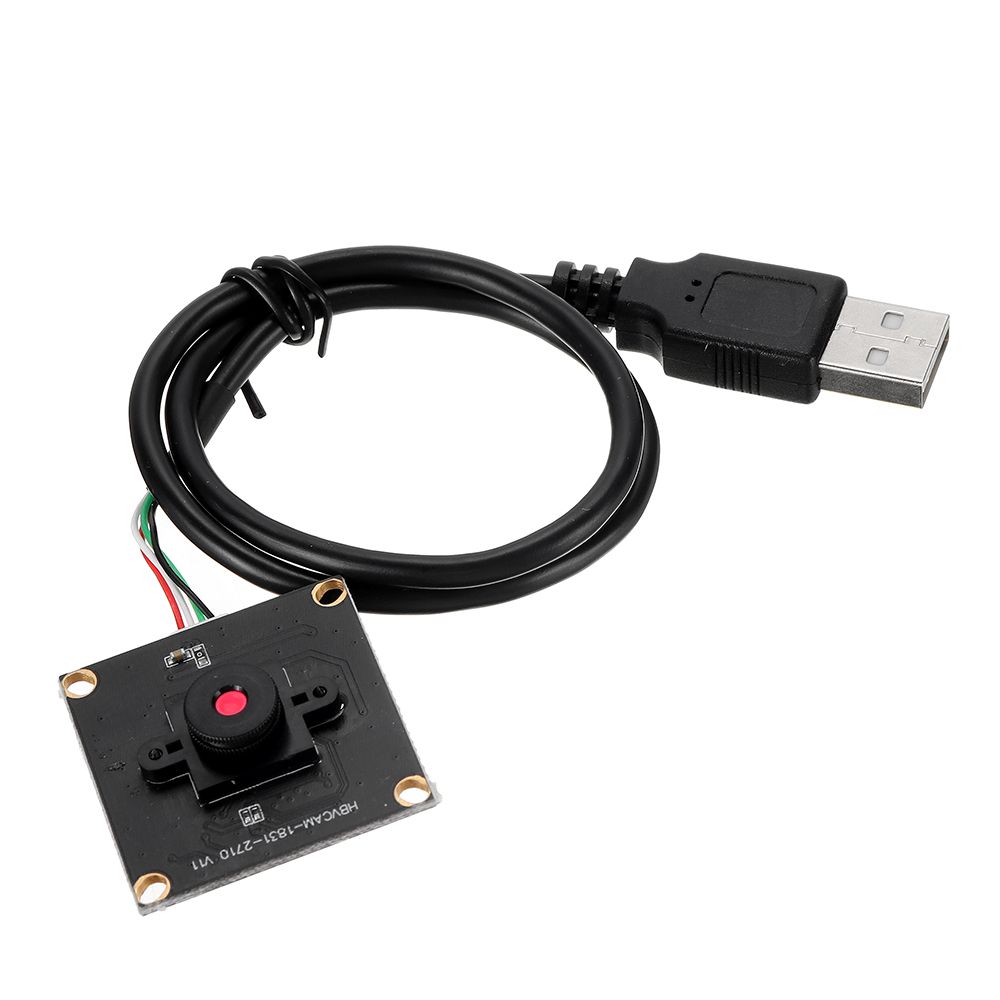

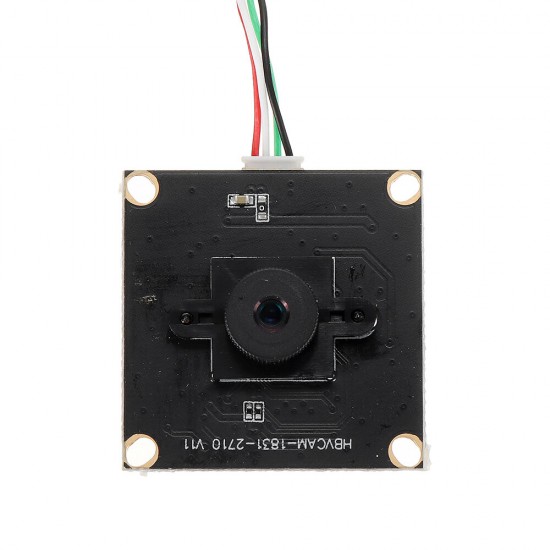

HBV-1831 2MP Fixed Focus OV2710 HD CMOS Camera Module Support YUY2/MJPEG
- Stock: In Stock
- Model: EB0049357
- SKU: EB0049357
| Model No. | HBV-1831 |
| Model Size | 32mm × 32mm × 8.1mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinit |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | OV2710 (1/2.7” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 10 /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate |
MJPEG 640x480 120FPS / YUY2 640X480 30FPS MJPEG 800x600 60FPS / YUY2 800X600 20FPS MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 60FPS / YUY2 1280X720 10FPS MJPEG 1280x1024 30FPS / YUY2 1920X1080 6FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 69B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 6P |
| F/No | 2.0 |
| EFL | 4.262 mm |
| FOV | 77° |
| TV Distortion | <1.5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

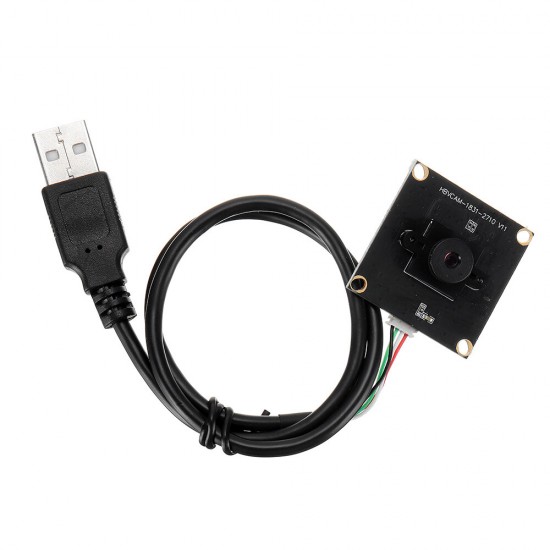

| USB cable | 50CM |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
