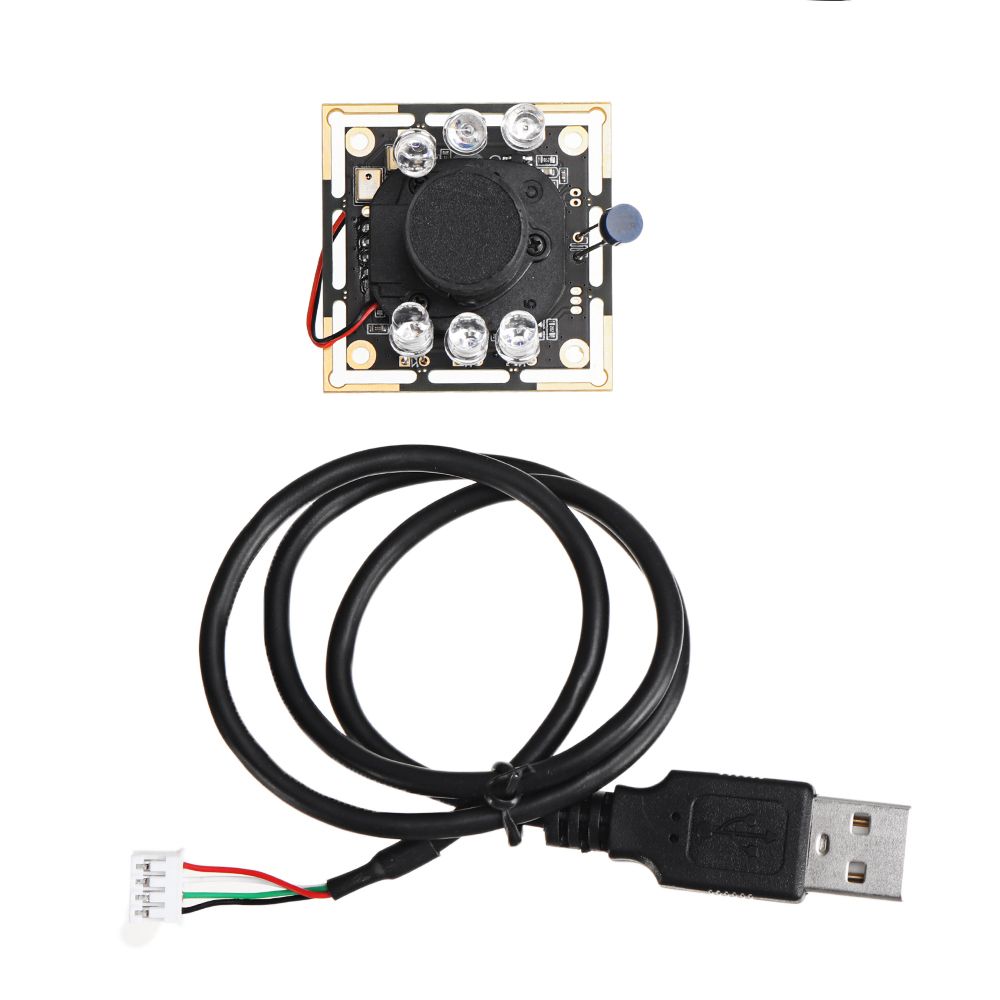

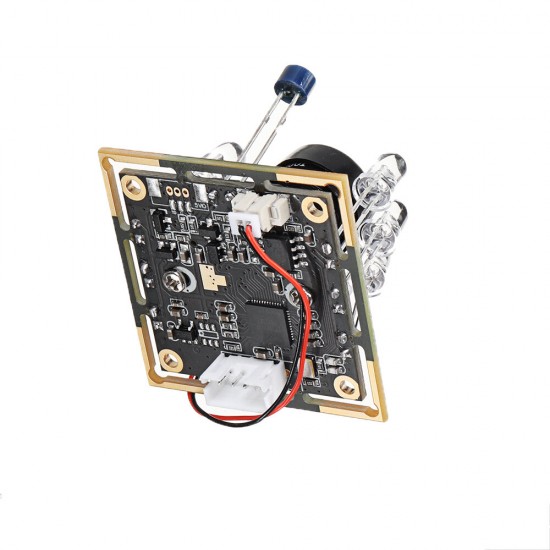

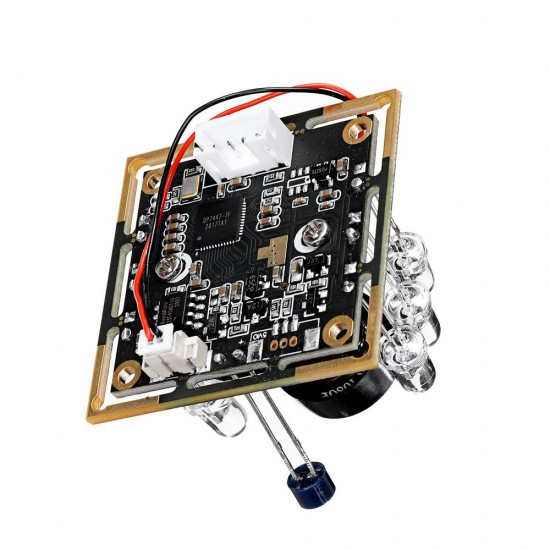

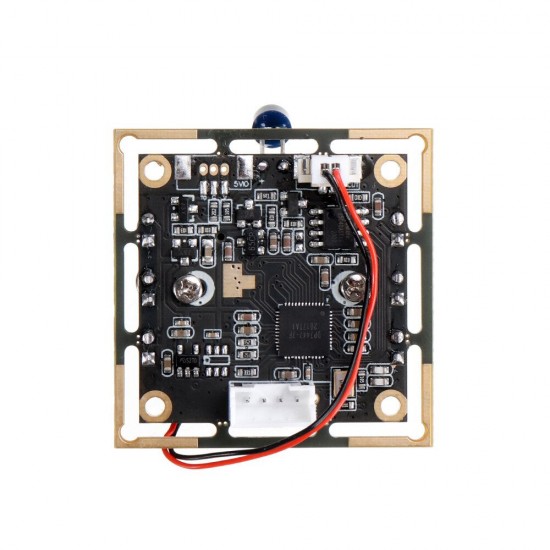

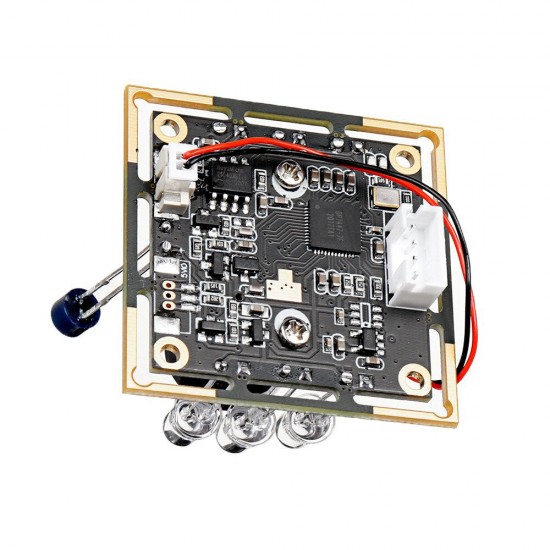

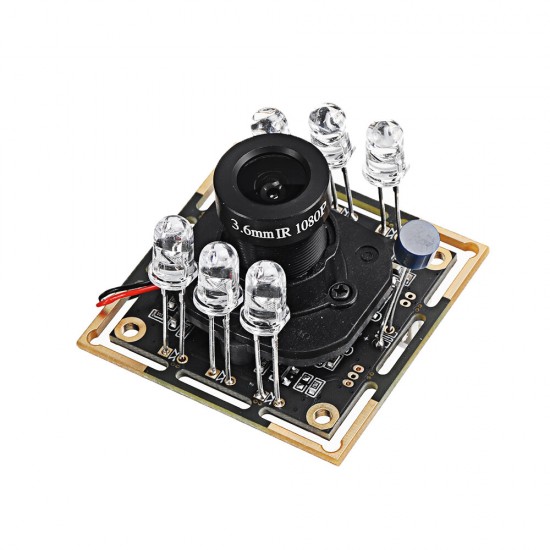

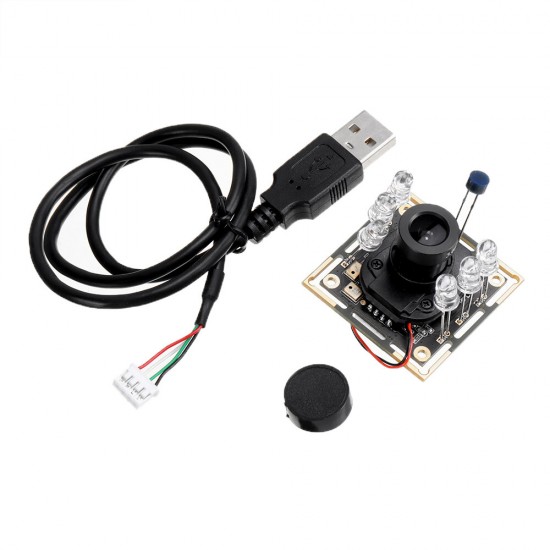

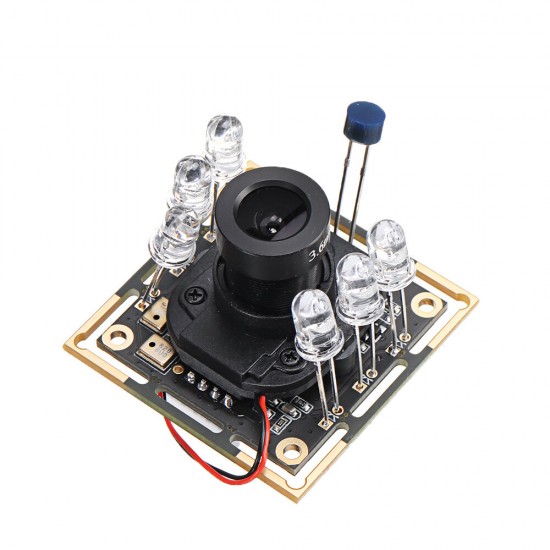

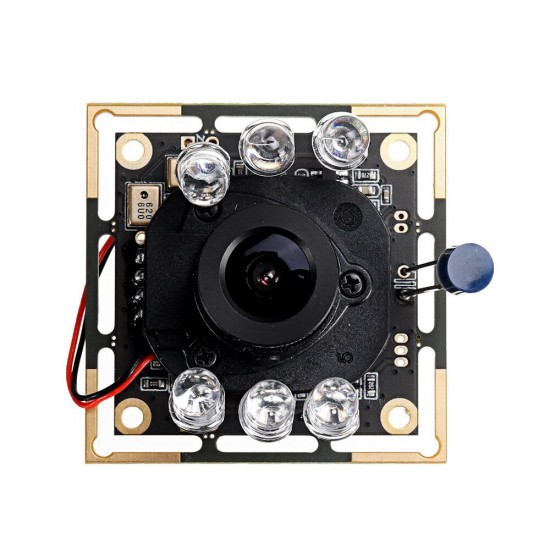

HBV-1716 IR-CUT Infrared Lamp 1080P HD 2 Million Pixel Camera Module Automatically Switches the Night and Day Mode 2MP
- Stock: In Stock
- Model: EB0050022
- SKU: EB0050022
| Model No. | HBV-1716 IR-CUT |
| Model Size | 38mm × 38mm × 24.2mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinit |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1650 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | OV2710 (1/2.7” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 10mv /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate |
MJPEG 160x120 30FPS / YUY2 160X120 30FPS MJPEG 320X240 30FPS / YUY2 320X240 30FPS MJPEG 352X288 30FPS / YUY2 32X288 30FPS MJPEG 640X480 30FPS / YUY2 640X480 30FPS MJPEG 1280x720 30FPS / MJPEG 1920x1080 30FPS / |
| S/N Ratio | 39B |
| Max Dynamic Range | 69B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Renhotec |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 94 |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

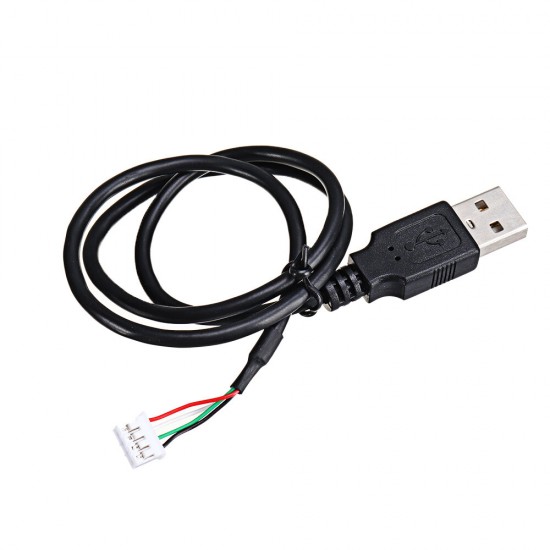

| USB cable | 50 |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
