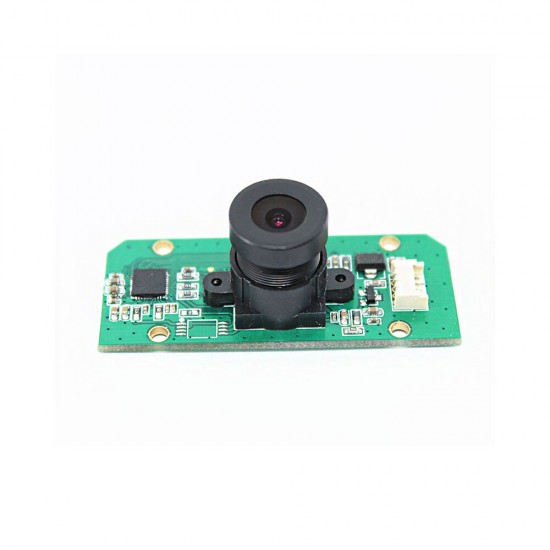

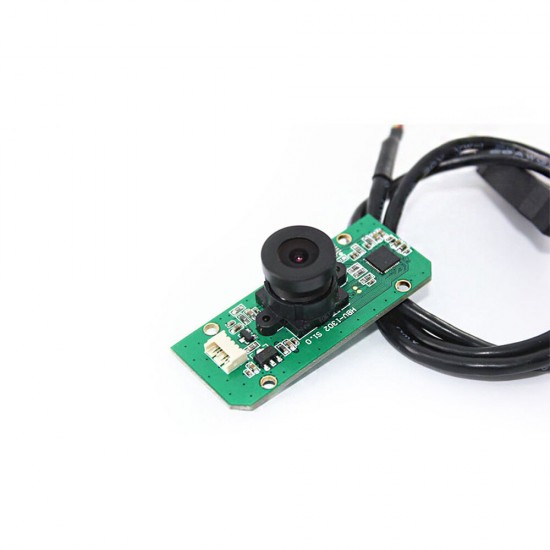

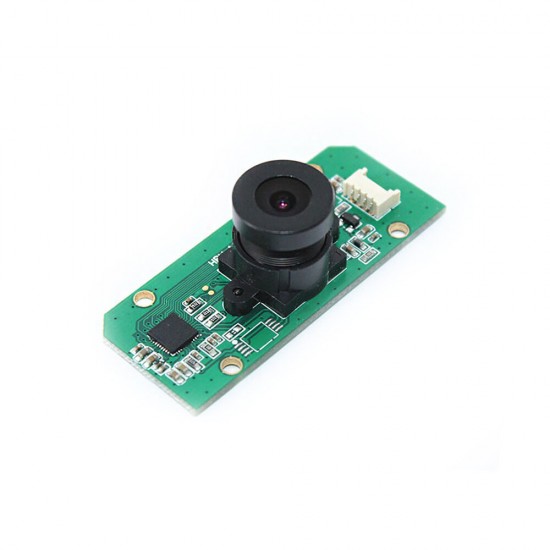

HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution

HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera with Standard UVC Protocol High Definition 640*480 Resolution
$17.99
Ex Tax: $17.99
  • Stock: In Stock
  • Model: EB0048483
  • SKU: EB0048483
>
Specifiction:

Sensor: OV7725
Resolution: 640*480
Optical Format: 1/4 inch
Sensitivity: 3.8V/Lux-sec
S/N Ratio: 50dB
Dynamic Range: 60dB
Pixel Size: 6.0um*6.0um
Image Area: 3984um*2952um
Object distance: 30-infinity
Interface: 5PIN USB2.0
DFOV: 120 degree
HFOV: 100 degree
VFOV: 67 degree
Operating system:
Free driver for  Windows 2000 Windows XPWindows 7  /
Linux  and Android system with Standard UVC Protocol
Model Size:52MM*21MM*19MM

Package Included:

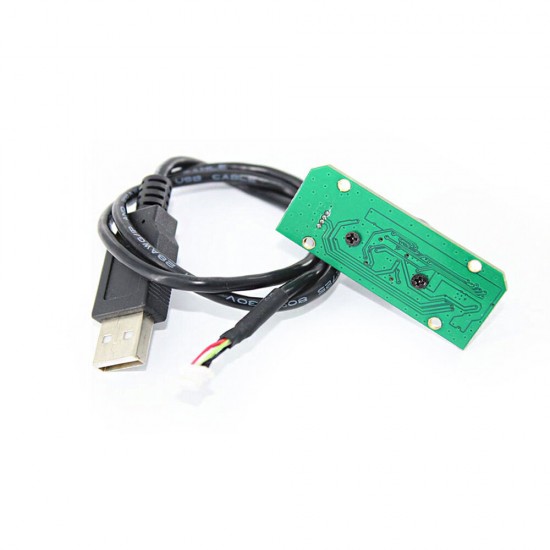

1 x HBV-1302 WA OV7725 0.3MP 60FPS MINI USB Camera Module
1 x 40cm USB Cable

HBV-1302-WA-OV7725-03MP-60FPS-MINI-USB-Camera-with-Standard-UVC-Protocol-High-Definition-640480-Reso-1703572
