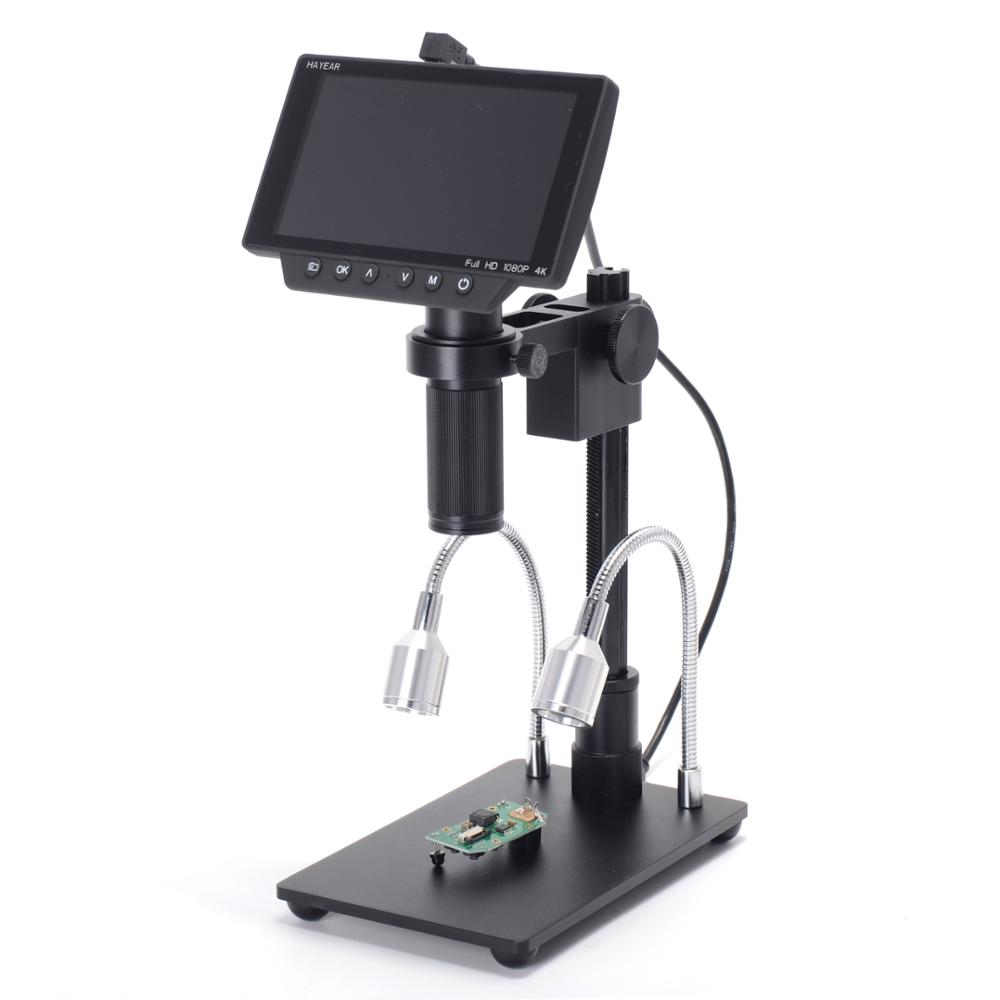

HY-1070 5 Inch Screen 16MP 4K 1080P 60FPS USB & WIFI Digital Industry Microscope Camera
- Stock: In Stock
- Model: EB004848
- SKU: EB004848
Features:
The HY-1070 is a multifunctional digital microscope,individually designed and developed. It realizes Full HD, high object distance, multifunction and multi-output at the same time. With help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. And it

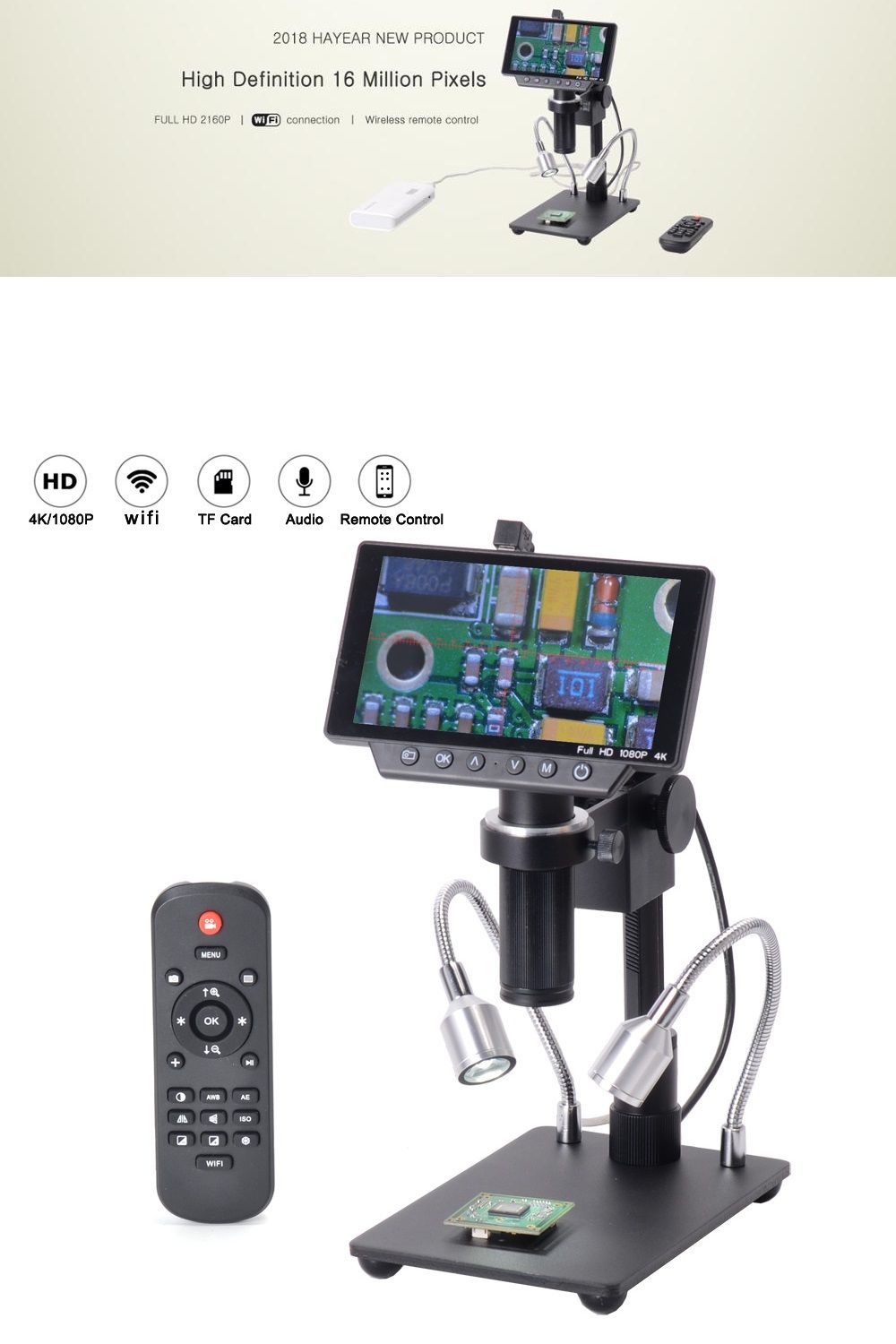

HD definition 16 million pixels
Full HD 2160P
WiFi Connection

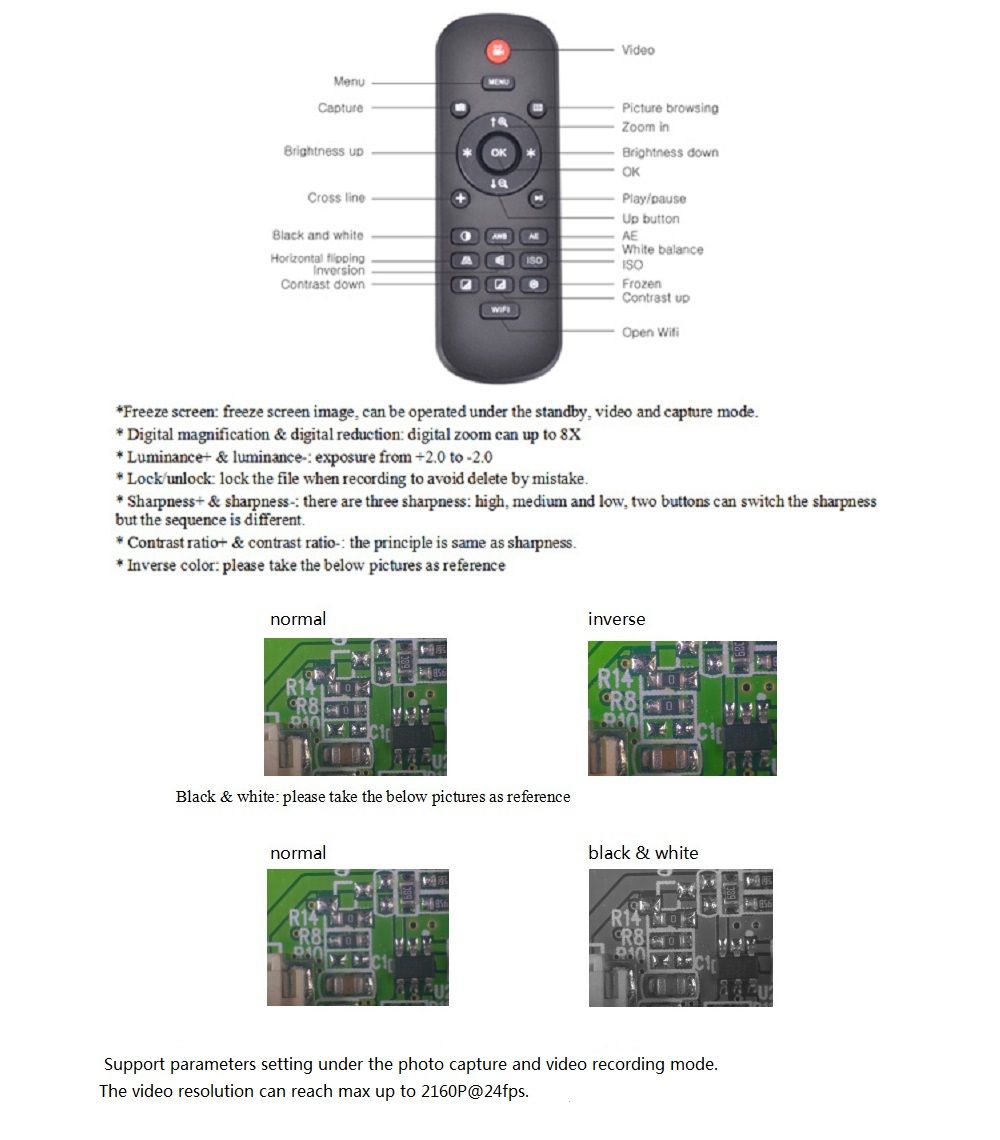

Wireless remote control
Built-in crosshair set (adjustable)

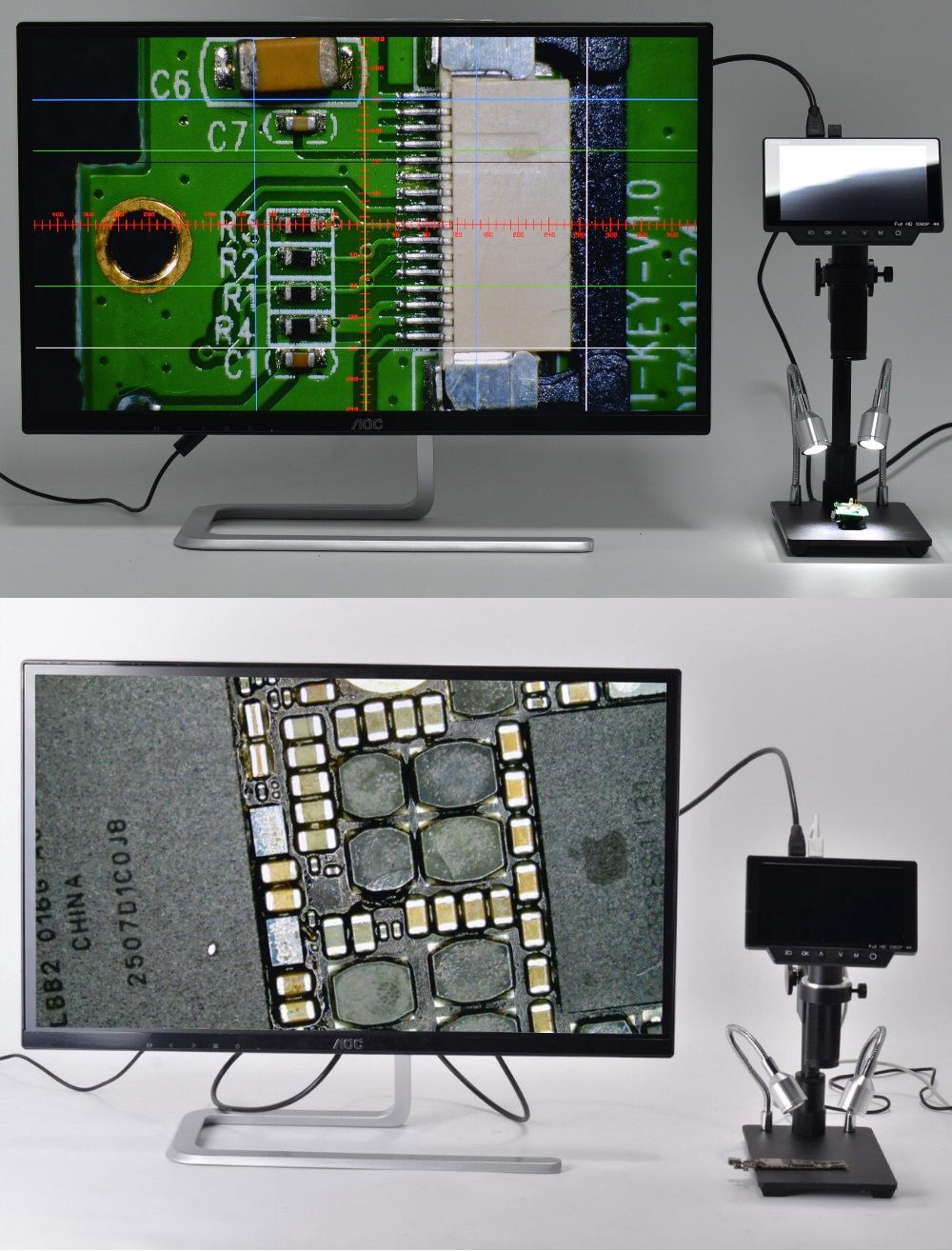

The highest resolution is 4K (connected displayer)
HD H'DMI interface
High-speed 60 frames without jams and afterimages
PC supports measurement function

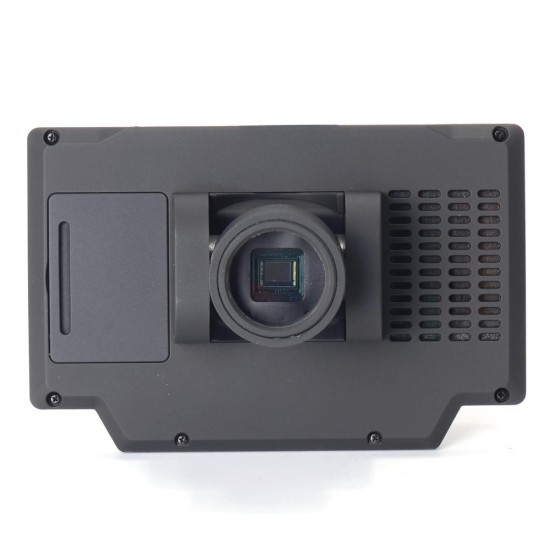

Image sensor 1/2.3
Specifications:
Image Sensor : 16 Megapixel SO'NY CMOS 1/2.3 HD Sensor
Video Output : 4K/2160P/1080P Full HD (via H'DMI) ;1080P (via USB)
Video Format : MP4

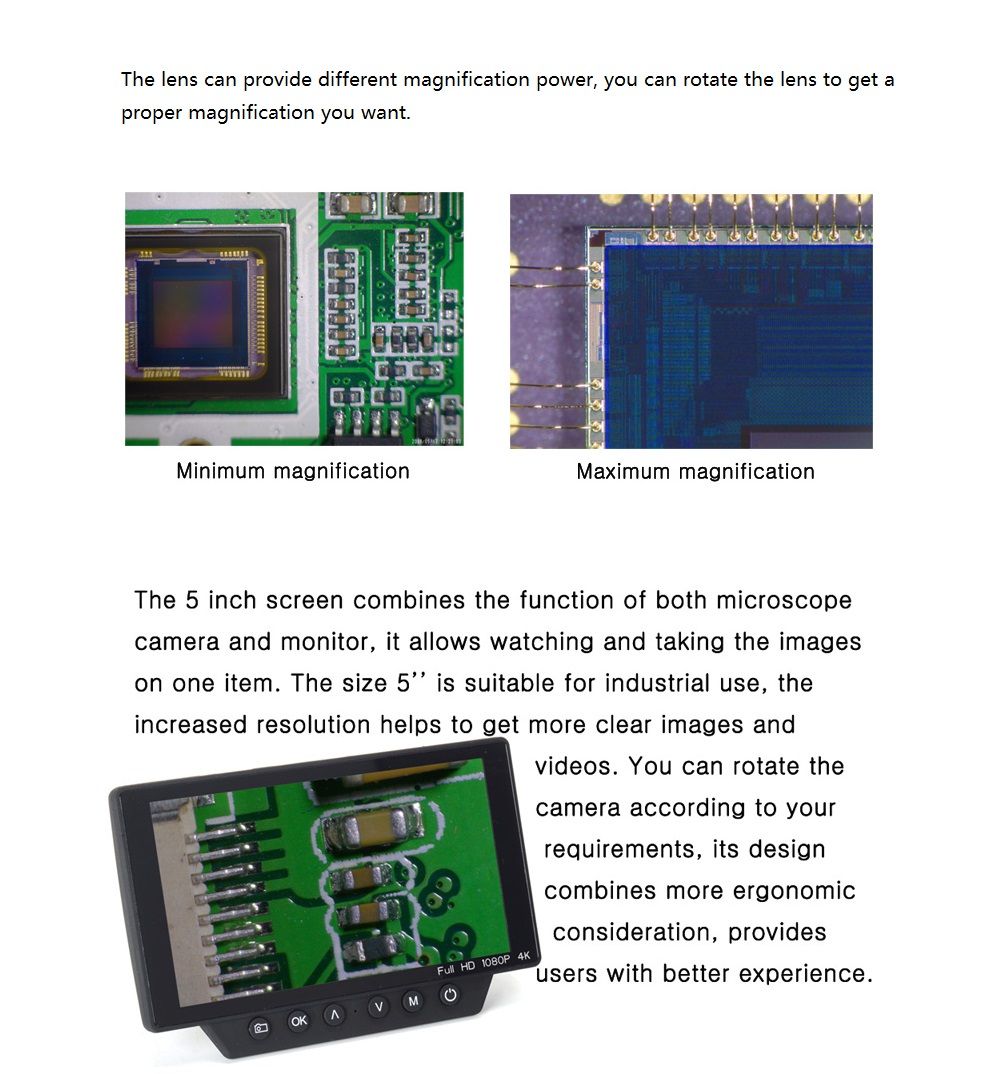

Magnification: Standard Magnification 150X (Max up to 300X)
Photo Resolution : 16M 4608x3456, 14M 4320x3240,12M 4032x3024, Min 640x480
Photo Format : JPEG
Focus Range : 5cm to 15cm
Frame Rate : 4K 24@fps;
Video Output : H'DMI/USB
Microphone : Renhotec
Storage : TF card storage, max 64G
PC Support : Support Windows XP/7/8/10 system, including PC measuring software(gift)

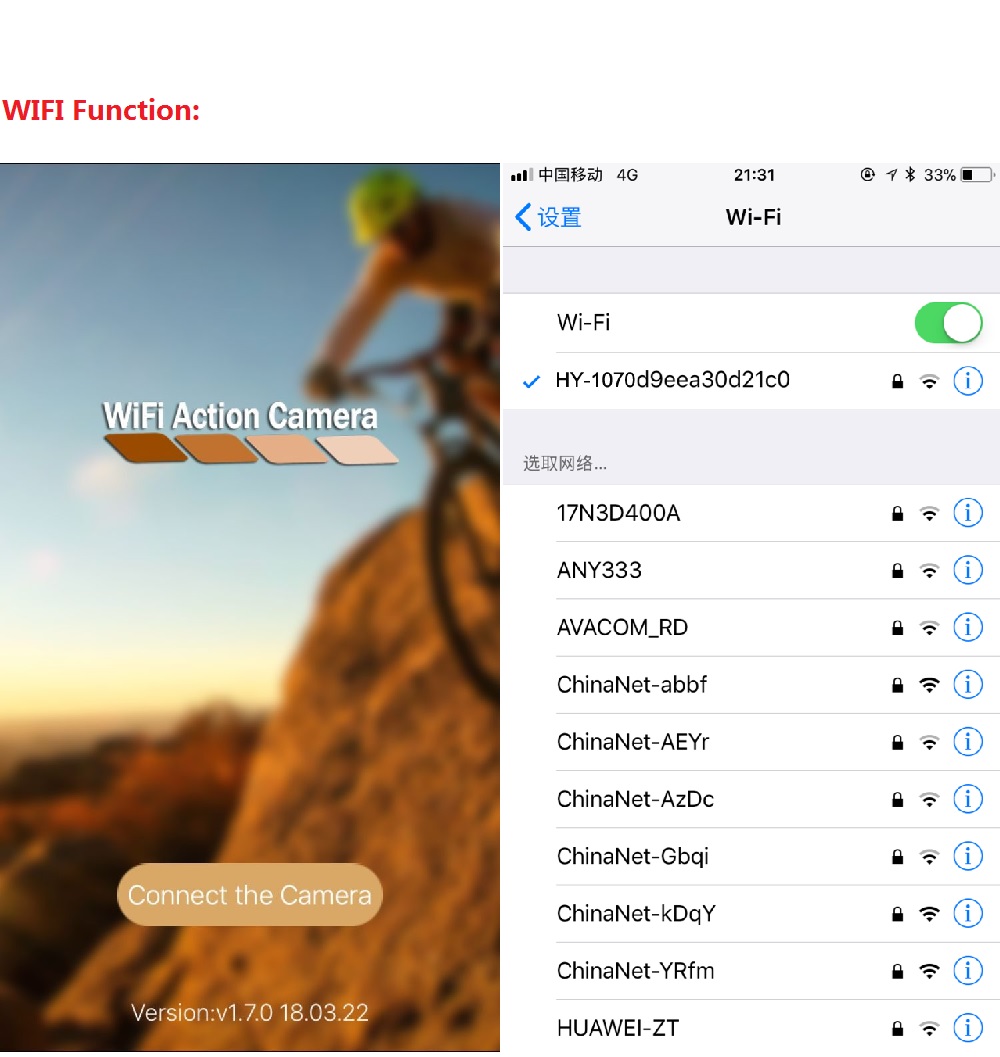

WiFi : Microscope support WIFI connection (the connection range is about 15 meters)
Stand Size :17*11*20cm (
Screen Size :5 inch
Package Size : 28*22*17cm
Package Weight:1.7Kg
Power for remote control: AAA battery (not included)
Measure Function:
S-EYE is an application for imaging a dynamic image processing , it has the following characteristics:
1. Support a variety of cameras, can switch at any time to use.
2. Using GPU rendering for image previewing, support for live image display of high-resolution and high frame rates.
3. Support dynamic image measurement function.
4. The software interface is easy to operate.

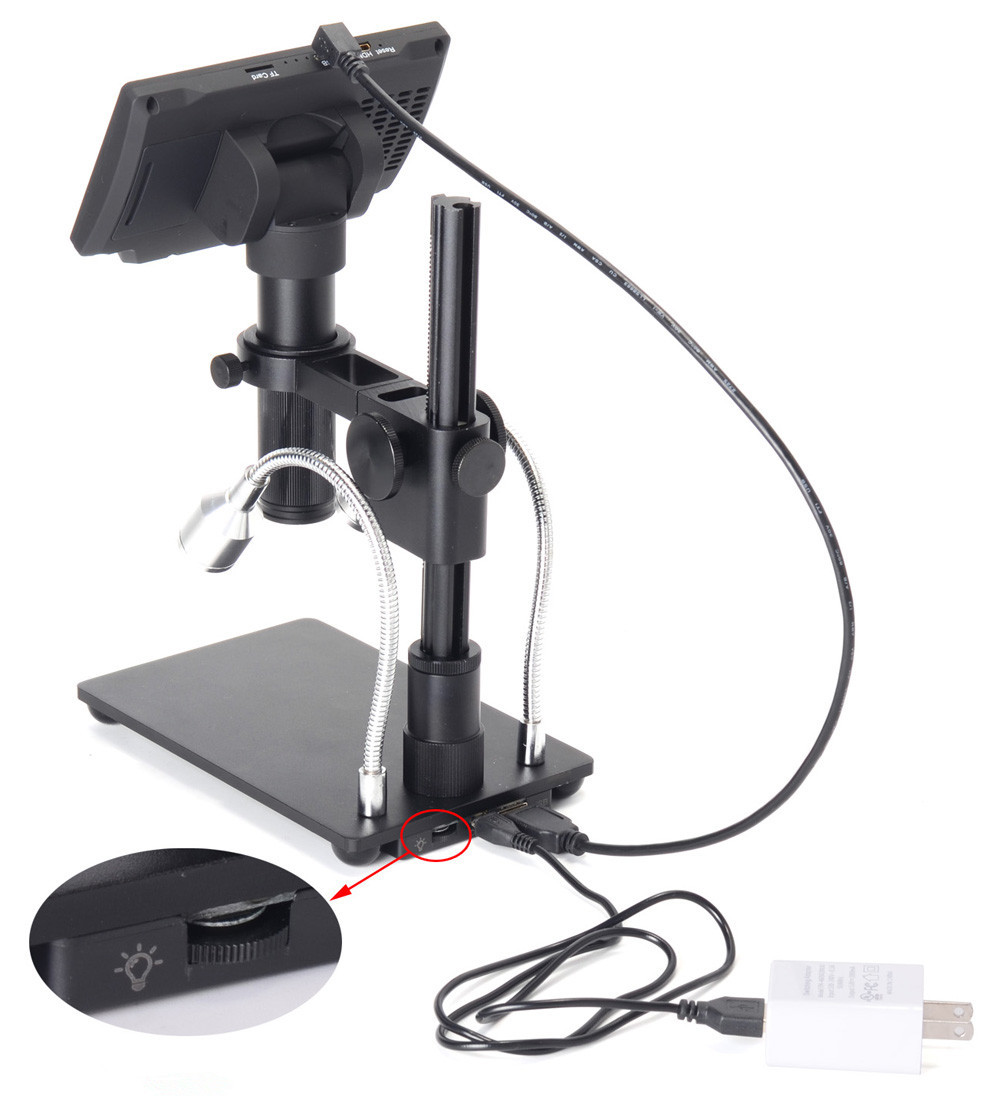

Three Kinds of Power supply methods:

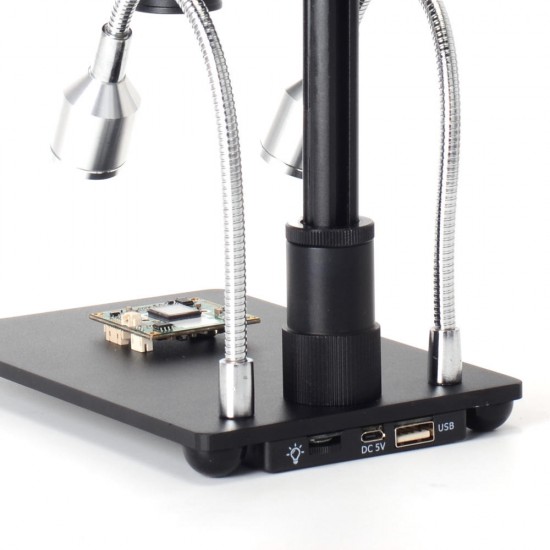

1.Direct power supply: Insert the plug(5V/2A) ,included in the package.
2.Polymer battery:Product reserved battery installation slot, battery interface size is 3.5mm;The product is not equipped with a battery and needs to be purchased by the customer.The battery required for the product is a polymer battery. The battery size is 42x30x5mm, the working voltage is 3.7V-4.2V, and the current is 500mA-2000mA (the larger the battery, the longer the standby time of the camera);
3.Power Bank:The USB interface can use power bank to provide power to the camera.
Package Includes:

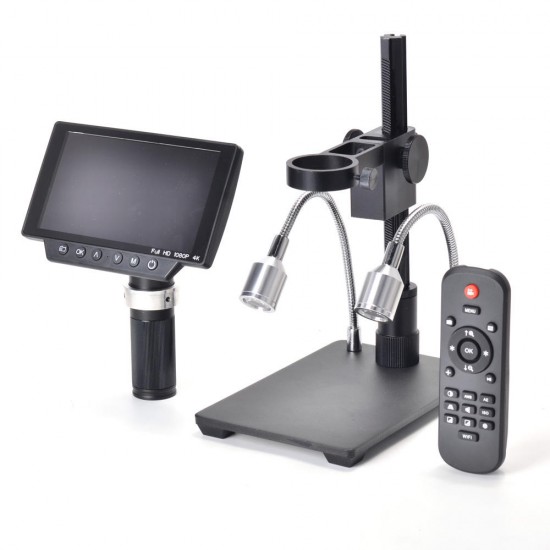

1 x Microscope Camera
1 x Table Stand
1 x Power Supply(EU Type)
1 x USB line
1 x H'DMI line
1 x English User Manual

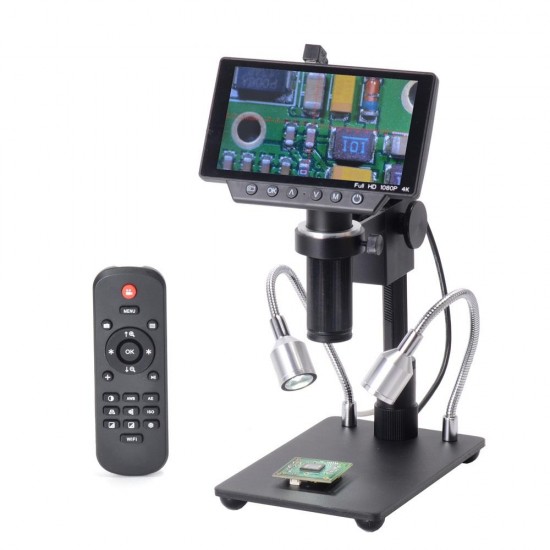

1 x Remote Control
Note: We will send you a plug adapter according to your country.
Detials Pictures:
