FHD 16MP 4K USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering

Based on 0 reviews. - Write a review

$211.03

Ex Tax: $211.03

Stock: In Stock
Model: EB004972
SKU: EB004972

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

This is UltraHD 4K industrial camera. Resolution is 7440 x 5580 pixels. With standard HDMI and USB interface.

It can be used for education, scientific research, laboratory, demonstration, maintenance and inspection.

Specification:

Model: HY-5099

Effective Pixels: son y IMX CMOS 1/2.3 4K SENSOR

Resolution: 4K/2K/1080P 1080P (USB)

Sensor Size: 1/2.3inch

Pixel Size: 1.55 × 1.55μm

Image Resolution: 4608 X 3456 (16MP)

Image Format: JPEG

Lens Type: C / CS

Frame fat e: 3840 x 2160@30FPS(4K); 1080P 120@FPS; 720P 240@FPS

Output: HDMI/USB

Storage: TF Card, Max 128G

PC Support: Windows XP/7/8/10 , PC Software with Measuring Function

Image Scaling: 8-Fold zoom

Image Measurement: Support HAYEAR Measurement Software

Support Language: English/ French/ Spanish/ Portugues/ Deutsch/ Italiano/ Chinese/ Russian/ Japanese

Camera Size: 63×62×58 mm

Package Size: 16×10×8 cm

Package weight: 0.5Kg

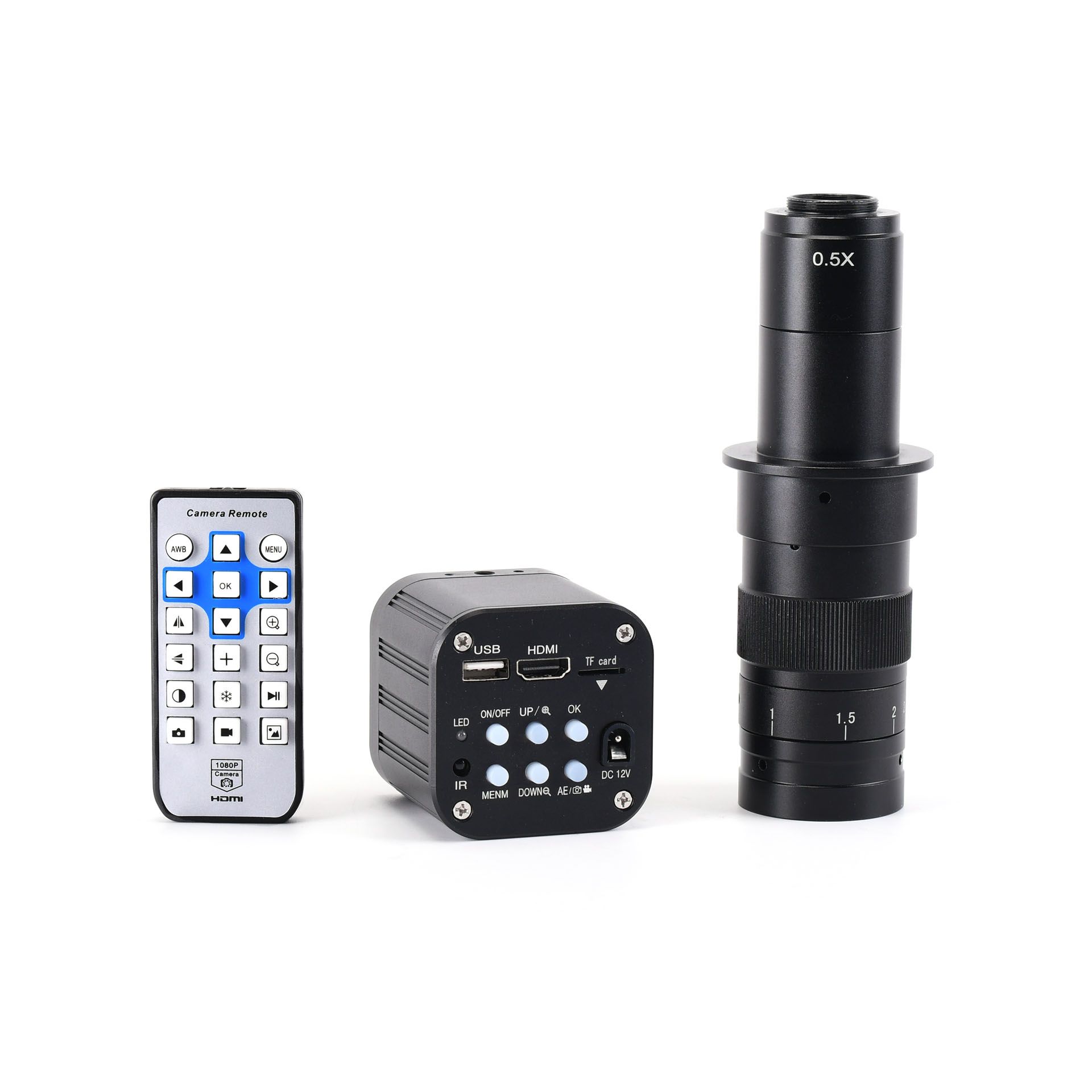

180X C-MOUNT Lens

Working distance: 95mm

Zoom c-mount Lens

0.5X C-mount adapter

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

(180x maximum working distance 16CM)

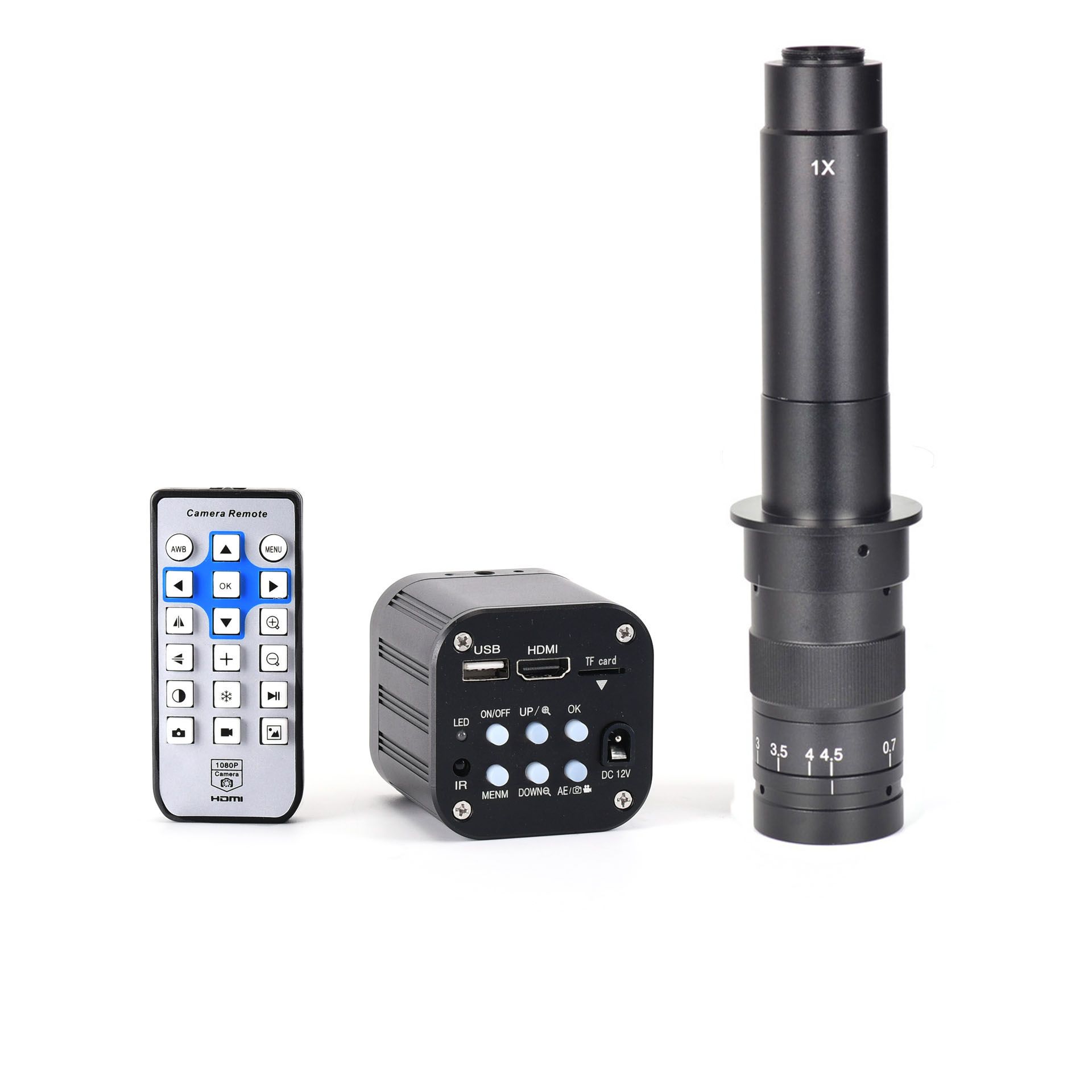

300X C-MOUNT Lens

Working distance: 95mm

Zoom c-mount Lens

1X C-mount adapter

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)

Size: 248mm(L) * 50mm(DIA)

(300x maximum working distance 11CM)

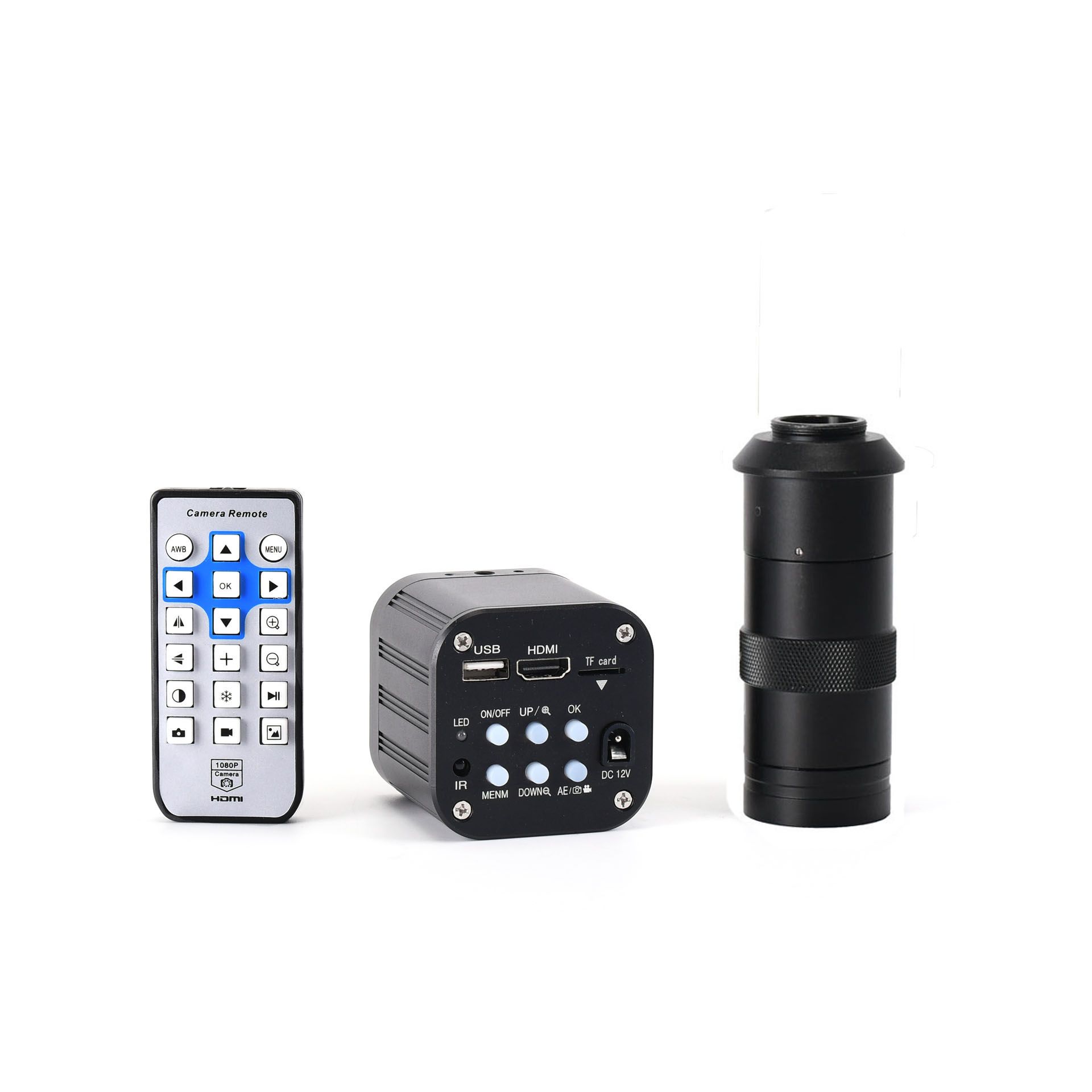

100X C-MOUNT Lens

Magnification Power by 0.12 - 2X (about 8X - 100X on the display)

Work distance: 100mm

Visual field :2.4mm-32mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g

120X C-MOUNT Lens

Magnification Power by 0.12 - 2X (about 8X - 100X on the display)

Work distance: 250mm

Visual field :2.4mm-32mm

Weight: 100g

56 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

56 bright LED

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-120mm

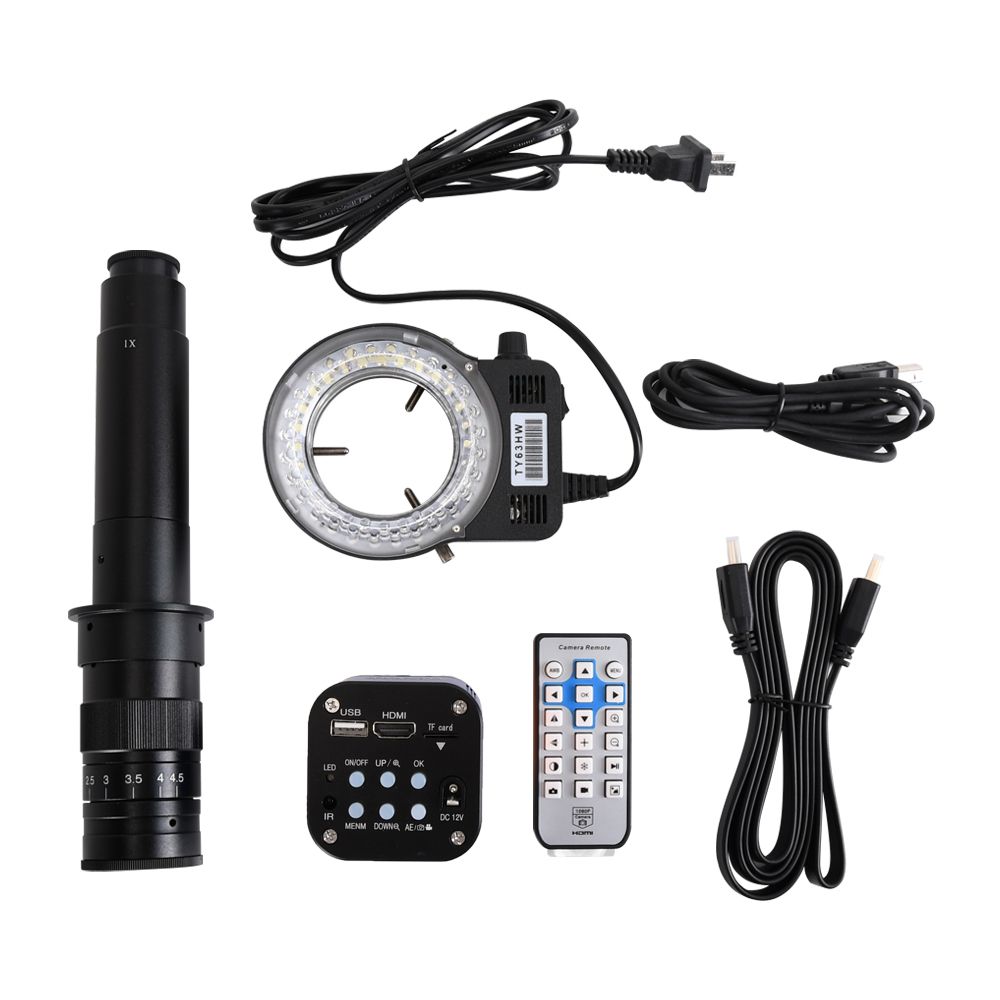

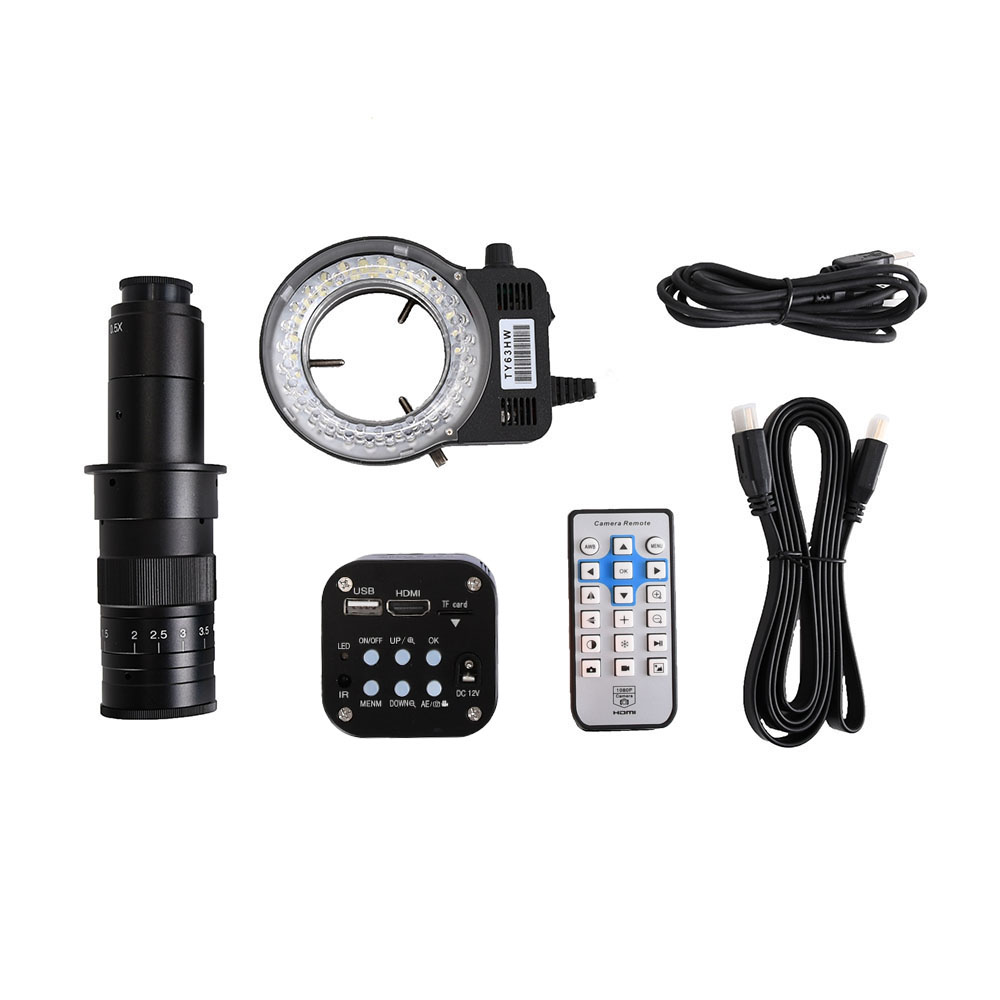

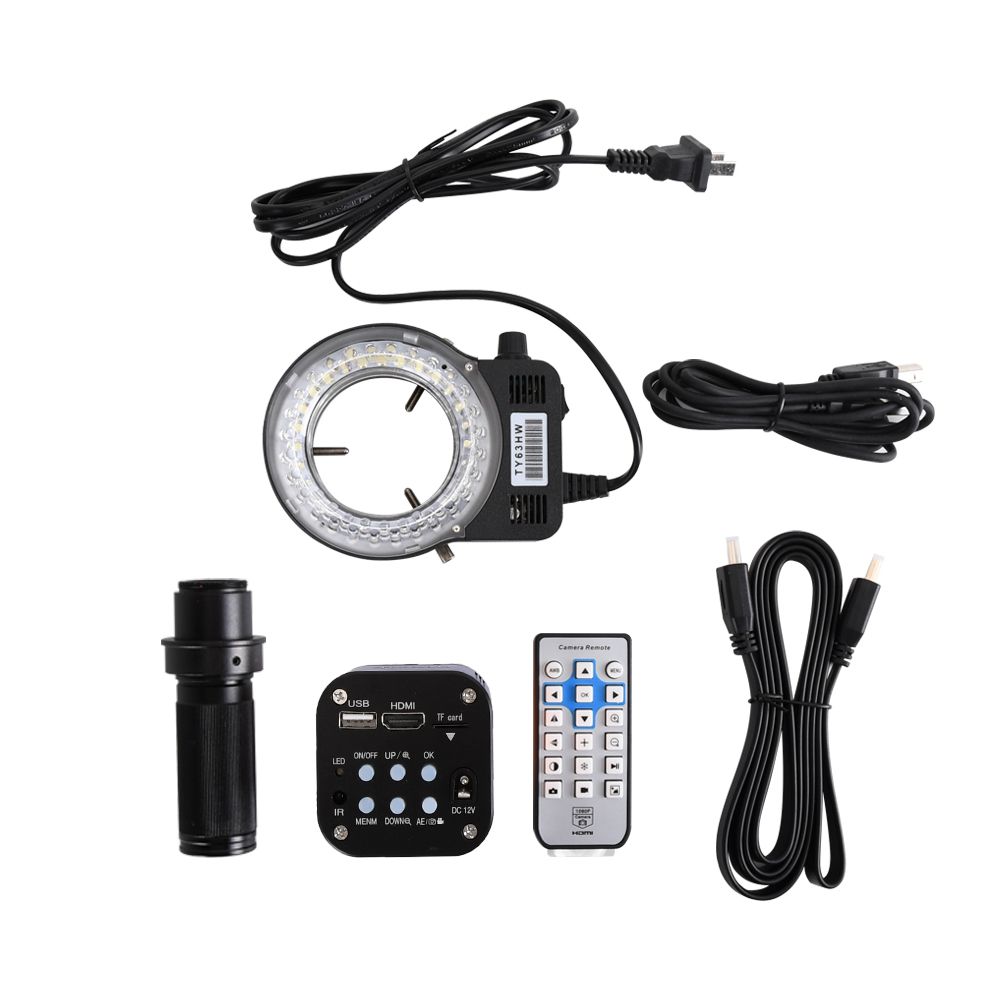

Package including:

1 x Microscope Camera

1 x Power supply(EU Plug NOTE:We will send you a plug adapter according to your country.)

1 x USB cable

1 x HDMI cable

1 x Software DISC

1 x Remote control

Optional accessories:

1 x C-MOUNT Lens(100X or 120X or 180X or 300X)

56 LED Adjustable Microscope Ring Light

Details pictures:

HAYEAR-FHD-16MP-4K-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount--1553842
