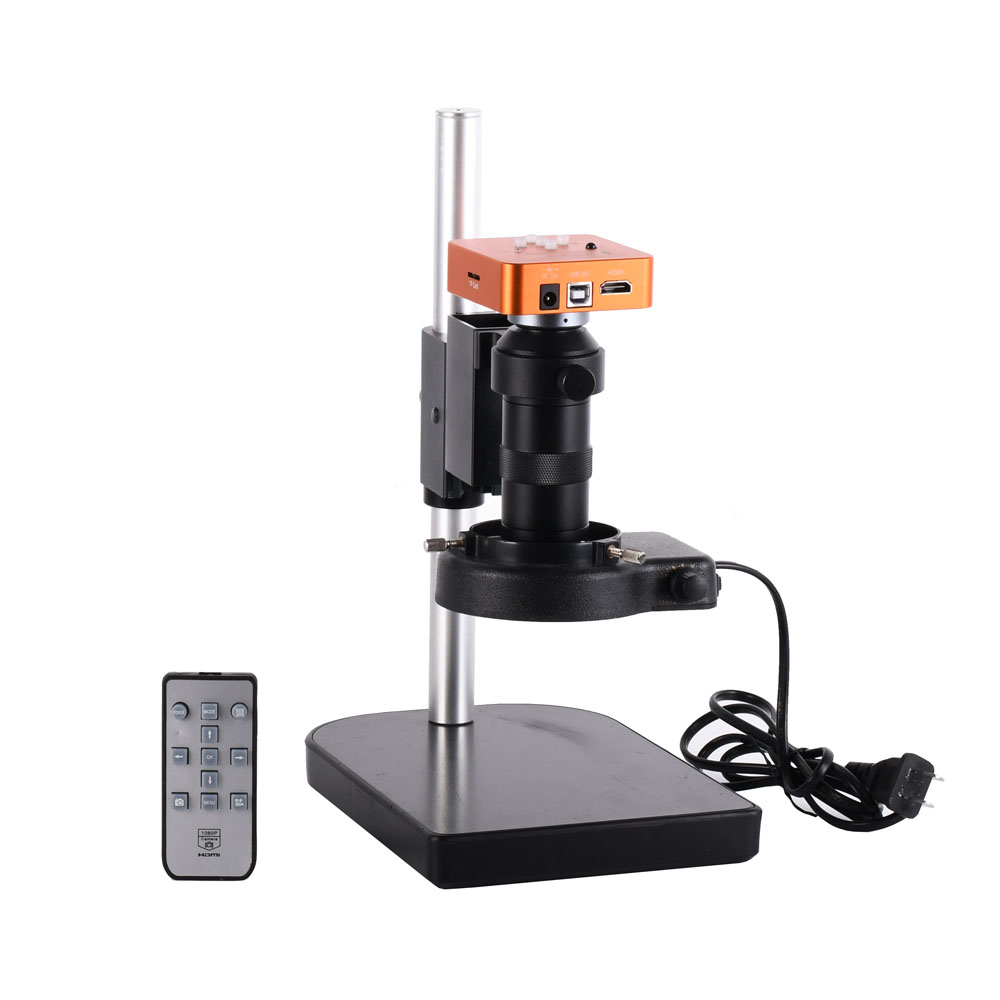

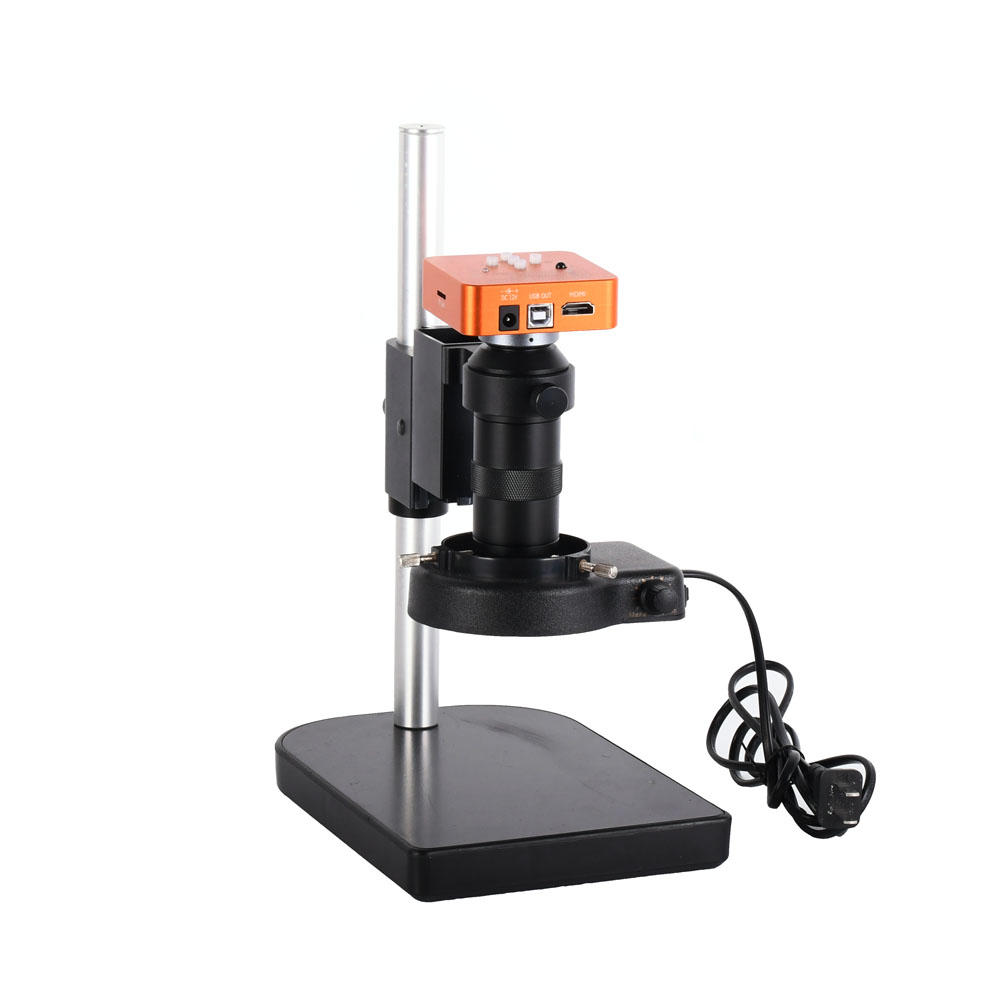

21 Mega Pixel 60FPS HDMI USB Industrial Digital Video Soldering Microscope

Based on 0 reviews. - Write a review

$199.97

Ex Tax: $199.97

Stock: In Stock
Model: EB004977
SKU: EB004977

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

Module:FHD216

Sensor Panasoni'c:21 MegaPixel, 21 million pixels CMOS

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

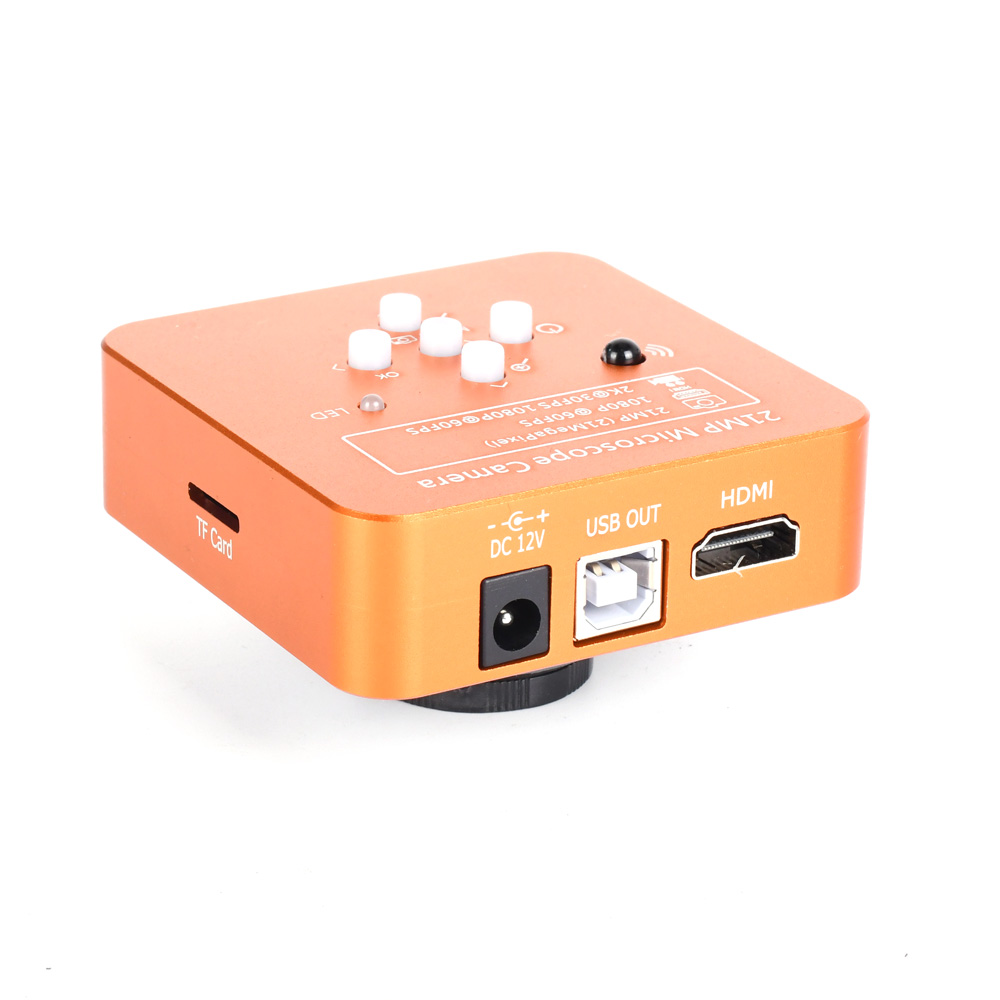

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:21MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Renhotec

Mono Negative:Renhotec

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Renhotec

IR remoter:Renhotec

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS

Net weight:180g

Gross weight:400g

Camera size:74*74*35mm

Packaging size:160*100*80mm

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

C-mount Lens

Magnification Power by 0.12 - 2X (about 8X - 130X on the display)

Work distance: 100mm

Visual field :2.4mm-32mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g

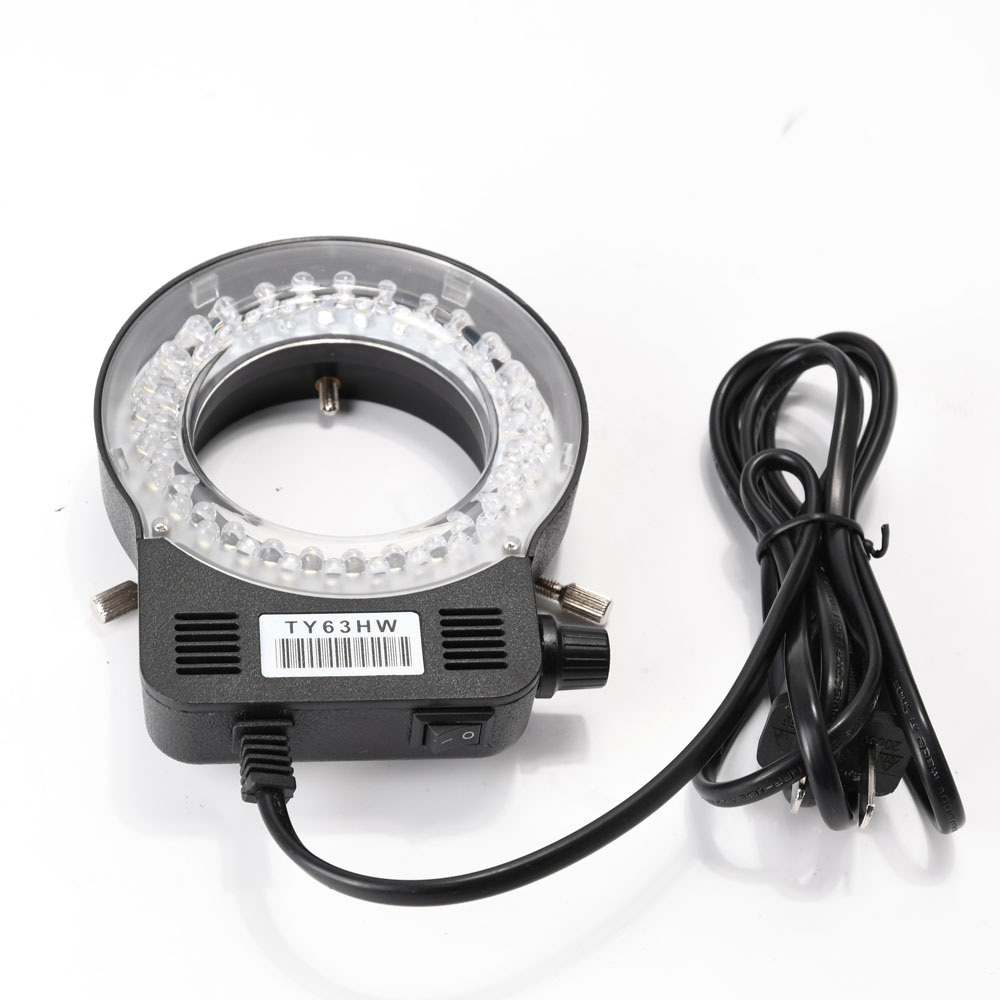

56 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

56 bright white LED bulbs

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-45mm

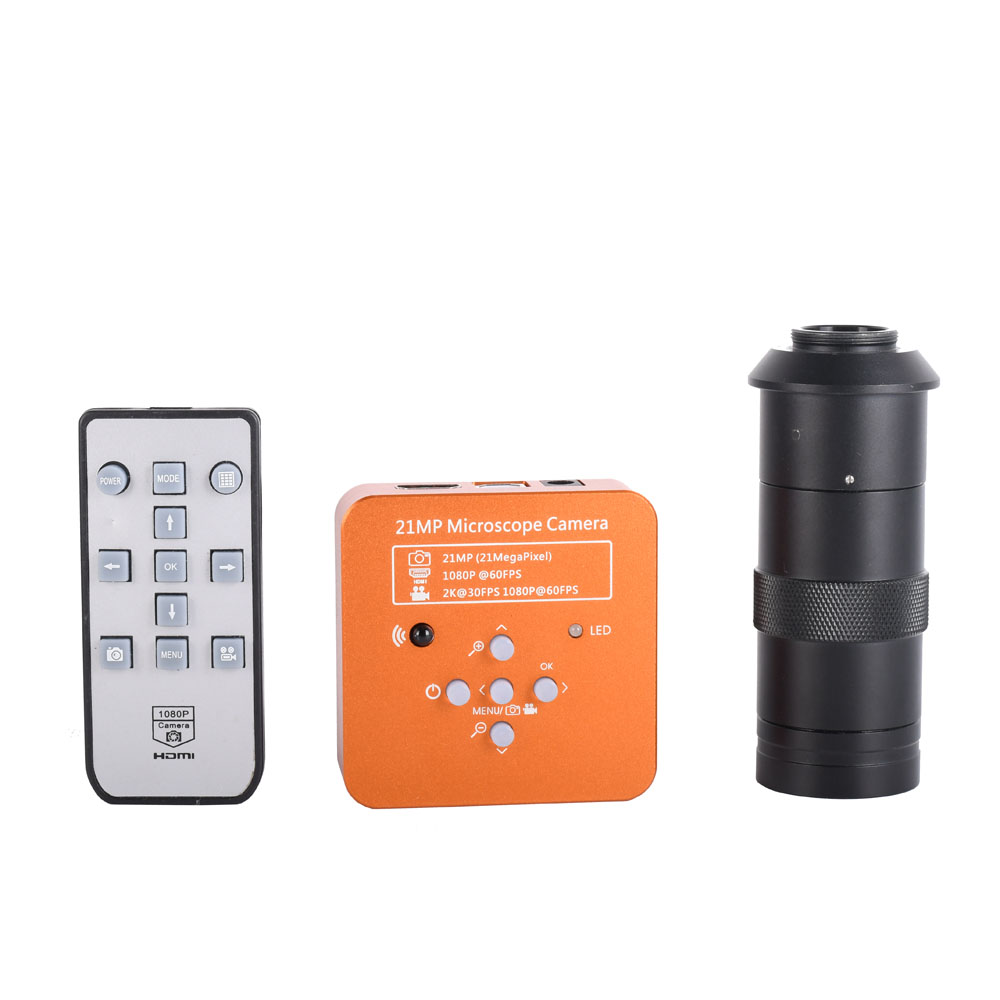

Packing including:

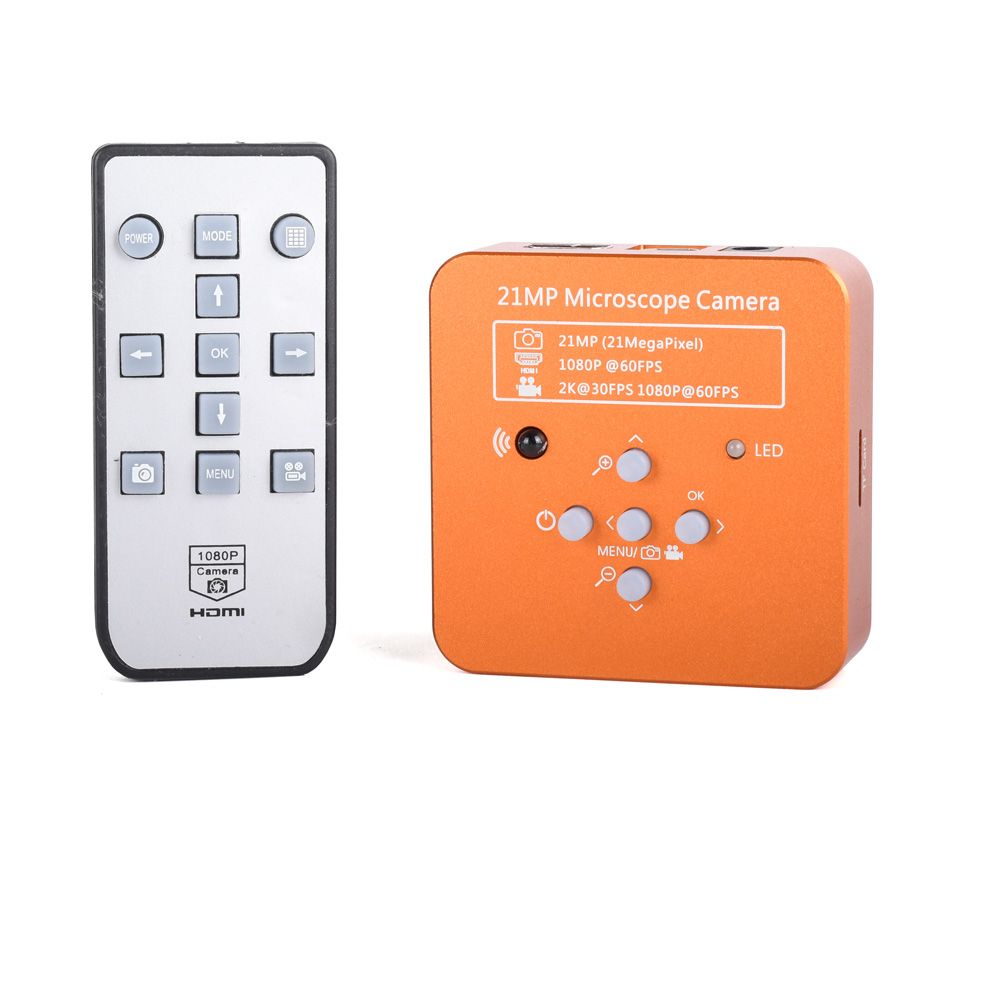

1 x HDMI Video Camera

1 x HDMI Cable

1 x USB Cable

1 x IR Remote control

1 x Power Supply Adapter (EU/AU)

1 x Adjustable 56 LED lights

1 x 130X Zoom C-mount Lens

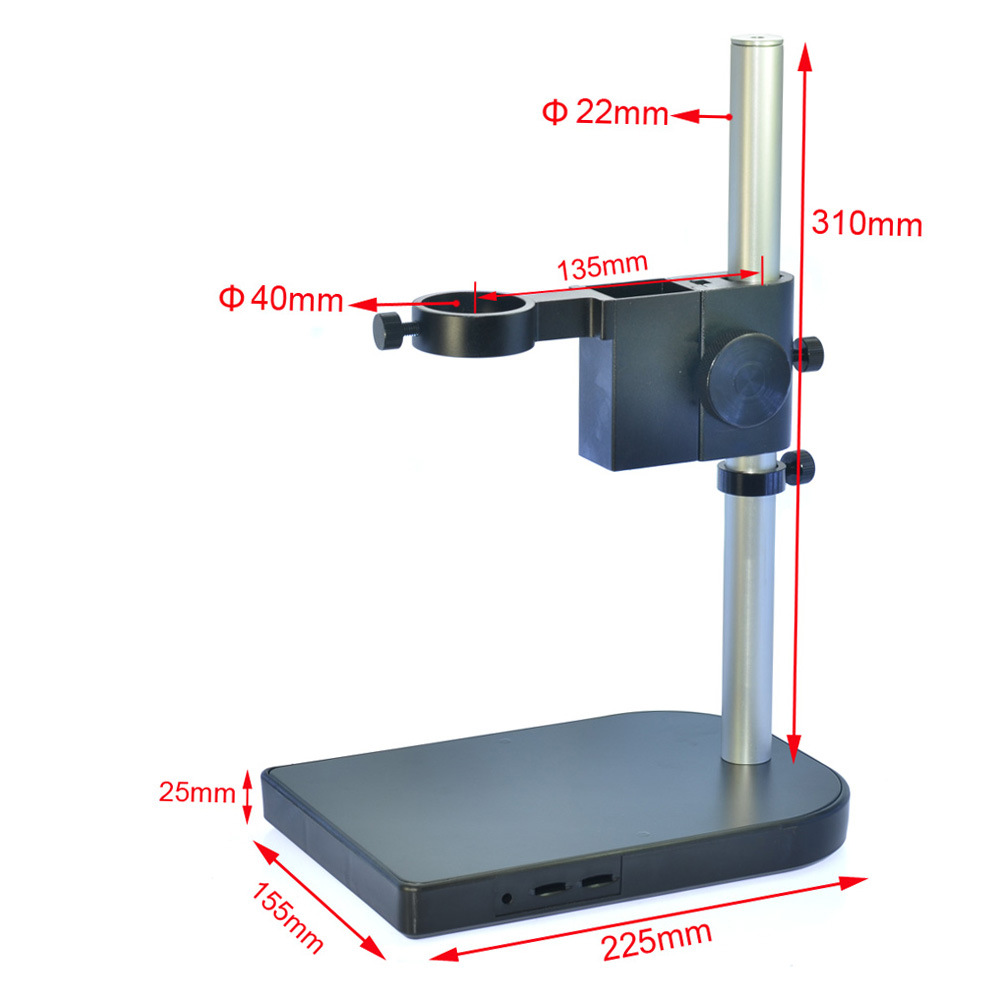

1 x Camera Stand

Note: We will send you a plug adapter according to your country

Detail Pictures:

HAYEAR-21-Mega-Pixel-60FPS-HDMI-USB-Industrial-Digital-Video-Soldering-Microscope-1429113
