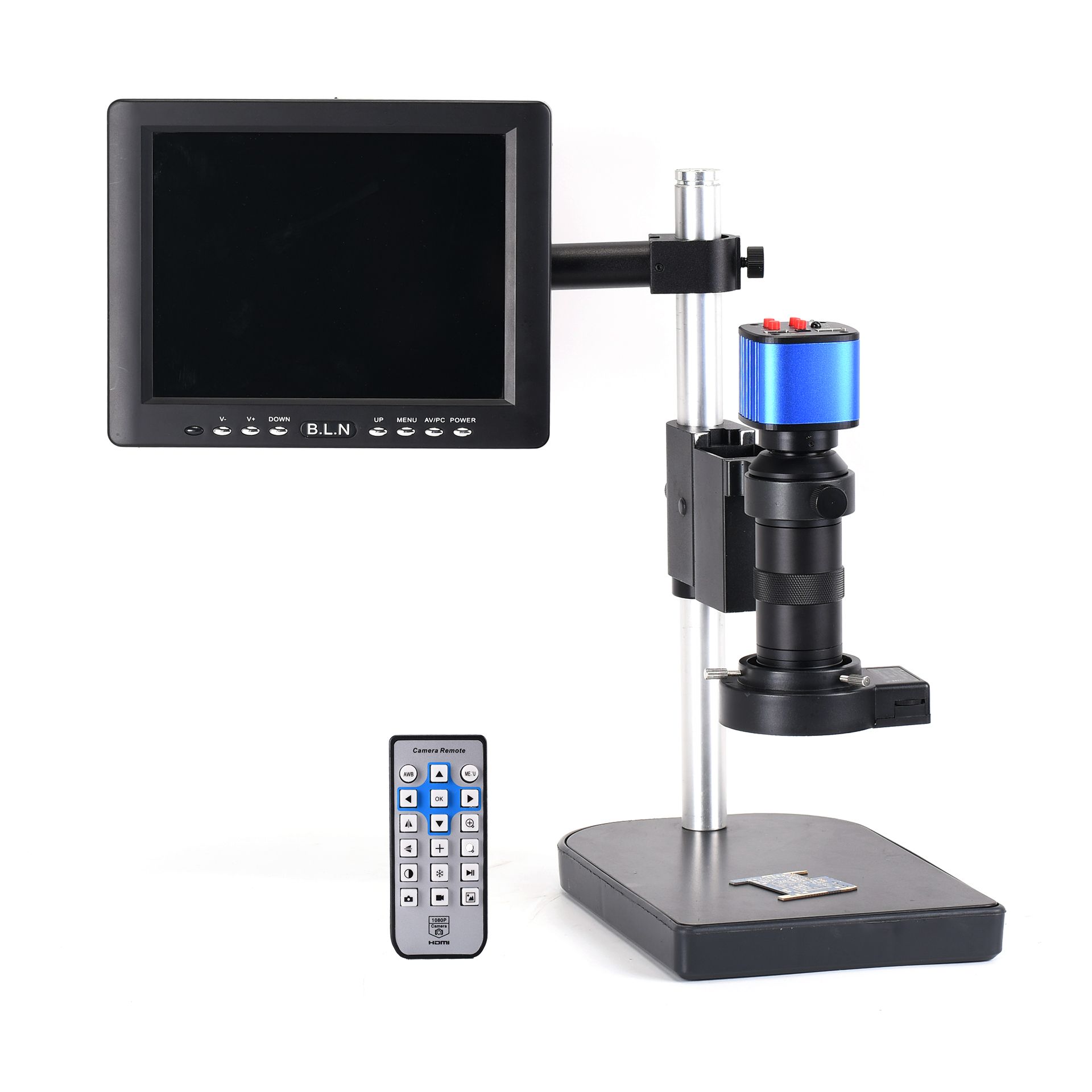

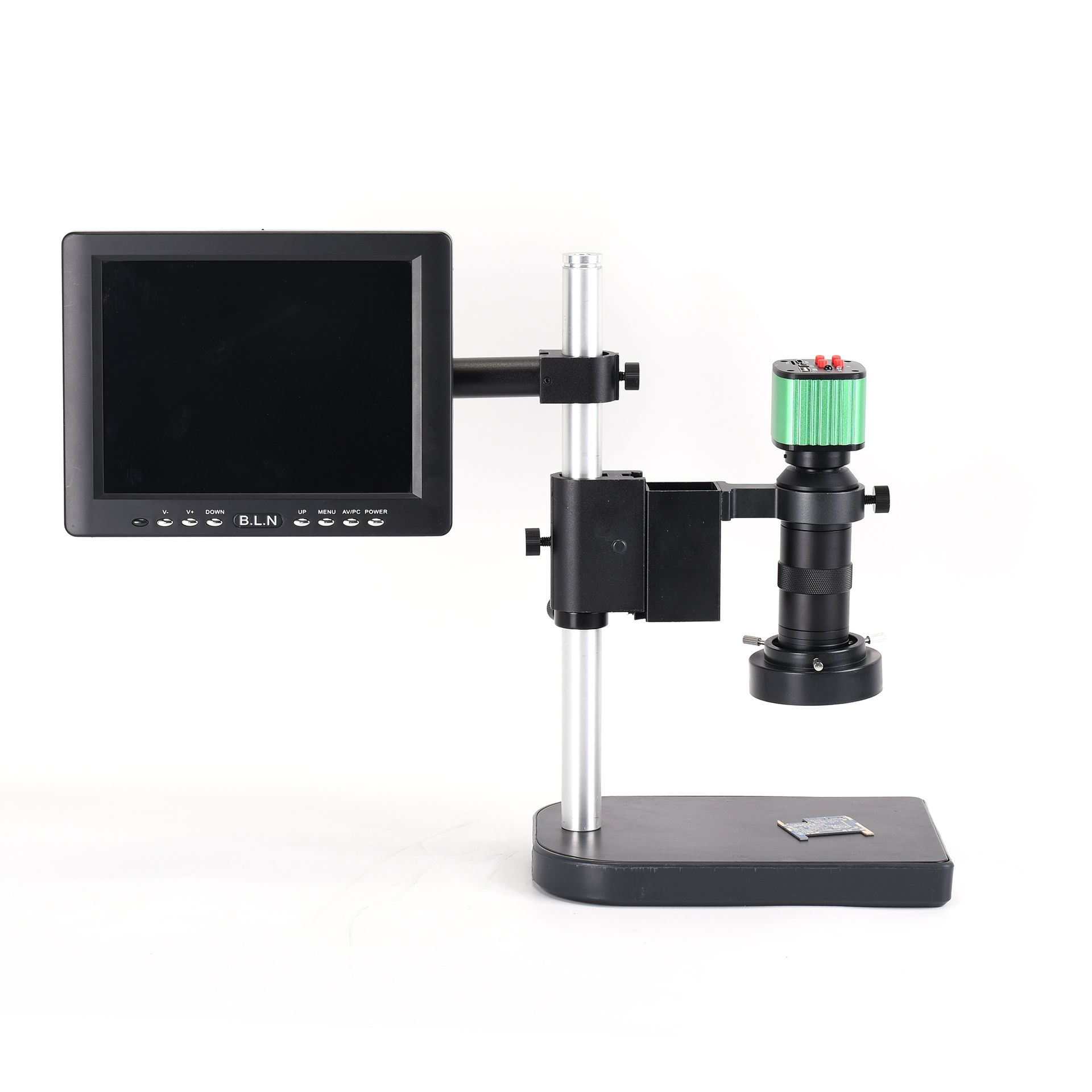

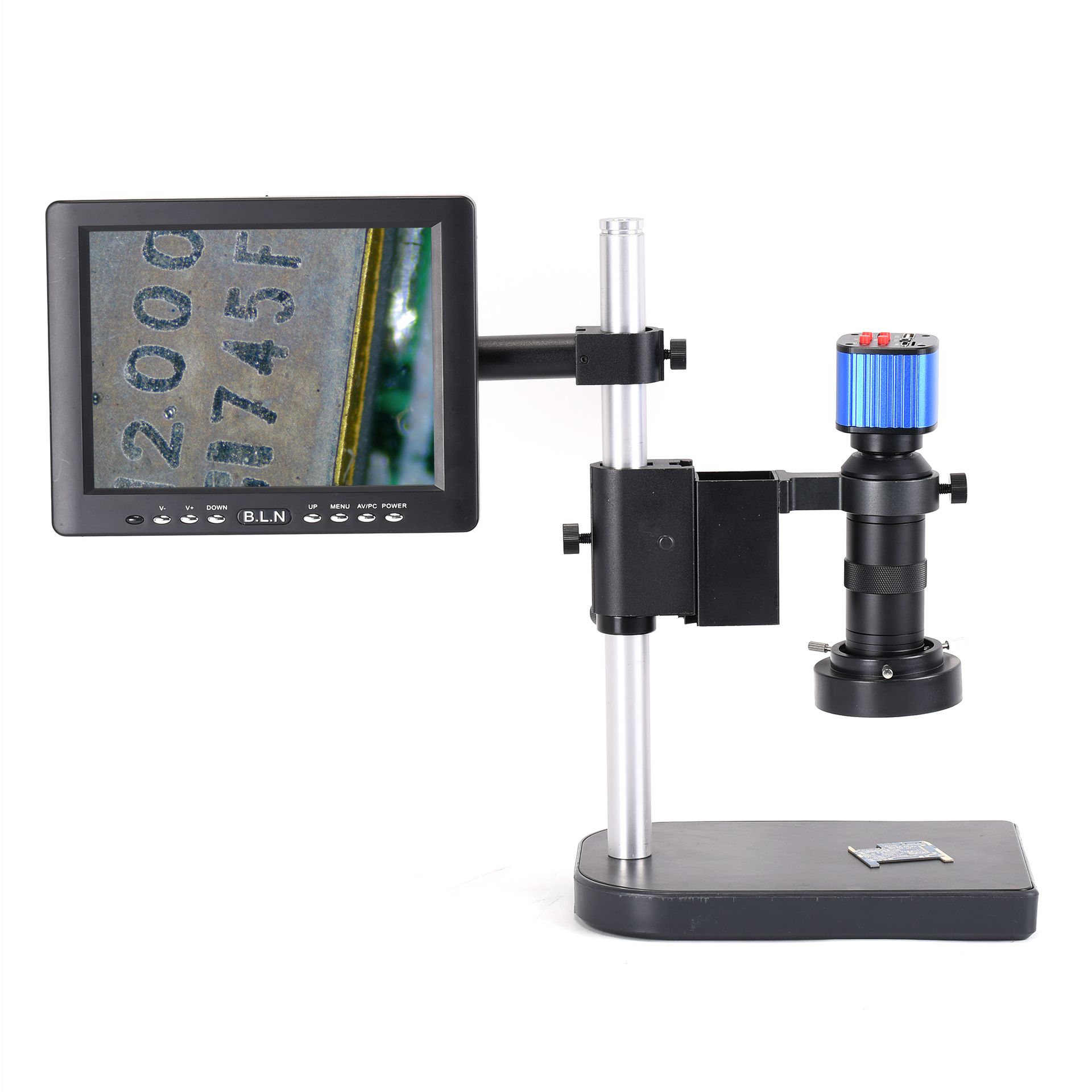

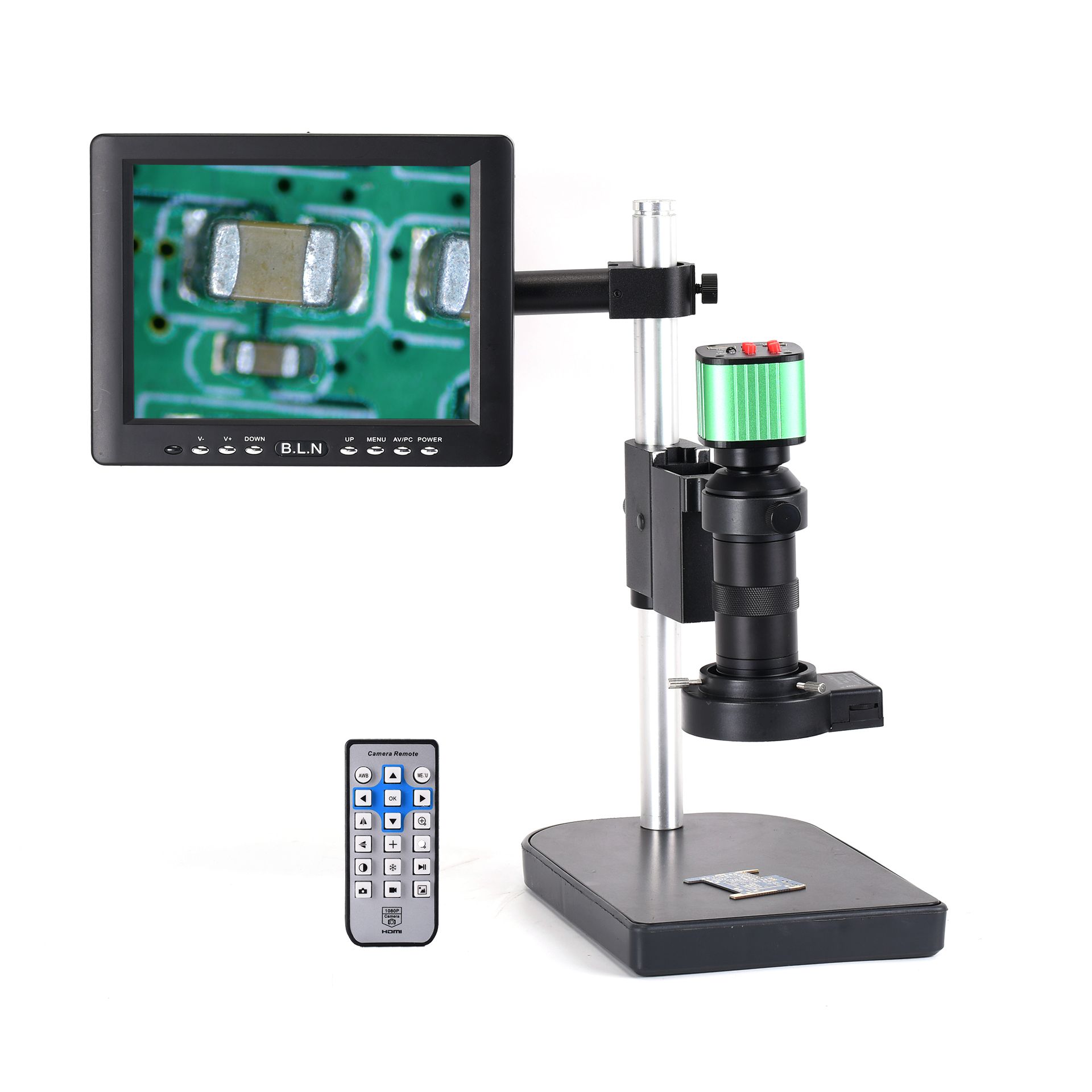

16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair

16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
16MP 1080P USB Video Microscope Camera with C-mount Lens 40 LED Light 8' inch LCD Monitor for PCB Repair
$224.40
Ex Tax: $224.40
  • Stock: In Stock
  • Model: EB004967
  • SKU: EB004967

Available Options

Specification:

Image sensor: SONY CMOS 1/2.9
Pexil size: 2.85 × 2.85μm
Video output: full hd 1080p ( via HDMI), 720P( vis USB)
Image resolution: 4608*3456( via HDMI)
Video recording: 1080p viaHDMI
Image format: jpeg
Lens: C/CS
Resolution:1920*1080@30fps, 720p 160@fps
TF card interface: max 64G

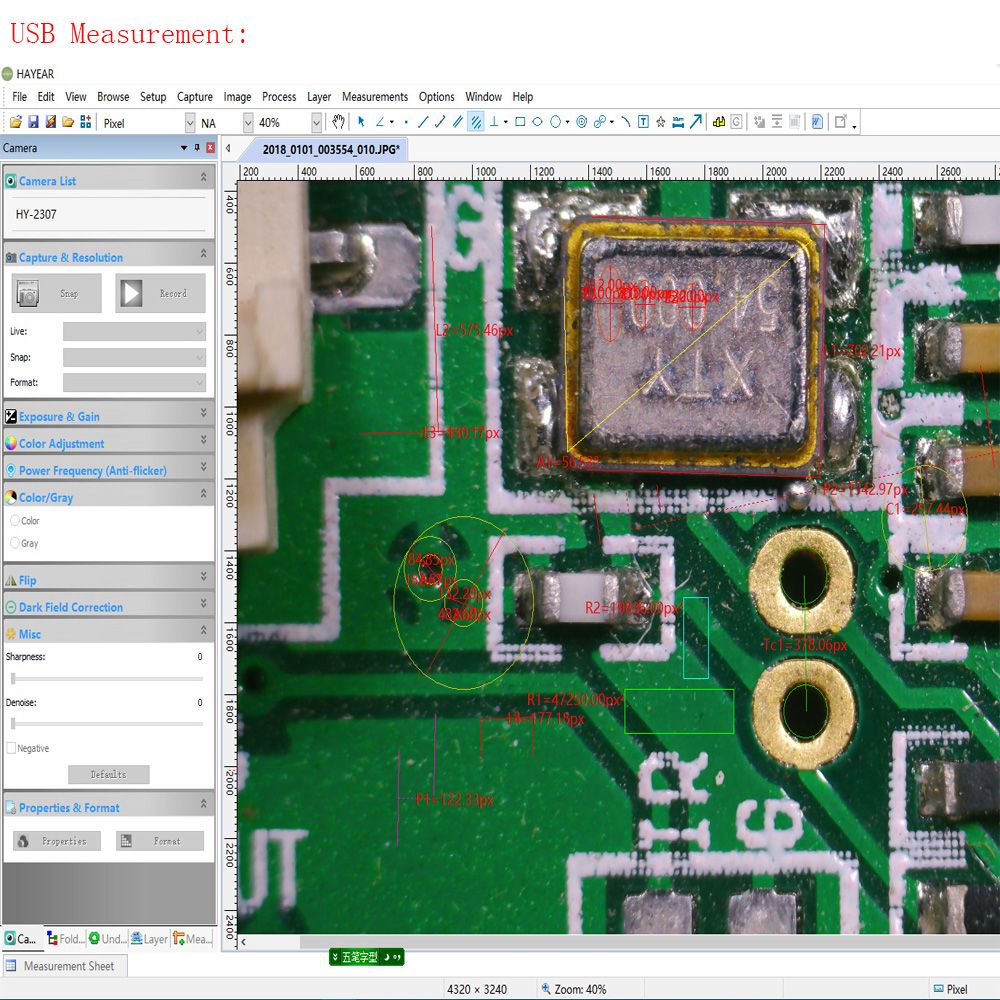

Pc support: windows XP/7/8/10 system, HAYEAR measure software ( gift)
Digital zoom: 4 times digital zoom
Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
Camera dimension: 50mm*50mm*43mm

C-MOUNT Lens:

Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)

40Led Light:

40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm

8' inch LCD Monitor:

Panel Size: 8 inches
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Display Color: 16.7M
Point Distance (mm): 0.264
Brightness (nits): 250cd / ㎡
Contrast Ratio: 300: 1
View (Up / Down / Left / Right): 160 ° / 160 °
Response Time: 6ms
Power Supply DC: 12V 1A
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AVC × 1, BNC × 1, VGA × 1, HDMI × 1
Color Format: PAL / NTSC / SECAM
Menu Operation OSD: keypad / remote control
Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spainish, German, Italian
Installation: Base Support / Wall

Package Including:

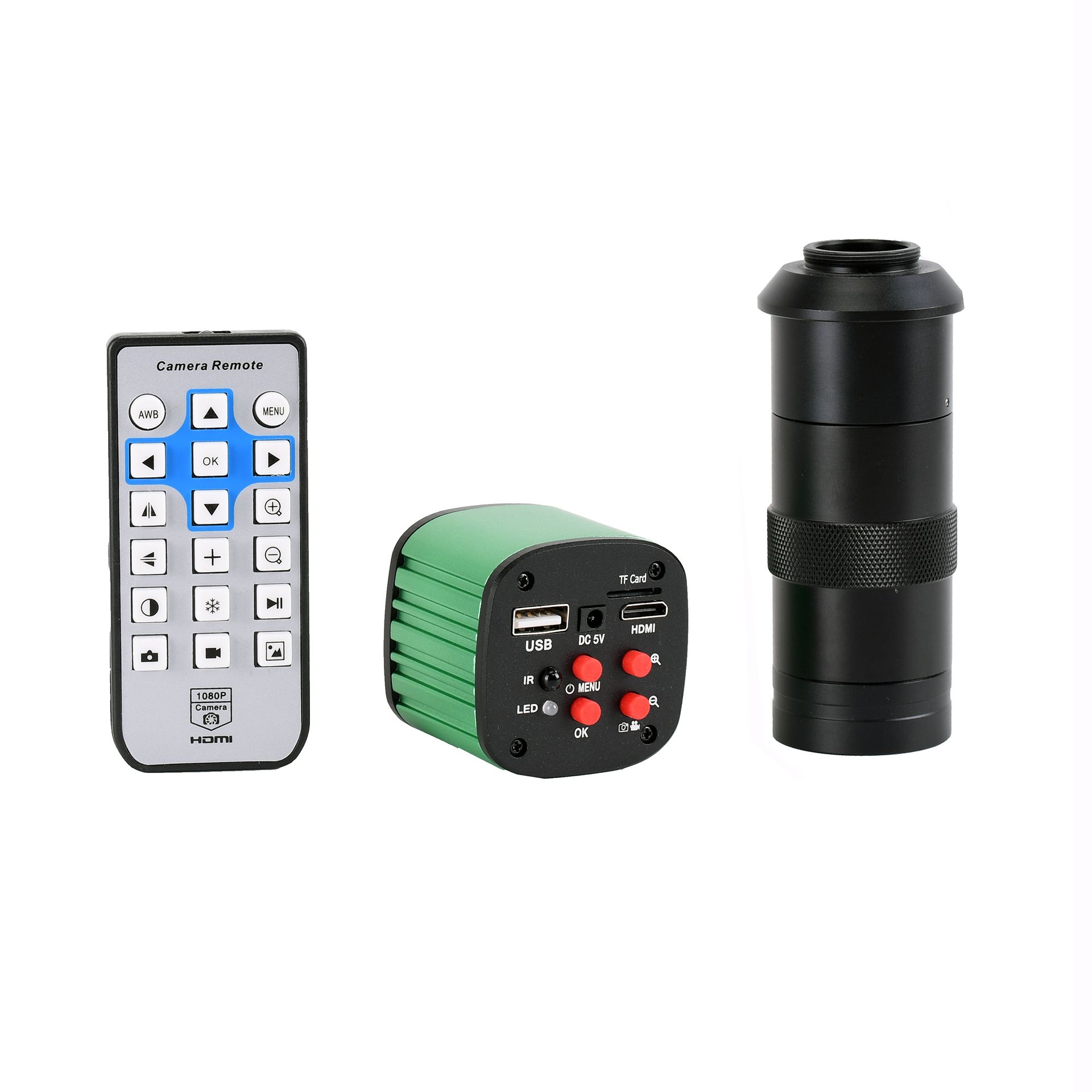

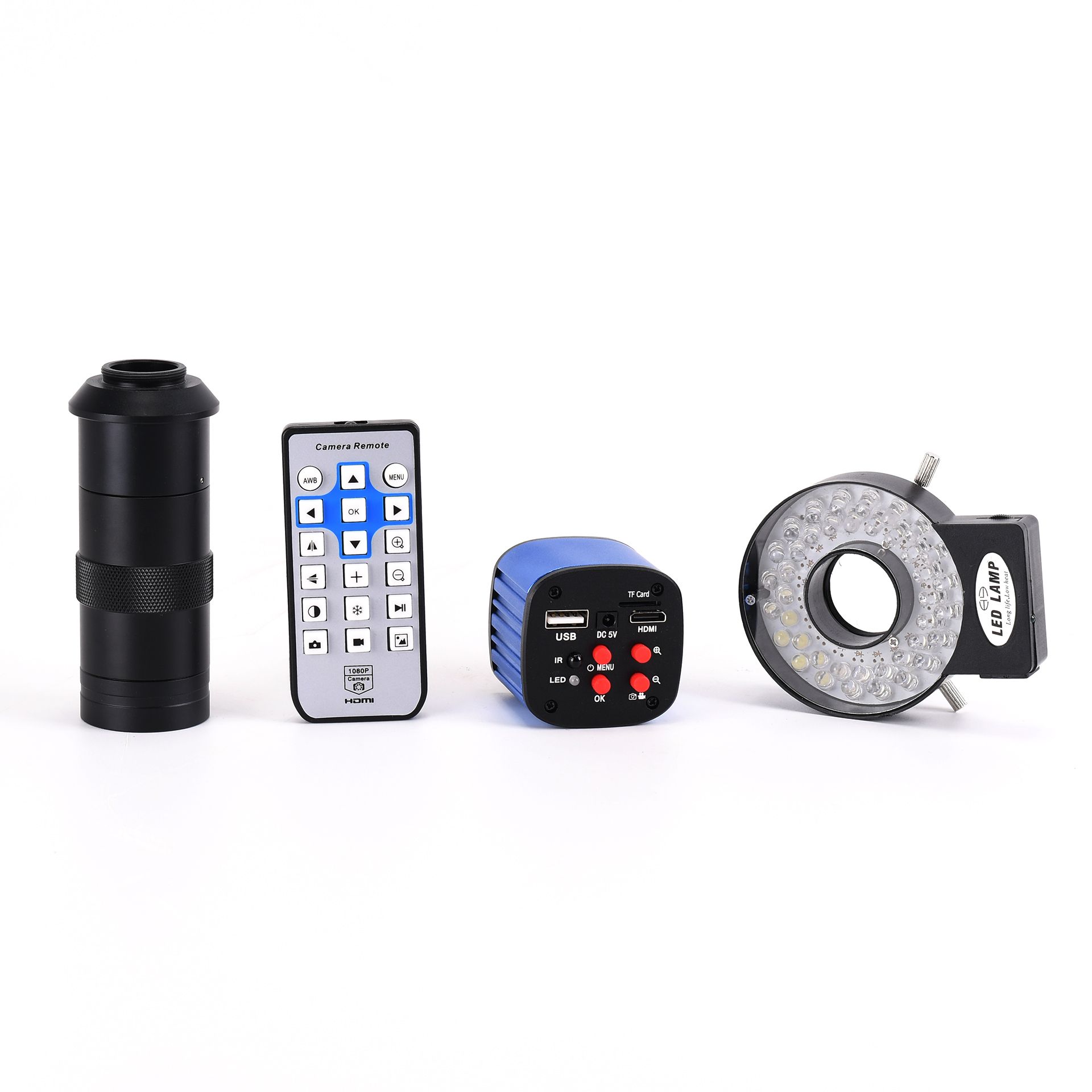

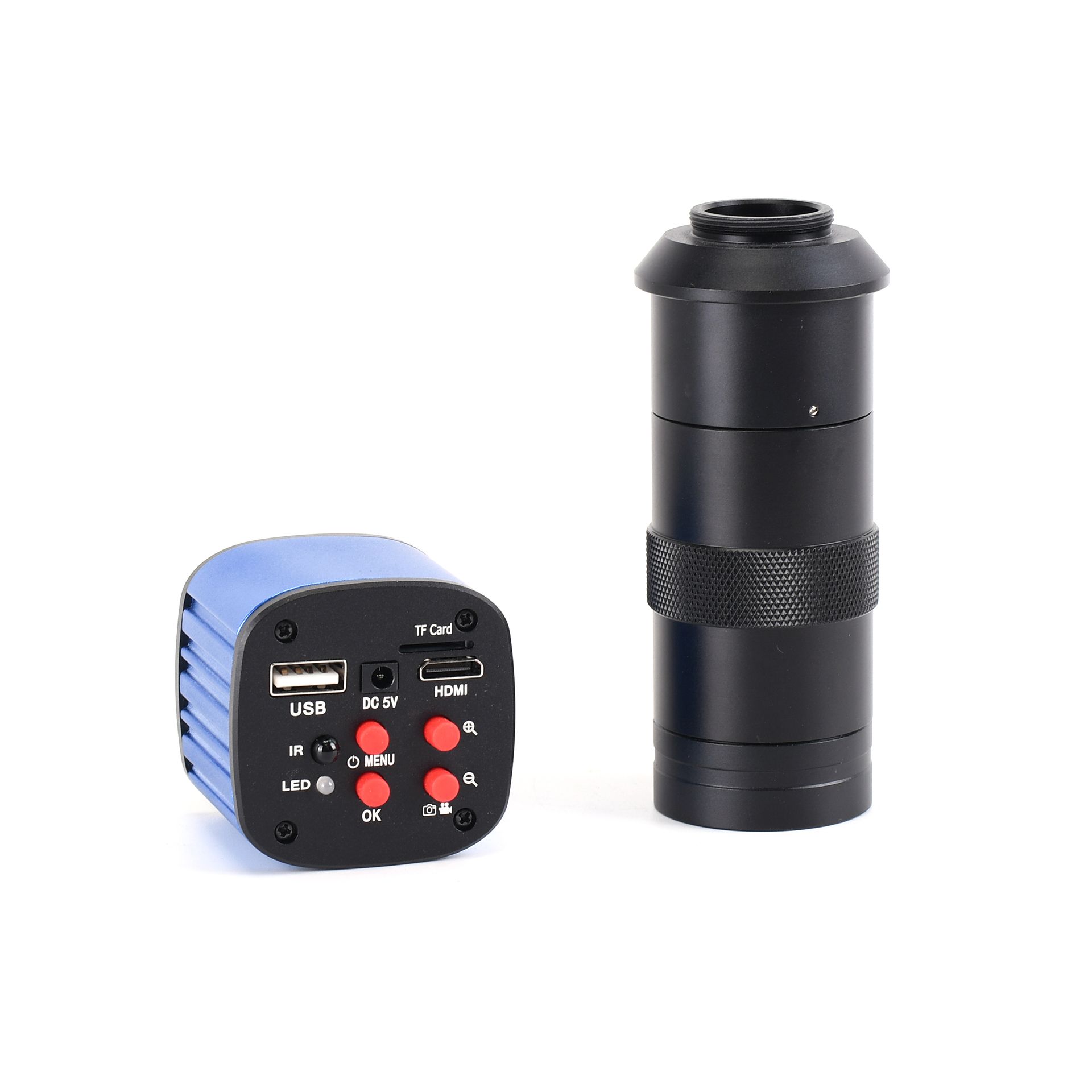

1 x Camera
1 x Power Supply
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 8 Inch Monitor

(NOTE:We will send you a plug adapter according to your country.)

Details pictures:



HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009


HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009


HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009


HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009


HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009


HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009


HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009

HAYEAR-16MP-1080P-USB-Video-Microscope-Camera-with-C-mount-Lens-40-LED-Light-8-inch-LCD-Monitor-for--1559009
