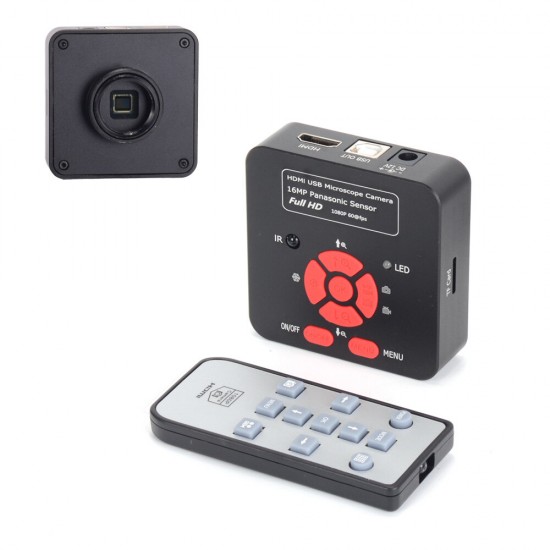

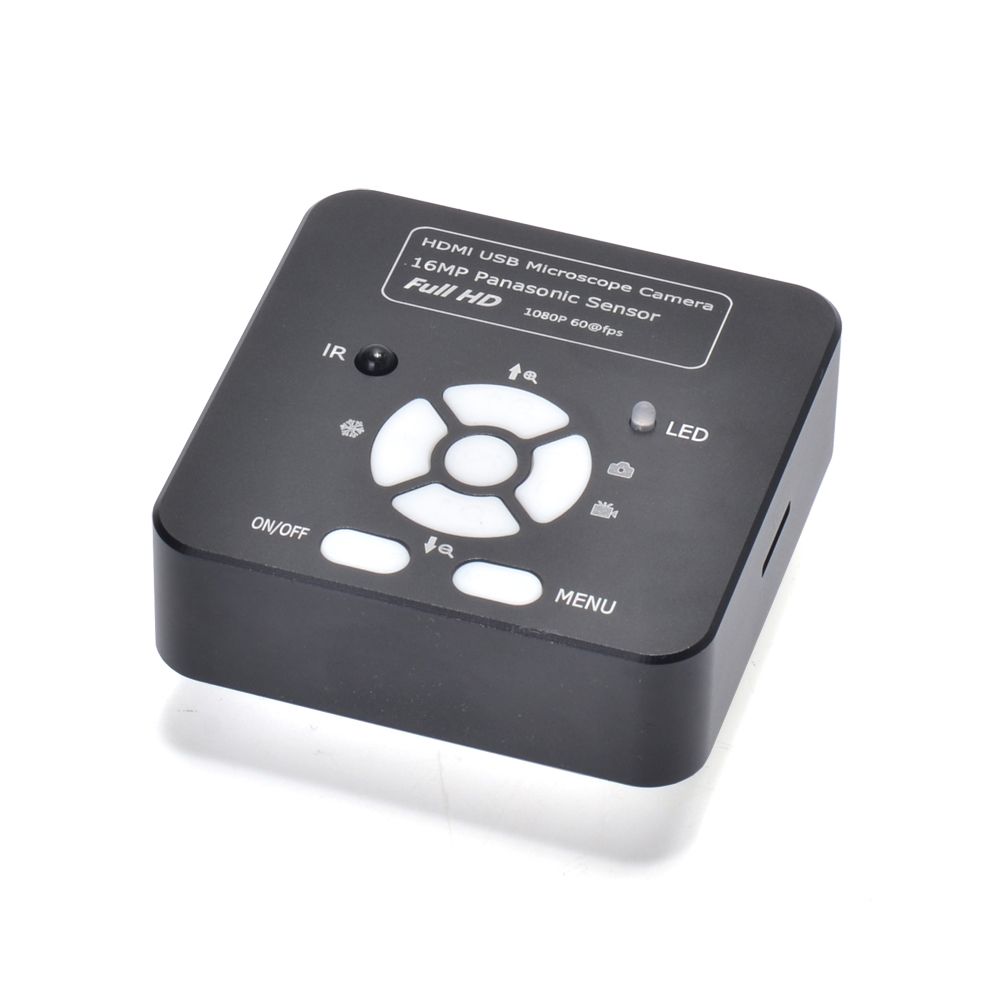

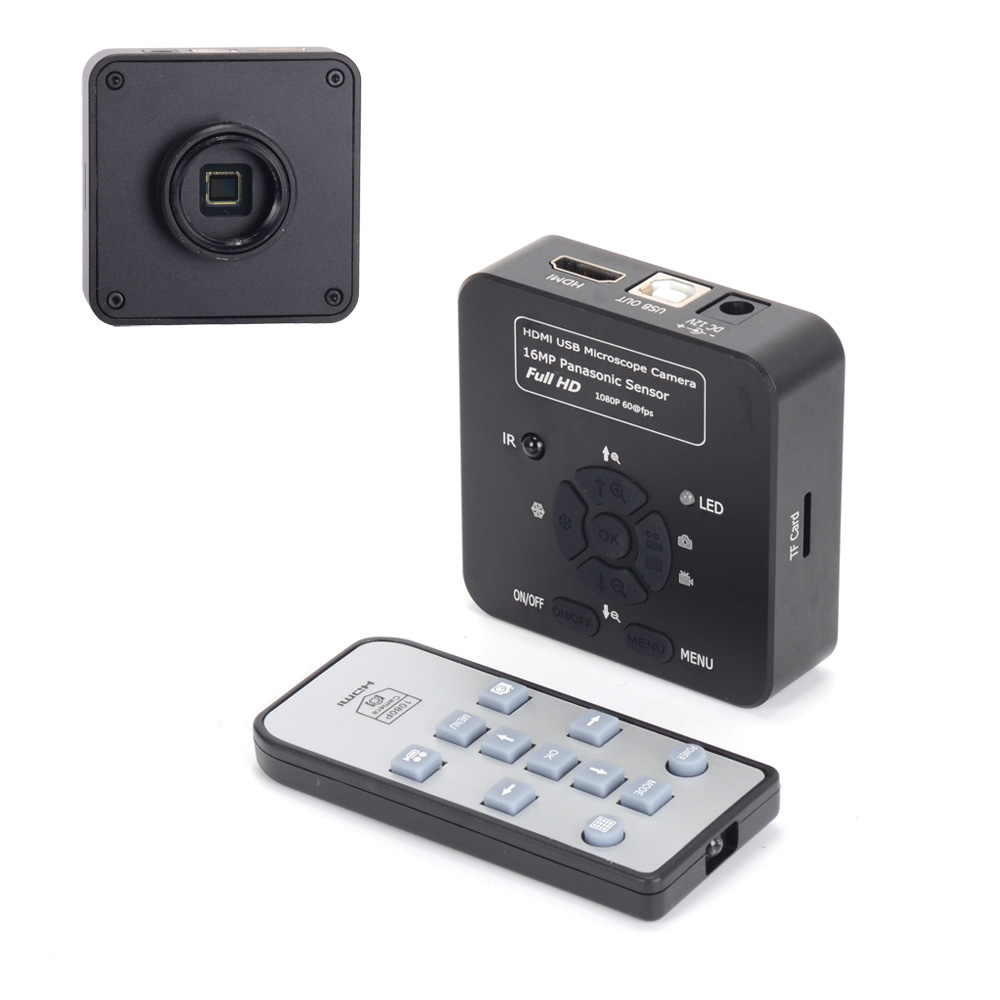

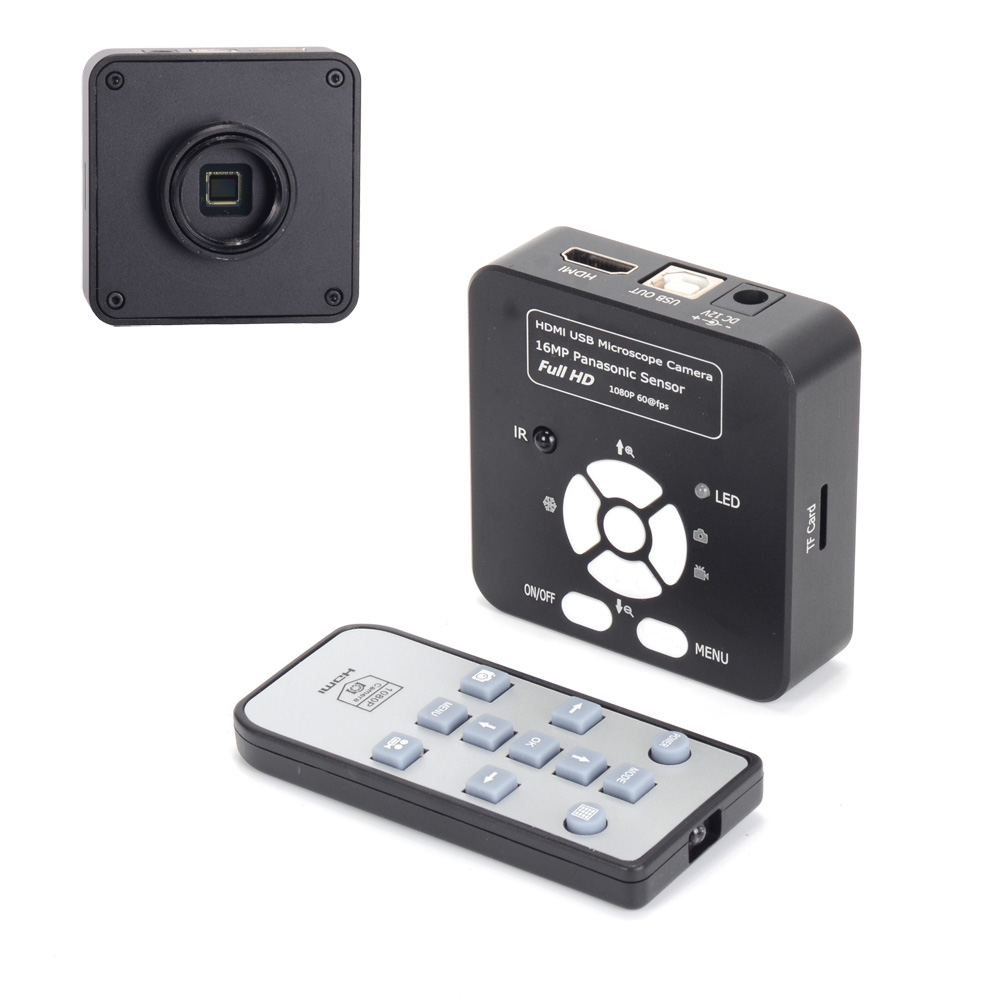

16MP 1080P HD USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder For Mobile Phone PCBrepair

Based on 0 reviews. - Write a review

$123.60

Ex Tax: $123.60

Stock: In Stock
Model: EB004993
SKU: EB004993

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Noting:

1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.

4:When connect the camera with computer, just plug the USB line ( no need to use the power supply)

Features:

Model: Camera with H dMI USB2.0 two output

Image format: jpg

Image resolution: 4608*3456 (for TF card) 1920*1080 @ 60FPS(for TF card)

Video format: MP4(for TF card)

Video recorder: 1920*1080 @ 60FPS (for TF Card)

HDMI Video resolution: 1920*1080 @ 60FPS

USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS

White Balance: Auto/Manual

Light: Auto/Manual

Exposure: Auto/Manual, value adjustable

Color: Color

Morror: Left/right,Up/Down

Freeze: Renhotec

OSD: English/Chinese/French/Spanish/Japanese/German

Line: Different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel CMOS sensor 1/2.33 inch

Effective pixel:16 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition:FULL HD

Housing:Metal

Lens:C/CS

Video format: MOV

Digital Zoom:Renhotec

Brightness control:Auto/manual

Color:R/G/B adjustable

Film and record:Renhotec

Cross cursor:Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, moveable

Different color,5 horizontal line , 5 vertical line,any positions

TF card interface:Max 64G

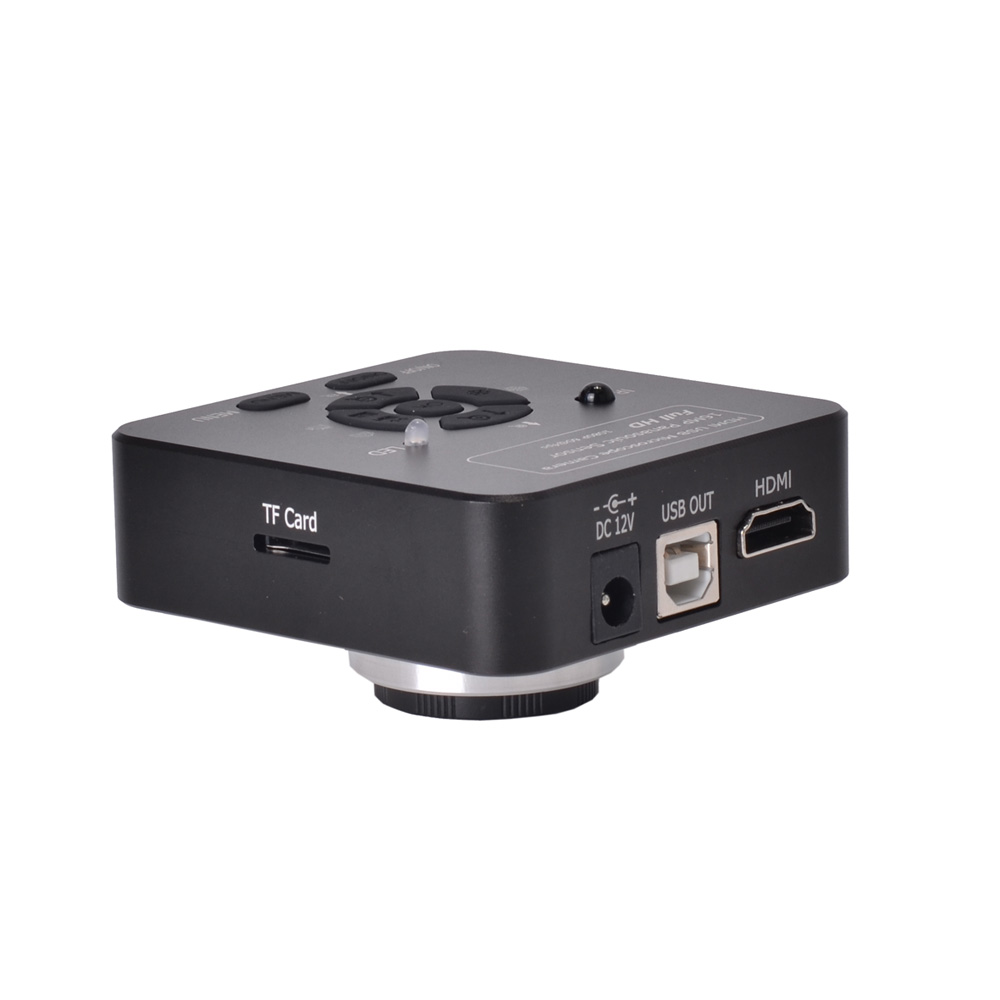

HDMI interface:Standard HDMI output (Type A)

USB interface:Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

Note:

We will send you a plug adapter according to your country.

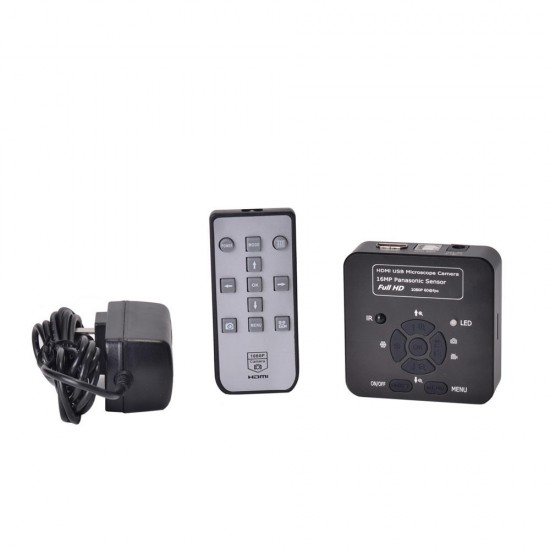

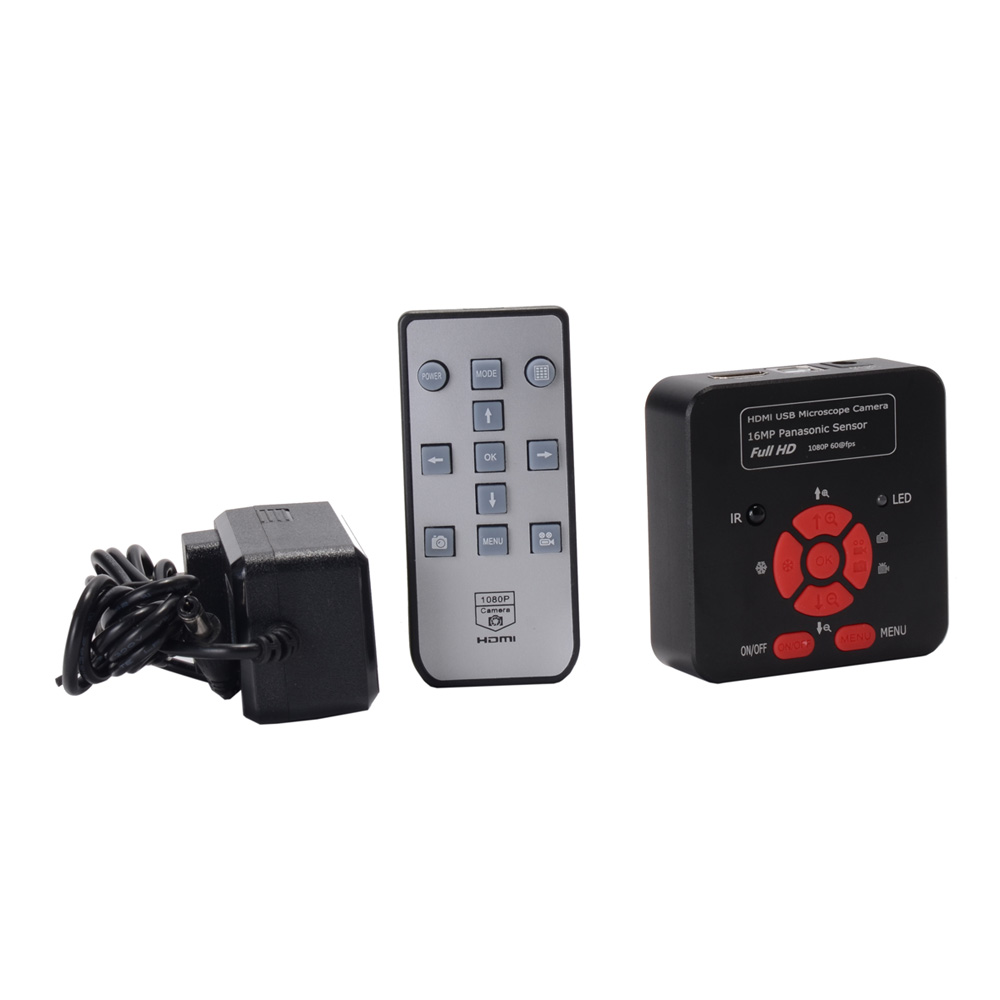

Package includes:

1 x Microscope Camera

1 x Power Supply(EU Plug NOTE:We will send you a plug adapter according to your country.)

1 x USB Line

1 x Software DISC

1 x Remote Control

Details pictures:

HAYEAR-16MP-1080P-HD-USB-Digital-Industry-Video-Inspection-Microscope-Camera-Set-TF-Card-Video-Recor-1497268
