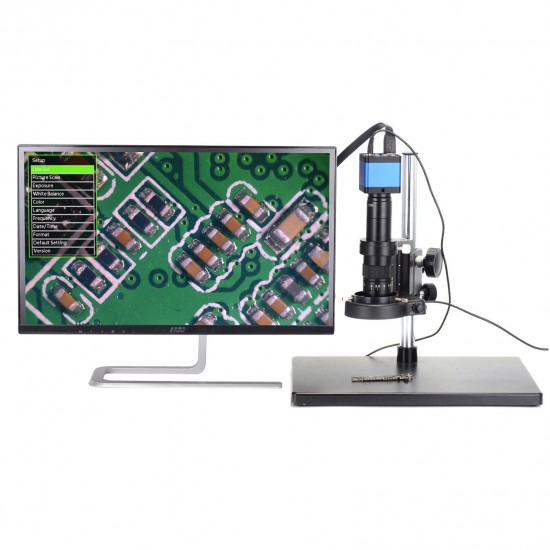

16 million Industrial Camera Industrial Test Microscope Small Size Light Weight Anti-vibration And Anti-impact Microscope

Based on 0 reviews. - Write a review

$121.56

Ex Tax: $121.56

Stock: In Stock
Model: EB004989
SKU: EB004989

Available Options

Model

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

High quality, high resolution, clear images.

Small size, light weight, anti-vibration and anti-impact, not affected by the magnetic field.

It can be used to take photos or videos with a remote control, convenient to use.

Support multi-color, 4pcs of transverse lines/vertical lines, moveable.

Suitable for industrial testing, medical micrographics and machine vision, etc.

Specification:

Model:HY-1600

Shell material:Aluminium Alloy

Image sensor: 16mega pixel, 1/2.33 inch CMOS sensor

HDMI input: 1920 x 1080

Effective pixel: 16 mega pixel

Pixel size: 1.335x1.335um

Frame rate: 60fps

White balance: Auto/manual

Digital magnification: 4 times digital zoom

Brightness control: Auto/manual

Color: R/G/B adjustable

Freeze: Renhotec

OSD: Renhotec

Camera and video recording: Renhotec

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line: Support multi-color, 4pcs of transverse lines/vertical lines, moveable

SNR: Renhotec

TF card interface: Max 32G

HDMI interface: Standard HDMI output (Type A)

Lens: C

USB interface: Standard usb2.0 interface (Type B)

AC Aapter:

Input:AC 100-240V/50-60Hz

Output:DC 12V

Questions:

LCD no video or flicker

Solutions:

1.Check power supply. Check green LED be onlight. Press Power Key to up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

Solutions:

1.change resolution of LCD

2.change resolution of camera

Dirty spot

Solutions:

Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

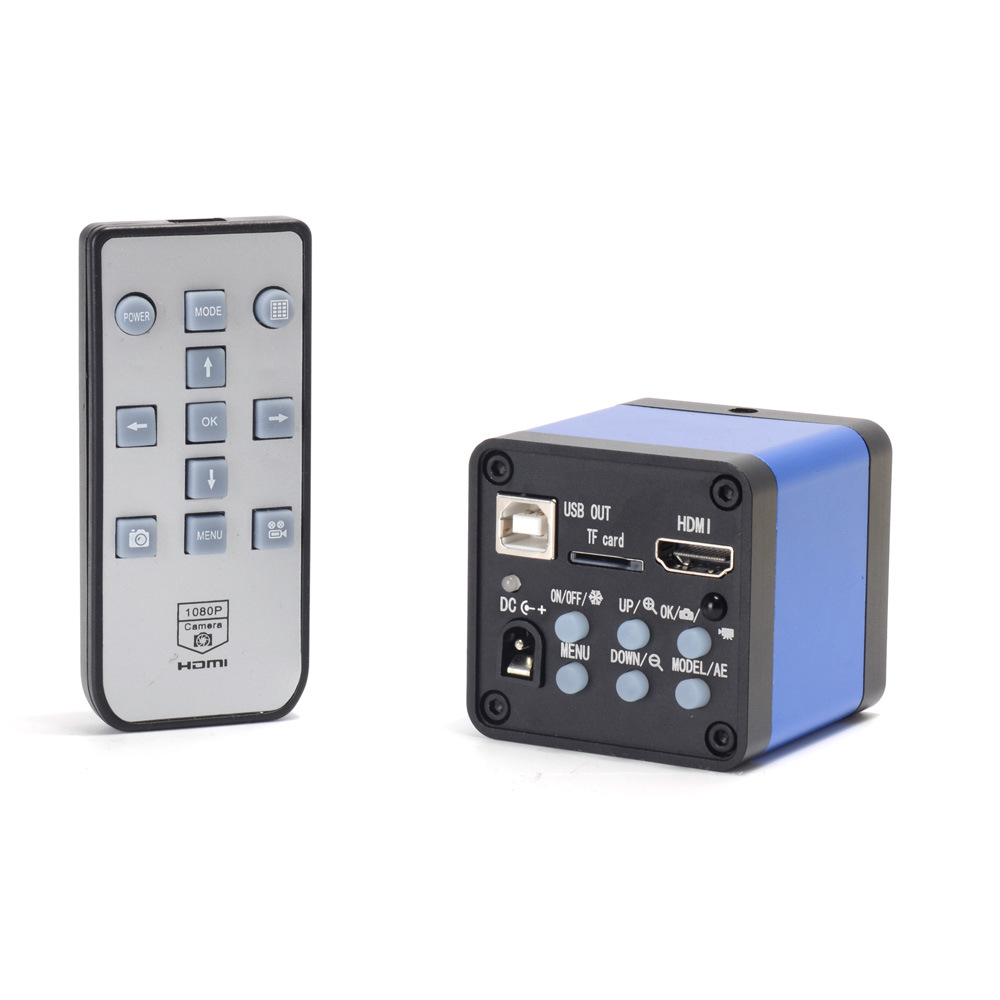

Package 1 Included:

1 x 16MP Industry Camera

1 x HDMI Cable

1 x USB Cable

1 x Power Adapter(According to different countries, we will send corresponding adapter.)

1 x Remote Control

1 x CD Drive

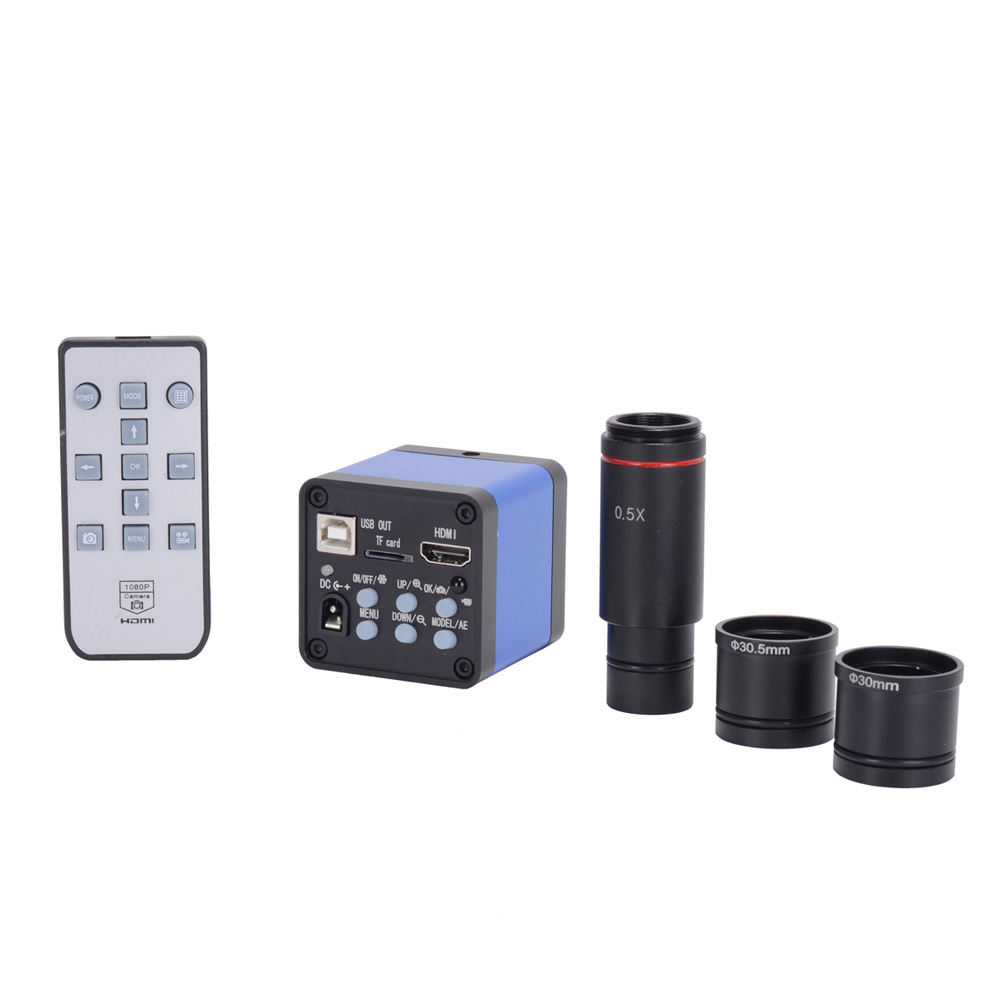

Package 2 Included:

1 x 16MP Industry Camera

1 x USB Cable

1 x Power Adapter(According to different countries, we will send corresponding adapter.)

1 x Remote Control

1 x CD Drive

1 x 0.5X C-Mount Lens Adapter

1 x Ring adapters 30mm

1 x Ring adapters 30.5mm

Note:

-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.

-Please allow 1-3CM differs due to manual measurement.

-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

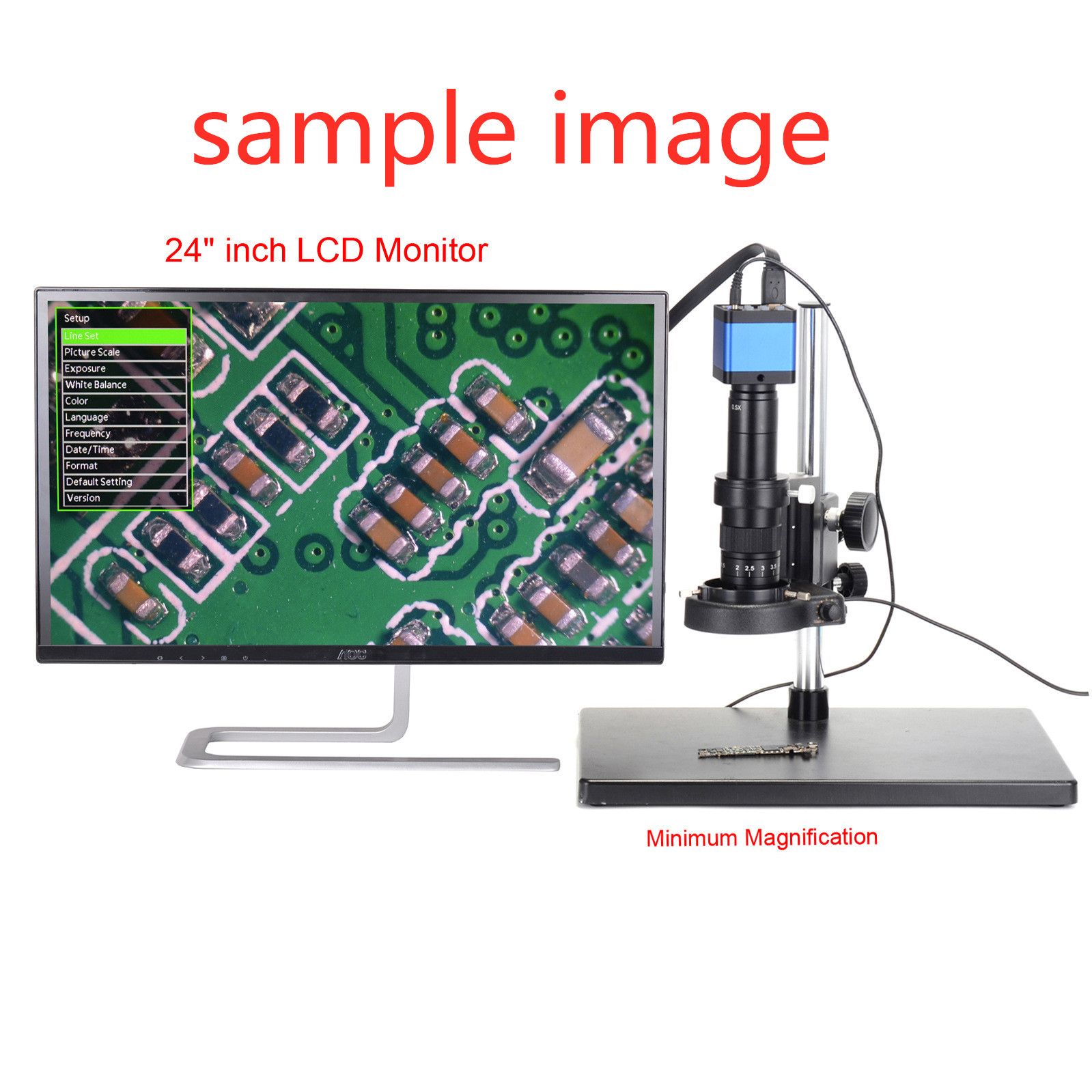

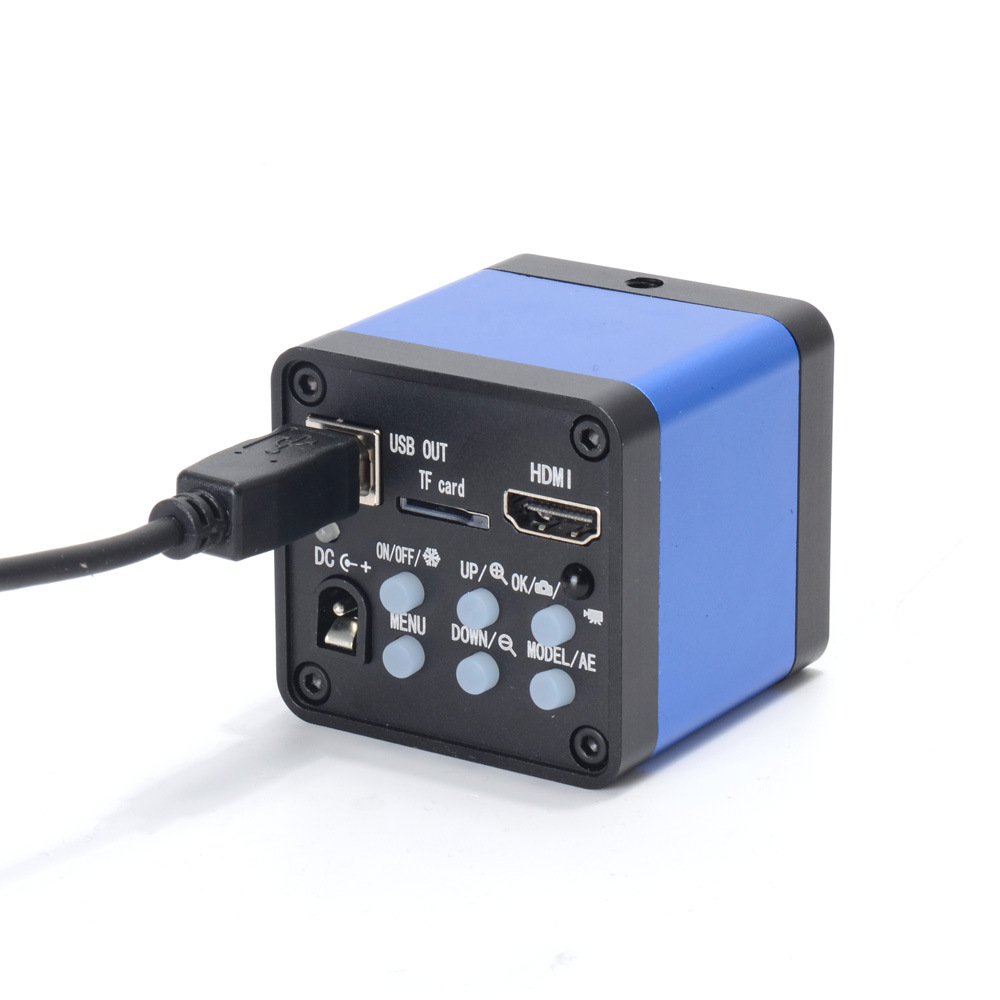

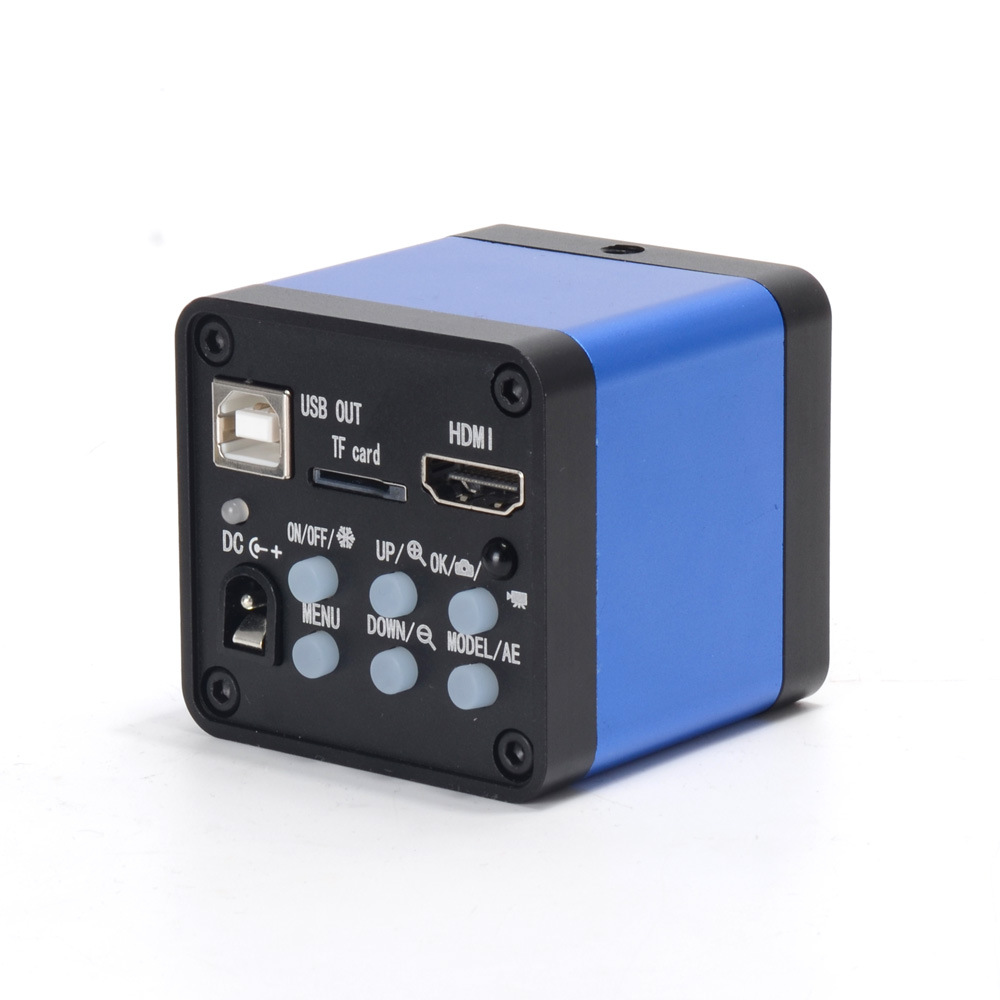

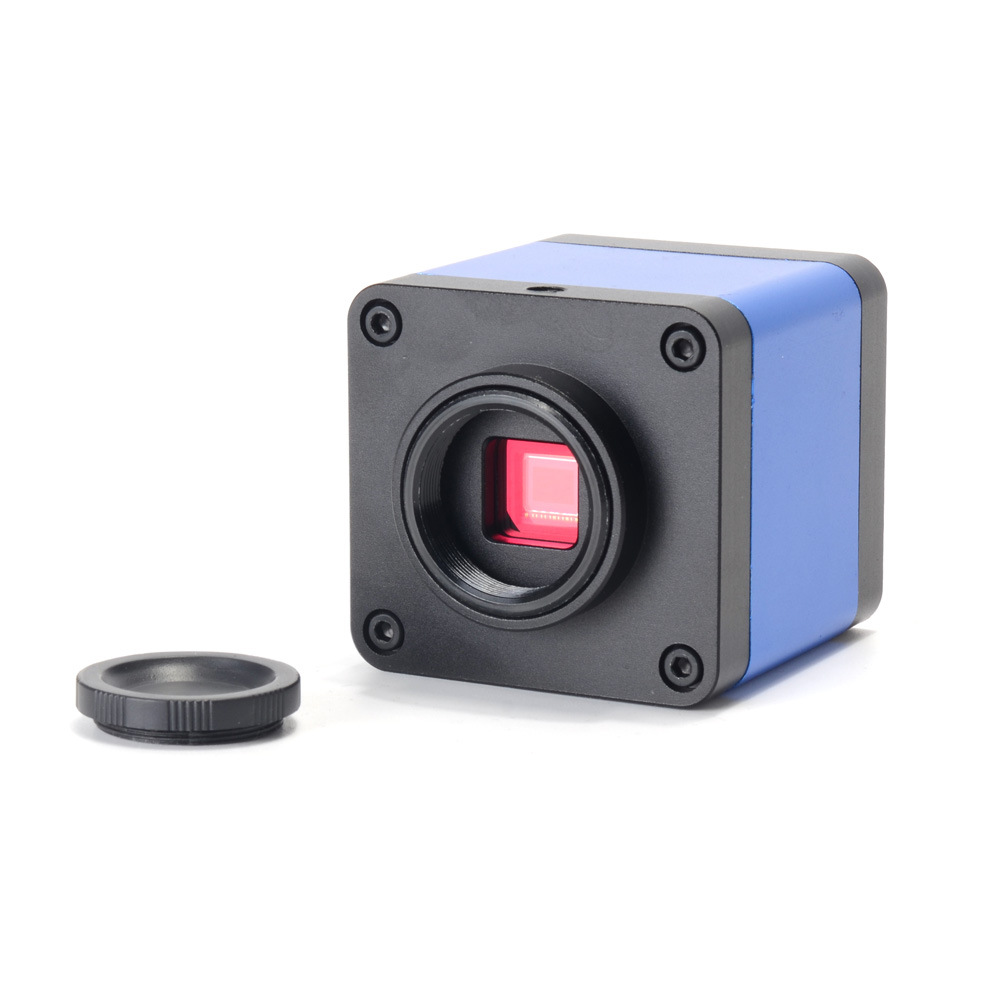

Detail pictures:

HAYEAR-16-million-Industrial-Camera-Industrial-Test-Microscope-Small-Size--Light-Weight-Anti-vibrati-1465109
