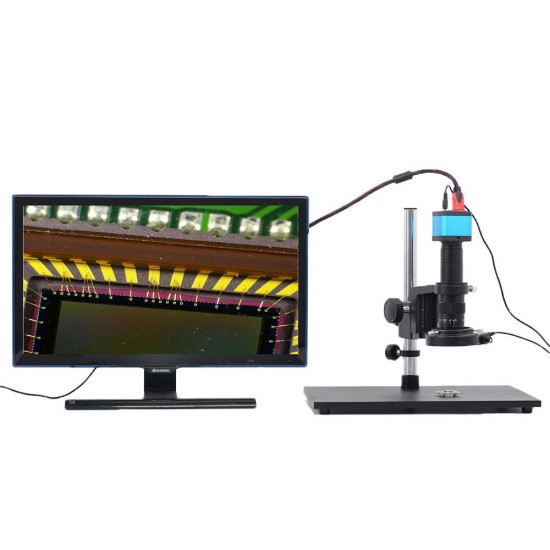

14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope

14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
14MP HDMI USB2.0 Two Output HD Display With WiFi Function Link Mobile Phone Display Microscope
$240.72
Ex Tax: $240.72
  • Stock: In Stock
  • Model: EB004962
  • SKU: EB004962

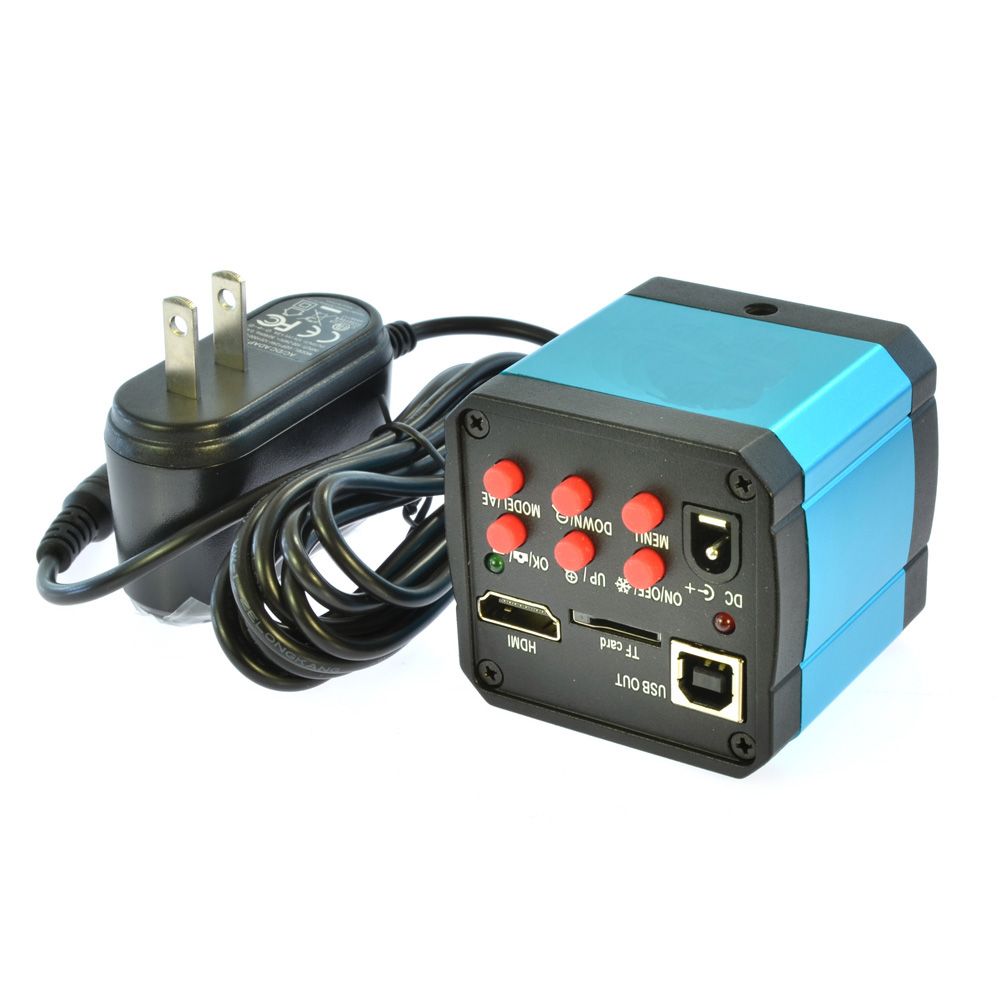

Microscope Camera:

Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MOP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Renhotec
Morror: Left/right,Up/Down
Freeze: Renhotec
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions


Specification:

Image sensor:14 megapixel  sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Renhotec
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Renhotec
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

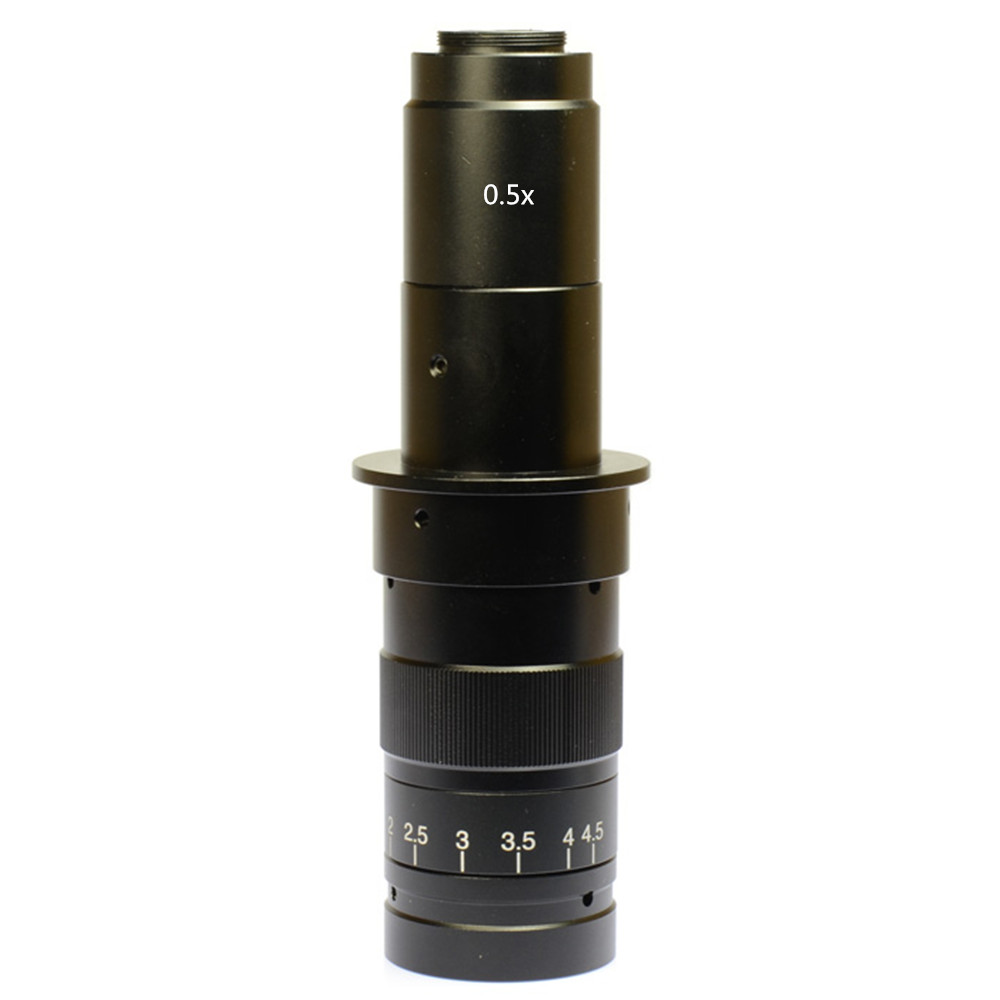

C-MOUNT Lens:

Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

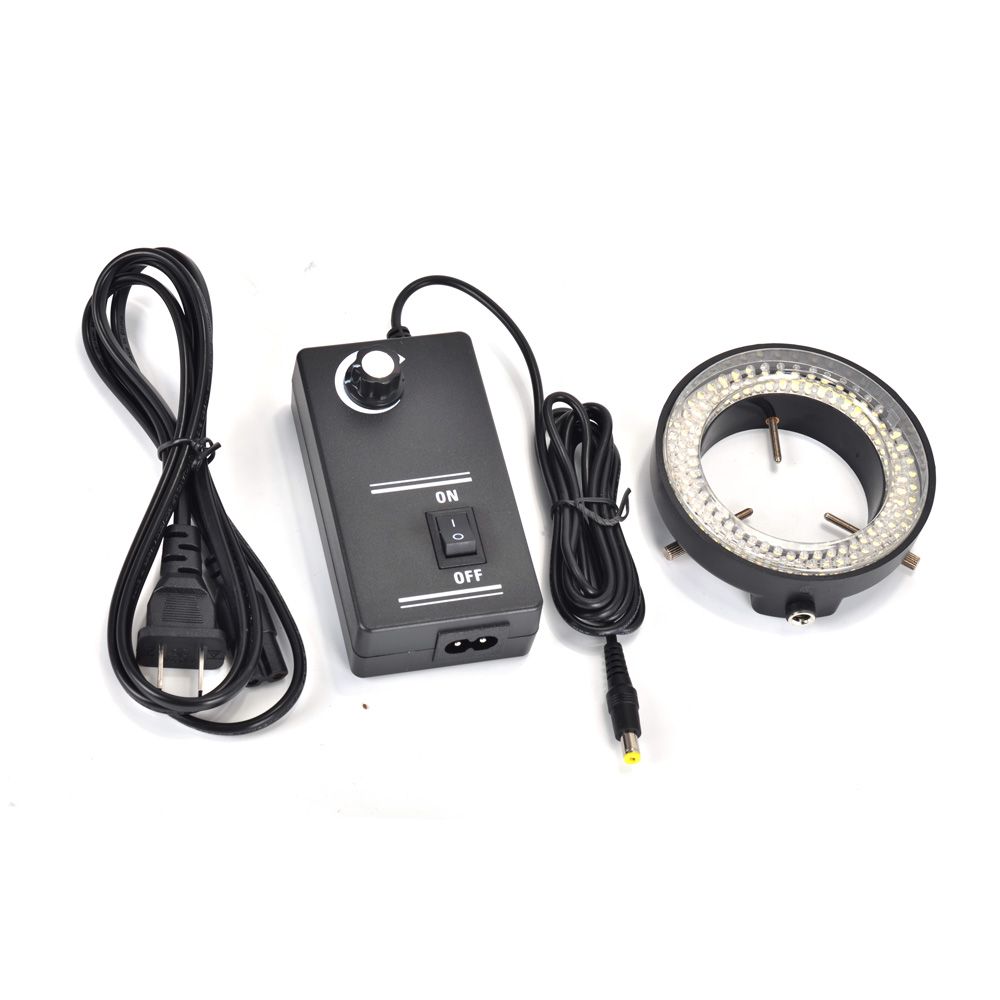

60 LED Light:

Light source: 60pcs LED
Input Voltage: AC90-240V
Output Voltage: DC12V
Output frequency: 4.5W
Working Distance: 40-160mm
Illumination: 30000LUX-35000LUX
color temperature: 6500K-7000K
brightness range control: 0% - 100%
light Color: cool white
Product Light:  >30000HRS
Valid optical length: 75mm
Valid optical path: 30mm
Power box size: 110 x 60 x 30mm
Material of power box: Plastic
Color: Black
Inside dia. Of Ring Light: 61.5mm
Outside dia. Of Ring Light: 94mm
Inside dia. Of ring holder: 26mm
Outside dia. Of ring holder: 45mm

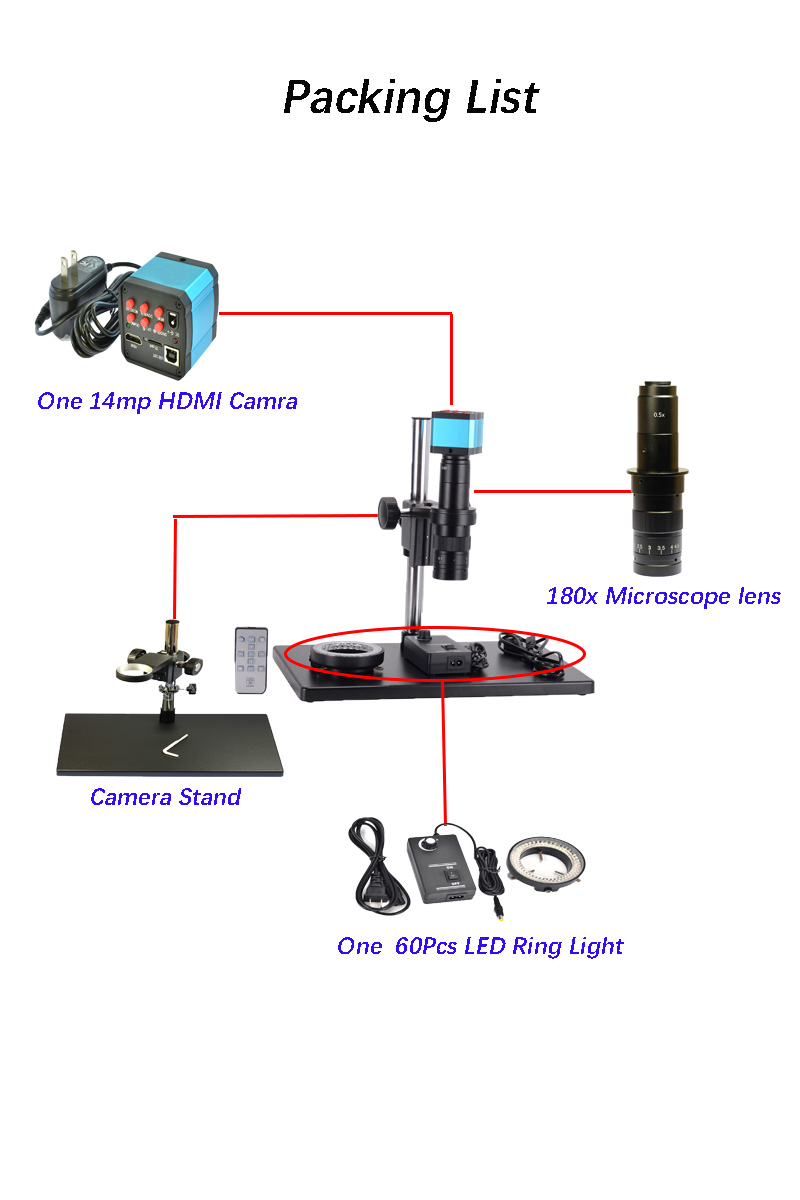

Package includes:
1*14mp HDMI Camera
1*180x Microscope Lens

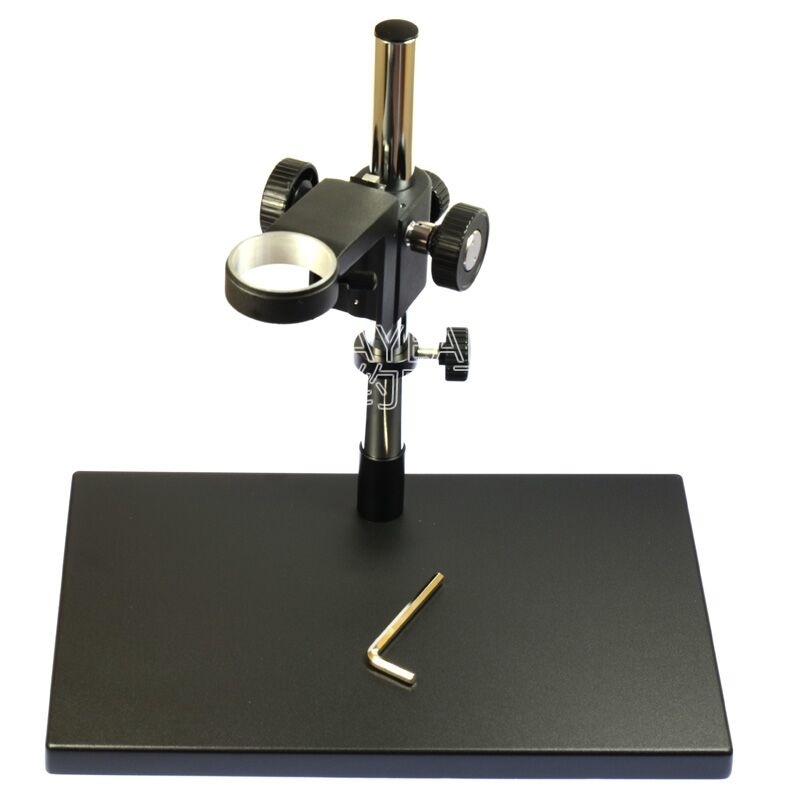

1*Camera Stand
1*60Pcs LED Ring Light


Details pictures:


HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821
HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821
HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821

HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821


HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821


HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821


HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821


HAYEAR-14MP-HDMI-USB20-Two-Output-HD-Display-With-WiFi-Function-Link-Mobile-Phone-Display--Microscop-1463821
