S1 NCV-Non Contact Backlit Digital Multimeter with Illumination
- Stock: In Stock
- Model: EB004405
- SKU: EB004405
Specification:
| Gear | Range | Resolution | Accuracy | Remarks |
| DC voltage (DVC) | 0.8V-600V | 0.001V-0.1V | ±(0.8%+5) | Minimum input voltage: 0.8V |
| Maximum input voltage: 600V | ||||
| Input impedance: 10M | ||||
| AC voltage (ACV) | 1V-600V (50-60HZ) | 0.001V-0.1V | ±(1.0%+5) | Minimum input voltage: 1V |
| Maximum input voltage: 600V | ||||
| Input impedance: 10M | ||||
| Resistance (Ω) | 0.1-40MΩ | 0.1Ω-10KΩ | ±(1.0%+5) | Overload protection 600V AC / DC |
| Current (A) | 0.001A-10A | 0.001A | ±(2.0%+5) | 10A fuse protection |
| Frequency (Hz) | 10Hz-2000Hz | 0.01Hz-1Hz | ±(2.0%+5) | Vpp 1V or more effective value |
| Maximum display value | 4000 | |||
| Automatic shut-down | √ | No operation delay 5 minutes | ||
| Backlight | √ | Auto-off after 30 seconds delay | ||
| flashlight | √ | Auto-off after 30 seconds delay | ||
| diode | √ | 2.0V | ||
| buzzer | Internal resistance is less than 50Ω | Overload protection 600V AC / DC | ||
| Buzzer indicator | √ | |||

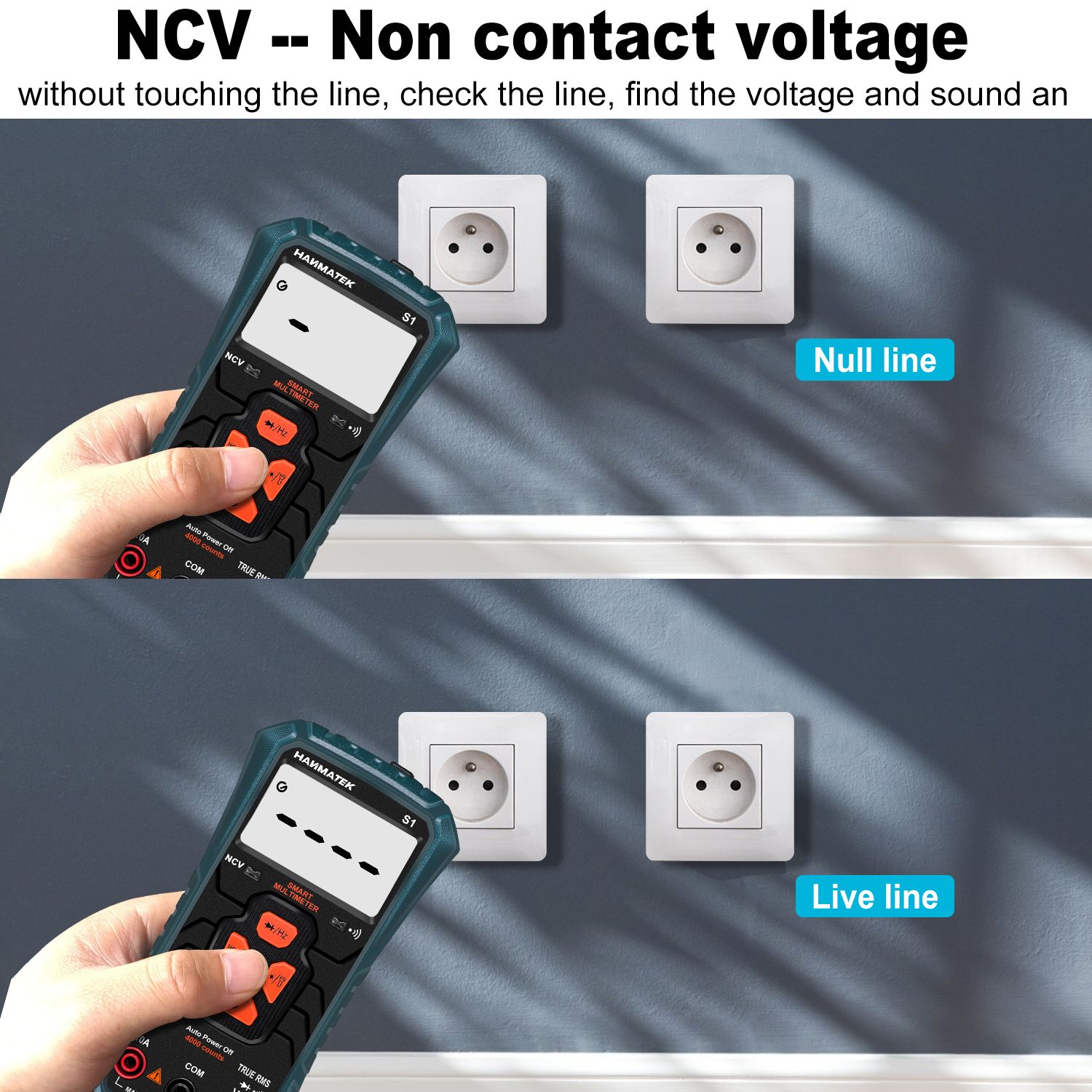

| NCV | √ | ---- corresponds to the change of strength | ||
| NCV indicator | √ | |||
| FireWire Discrimination | √ | ---- corresponds to the change of strength | ||
| True effective value | √ | 10-2KHz | ||
| Under voltage warning | √ |
NOTE:In order to ensure transportation safety, we will ship without batteries!!!

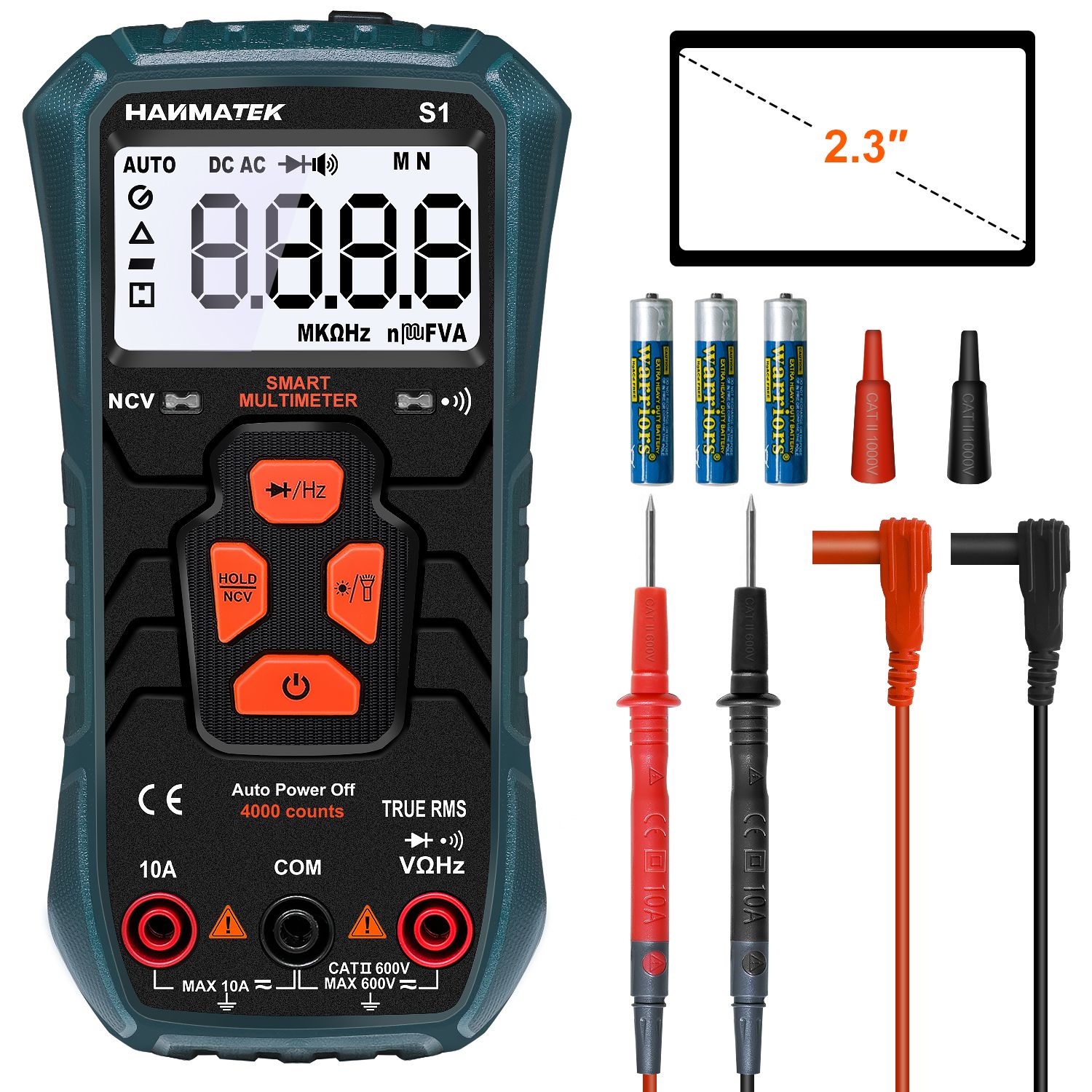

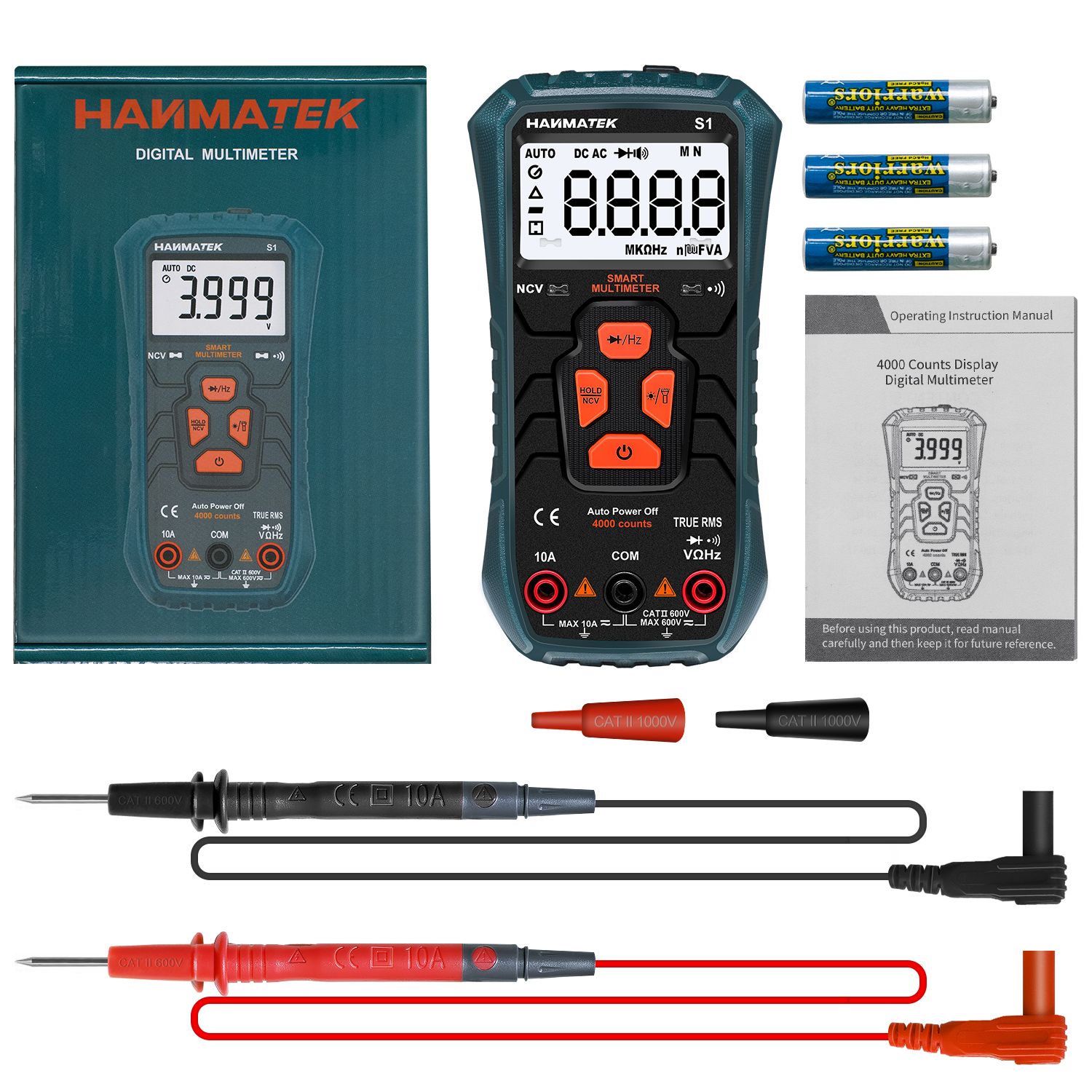

Package includes:
1 X HANMATEK S1 Multimeter
Details pictures:
